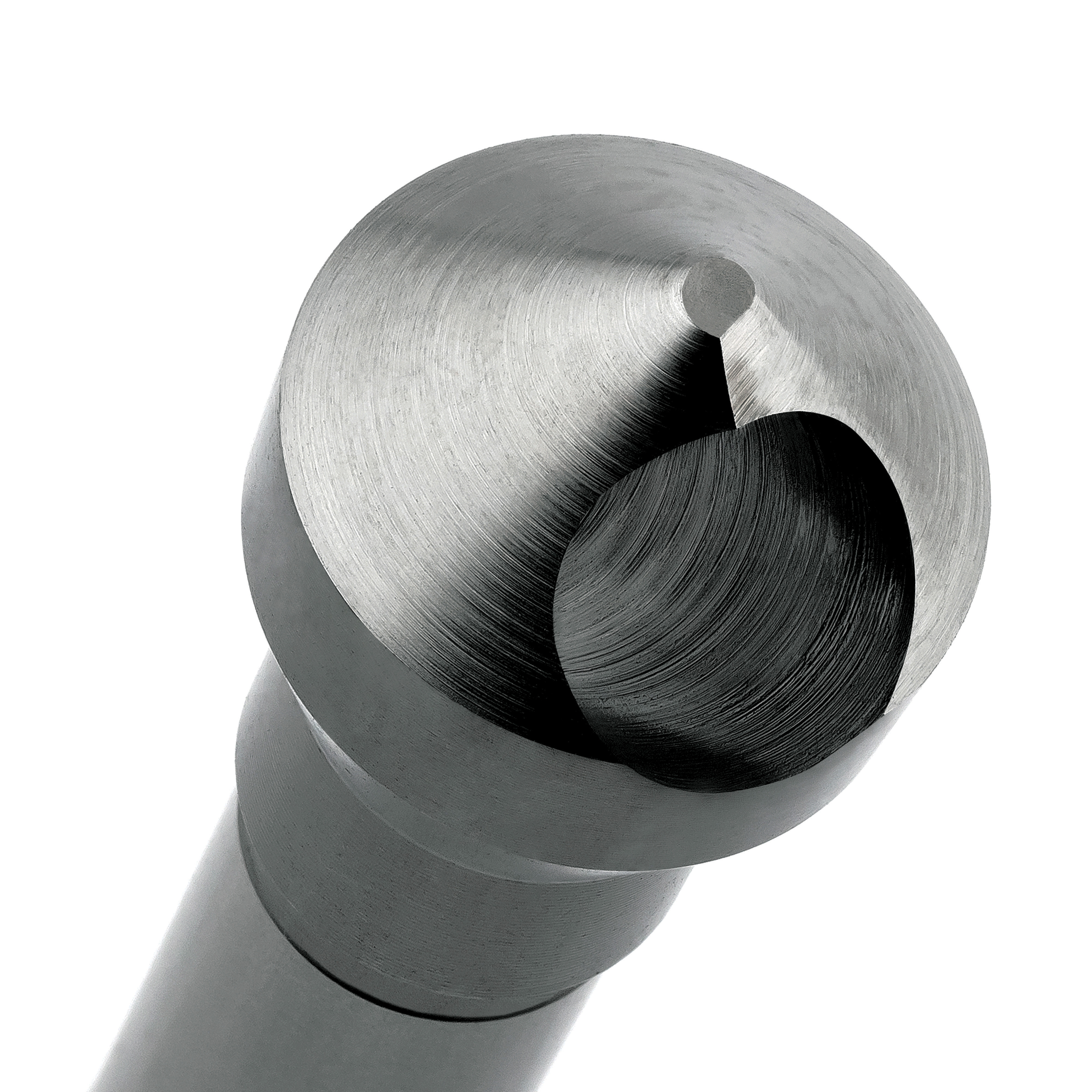

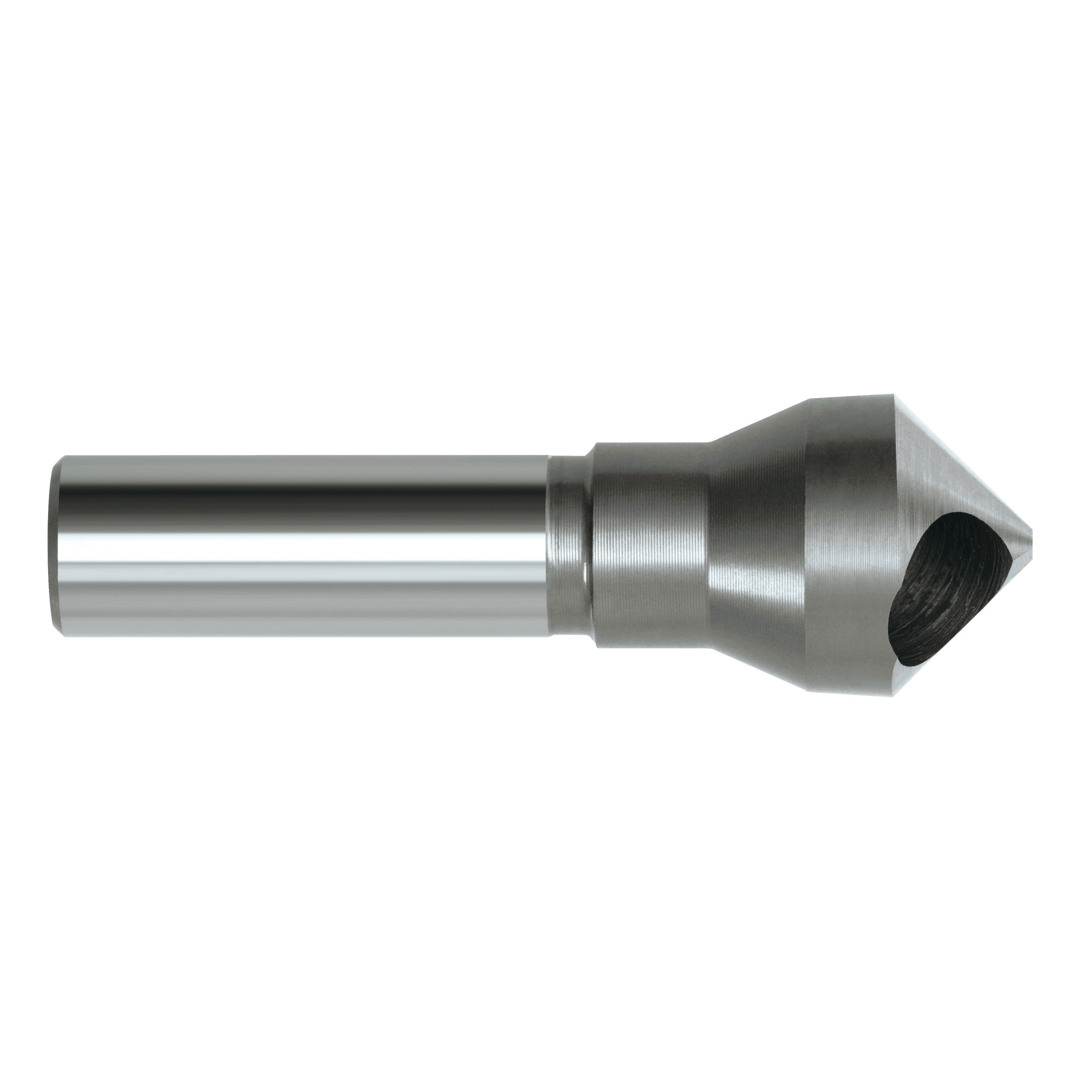

C101 901 Deburring Countersink Cross Hole HSS 90°

Name: DEBURRING C'SINK C101 901 CROSS HOLE D/END HSS 90deg
Brand: Sutton Tools
SKU: C1010901
Price: 53.38 NZD

SKU#:

C1010901

Item is in backorder

NZ$53.38

QTY

Enter a value between 1 and 99999 in increments of 1.

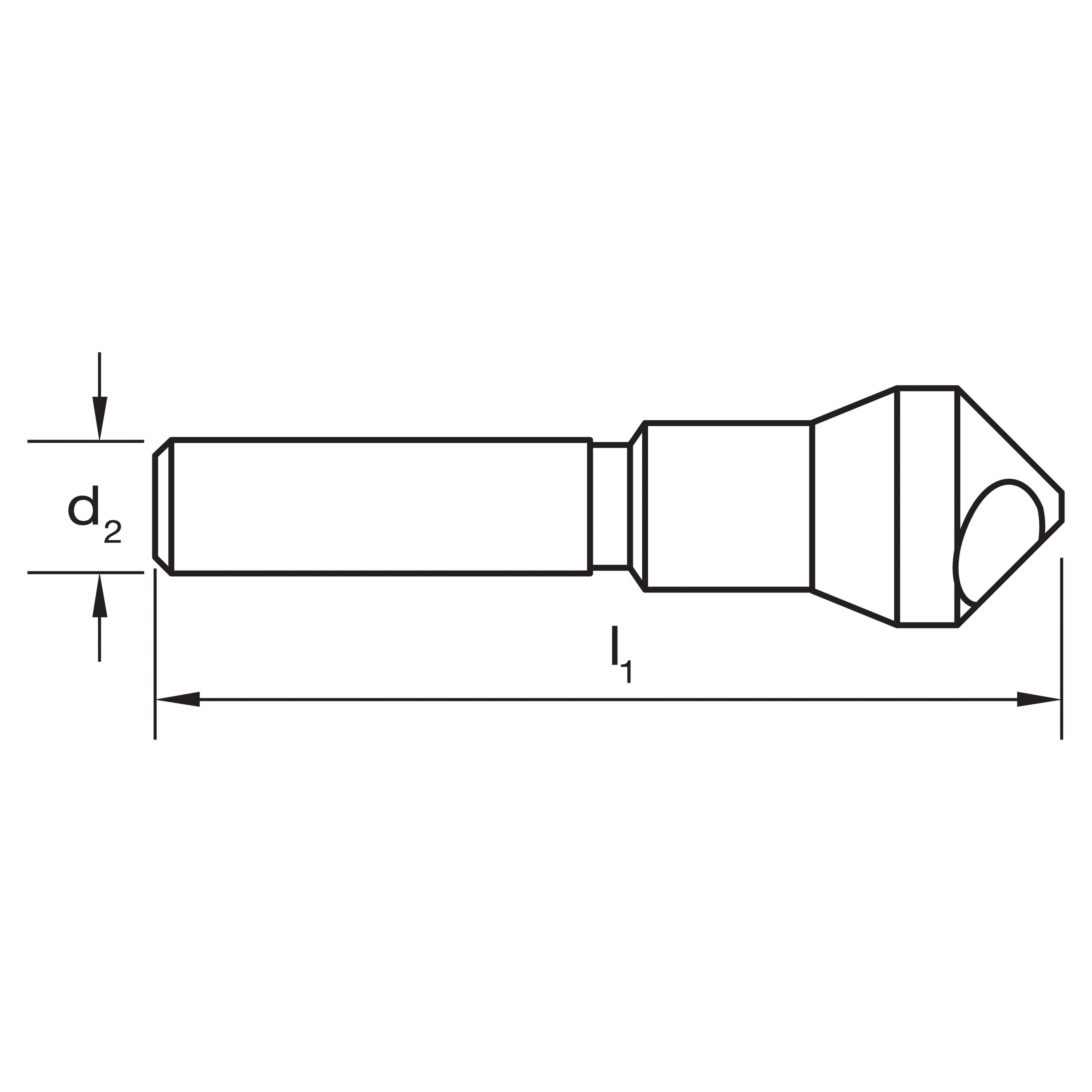

Item #	Diameter d1 (mm)	Diameter d2 (inch)	Length l1 (mm)	Range	Stock	Price	Action
C1010901	6.0	1/4	45	3 - 6	Item is in backorderItem is in backorder	NZ$53.38	Wishlist
C1010902	10.00	1/4	43	4 - 10	Item is in stock44 in stock	NZ$56.61	Wishlist
C1010903	13.00	1/4	48	5 - 13	Item is in stock25 in stock	NZ$75.72	Wishlist
C1010905	28.00	1/2	72	14 - 28	Item is in stock5 in stock	NZ$109.48	Wishlist

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275HB	930MPa
P	10	Steel - High alloy, cast & tool	Annealed	200HB	680MPa
K	15	Cast Iron, Grey (GG) - Ferritic / Pearlitic		180HB	610MPa
K	16	Cast Iron, Grey (GG) - Pearlitic		260HB	880MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
K	19	Cast Iron, Malleable - Ferritic		130HB	460MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%		110HB	390MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials

Designation: N

Material: HSS

Finish: Brt

Standard: Sutton

Point Type: 90
