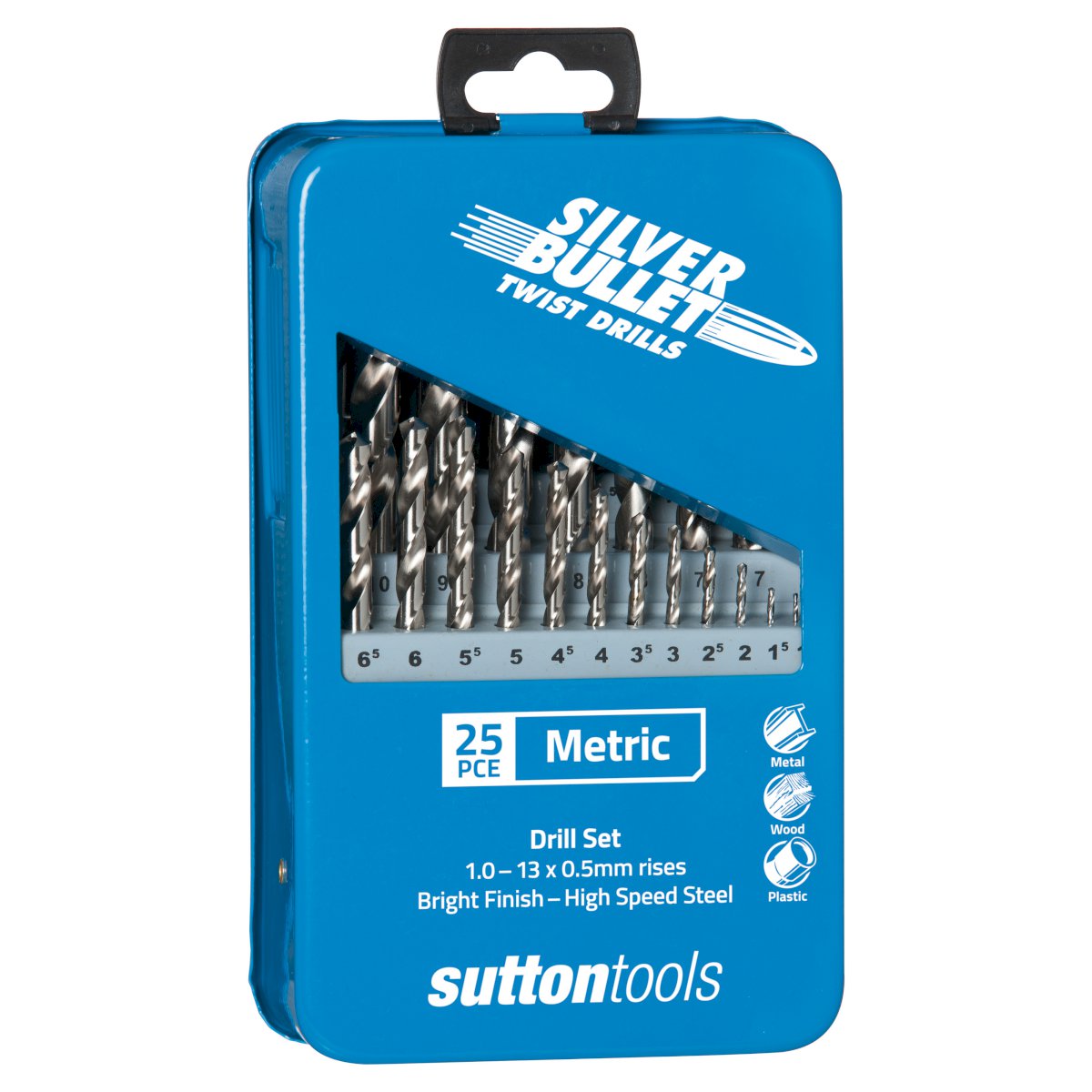

DRILL D101 MTLSM3 JOBBER HSS SILV BULLET SET 1-13MM 25PC

SKU#:

D101MTLSM3
Item is in stock23 in stock
NZ$259.00

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Sutton Tools Silver Bullet Jobber Drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics. 118° Standard Point - For general purpose applications Precision Engineered Parallel shank - For accurate hole size Made from M2 High Speed Steel (HSS) - Offers the best combination of strength, heat & wear resistance Bright Finish - For general purpose applications, non-ferrous metals & plastics

Item #DescriptionPiecesRangeCaseQtyStockPriceAction
D101MTLSM3MTLSM3 - Metric Set251.0 - 13.0mm x 0.5mm risesMetal
Item is in stock23 in stock
NZ$259.00
D101S3S3 - Imperial Set291/16 - 1/2in x 1/64in risesABS
Item is in stock15 in stock
NZ$268.17
D101SM1SM1 - Metric Set131.5 - 6.5mm x 0.5mm rises +3.2 & 4.8mmPlastic
Item is in stock76 in stock
NZ$59.39
D101SM2SM2 - Metric Set191.0 - 10.0mm x 0.5mm risesABS
Item is in stock41 in stock
NZ$139.00
D101SM3SM3 - Metric Set251.0 - 13.0mm x 0.5mm risesABS
Item is in stock175 in stock
NZ$258.89

  • 118° Standard Point - For general purpose applications
  • Precision Engineered Parallel shank - For accurate hole size
  • Made from M2 High Speed Steel (HSS) - Offers the best combination of strength, heat & wear resistance
  • Bright Finish - For general purpose applications, non-ferrous metals & plastics
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N25Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable130HB460MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N27Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)90HB320MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa
N29Non-metallic - Thermosetting & fiber-reinforced plastics
H40Cast Iron - ChilledCast400HB1350MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 5xD
Shank Form: A
Helix Angle: Designation: N
Point Tolerance: h8
Point Angle: 118°
Point Form: Form A
Standard: ANSI B94-11 / DIN338
