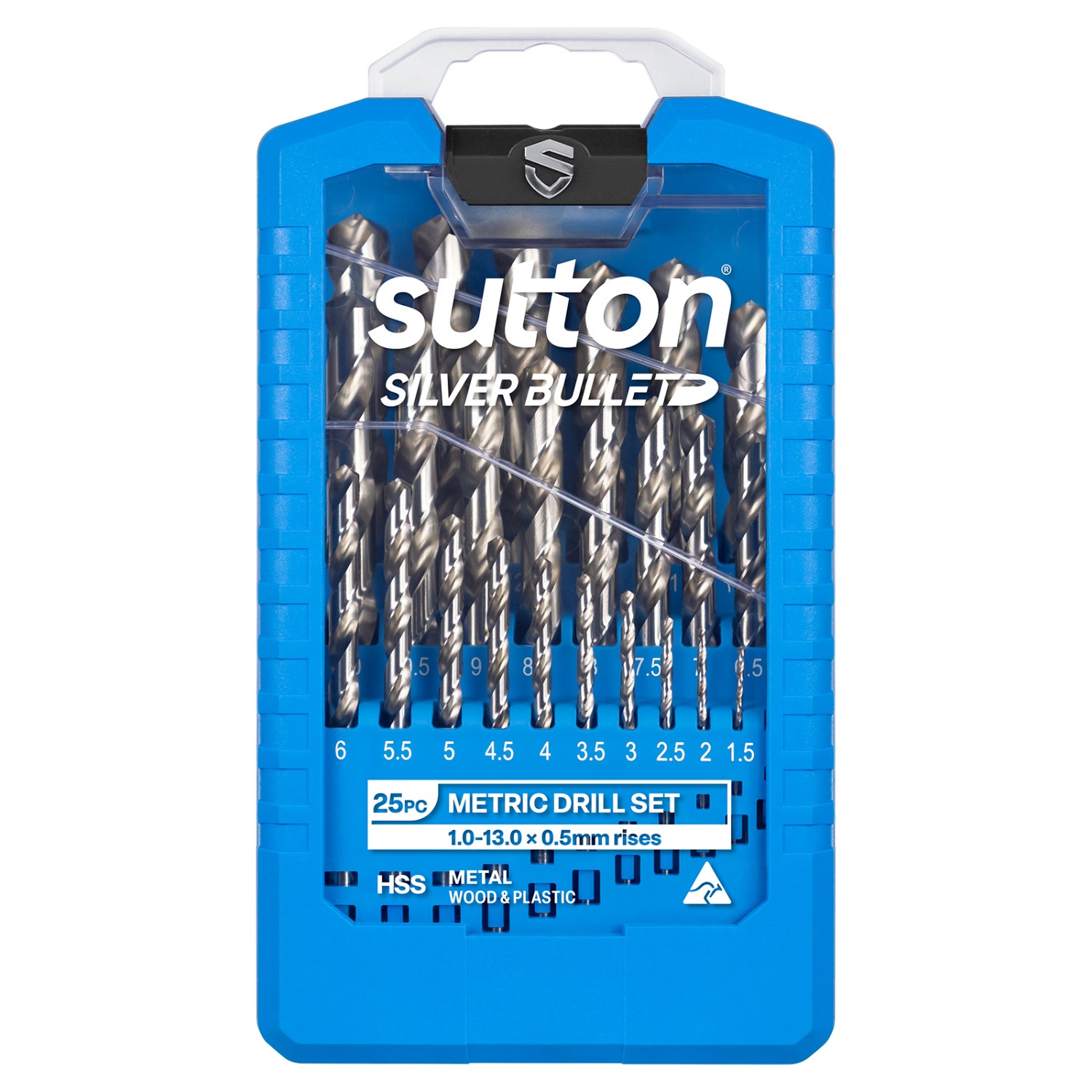

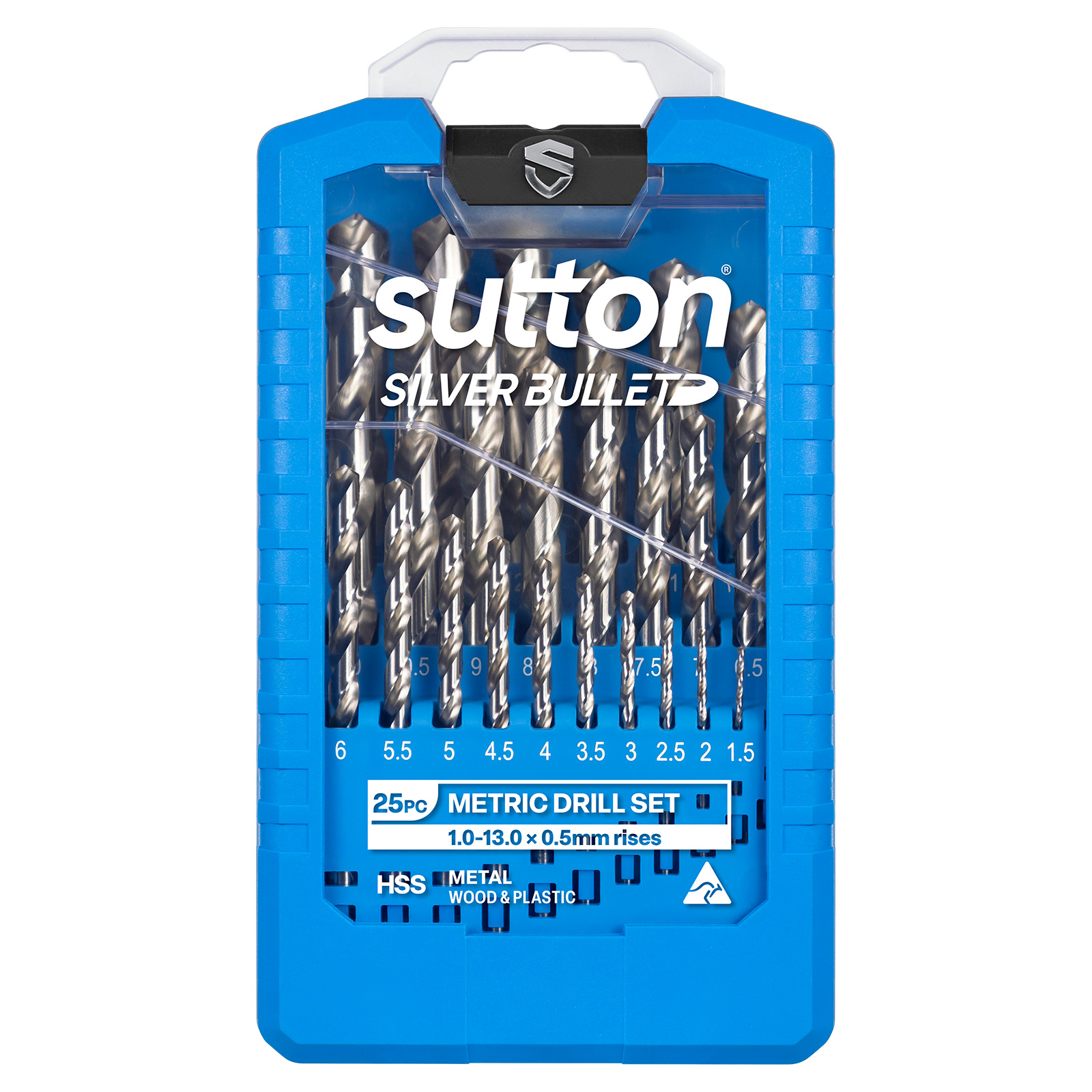

DRILL D101 SM3 JOBBER HSS SILV BULLET SET 1-13MM 25PC
SKU#:
Minimum Quantity is 1 • Sold in increments of 1
Enter a value between 1 and 99999 in increments of 1.

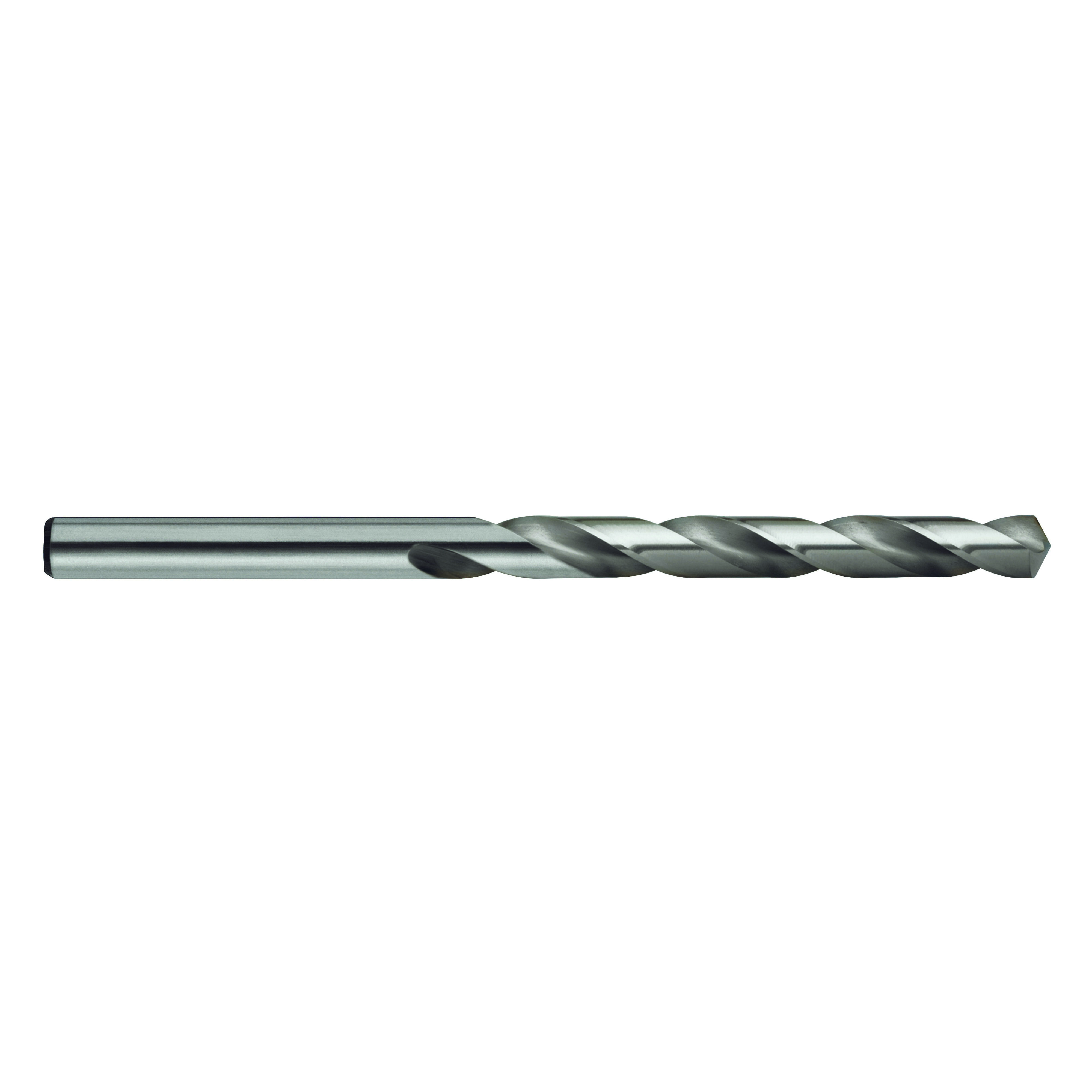

Sutton Tools Silver Bullet Jobber Drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics. 118° Standard Point - For general purpose applications Precision Engineered Parallel shank - For accurate hole size Made from M2 High Speed Steel (HSS) - Offers the best combination of strength, heat & wear resistance Bright Finish - For general purpose applications, non-ferrous metals & plastics
| Item # | Description | Pieces | Range | Case | Qty | Stock | Price | Action |
|---|---|---|---|---|---|---|---|---|
| D101MTLSM3 | ||||||||
| D101S3 | ||||||||
| D101SM1 | ||||||||
| D101SM2 | ||||||||
| D101SM3 |
- 118° Standard Point - For general purpose applications
- Precision Engineered Parallel shank - For accurate hole size
- Made from M2 High Speed Steel (HSS) - Offers the best combination of strength, heat & wear resistance
- Bright Finish - For general purpose applications, non-ferrous metals & plastics
| ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
|---|---|---|---|---|---|---|
| P | 1 | Steel - Non-alloy, cast & free cutting (~ 0.15 %C) | Annealed | 125HB | 440MPa | |
| P | 2 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Annealed | 190HB | 640MPa | |
| P | 3 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Quenched & Tempered | 250HB | 840MPa | |
| P | 4 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Annealed | 270HB | 910MPa | |
| P | 6 | Steel - Low alloy & cast < 5% of alloying elements | Annealed | 180HB | 610MPa | |
| P | 7 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 275HB | 930MPa | |
| P | 10 | Steel - High alloy, cast & tool | Annealed | 200HB | 680MPa | |
| K | 15 | Cast Iron, Grey (GG) - Ferritic / Pearlitic | 180HB | 610MPa | ||
| K | 17 | Cast Iron, Nodular (GGG) - Ferritic | 160HB | 570MPa | ||
| N | 21 | Aluminum & Magnesium, wrought alloy - Non Heat Treatable | 60HB | 210MPa | ||
| N | 22 | Aluminum & Magnesium, wrought alloy - Heat Treatable | Age Hardened | 100HB | 360MPa | |
| N | 23 | Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable | 75HB | 270MPa | ||
| N | 24 | Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable | Age Hardened | 90HB | 320MPa | |
| N | 25 | Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable | 130HB | 460MPa | ||
| N | 26 | Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% | 110HB | 390MPa | ||
| N | 27 | Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) | 90HB | 320MPa | ||
| N | 28 | Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) | 100HB | 360MPa | ||
| N | 29 | Non-metallic - Thermosetting & fiber-reinforced plastics | ||||
| H | 40 | Cast Iron - Chilled | Cast | 400HB | 1350MPa |
KEY
OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 5xD
Shank Form: A
Helix Angle: Designation: N
Point Tolerance: h8

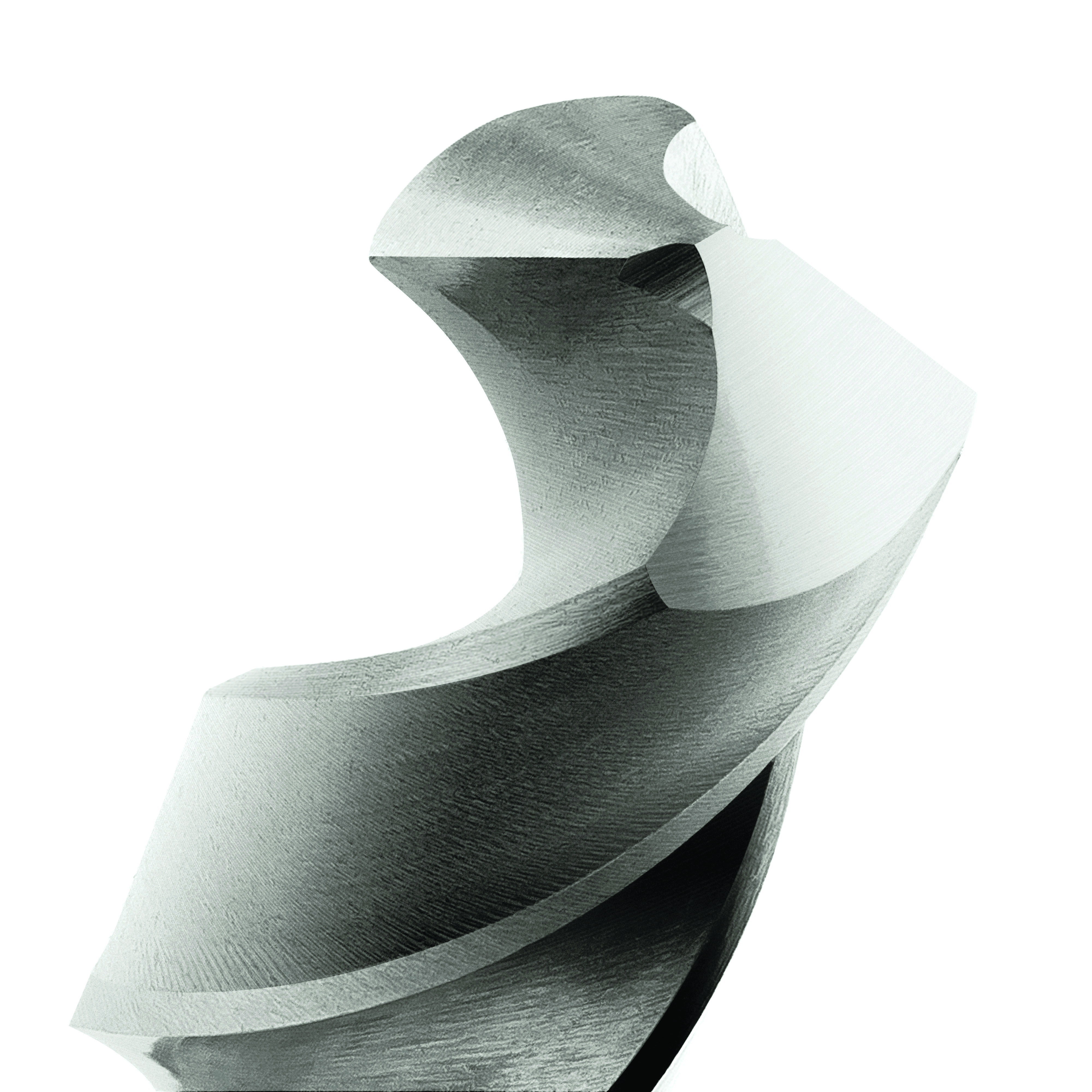

Point Angle: 118°
Point Form: Form A
Standard: ANSI B94-11 / DIN338
