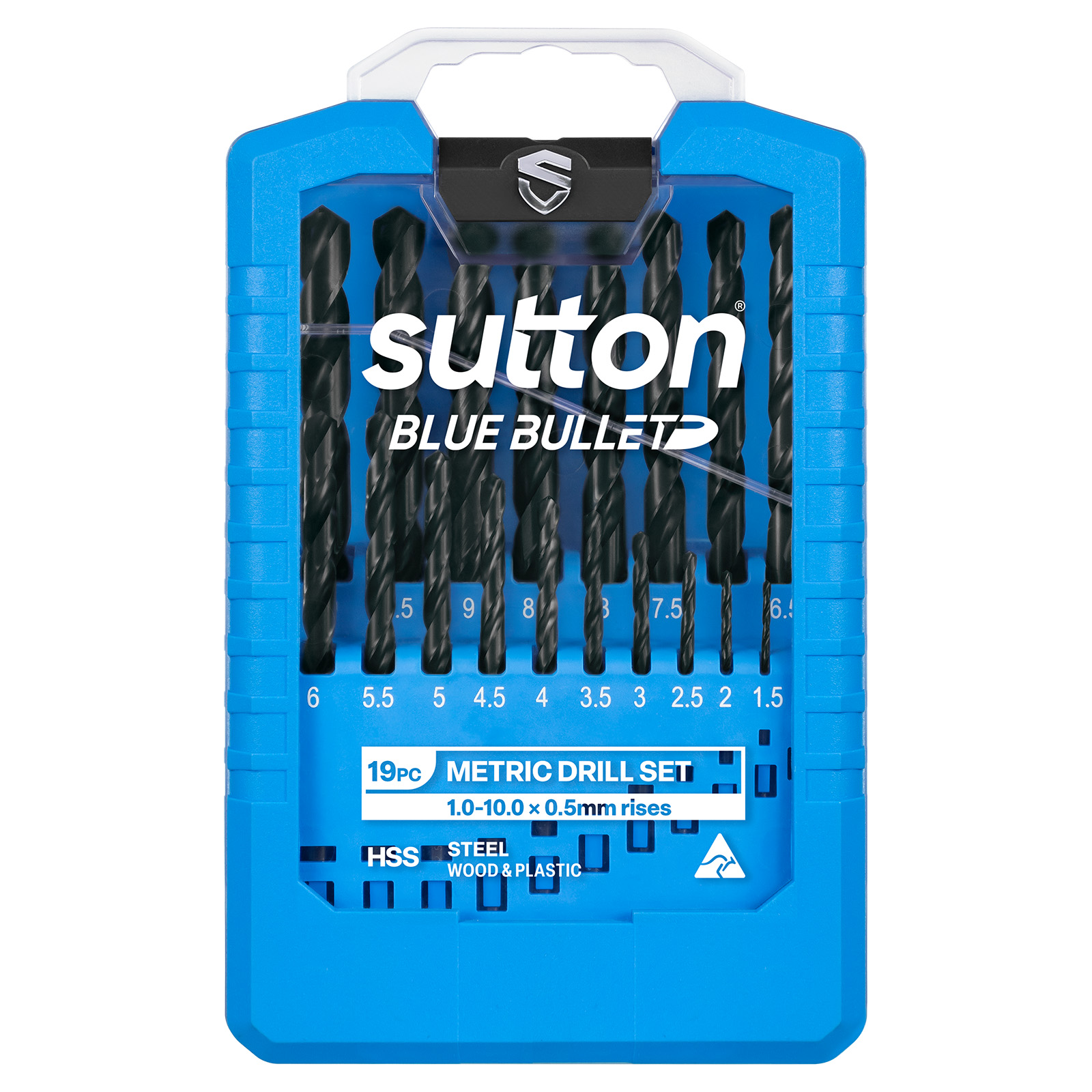

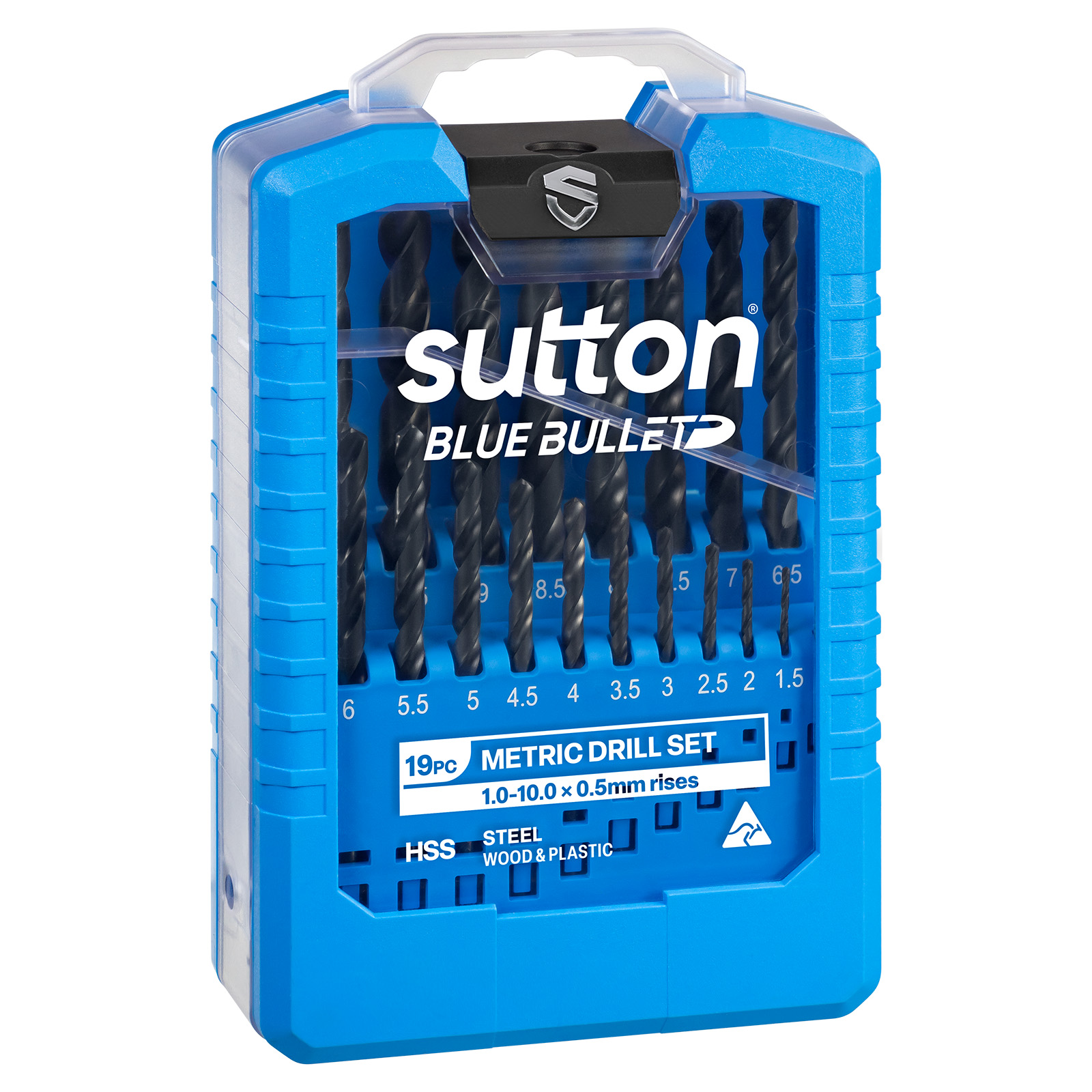

DRILL D102 SM2 JOBBER HSS BLUE BULLET SET 1-10MM 19PC

SKU#:

D102SM2

Item is in backorder

NZ$139.00

Minimum Quantity is 1 • Sold in increments of 1

QTY

Enter a value between 1 and 99999 in increments of 1.

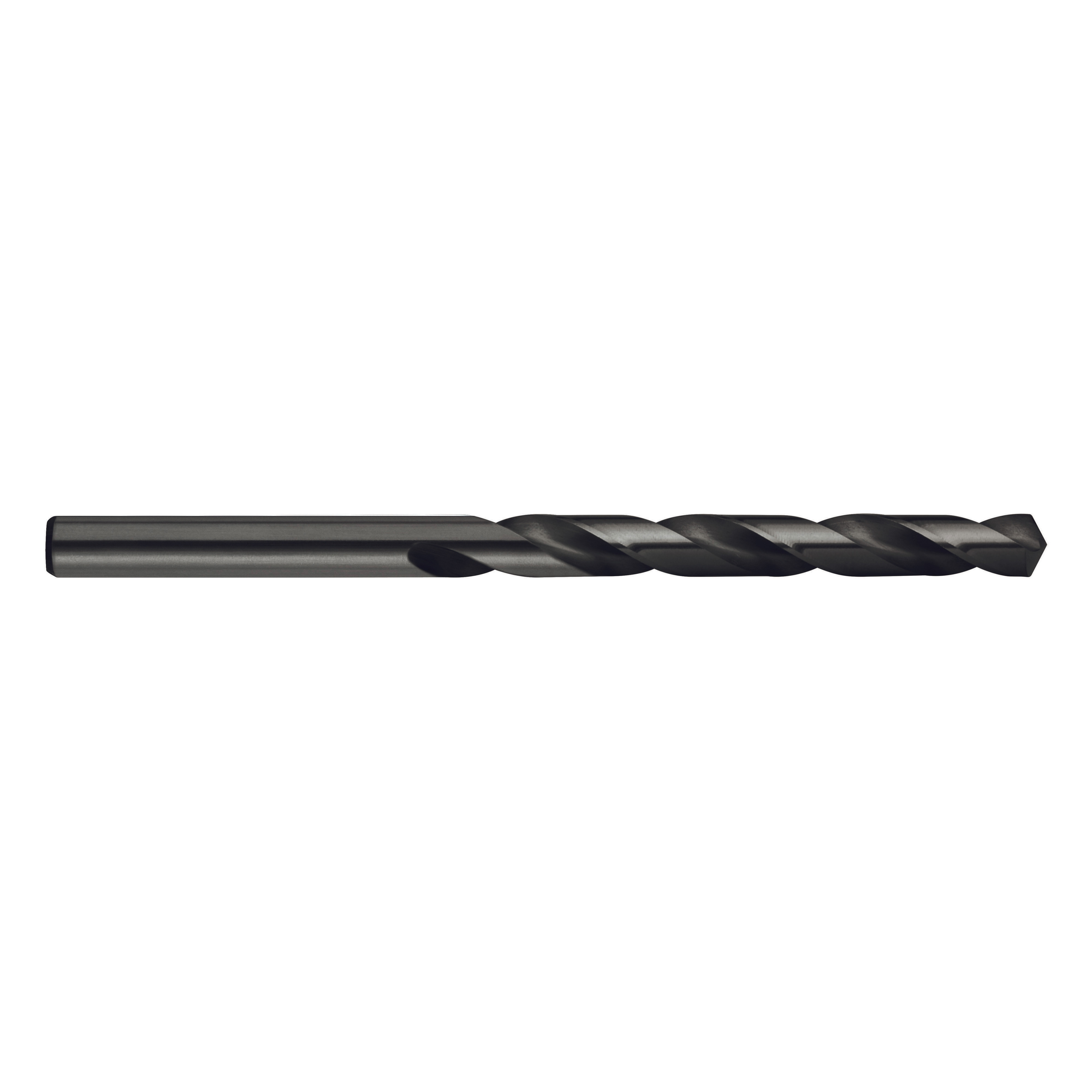

Blue Bullet jobber drills are optimised for drilling ferrous metals but are also suitable for wood & plastic. They are designed for both machine and hand held drilling applications.

Item #	Description	Pieces	Range	Case	Stock	Price	Action
D102S3	S3	29	1/16 – 1/2 x 1/64 rises	ABS	Item is in stock8 in stock	NZ$287.35	Wishlist
D102SM2	SM2	19	1.0 – 10.0mm x 0.5mm rises	ABS	Item is in backorderItem is in backorder	NZ$139.00	Wishlist

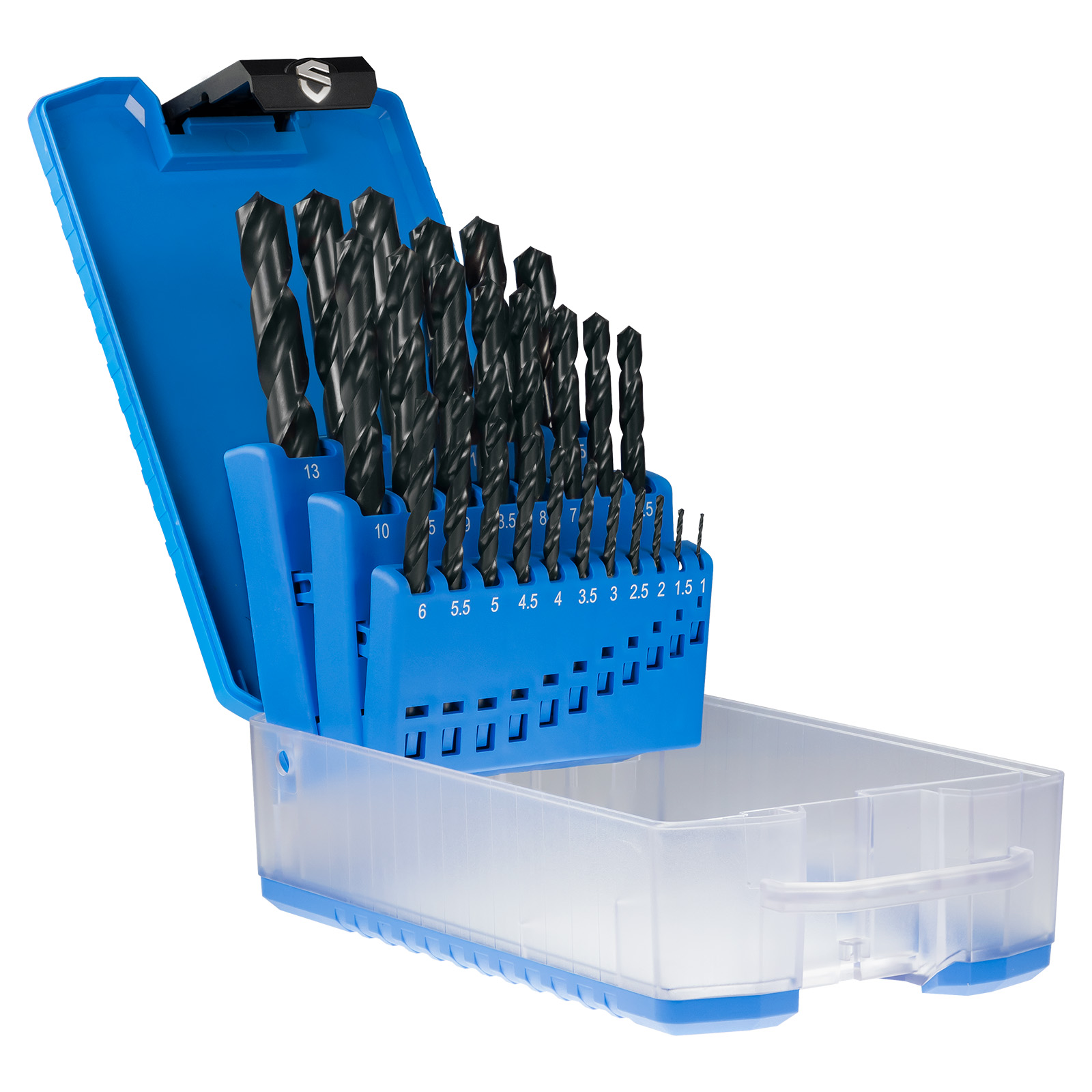

D102SM3	SM3	25	1.0 – 13.0mm x 0.5mm rises	ABS	Item is in stock27 in stock	NZ$249.00	Wishlist
D102SM30	SM30	50	1.0 – 5.9mm x 0.1mm rises	Metal	Item is in stock13 in stock	NZ$298.00	Wishlist
D102SM41	SM41	41	6.0 – 10.0mm x 0.1 rises	Metal	Item is in stock5 in stock	NZ$560.55	Wishlist
D102SM99	SM99	100	1.0 – 10.0mm x 0.1 (Plus 10.5, 10.8, 11.0, 11.5, 11.8, 12.0, 12.5, 12.8, 13.0mm)	Plastic	Item is in stock11 in stock	NZ$880.76	Wishlist

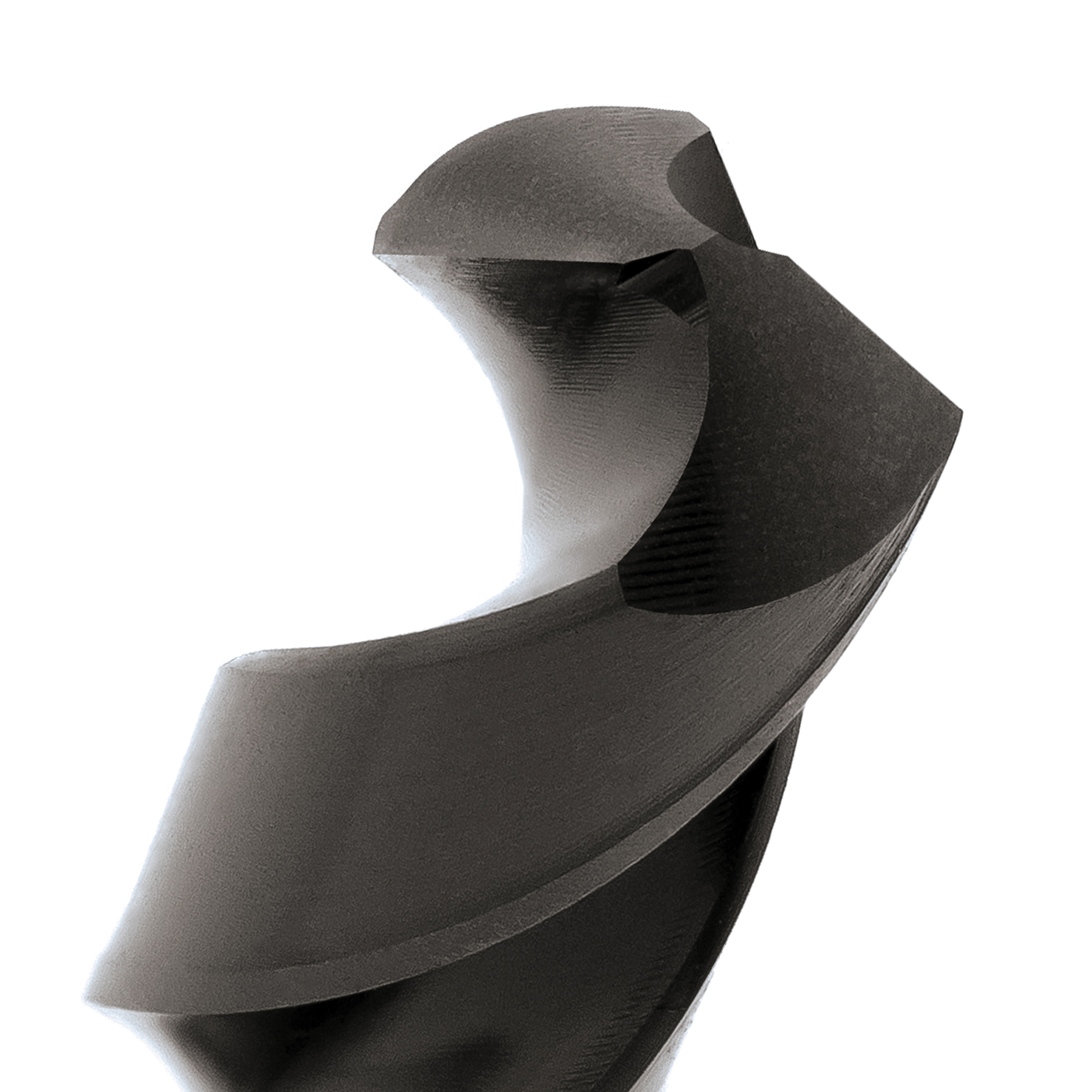

118° Standard Point - Suits general purpose applications
Blue Finish - Steam Oxide treatment prevents chip build-up on cutting edges and improves cutting compound retention which delivers longer tool life
Precision Engineered Parallel Shank - For accurate hole size
Made from European M2 High Speed Steel (HSS) - Offering the best combination of strength, heat & wear resistance

IndustrialCommercial

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	5	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Quenched & Tempered	300HB	1010MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275HB	930MPa
P	8	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	300HB	1010MPa
P	9	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	350HB	1180MPa
P	10	Steel - High alloy, cast & tool	Annealed	200HB	680MPa
P	11	Steel - High alloy, cast & tool	Hardened & Tempered	325HB	1100MPa
P	12	Steel - Corrosion resistant & cast - Ferritic / Martensitic	Annealed	200HB	680MPa
P	13	Steel - Corrosion resistant & cast - Martensitic	Quenched & Tempered	240HB	810MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180HB	610MPa
M	14.2	Stainless Steel - Duplex		250HB	840MPa
M	14.3	Stainless Steel - Precipitation Hardening		250HB	840MPa
K	15	Cast Iron, Grey (GG) - Ferritic / Pearlitic		180HB	610MPa
K	16	Cast Iron, Grey (GG) - Pearlitic		260HB	880MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
K	19	Cast Iron, Malleable - Ferritic		130HB	460MPa
K	20	Cast Iron, Malleable - Pearlitic		230HB	780MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	25	Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable		130HB	460MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%		110HB	390MPa
N	27	Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)		90HB	320MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa
N	29	Non-metallic - Thermosetting & fiber-reinforced plastics
N	30	Non-metallic - Hard rubber, wood etc.
S	31	High temperature alloys - Fe based	Annealed	200HB	680MPa
S	32	High temperature alloys - Fe based	Age Hardened	280HB	950MPa
S	33	High temperature alloys - Ni / Co based	Age Hardened	350HB	1180MPa
S	34	High temperature alloys - Ni / Co based	Annealed	250HB	840MPa
S	35	High temperature alloys - Ni / Co based	Cast	320HB	1080MPa
S	36	Titanium & Titanium alloys - CP Titanium			400MPa
S	37.1	Titanium & Titanium alloys - Alpha alloys			860MPa
S	37.2	Titanium & Titanium alloys - Alpha / Beta alloys	Age Hardened		1170MPa
S	37.3	Titanium & Titanium alloys - Alpha / Beta alloys	Annealed		960MPa
S	37.4	Titanium & Titanium alloys - Beta alloys	Age Hardened		1400MPa
S	37.5	Titanium & Titanium alloys - Beta alloys	Annealed		830MPa
H	38.1	Hardened steel	Hardened & Tempered	58HRC
H	38.2	Hardened steel	Hardened & Tempered	45HRC
H	39.1	Hardened steel	Hardened & Tempered	62HRC
H	39.2	Hardened steel	Hardened & Tempered	55HRC
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa
H	41	Cast Iron	Hardened & Tempered	55HRC
