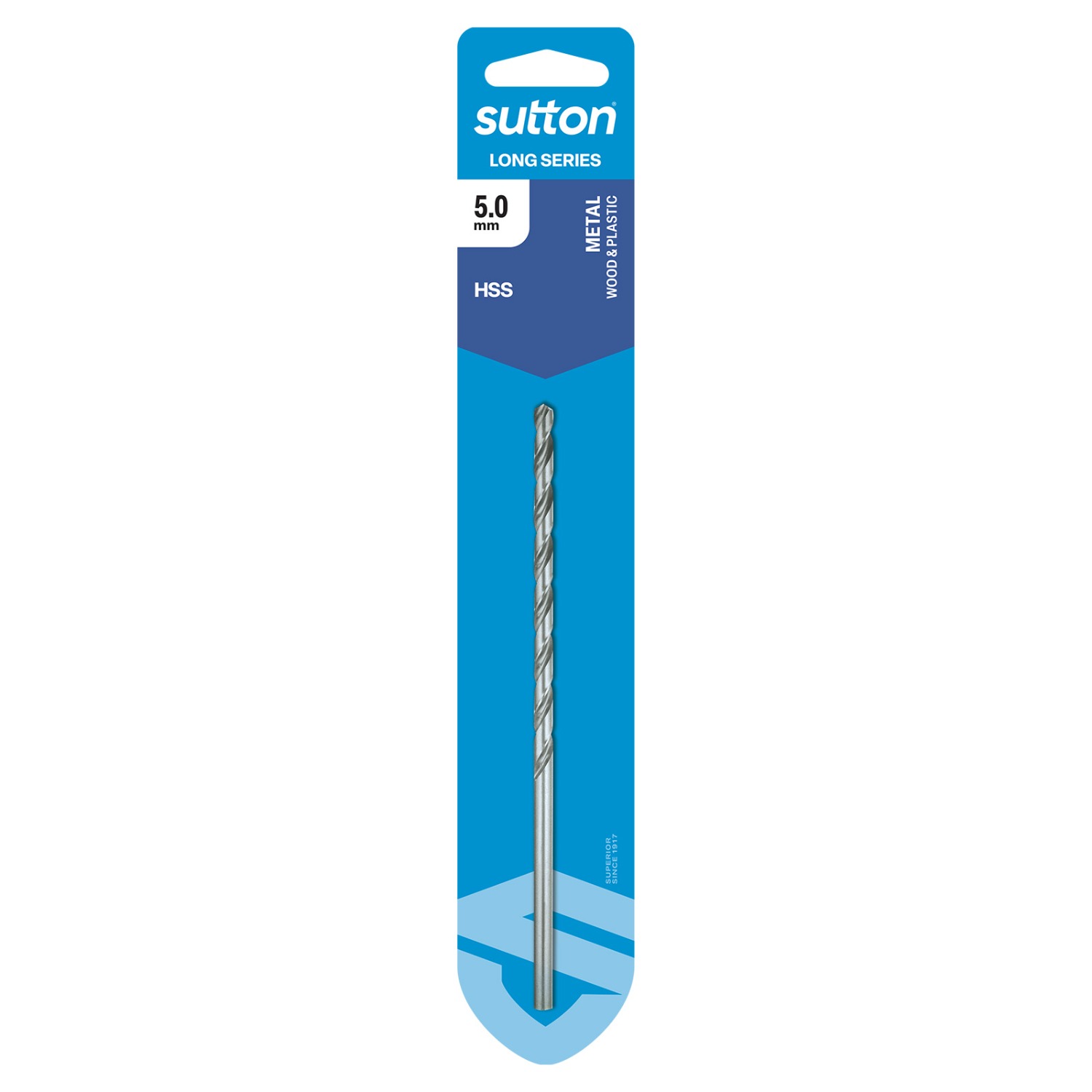

5.0mm Long Series Drill HSS Carded

SKU#:

D1100500
Item is in stock897 in stock
NZ$15.06

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Sutton Tools Long Series Drills offer longer flute & overall length than standard drill bits. Ideal for drilling deeper holes.

Item #Diameter d1 (mm)Diameter d1 (inch)Length l1 (mm)Length l2 (mm)QtyStockPriceAction
D11002782.7787/6413064
Item is in stock3 in stock
NZ$7.74
D11003003.00-13070
Item is in stock896 in stock
NZ$10.01
D11004004.00-14686
Item is in stock933 in stock
NZ$12.52
D11004504.50-14686
Item is in stock49 in stock
NZ$13.67
D11005005.00-15292
Item is in stock897 in stock
NZ$15.06
D11006006.00-15695
Item is in stock680 in stock
NZ$18.76
D11007507.50-159102
Item is in stock13 in stock
NZ$26.52
D11007547.54119/64162102
Item is in backorderItem is in backorder
NZ$23.88
D11008008.00-162105
Item is in stock246 in stock
NZ$28.91
D11008338.33421/64165105
Item is in backorderItem is in backorder
NZ$27.93
D11008508.50-165105
Item is in stock17 in stock
NZ$33.42
D110120012.00-197121
Item is in stock258 in stock
NZ$49.79

  • 118° Standard Point - For general purpose applications
  • Precision Ground Flute - Designed for fast chip removal
  • Made from M2 High Speed Steel (HSS) - Offering the best combination of strength, heat & wear resistance
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
H40Cast Iron - ChilledCast400HB1350MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 8xD
Shank Form: A
Helix Angle: R30
Point Tolerance: H8
Point Angle: 118°
Point Form: Form A
No of Cutting Edges: null
Standard: ANSI B94-11
