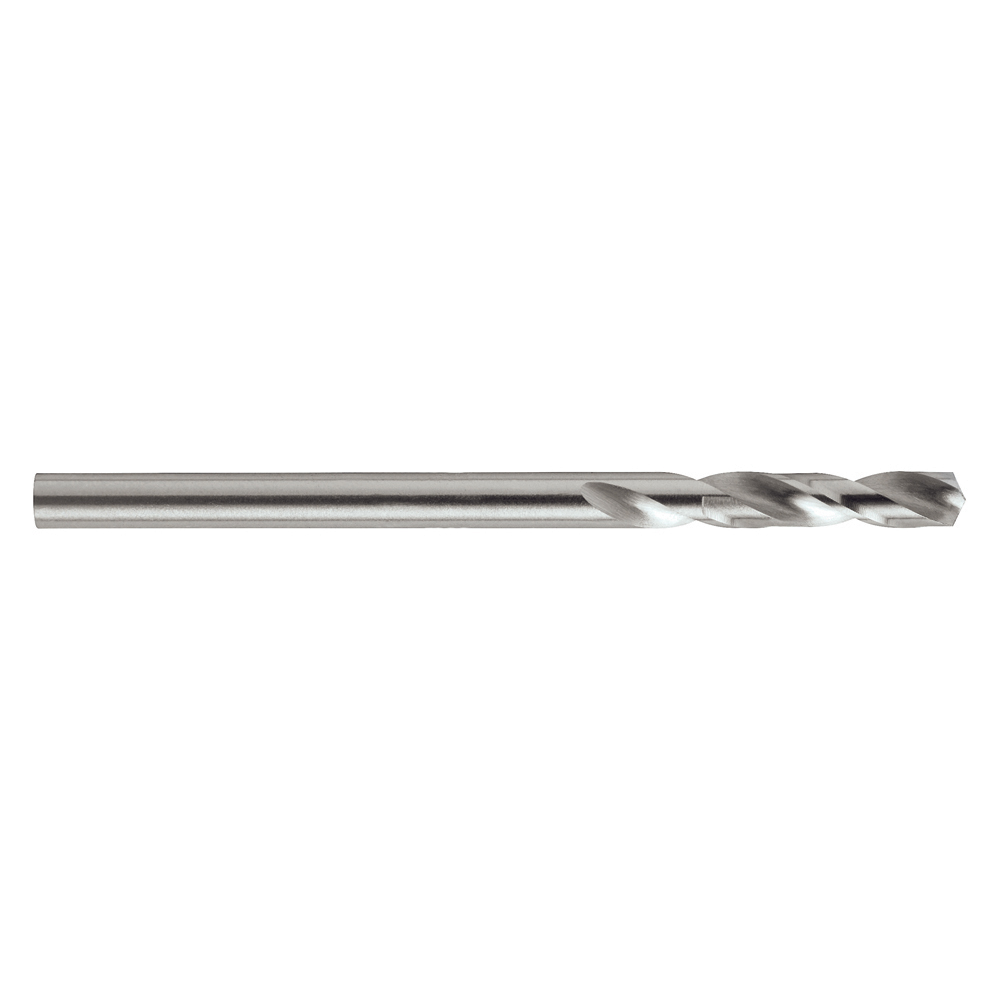

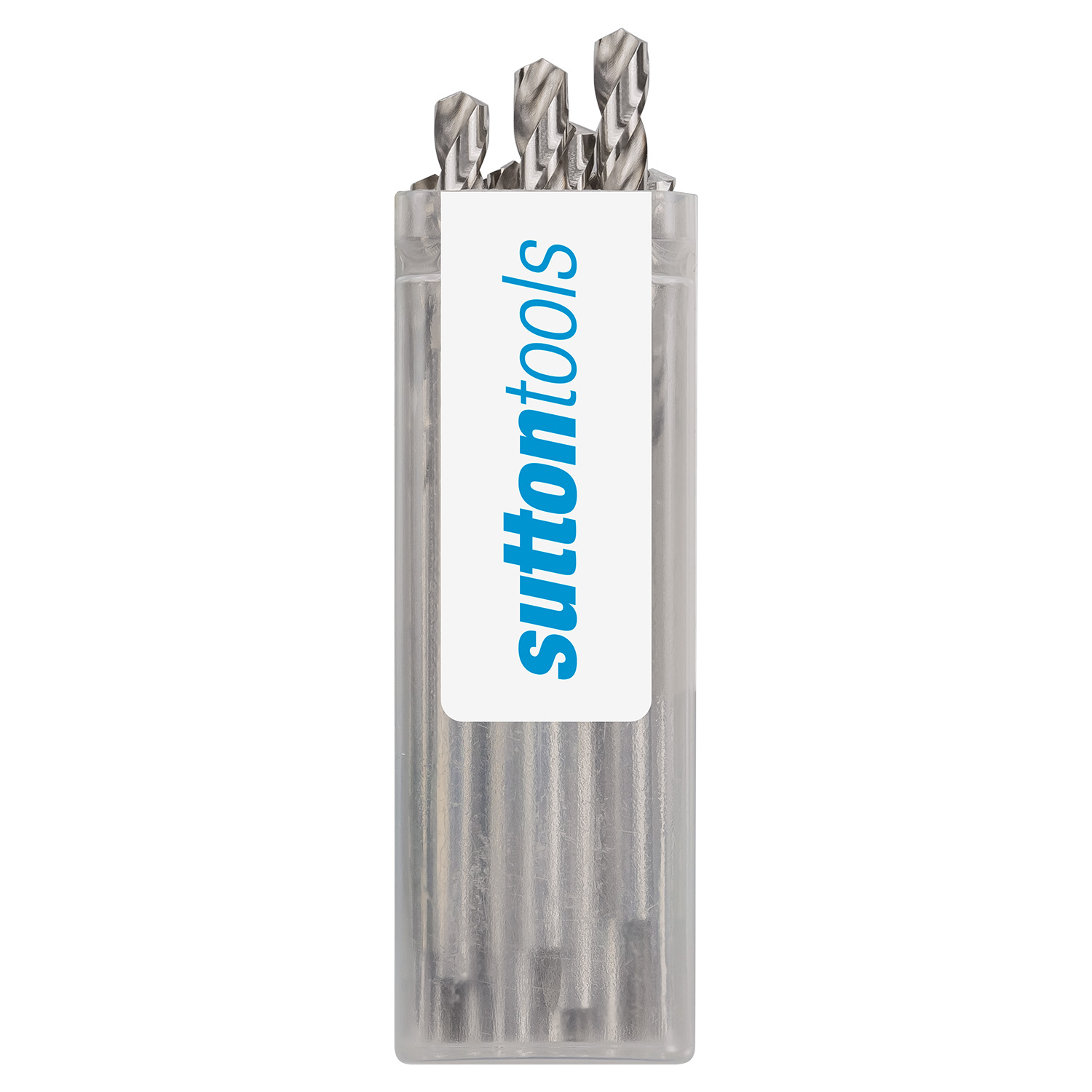

1/8" (3.18mm) Panel Drill D121 Shortie HSS Bright 10 Piece Bulk Pack

SKU#:

D1210318
Item is in stock21 in stock
NZ$2.50

Minimum Quantity is 10 • Sold in increments of 10

Enter a value between 10 and 9990990 in increments of 10.

Sutton Tools Silver Bullet Panel Drills are developed to drill holes for rivets in flat and curved panels used in sheet metal fabrication.

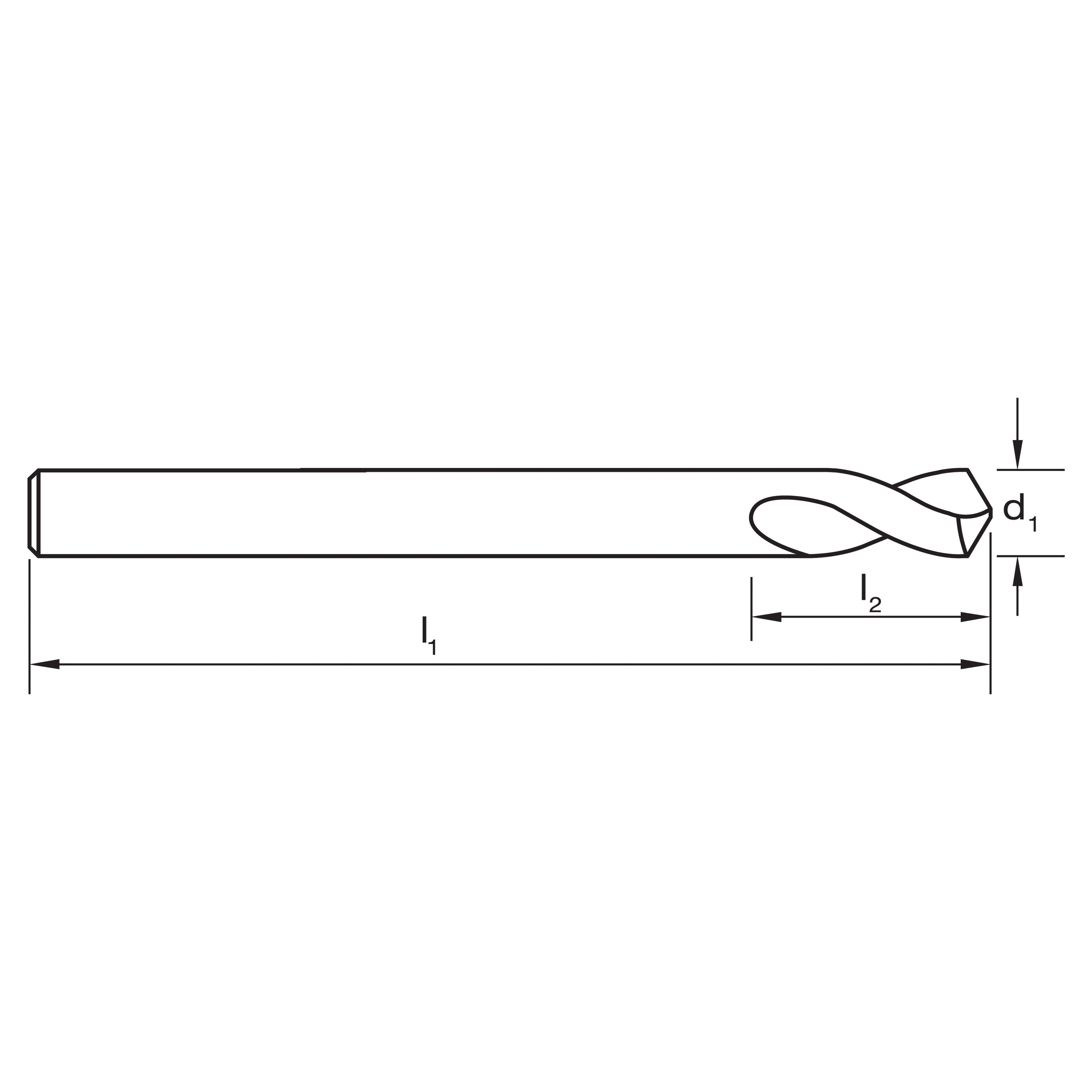

Item #Diameter d1 (mm)Diameter d1 (inch)Diameter d1 (ga)Length l1 (mm)Length l2 (mm)Rivet SizeQtyStockPriceAction
D12103183.1751/8-5419.13.2mm - 1/8"
Item is in stock21 in stock
NZ$2.50
D12103263.264-305419.13.2mm - 1/8"
Item is in stock1147 in stock
NZ$2.48
D12104094.089-205422.24.0mm - 5/32"
Item is in stock1029 in stock
NZ$2.89
D12104854.851-115422.24.8mm - 3/16"
Item is in stock240 in stock
NZ$3.48

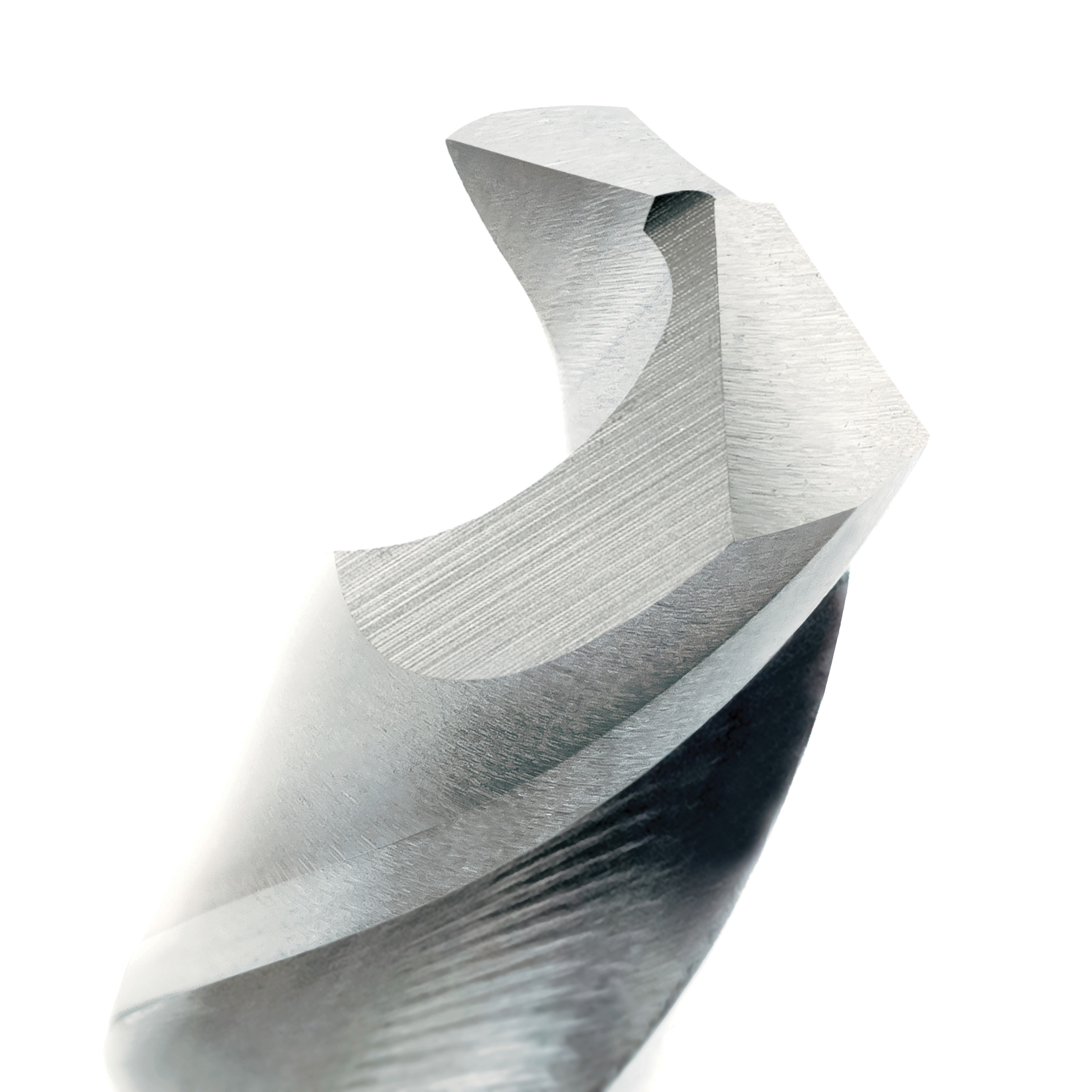

  • 135° self centering point minimises wandering when starting and ideal for thin materials
  • Flute length designed for shallow hole drilling no deeper than 1.25mm x diameter
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Bright finish for general purpose applications, non-ferrous metals & plastics
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P5Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Quenched & Tempered300HB1010MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P9Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered350HB1180MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P11Steel - High alloy, cast & toolHardened & Tempered325HB1100MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
P13Steel - Corrosion resistant & cast - MartensiticQuenched & Tempered240HB810MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa
H40Cast Iron - ChilledCast400HB1350MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Shank Form: A
Point Tolerance: H8
Point Angle: 135°
Point Form: Standard
No of Cutting Edges: null
High Resolution Image
Low Resolution Image
Product: DRILL D121 PANEL SHORTIE HSS BRT 1/8ʺ (3.18MM) BULK (10)
