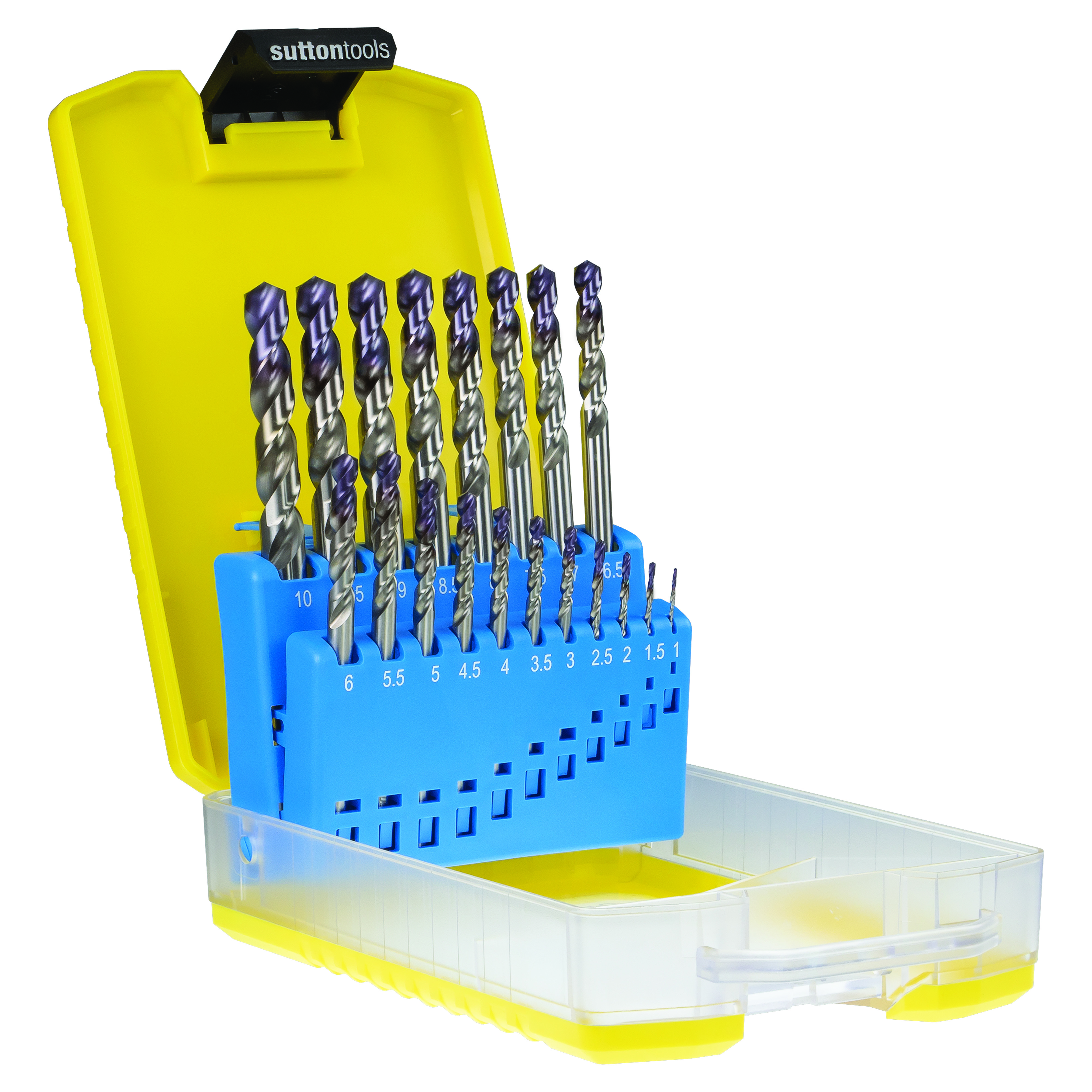

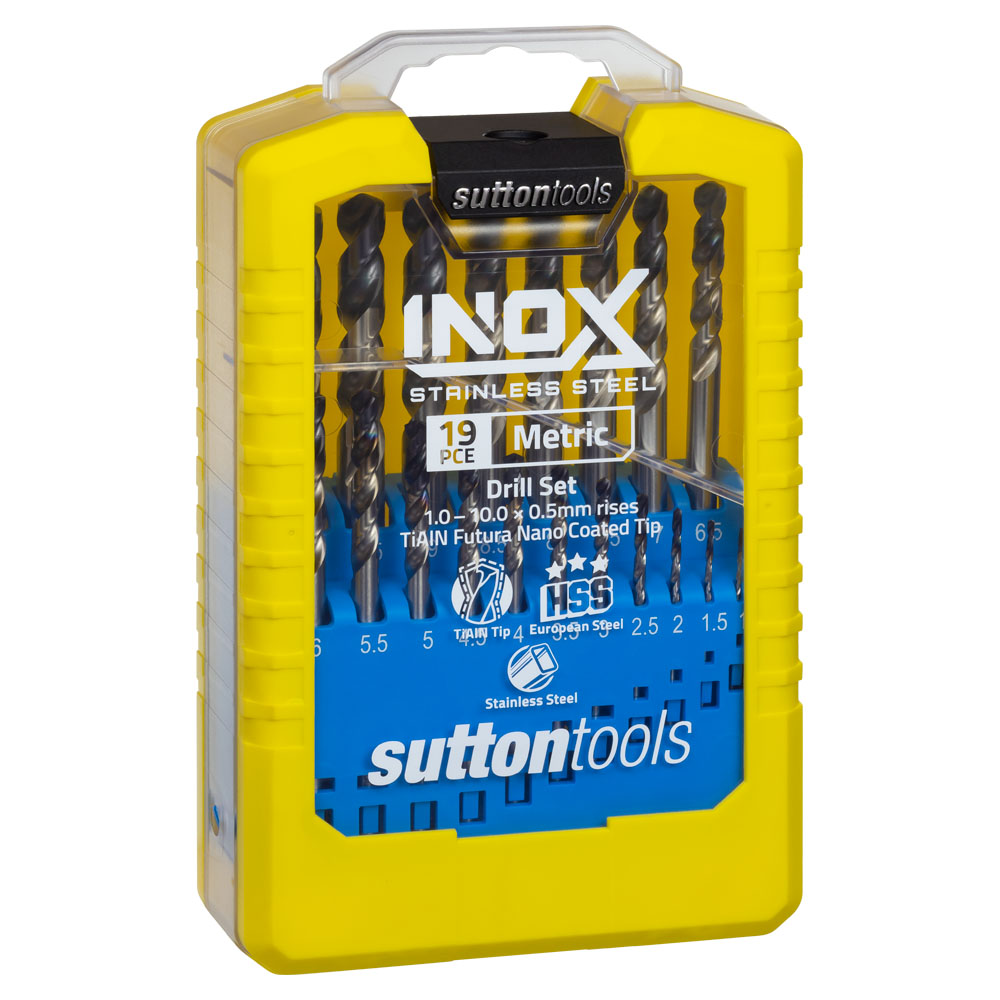

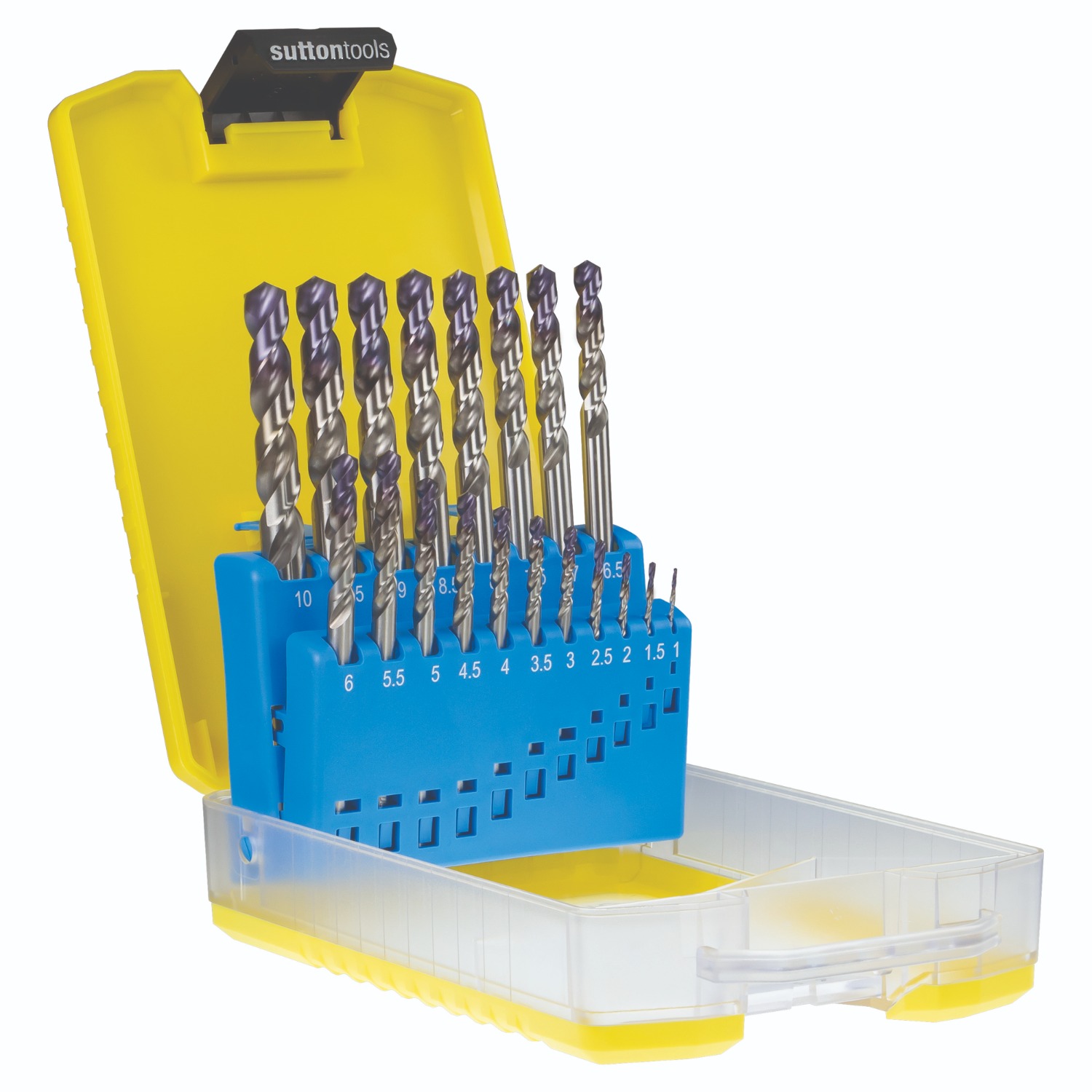

DRILL D180 SM2 JOBBER HSS-TiAlN-TIP INOX SET 1-10MM 19PC
SKU#:
Minimum Quantity is 1 • Sold in increments of 1
Enter a value between 1 and 99999 in increments of 1.

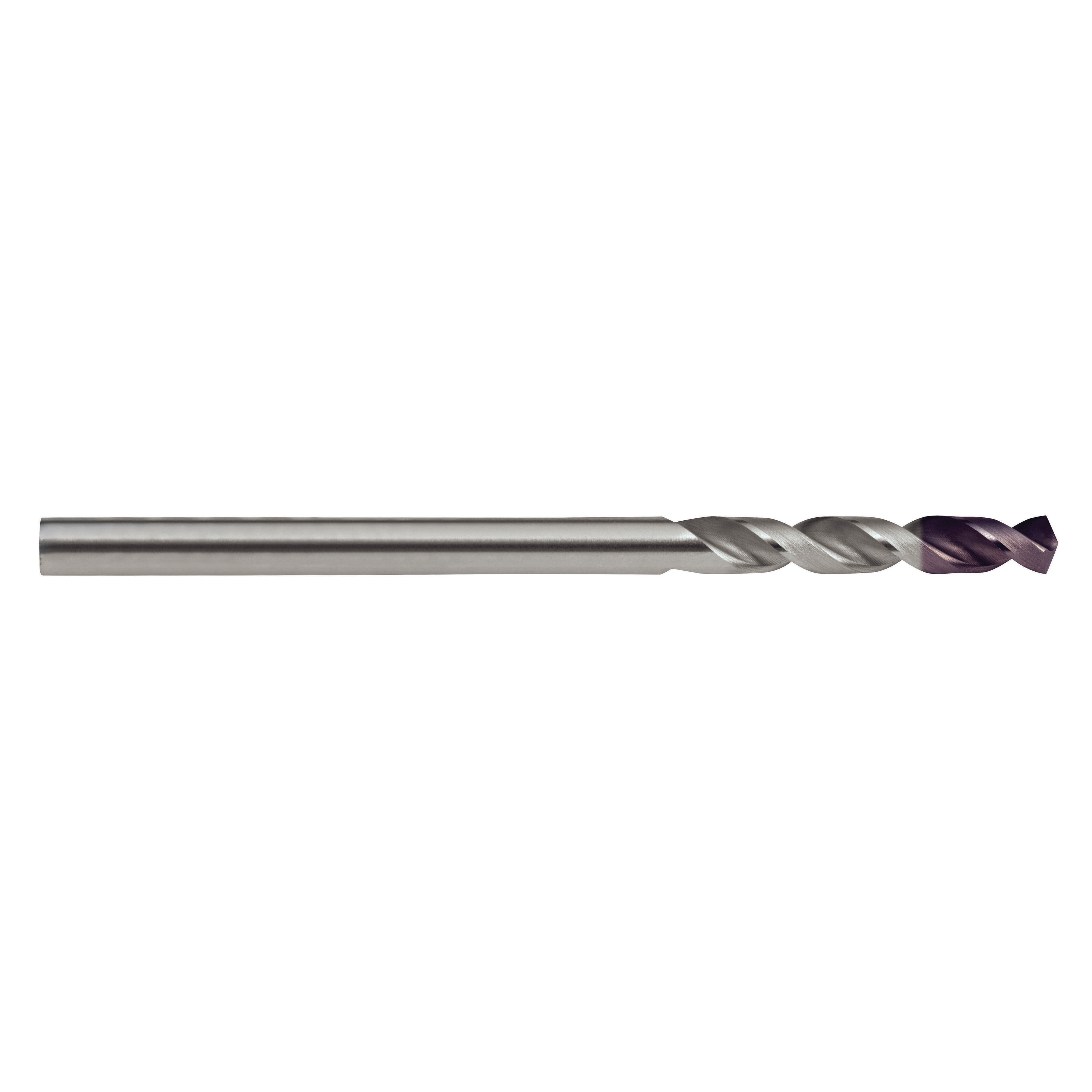

Sutton Tools Inox Jobber Drills are an industrial quality drilling solution specially designed for superior performance in stainless steel. Tailored to overcome the difficult-to-machine material properties of stainless steel, Inox drill bits have a fast spiral, short flute and unique stepped core design providing a smooth and effortless cutting action never before seen. For added wear resistance, these drill bits feature the latest generation Futura Nano PVD coated tip. Inox drill bits have been independently tested to achieve 70% more tool life in stainless steel compared to standard drill bits.
- Specialised design achieves 70% more life in stainless steel than standard drill bits
- Futura Nano PVD Coated Tip - For the ultimate wear resistance
- Short Flute with Fast Spiral - For maximum rigidity & swarf control

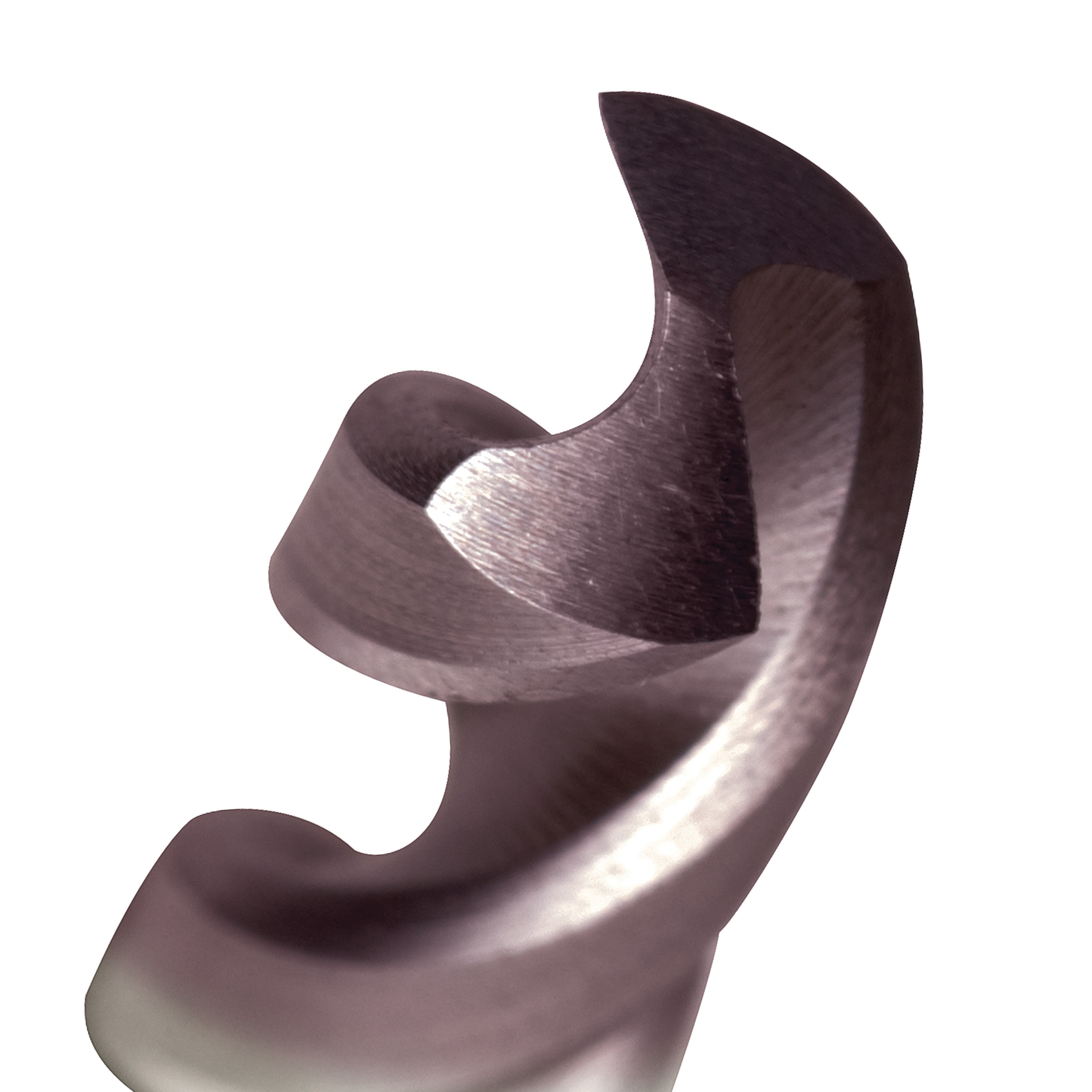

- Unique Point and Stepped Core - Designed for superb penetration and minimal work hardening
- Made from M2 High Speed Steel (HSS) - Offers the best combination of strength, heat & wear resistance
| ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
|---|---|---|---|---|---|---|
| P | 1 | Steel - Non-alloy, cast & free cutting (~ 0.15 %C) | Annealed | 125HB | 440MPa | |
| P | 2 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Annealed | 190HB | 640MPa | |
| P | 3 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Quenched & Tempered | 250HB | 840MPa | |
| P | 4 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Annealed | 270HB | 910MPa | |
| P | 6 | Steel - Low alloy & cast < 5% of alloying elements | Annealed | 180HB | 610MPa | |
| P | 7 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 275HB | 930MPa | |
| P | 12 | Steel - Corrosion resistant & cast - Ferritic / Martensitic | Annealed | 200HB | 680MPa | |
| P | 13 | Steel - Corrosion resistant & cast - Martensitic | Quenched & Tempered | 240HB | 810MPa | |
| M | 14.1 | Stainless Steel - Austenitic | Age Hardened | 180HB | 610MPa | |
| M | 14.2 | Stainless Steel - Duplex | 250HB | 840MPa | ||
| M | 14.3 | Stainless Steel - Precipitation Hardening | 250HB | 840MPa | ||
| N | 21 | Aluminum & Magnesium, wrought alloy - Non Heat Treatable | 60HB | 210MPa | ||
| N | 22 | Aluminum & Magnesium, wrought alloy - Heat Treatable | Age Hardened | 100HB | 360MPa | |
| N | 23 | Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable | 75HB | 270MPa | ||
| N | 24 | Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable | Age Hardened | 90HB | 320MPa | |
| N | 26 | Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% | 110HB | 390MPa | ||
| N | 28 | Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) | 100HB | 360MPa | ||
| N | 29 | Non-metallic - Thermosetting & fiber-reinforced plastics |
KEY
OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: VA
Material: HSS
Finish: TiAlN Tip
Max Cut Depth: 3xD
Shank Form: A
Helix Angle: R40
Point Tolerance: H8
Shank Tolerance: null
Point Angle: 130°
Point Form: Form B
Standard: ~DIN338
