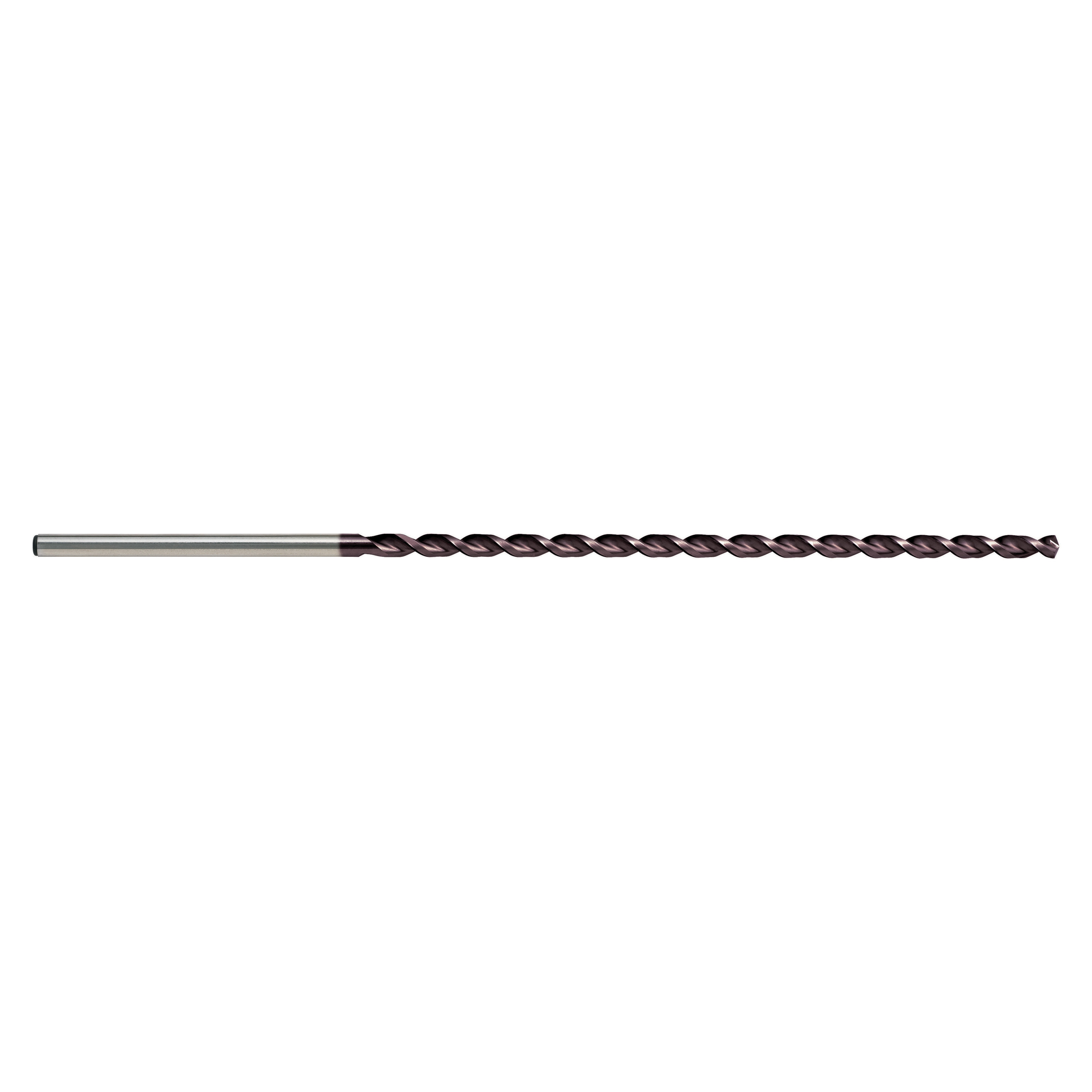

3.0mm Extra Long Drill D194 DHXL DIN1869-1 HSS-Co. TiAlN

SKU#:

D1940300
Item is in backorderItem is in backorder
NZ$72.94

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Extra Long Drill DHXL-1 Suitable for materials up to 1200N/mm2 Point geometry ensures high strength Parabolic flute design for optimal chip transportation Less pecking required over standard drills TiAlN for longer tool life

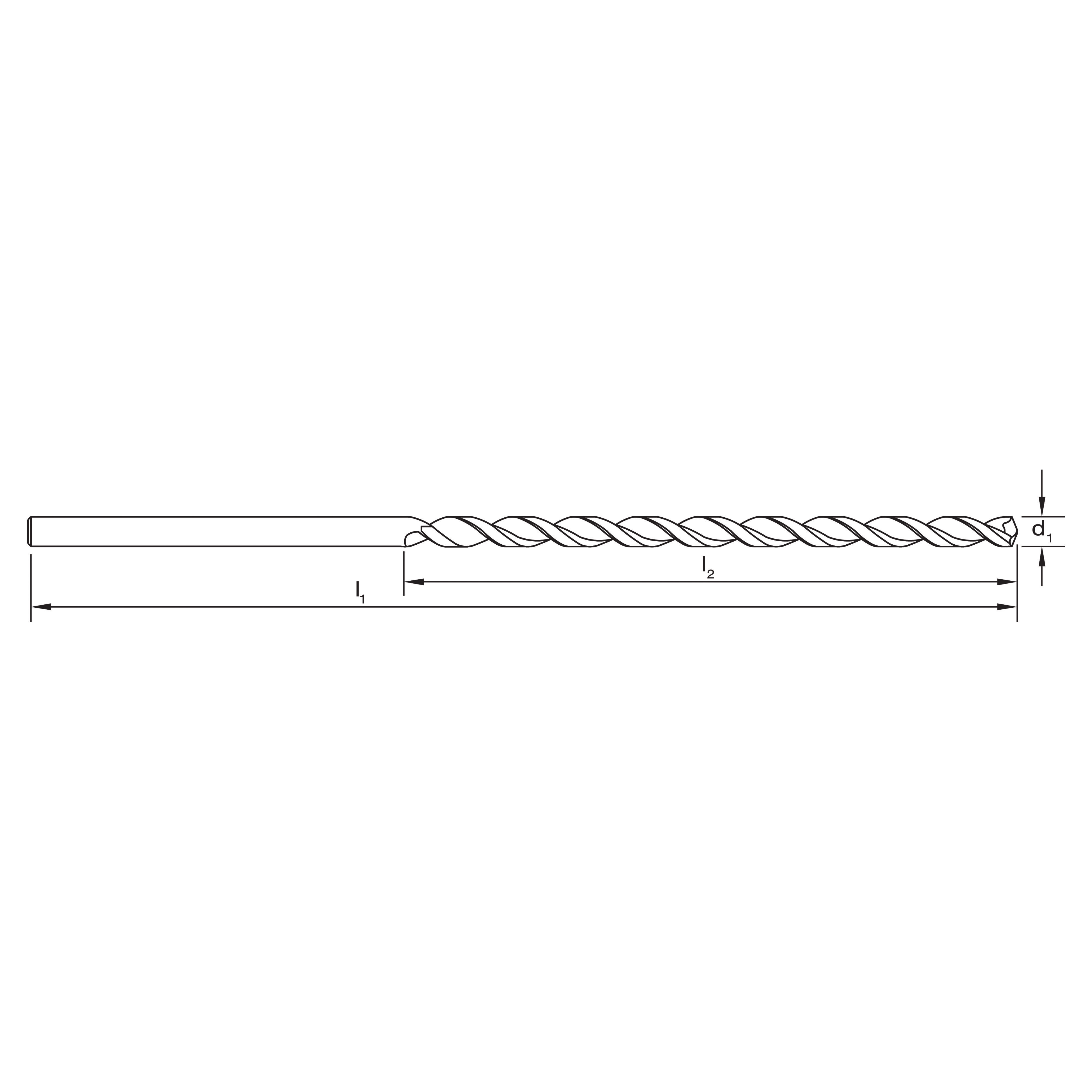

Item #Diameter d1 (mm)Length l1 (mm)Length l2 (mm)QtyStockPriceAction
D19402002.0012585
Item is in backorderItem is in backorder
NZ$64.97
D19403003.00155105
Item is in backorderItem is in backorder
NZ$72.94
D19403503.50165115
Item is in backorderItem is in backorder
NZ$74.65
D19404004.00175120
Item is in stock1 in stock
NZ$81.20
D19405005.00195135
Item is in stock1 in stock
NZ$99.95
D19405505.50205140
Item is in stock5 in stock
NZ$106.49
D19406006.00205140
Item is in stock2 in stock
NZ$110.83
D19406506.50215150
Item is in backorderItem is in backorder
NZ$32.57
D19407007.00225155
Item is in backorderItem is in backorder
NZ$33.60
D19408008.00240165
Item is in backorderItem is in backorder
NZ$169.00
D19408508.50240165
Item is in backorderItem is in backorder
NZ$206.36
D19409009.00250175
Item is in stock2 in stock
NZ$215.11
D194100010.00265185
Item is in backorderItem is in backorder
NZ$237.01

  • Extra Long Drill DHXL-1
  • Suitable for materials up to 1200N/mm2

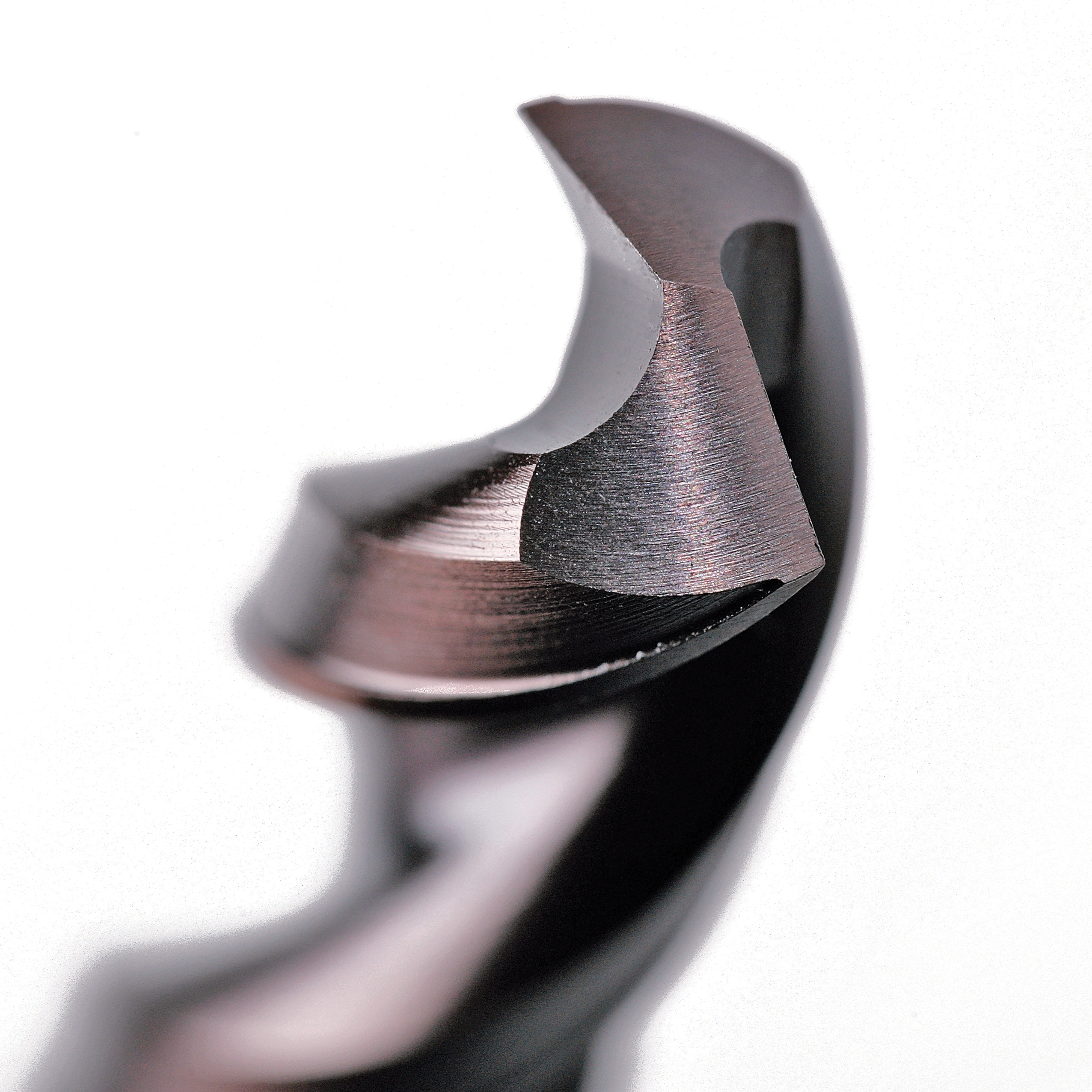

  • Point geometry ensures high strength
  • Parabolic flute design for optimal chip transportation
  • Less pecking required over standard drills
  • TiAlN for longer tool life
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P5Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Quenched & Tempered300HB1010MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P9Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered350HB1180MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P11Steel - High alloy, cast & toolHardened & Tempered325HB1100MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
P13Steel - Corrosion resistant & cast - MartensiticQuenched & Tempered240HB810MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N25Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable130HB460MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N27Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)90HB320MPa
N29Non-metallic - Thermosetting & fiber-reinforced plastics
H40Cast Iron - ChilledCast400HB1350MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: NH
Material: HSS Co
Finish: TiAIN
Max Cut Depth: 10xD
Shank Form: A
Helix Angle: R40
Point Tolerance: H8
Point Angle: 130°
Point Form: Form B
No of Cutting Edges: null
Standard: DIN1869-1
High Resolution Image
Low Resolution Image
Product: DRILL D194 3.0mm X/LONG DHXL DIN1869-1 HSS-Co. TiAlN
