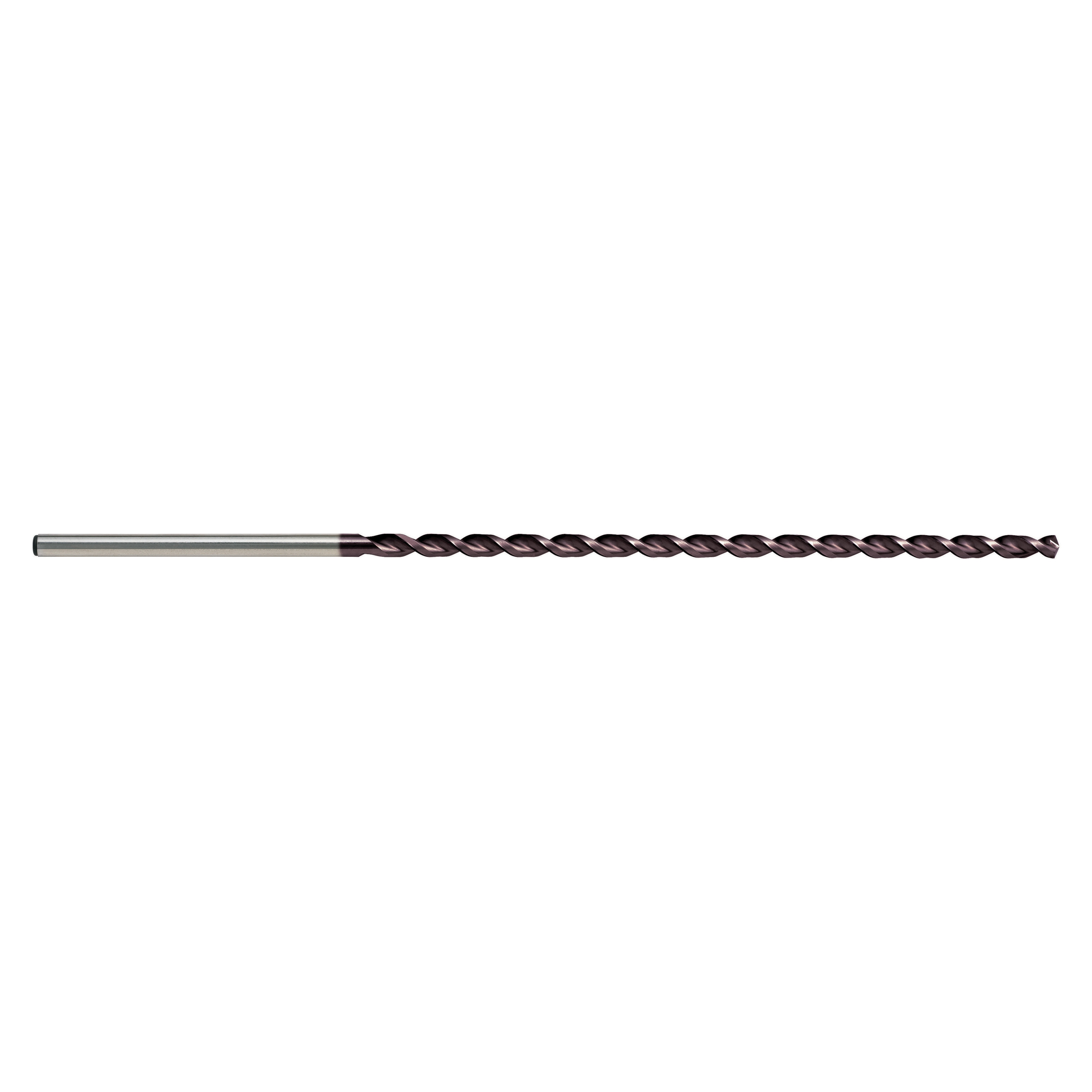

4.0mm Extra Long Drill D196 DHXL DIN1869-3 HSS-Co. TiAlN

SKU#:

D1960400
Item is in stock1 in stock
NZ$98.78

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Extra Long Drill DHXL-3 Suitable for materials up to 1200N/mm2 Point geometry ensures high strength Parabolic flute design for optimal chip transportation Less pecking required over standard drills TiAlN for longer tool life

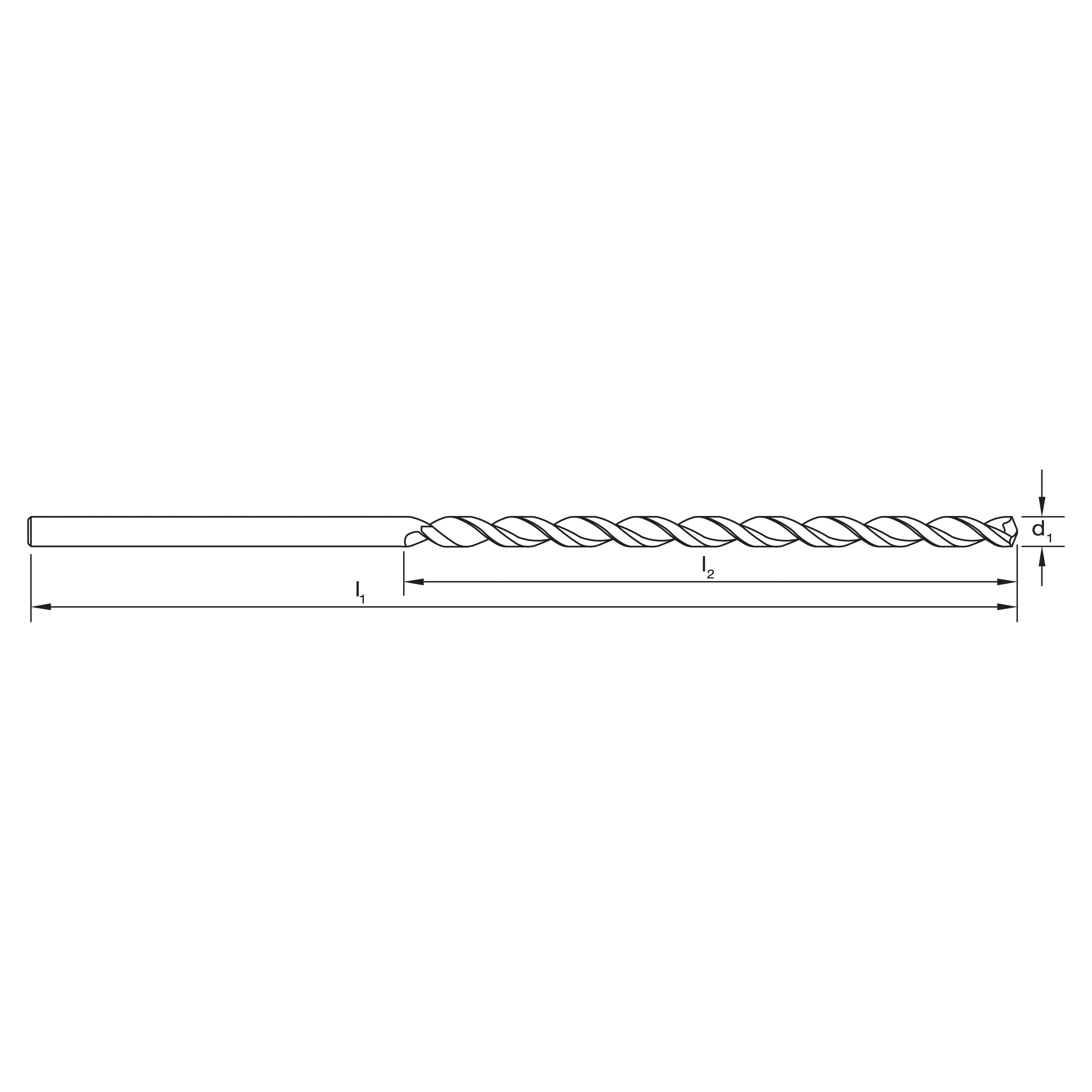

Item #Diameter d1 (mm)Length l1 (mm)Length l2 (mm)QtyStockPriceAction
D19604004.00280190
Item is in stock1 in stock
NZ$98.78
D19604504.50295200
Item is in backorderItem is in backorder
NZ$118.49
D19605505.50330225
Item is in stock1 in stock
NZ$134.76
D19606006.00330225
Item is in stock1 in stock
NZ$138.32
D19606506.50350235
Item is in backorderItem is in backorder
NZ$182.18
D19607007.00370250
Item is in backorderItem is in backorder
NZ$172.26
D19608008.00390265
Item is in stock1 in stock
NZ$62.92
D19608508.50390265
Item is in backorderItem is in backorder
NZ$252.42
D196100010.00430295
Item is in stock2 in stock
NZ$312.91

  • Extra Long Drill DHXL-3
  • Suitable for materials up to 1200N/mm2

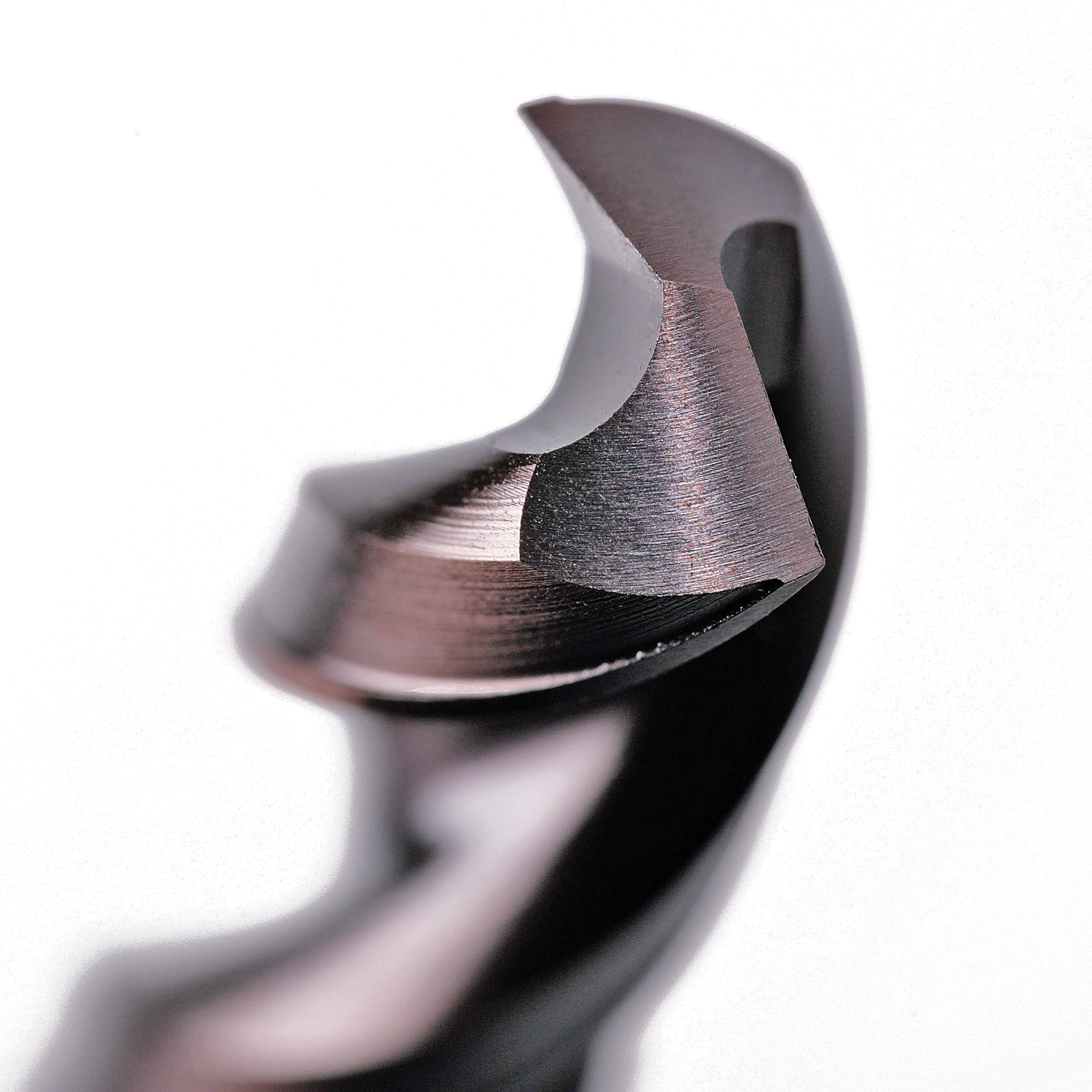

  • Point geometry ensures high strength
  • Parabolic flute design for optimal chip transportation
  • Less pecking required over standard drills
  • TiAlN for longer tool life
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P5Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Quenched & Tempered300HB1010MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P9Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered350HB1180MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P11Steel - High alloy, cast & toolHardened & Tempered325HB1100MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
P13Steel - Corrosion resistant & cast - MartensiticQuenched & Tempered240HB810MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N25Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable130HB460MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N27Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)90HB320MPa
N29Non-metallic - Thermosetting & fiber-reinforced plastics
H40Cast Iron - ChilledCast400HB1350MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: NH
Material: HSS Co
Finish: TiAIN
Max Cut Depth: 14xD
Shank Form: A
Helix Angle: R40
Point Tolerance: H8
Point Angle: 130°
Point Form: Form B
No of Cutting Edges: null
Standard: DIN1869-3
High Resolution Image
Low Resolution Image
Product: DRILL D196 4.0mm X/LONG DHXL DIN1869-3 HSS-Co. TiAlN
