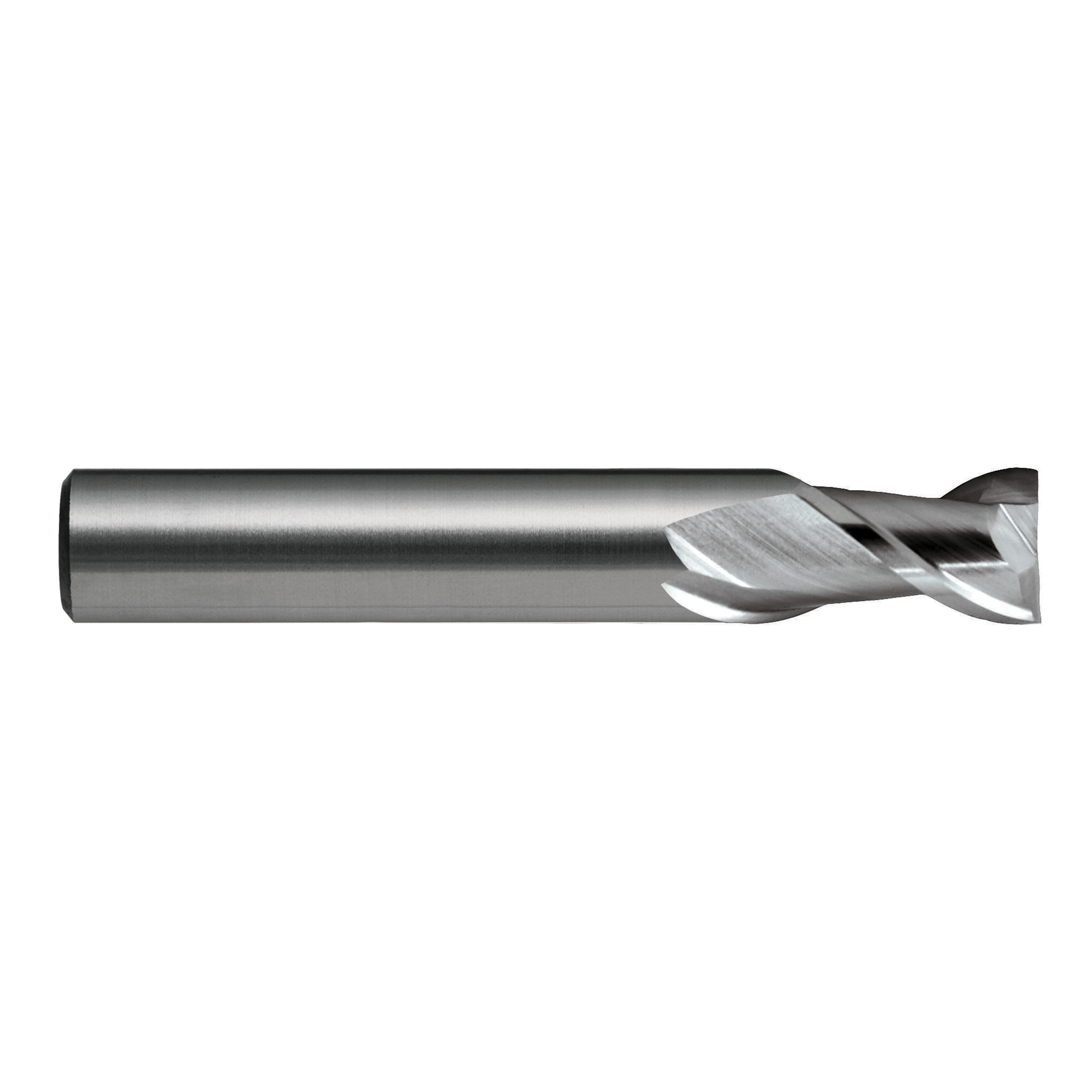

11mm 2 Flute Endmill Regular E100 R30 JIS HSS-Co.8
SKU#:
Minimum Quantity is 1 • Sold in increments of 1
Enter a value between 1 and 99999 in increments of 1.
For precision milling of slots & cavities
| Item # | Qty | Stock | Price | Action |
|---|
- 2 Flute Slot Drill R30 N
- Suitable for materials up to 1000 N/mm2
- For soft steels & non-ferrous material
- TiCN for longer tool life
| ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
|---|---|---|---|---|---|---|
| P | 1 | Steel - Non-alloy, cast & free cutting (~ 0.15 %C) | Annealed | 125HB | 440MPa | |
| P | 2 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Annealed | 190HB | 640MPa | |
| P | 3 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Quenched & Tempered | 250HB | 840MPa | |
| P | 4 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Annealed | 270HB | 910MPa | |
| P | 5 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Quenched & Tempered | 300HB | 1010MPa | |
| P | 6 | Steel - Low alloy & cast < 5% of alloying elements | Annealed | 180HB | 610MPa | |
| P | 7 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 275HB | 930MPa | |
| P | 8 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 300HB | 1010MPa | |
| P | 10 | Steel - High alloy, cast & tool | Annealed | 200HB | 680MPa | |
| P | 13 | Steel - Corrosion resistant & cast - Martensitic | Quenched & Tempered | 240HB | 810MPa | |
| K | 15 | Cast Iron, Grey (GG) - Ferritic / Pearlitic | 180HB | 610MPa | ||
| K | 16 | Cast Iron, Grey (GG) - Pearlitic | 260HB | 880MPa | ||
| K | 17 | Cast Iron, Nodular (GGG) - Ferritic | 160HB | 570MPa | ||
| K | 18 | Cast Iron, Nodular (GGG) - Pearlitic | 250HB | 840MPa | ||
| K | 19 | Cast Iron, Malleable - Ferritic | 130HB | 460MPa | ||
| K | 20 | Cast Iron, Malleable - Pearlitic | 230HB | 780MPa | ||
| N | 21 | Aluminum & Magnesium, wrought alloy - Non Heat Treatable | 60HB | 210MPa | ||
| N | 22 | Aluminum & Magnesium, wrought alloy - Heat Treatable | Age Hardened | 100HB | 360MPa | |
| N | 23 | Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable | 75HB | 270MPa | ||
| N | 24 | Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable | Age Hardened | 90HB | 320MPa | |
| N | 25 | Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable | 130HB | 460MPa | ||
| N | 26 | Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% | 110HB | 390MPa | ||
| N | 28 | Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) | 100HB | 360MPa |
KEY
OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS Co.8
Finish: Brt
Shank Form: A
Helix Angle: Designation: N
Point Tolerance: e8
Shank Tolerance: h6
Point Form: Square End
Standard: JIS
Type: N (finishing)
