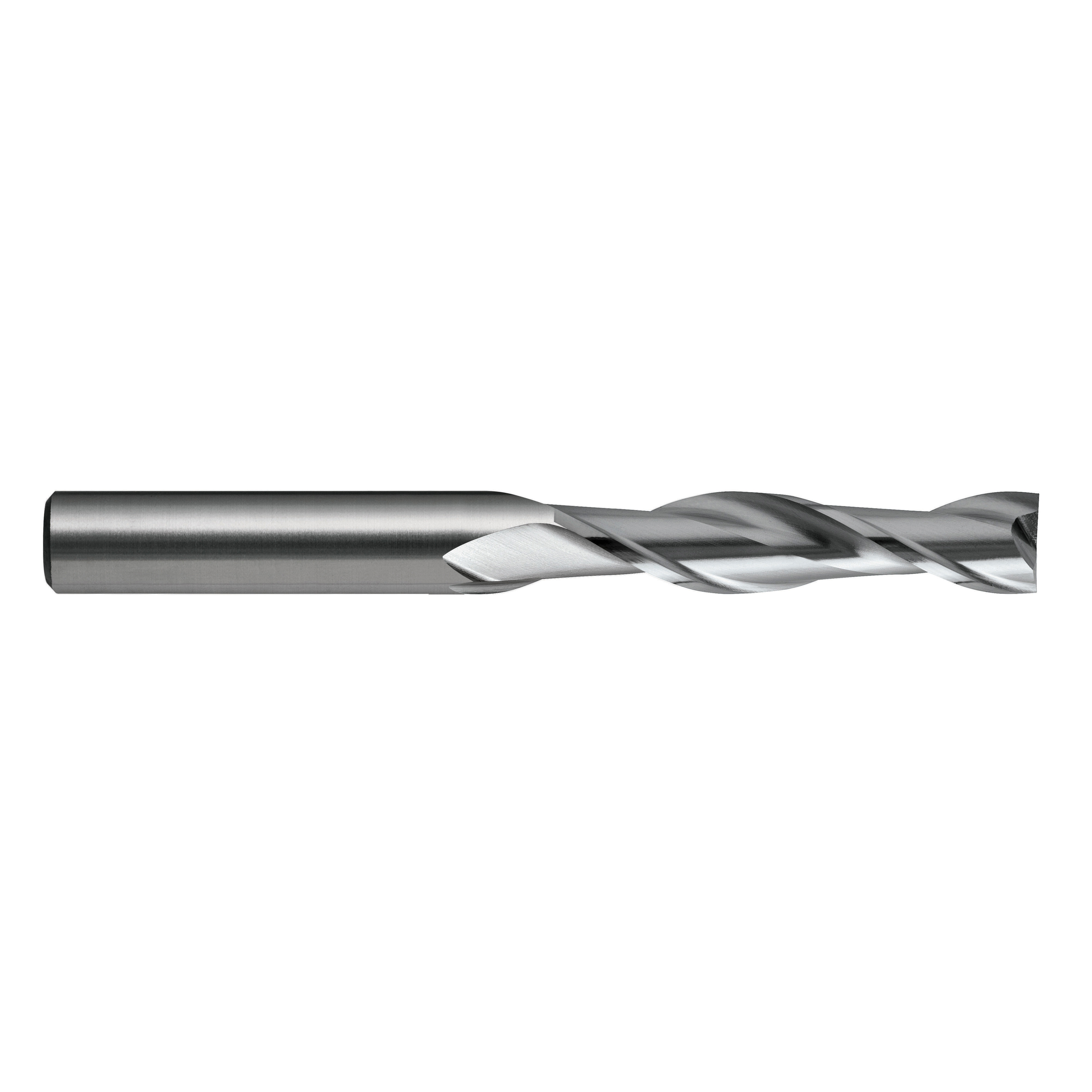

3mm 2 Flute Endmill Long E102 R30 JIS HSS-Co.8

SKU#:

E1020300
Item is in stock5 in stock
NZ$57.68

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

For long-reach slotting applications

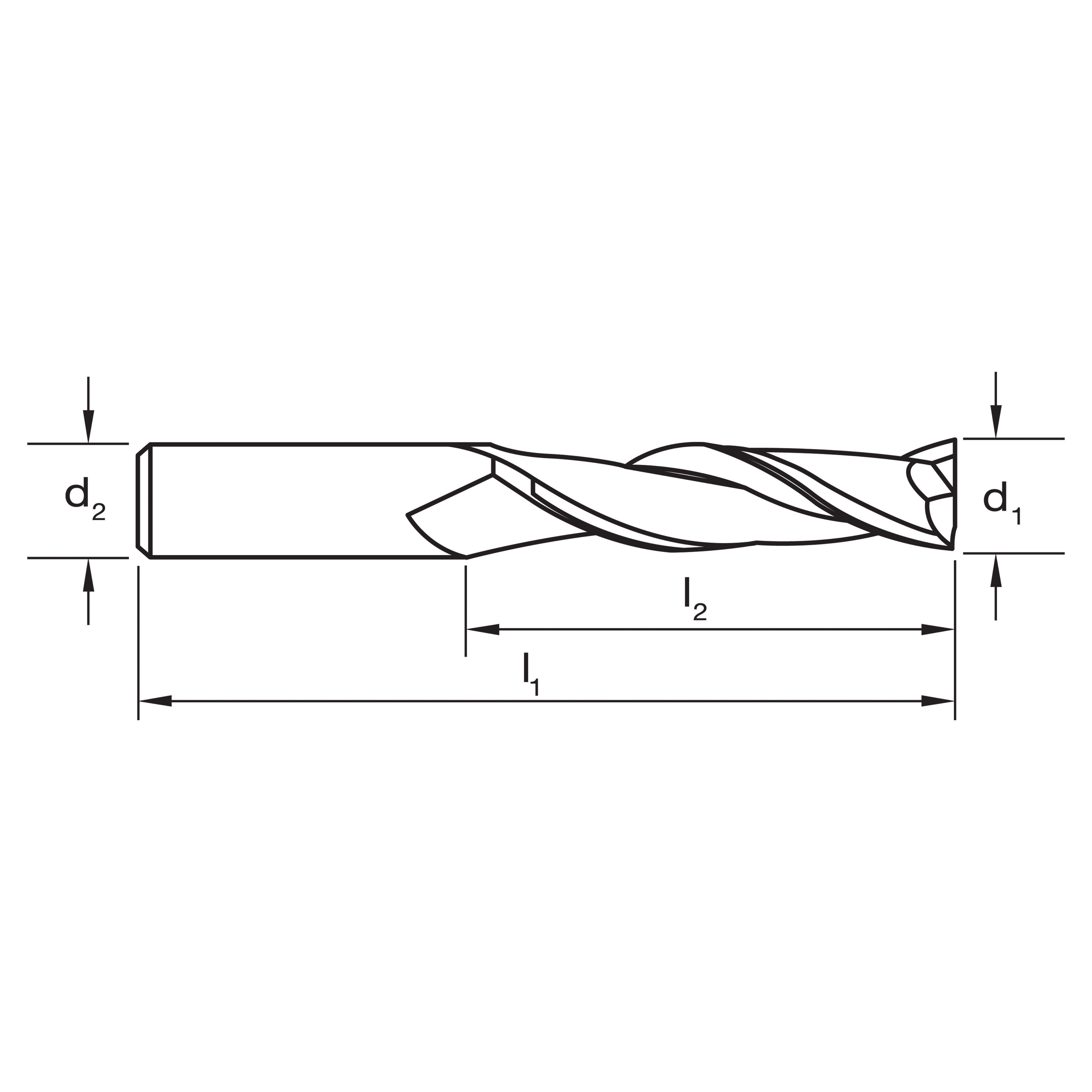

Item #Diameter d1 (mm)Diameter d1 (inch)Length l1 (mm)Length l2 (mm)Diameter d2 (mm)Diameter d2 (inch)zQtyStockPriceAction
E10203003.00-60156-2
Item is in stock5 in stock
NZ$57.68
E10207007.00-803510-2
Item is in stock1 in stock
NZ$68.62
E10208008.00-803510-2
Item is in stock7 in stock
NZ$73.85
E10209009.00-954510-2
Item is in stock2 in stock
NZ$77.06
E102100010.00-954510-2
Item is in stock20 in stock
NZ$74.84
E102110011.00-1055512-2
Item is in backorderItem is in backorder
NZ$85.44
E102120012.00-1055512-2
Item is in stock1 in stock
NZ$83.29
E102140014.00-1105516-2
Item is in stock2 in stock
NZ$99.42
E102160016.00-1206516-2
Item is in stock4 in stock
NZ$121.32
E102180018.00-1306520-2
Item is in backorderItem is in backorder
NZ$149.55
E102200020.00-1407520-2
Item is in stock1 in stock
NZ$168.14
E102220022.00-1407520-2
Item is in backorderItem is in backorder
NZ$393.39
E102250025.00-1609025-2
Item is in backorderItem is in backorder
NZ$425.26

  • 2 Flute Slot Drill R30 N
  • Suitable for materials up to 1000 N/mm2
  • For soft steels & non-ferrous material
  • TiCN for longer tool life
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P5Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Quenched & Tempered300HB1010MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS Co.8
Finish: Brt
Shank Form: A
Helix Angle: Designation: N
Point Tolerance: e8
Shank Tolerance: h6

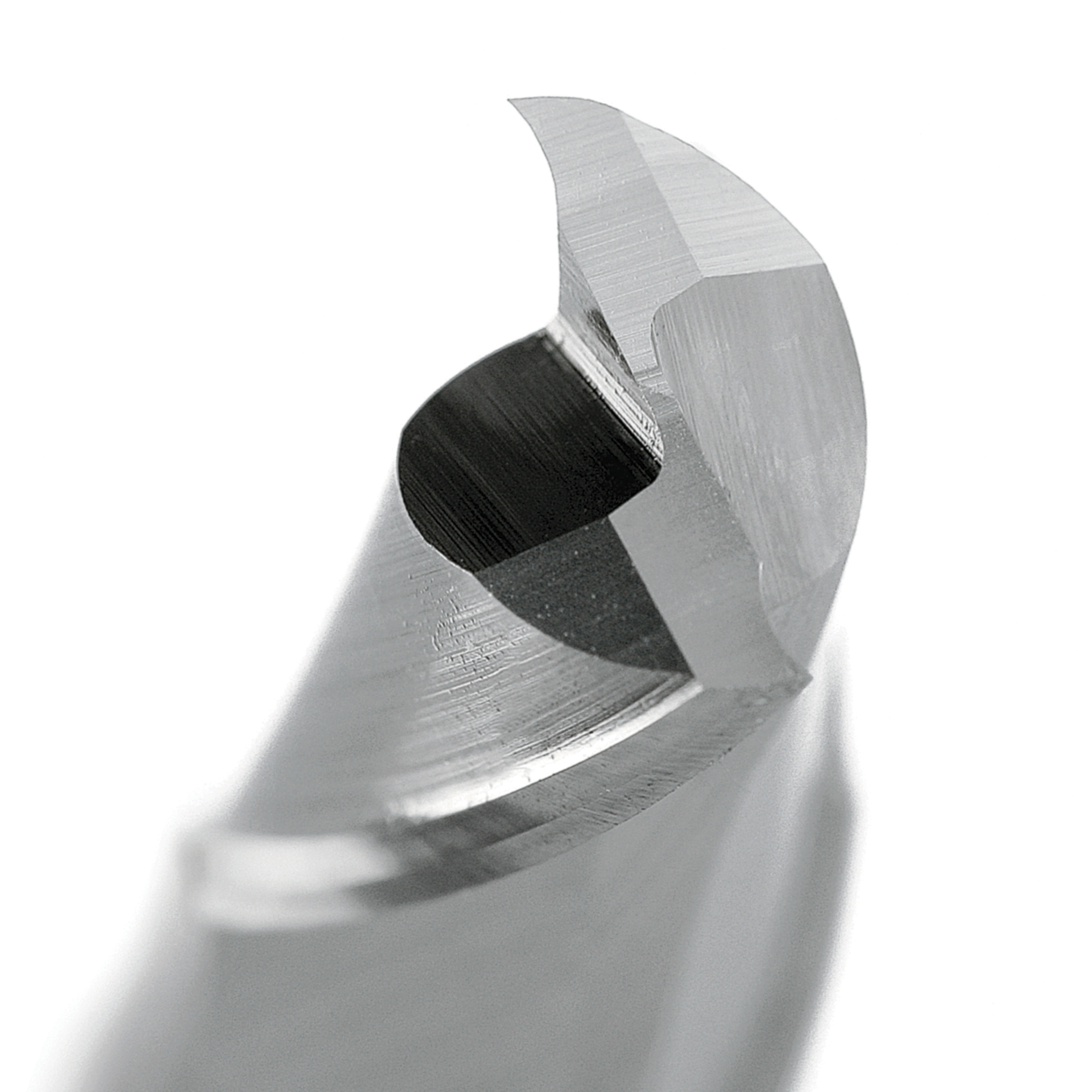

Point Form: Square End
Standard: JIS
Type: N (finishing)
High Resolution Image
Low Resolution Image
Product: E/MILL E102 3mm LONG 2 Flute R30 JIS HSS-Co.8
