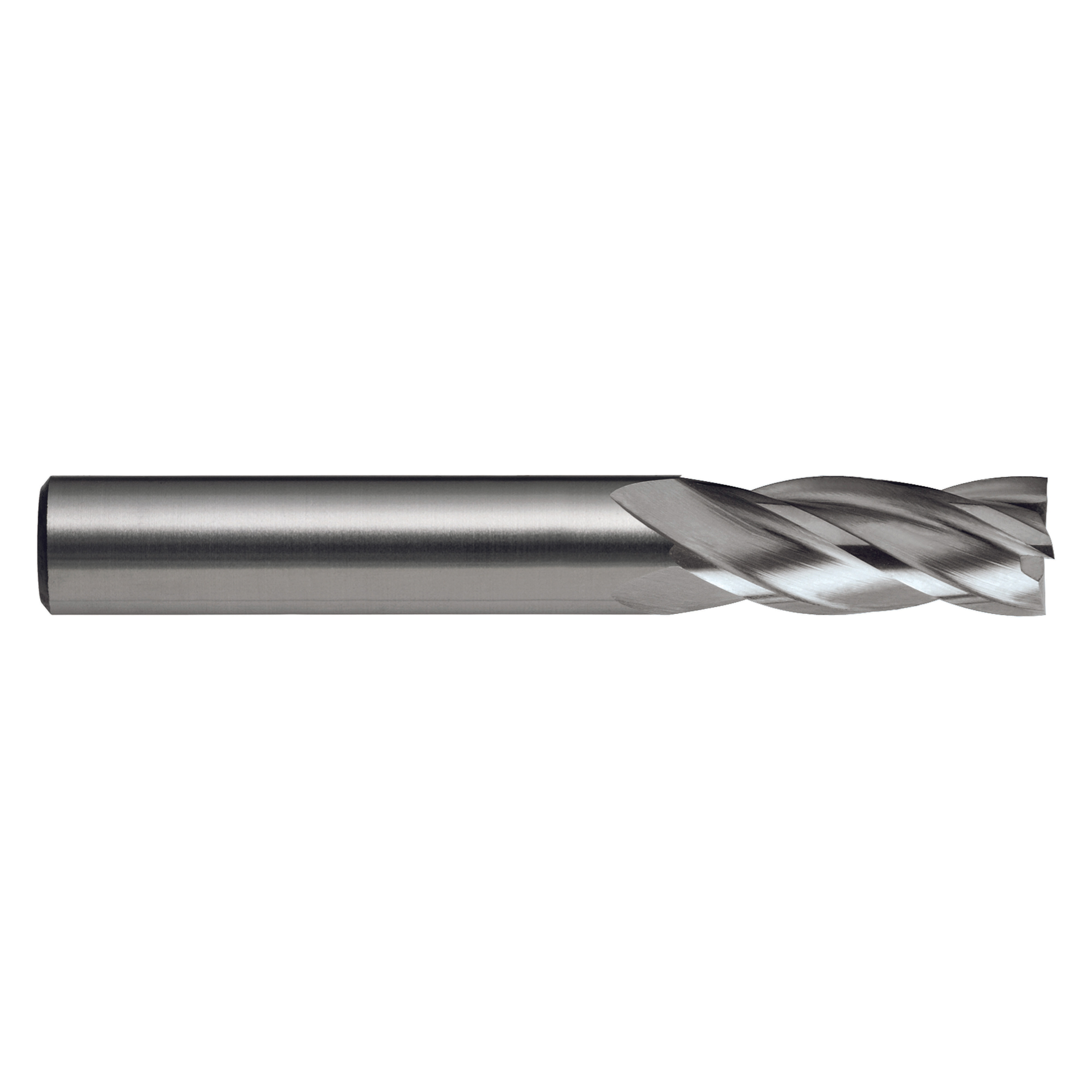

3/8ʺ 4 Flute Endmill Regular E125 R30 JIS HSS-Co.8

SKU#:

E1250953
Item is in backorderItem is in backorder
NZ$45.12

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

For precision finish milling applications

Item #QtyStockPriceAction

  • 4 Flute Endmill R30 N
  • Suitable for materials up to 1000 N/mm2
  • TiCN for longer tool life
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P5Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Quenched & Tempered300HB1010MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS Co.8
Finish: Brt
Shank Form: A
Helix Angle: Designation: N
Point Tolerance: k9
Shank Tolerance: h6
Point Form: Square End
Standard: JIS
Type: N (finishing)
High Resolution Image
Low Resolution Image
Product: E/MILL E125 3/8ʺ REG. 4 Flute R30 JIS HSS-Co.8
