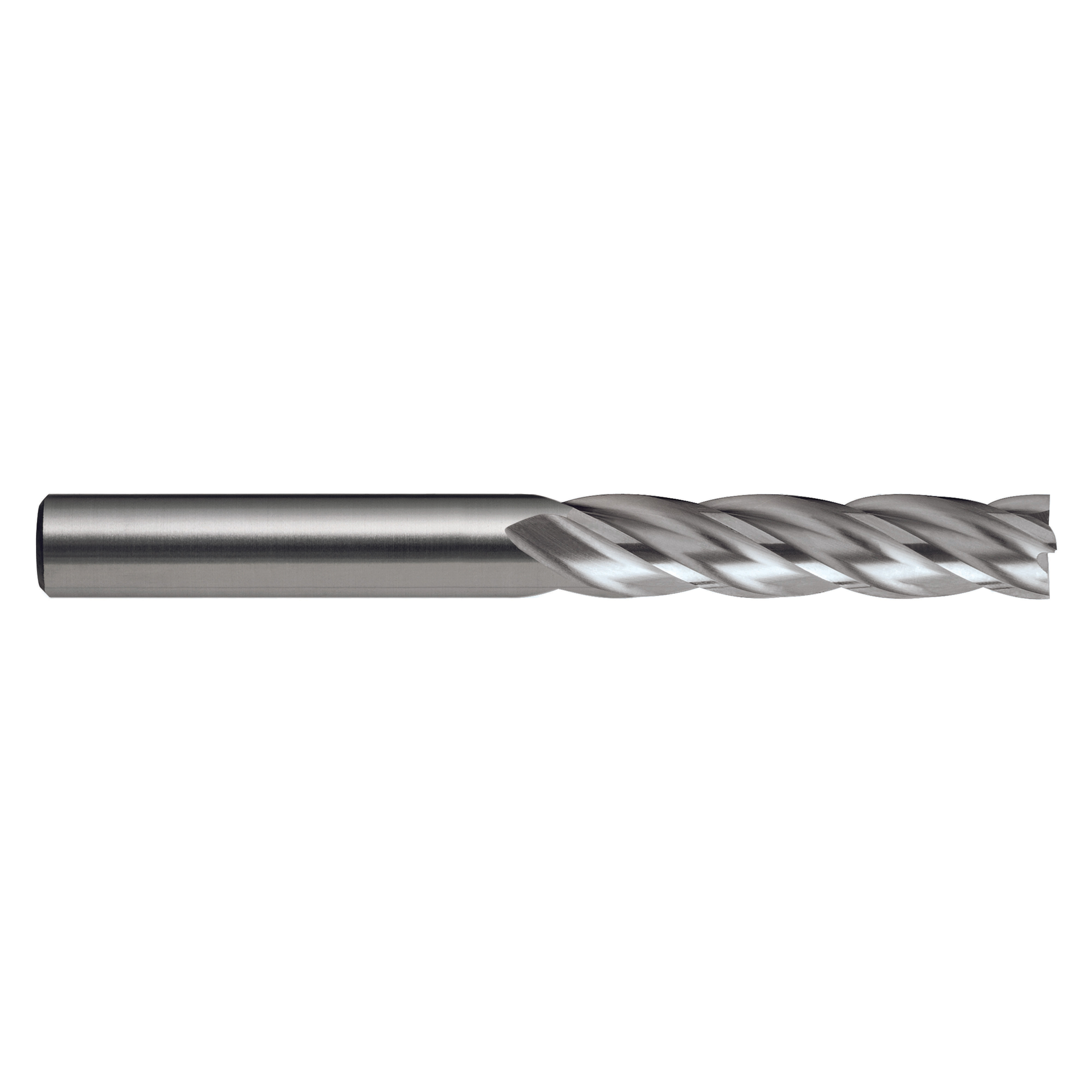

18mm 4 Flute Endmill Long E127 R30 JIS HSS-Co.8

SKU#:

E1271800

Item is in stock

1 in stock

NZ$129.12

QTY

Enter a value between 1 and 99999 in increments of 1.

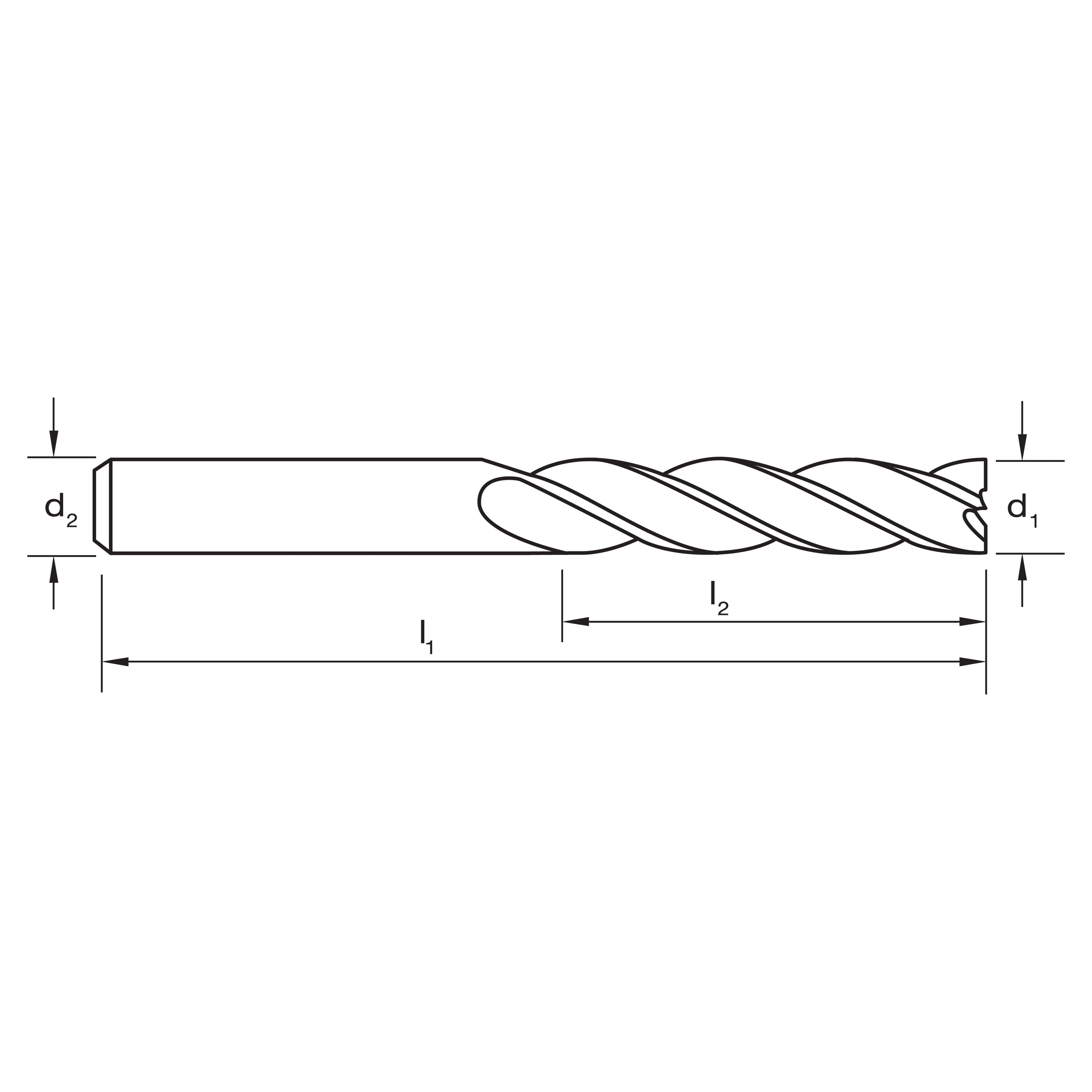

Item #	Diameter d1 (mm)	Diameter d1 (inch)	Length l1 (mm)	Length l2 (mm)	Diameter d2 (mm)	Diameter d2 (inch)	z	Stock	Price	Action
E1270300	3.00	-	60	15	6	-	4	Item is in stock1 in stock	NZ$49.70	Wishlist
E1270635	6.35	1/4	65	24.5	6.35	1/4	4	Item is in stock4 in stock	NZ$49.81	Wishlist
E1270700	7.00	-	80	35	10	-	4	Item is in backorderItem is in backorder	NZ$78.25	Wishlist
E1270794	7.938	5/16	80	35	9.525	3/8	4	Item is in backorderItem is in backorder	NZ$55.15	Wishlist
E1270800	8.00	-	80	35	10	-	4	Item is in backorderItem is in backorder	NZ$61.63	Wishlist
E1270953	9.525	3/8	95	45	9.525	3/8	4	Item is in stock3 in stock	NZ$56.58	Wishlist
E1271000	10.00	-	95	45	10	-	4	Item is in stock1 in stock	NZ$61.02	Wishlist
E1271200	12.00	-	105	55	12	-	4	Item is in stock2 in stock	NZ$73.35	Wishlist
E1271270	12.70	1/2	110	55	12.70	1/2	4	Item is in backorderItem is in backorder	NZ$74.91	Wishlist
E1271588	15.875	5/8	120	65	15.875	5/8	4	Item is in stock2 in stock	NZ$116.75	Wishlist
E1271600	16.00	-	120	65	16	-	4	Item is in backorderItem is in backorder	NZ$114.57	Wishlist
E1271800	18.00	-	130	65	20	-	4	Item is in stock1 in stock	NZ$129.12	Wishlist
E1271905	19.05	3/4	140	74.5	19.05	3/4	4	Item is in backorderItem is in backorder	NZ$140.27	Wishlist
E1272000	20.00	-	140	75	20	-	4	Item is in stock1 in stock	NZ$135.53	Wishlist
E1272400	24.00	-	160	90	25	-	4	Item is in backorderItem is in backorder	NZ$216.39	Wishlist
E1272540	25.40	1	160	90	19.05	3/4	4	Item is in backorderItem is in backorder	NZ$231.35	Wishlist
E1273200	32.00	-	190	105	32	-	6	Item is in backorderItem is in backorder	NZ$269.64	Wishlist

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	5	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Quenched & Tempered	300HB	1010MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
K	15	Cast Iron, Grey (GG) - Ferritic / Pearlitic		180HB	610MPa
K	16	Cast Iron, Grey (GG) - Pearlitic		260HB	880MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
K	19	Cast Iron, Malleable - Ferritic		130HB	460MPa
K	20	Cast Iron, Malleable - Pearlitic		230HB	780MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%		110HB	390MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials

Designation: N

Material: HSS Co.8

Finish: Brt

Shank Form: A

Helix Angle: Designation: N

Point Tolerance: k10

Shank Tolerance: h6

Point Form: Square End

Standard: JIS

Type: N (finishing)
