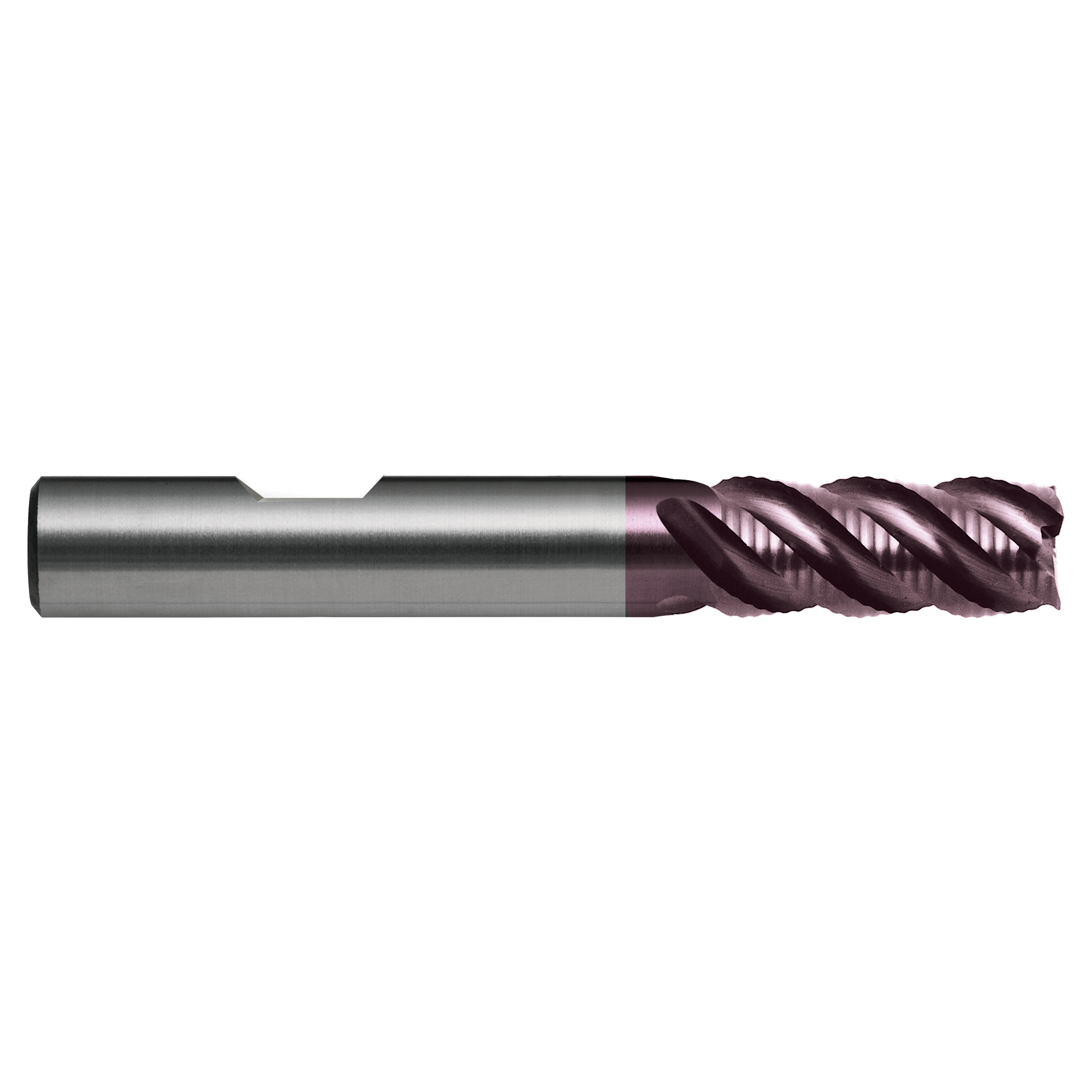

20mm 6 Flute Endmill Regular E151 R45 UNI HRS DIN844K-B SPM TiAlN

SKU#:

E1512000
Item is in stock2 in stock
NZ$223.41

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Rougher, HRS (fine), R45 UNI, Regular offers superior performance For roughing applications HRS geometry allows for heavy cuts in short & long chipping materials TiAlN For longer tool life

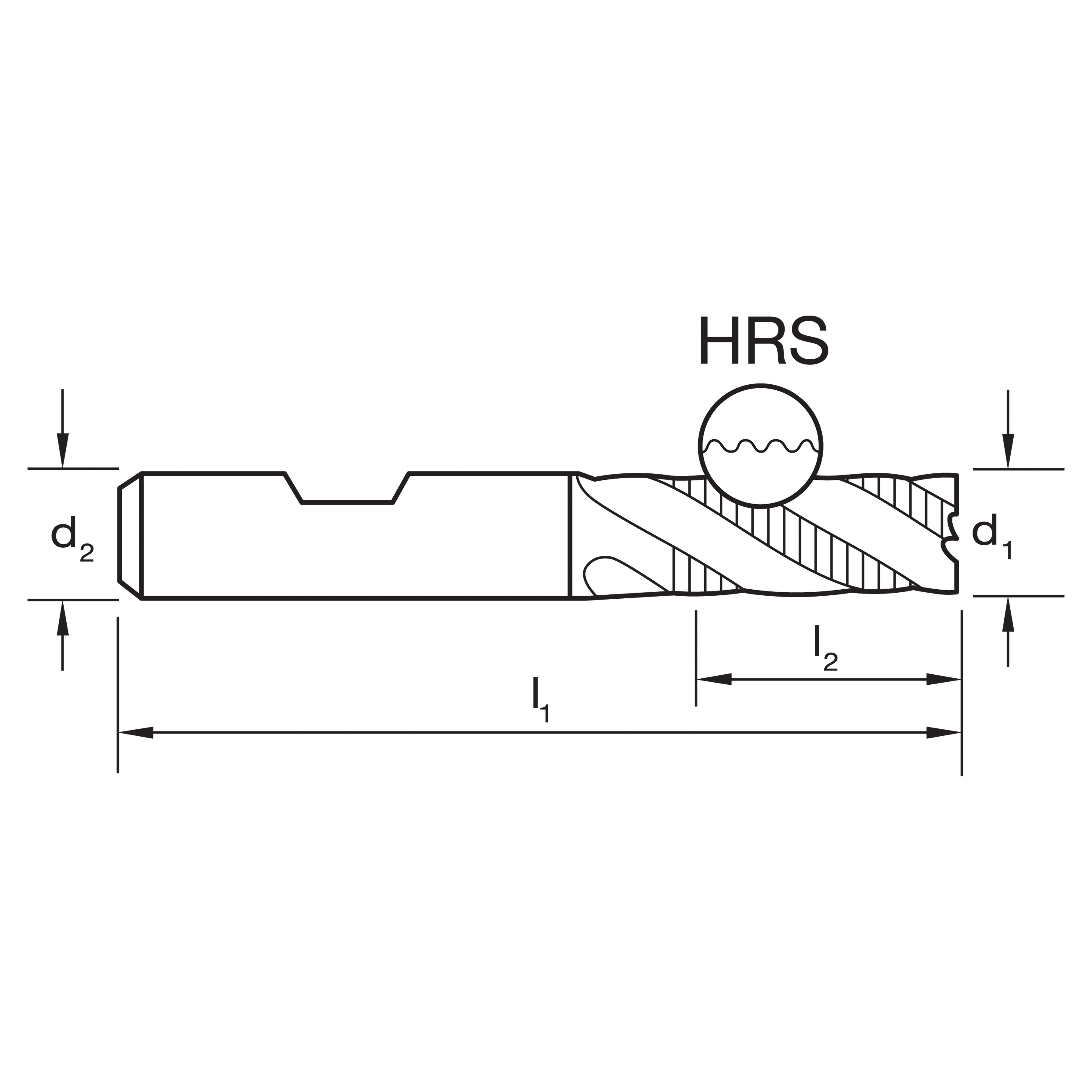

Item #Diameter d1 (mm)Diameter d1 (inch)Length l1 (mm)Length l2 (mm)Diameter d2 (mm)zQtyStockPriceAction
E151200020.00-10438206
Item is in stock2 in stock
NZ$223.41

  • Rougher, HRS (fine), R45 UNI, Regular offers superior performance
  • For roughing applications

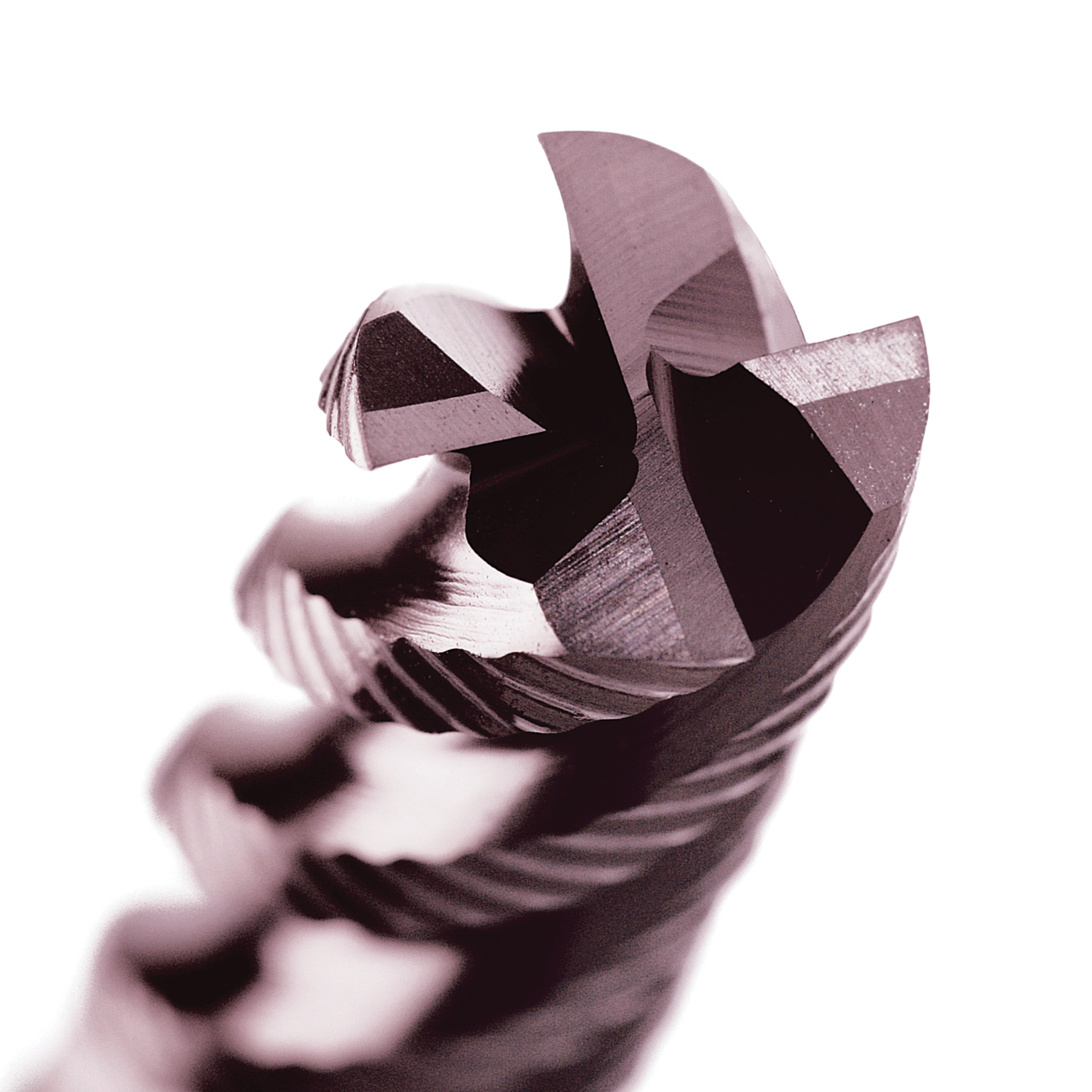

  • HRS geometry allows for heavy cuts in short & long chipping materials
  • TiAlN For longer tool life
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P5Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Quenched & Tempered300HB1010MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P9Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered350HB1180MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P11Steel - High alloy, cast & toolHardened & Tempered325HB1100MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
P13Steel - Corrosion resistant & cast - MartensiticQuenched & Tempered240HB810MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
H40Cast Iron - ChilledCast400HB1350MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: UNI
Material: SPM
Finish: TiAlN
Shank Form: B
Helix Angle: Designation: UNI
Point Tolerance: js14
Shank Tolerance: h6
Point Form: 45 Corner Chamfer
Standard: DIN844K
Type: HRS (fine pitch)
High Resolution Image
Low Resolution Image
Product: E/MILL E151 20mm REG. 6F R45 UNI HRS DIN844K-B SPM TiAlN
