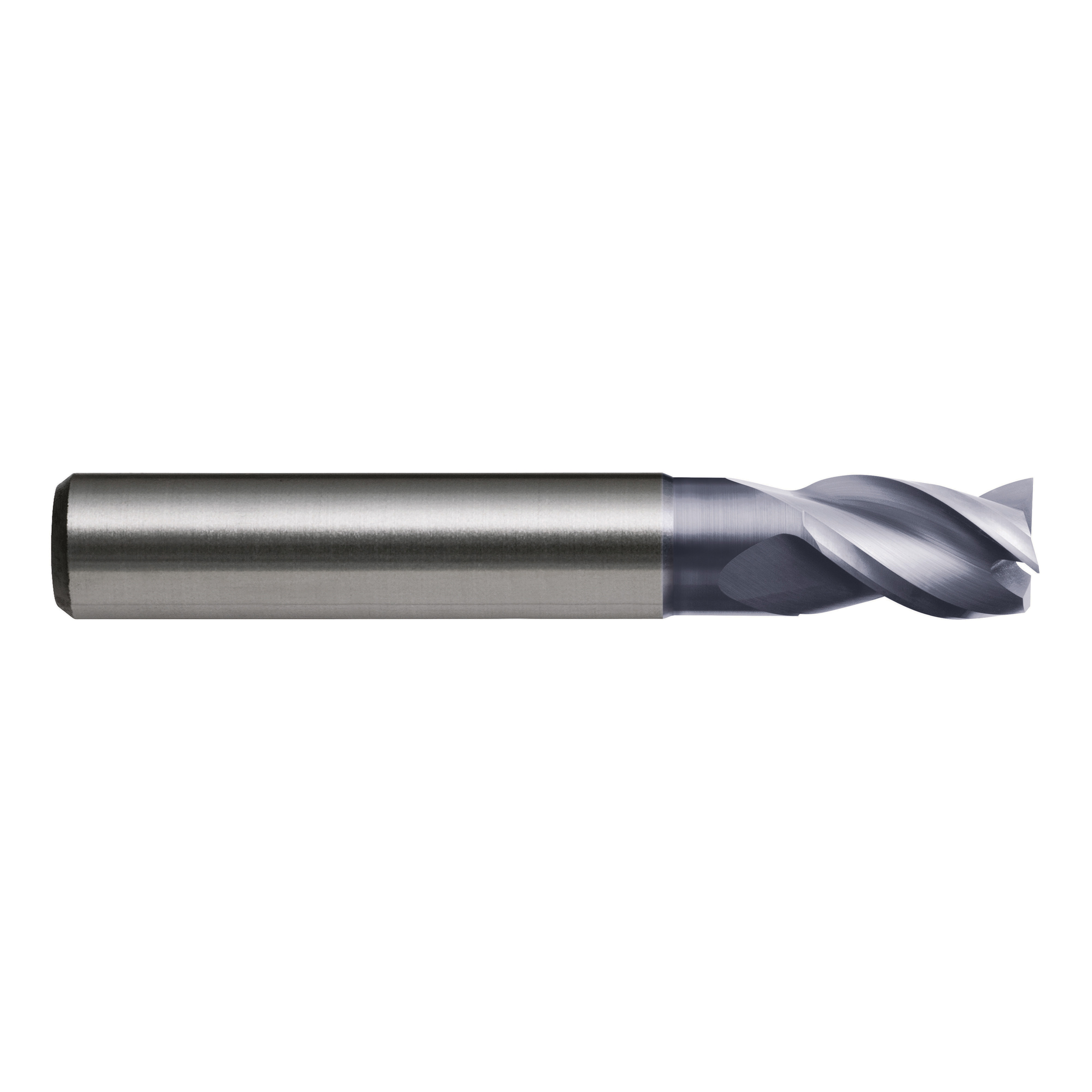

Endmill E422 12mm x 12mm 3F short 38°/37°/39° HA VHM AlCrN

SKU#:

E4221200
Item is in stock1 in stock
NZ$83.17

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Endmill, 3 Flute, R38/37/39 UNI, Short, Harmony for high performance Universal use for slotting & finishing with the one tool 38/37/39° variable flute helix for chatter free milling Suitable for materials up to 1600 N/mm2 AlCrN for longer tool life

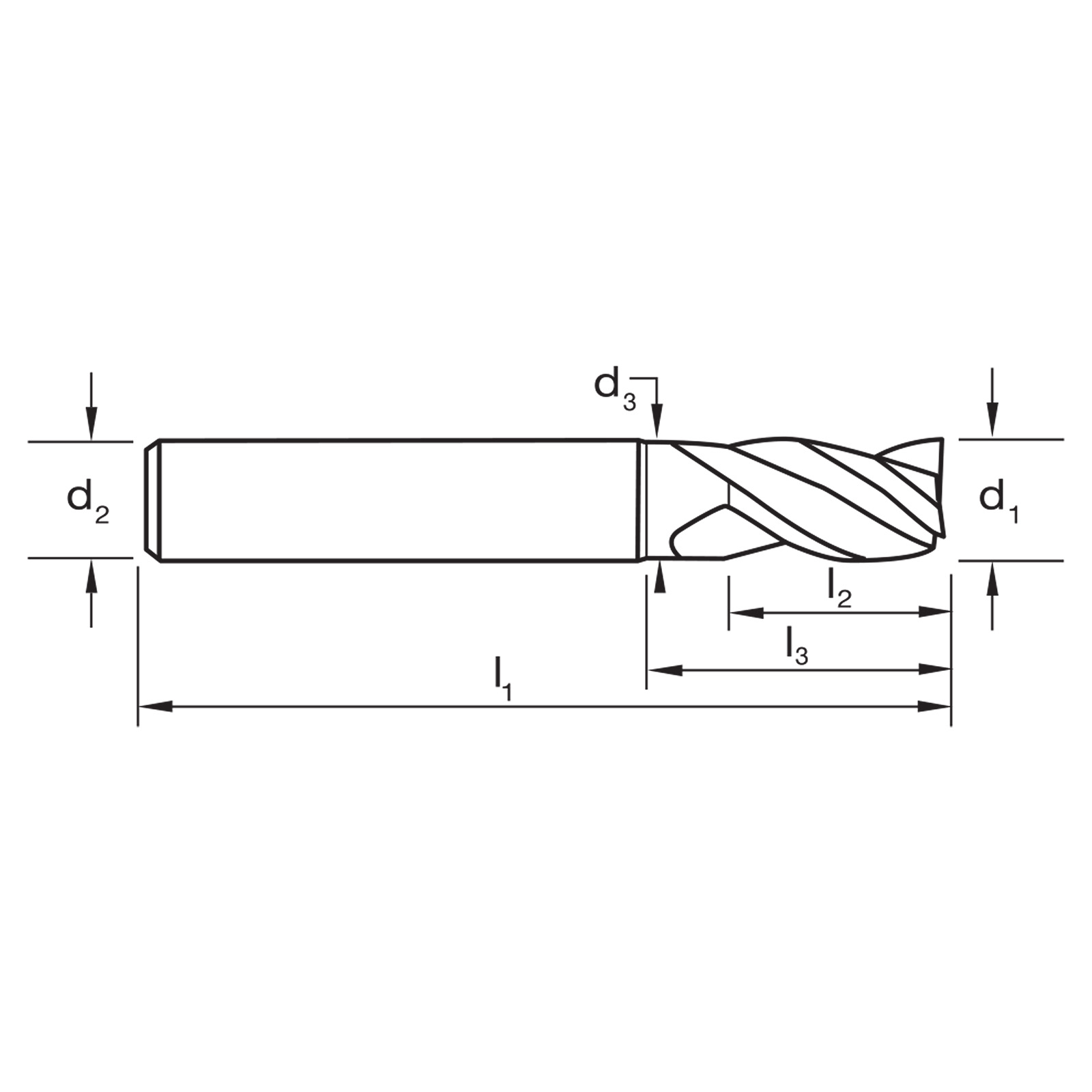

Item #Diameter d1 (mm)Length l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)Diameter d3 (mm)zQtyStockPriceAction
E42206006.0054101665.73
Item is in backorderItem is in backorder
NZ$29.50
E42208008.0058122087.63
Item is in backorderItem is in backorder
NZ$41.43
E422100010.00661424109.53
Item is in backorderItem is in backorder
NZ$61.76
E422120012.007316261211.53
Item is in stock1 in stock
NZ$83.17
E422140014.007316261413.53
Item is in backorderItem is in backorder
NZ$101.48
E422160016.008222321615.53
Item is in backorderItem is in backorder
NZ$139.20

  • Endmill, 3 Flute, R38/37/39 UNI, Short, Harmony for high performance
  • Universal use for slotting & finishing with the one tool
  • 38/37/39° variable flute helix for chatter free milling
  • Suitable for materials up to 1600 N/mm2
  • AlCrN for longer tool life
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P5Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Quenched & Tempered300HB1010MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P9Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered350HB1180MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P11Steel - High alloy, cast & toolHardened & Tempered325HB1100MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa
S31High temperature alloys - Fe basedAnnealed200HB680MPa
S32High temperature alloys - Fe basedAge Hardened280HB950MPa
S33High temperature alloys - Ni / Co basedAnnealed250HB840MPa
S34High temperature alloys - Ni / Co basedAge Hardened350HB1180MPa
S35High temperature alloys - Ni / Co basedCast320HB1080MPa
S36Titanium & Titanium alloys - CP Titanium400MPa
S37.1Titanium & Titanium alloys - Alpha alloys860MPa
S37.2Titanium & Titanium alloys - Alpha / Beta alloysAnnealed960MPa
S37.3Titanium & Titanium alloys - Alpha / Beta alloysAge Hardened1170MPa
S37.4Titanium & Titanium alloys - Beta alloysAnnealed830MPa
S37.5Titanium & Titanium alloys - Beta alloysAge Hardened1400MPa
H38.1Hardened steelHardened & Tempered45HRC
H38.2Hardened steelHardened & Tempered55HRC
H39.1Hardened steelHardened & Tempered58HRC
H40Cast Iron - ChilledCast400HB1350MPa
H41Cast IronHardened & Tempered55HRC

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: UNI
Material: VHM-ULTRA
Finish: AlCrN
Shank Form: HA
Helix Angle: Designation: UNI
Point Tolerance: e8
Shank Tolerance: h5
Point Form: 45 Corner Chamfer
Standard: DIN6527K
Type: N (finishing)
Rank Angle: 6
