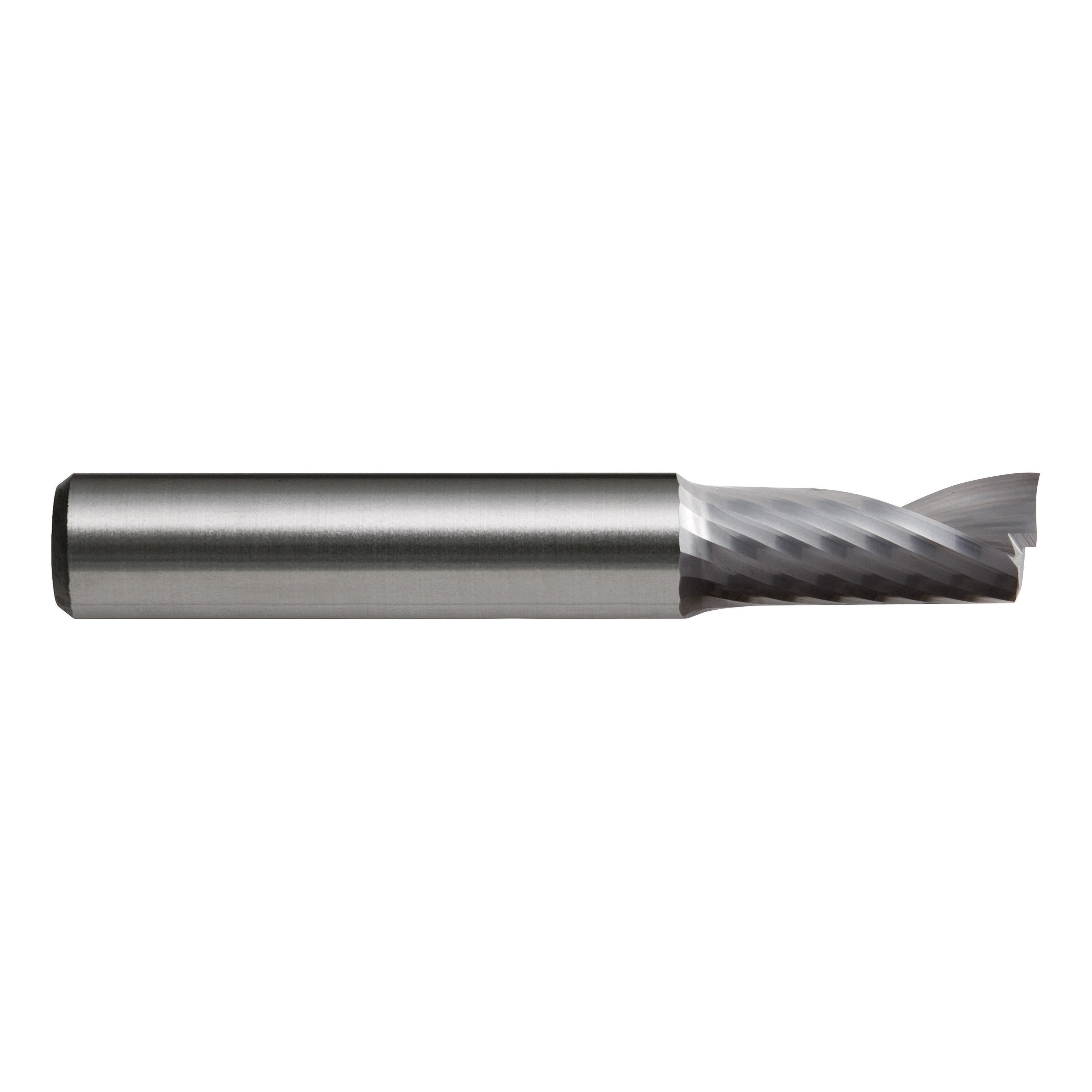

12mm x 12mm 1 Flute Endmill E444 DIN6527K 30° HA VHM BRT
SKU#:
Minimum Quantity is 1 • Sold in increments of 1
Enter a value between 1 and 99999 in increments of 1.
Endmill, 1 Flute, R30 Al, Short Large single flute for swarf clearance.

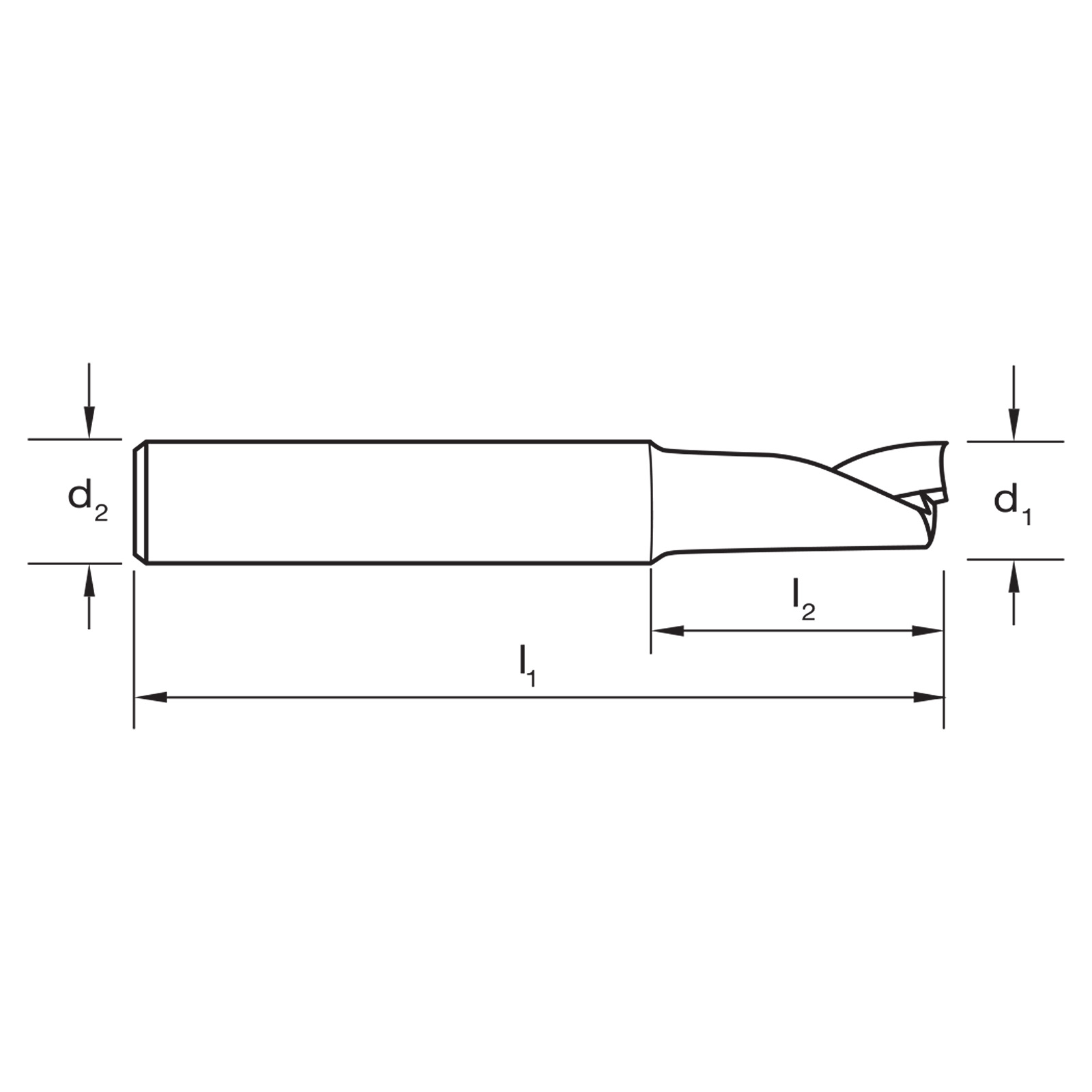

| Item # | Diameter d1 (mm) | Length l1 (mm) | Length l2 (mm) | Diameter d2 (mm) | z | Qty | Stock | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
| E4440300 | |||||||||
| E4440400 | |||||||||
| E4440500 | |||||||||
| E4440600 | |||||||||
| E4440800 | |||||||||
| E4441000 | |||||||||
| E4441200 |
- Endmill, 1 Flute, R30 Al, Short

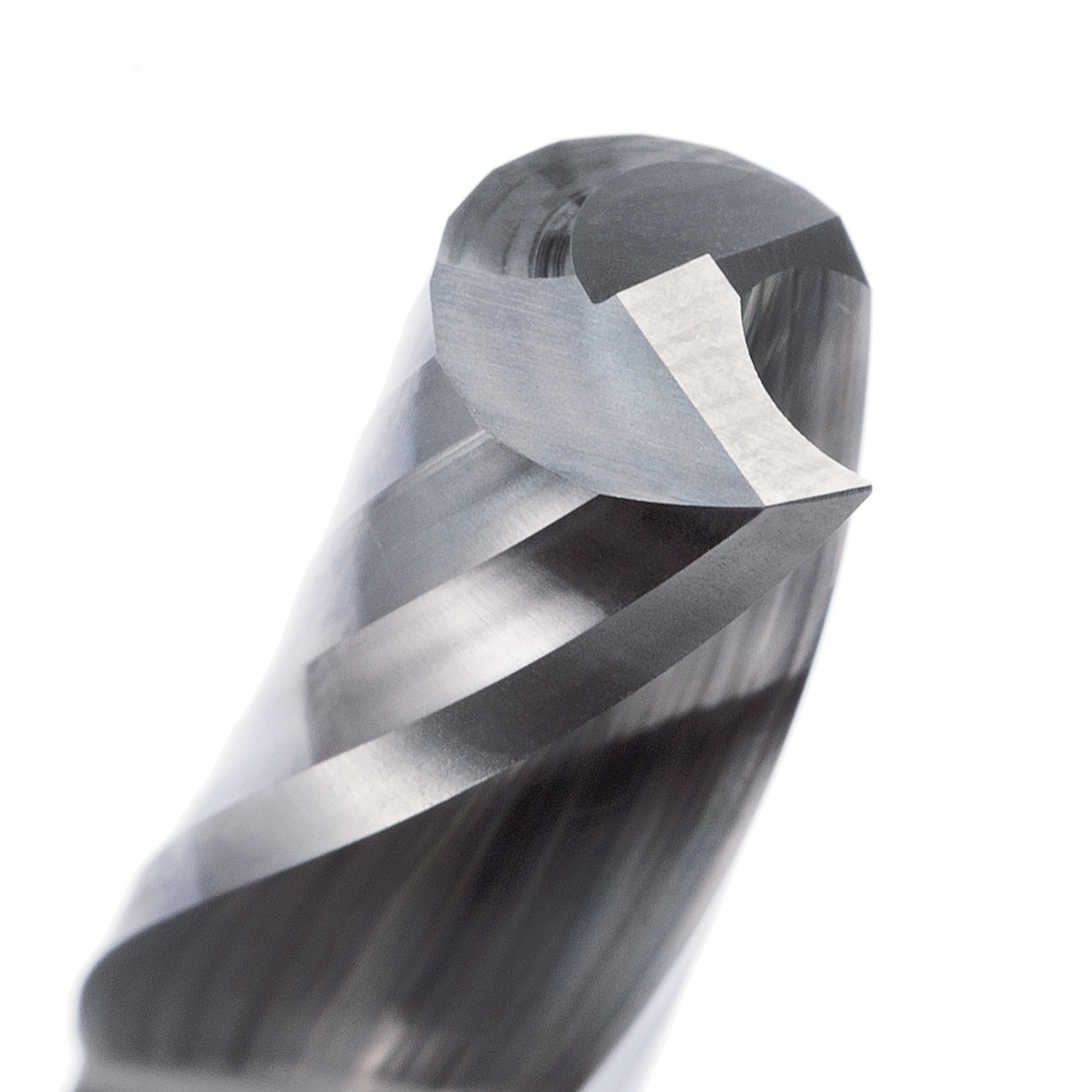

- Large single flute for swarf clearance.
| ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
|---|---|---|---|---|---|---|
| N | 21 | Aluminum & Magnesium, wrought alloy - Non Heat Treatable | 60HB | 210MPa | ||
| N | 22 | Aluminum & Magnesium, wrought alloy - Heat Treatable | Age Hardened | 100HB | 360MPa | |
| N | 23 | Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable | 75HB | 270MPa | ||
| N | 24 | Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable | Age Hardened | 90HB | 320MPa | |
| N | 25 | Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable | 130HB | 460MPa | ||
| N | 26 | Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% | 110HB | 390MPa | ||
| N | 28 | Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) | 100HB | 360MPa |
KEY
OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: Al
Material: VHM
Finish: Brt
Shank Form: HA
Helix Angle: Designation: Al
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Standard: Sutton
Type: N (finishing)
Rank Angle: 20
