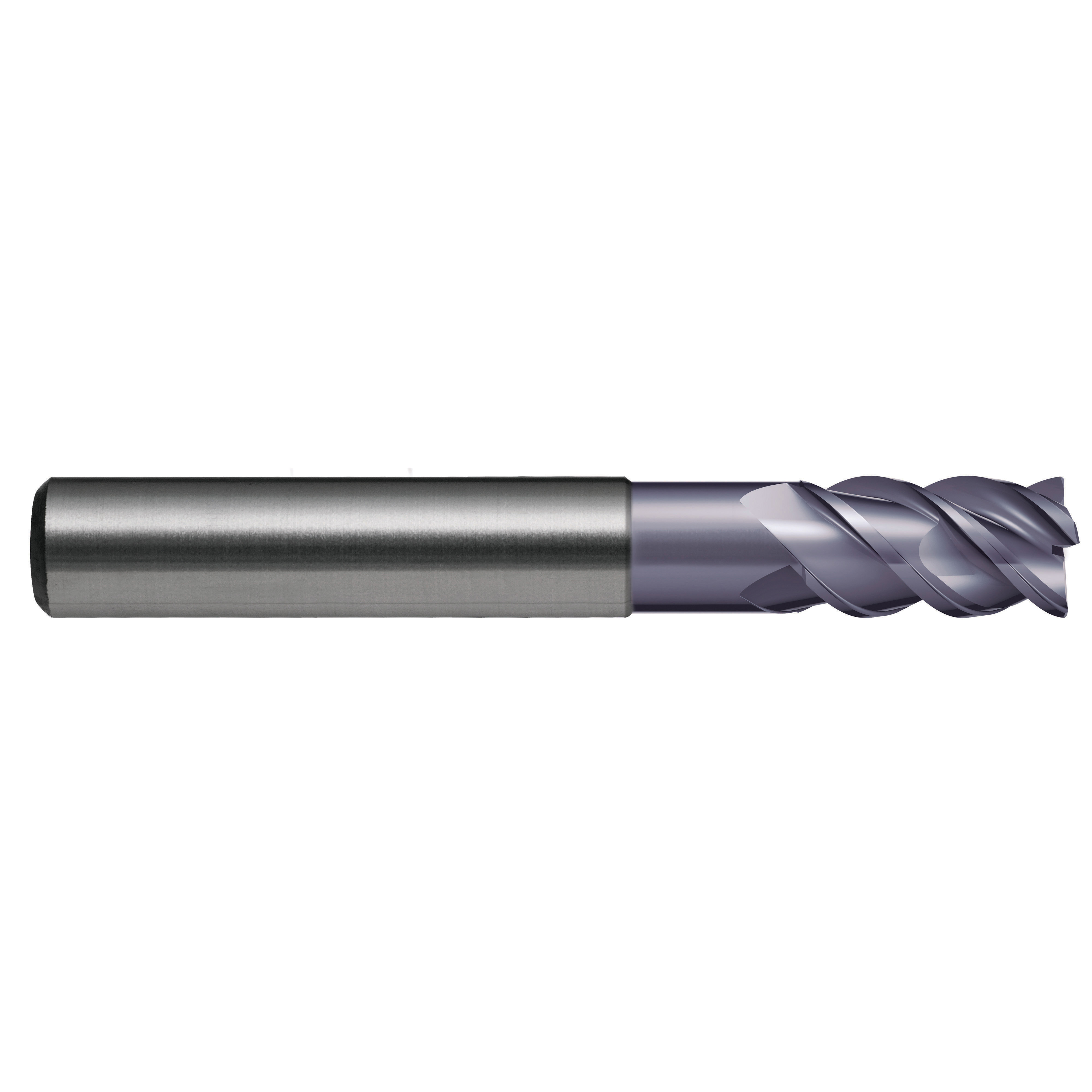

6mm 4 Flute Endmill E562 R50 DIN6527L-HA VHM 48HRc Alcrona
SKU#:
Minimum Quantity is 1 • Sold in increments of 1
Enter a value between 1 and 99999 in increments of 1.
-
| Item # | Diameter d1 (mm) | Length l1 (mm) | Length l2 (mm) | Length l3 (mm) | Diameter d2 (mm) | Diameter d3 (mm) | z | Qty | Stock | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E5620600 | |||||||||||
| E5620800 | |||||||||||
| E5621000 | |||||||||||
| E5621200 | |||||||||||
| E5621600 | |||||||||||
| E5622000 |
- 4 Flute Endmill R50-NH for high performance
- Dual stepped core for optimal stability
- Ideal design for pocket milling in MQL & HSC
- Suitable for materials up to 48HRc
- AlCrN for longer tool life
| ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
|---|---|---|---|---|---|---|
| P | 5 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Quenched & Tempered | 300HB | 1010MPa | |
| P | 8 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 300HB | 1010MPa | |
| P | 9 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 350HB | 1180MPa | |
| P | 11 | Steel - High alloy, cast & tool | Hardened & Tempered | 325HB | 1100MPa | |
| P | 13 | Steel - Corrosion resistant & cast - Martensitic | Quenched & Tempered | 240HB | 810MPa | |
| M | 14.2 | Stainless Steel - Duplex | 250HB | 840MPa | ||
| M | 14.3 | Stainless Steel - Precipitation Hardening | 250HB | 840MPa | ||
| K | 16 | Cast Iron, Grey (GG) - Pearlitic | 260HB | 880MPa | ||
| K | 18 | Cast Iron, Nodular (GGG) - Pearlitic | 250HB | 840MPa | ||
| S | 32 | High temperature alloys - Fe based | Age Hardened | 280HB | 950MPa | |
| S | 34 | High temperature alloys - Ni / Co based | Age Hardened | 350HB | 1180MPa | |
| S | 35 | High temperature alloys - Ni / Co based | Cast | 320HB | 1080MPa | |
| S | 37.1 | Titanium & Titanium alloys - Alpha alloys | 860MPa | |||
| S | 37.2 | Titanium & Titanium alloys - Alpha / Beta alloys | Annealed | 960MPa | ||
| S | 37.4 | Titanium & Titanium alloys - Beta alloys | Annealed | 830MPa | ||
| H | 38.1 | Hardened steel | Hardened & Tempered | 45HRC | ||
| H | 40 | Cast Iron - Chilled | Cast | 400HB | 1350MPa |
KEY
OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: NH
Material: VHM-ULTRA
Finish: AlCrN
Shank Form: HA
Helix Angle: Designation: NH
Point Tolerance: h10
Shank Tolerance: h6
Point Form: 45 Corner Chamfer
Standard: DIN6527L
Type: N (finishing)
Rank Angle: 14
