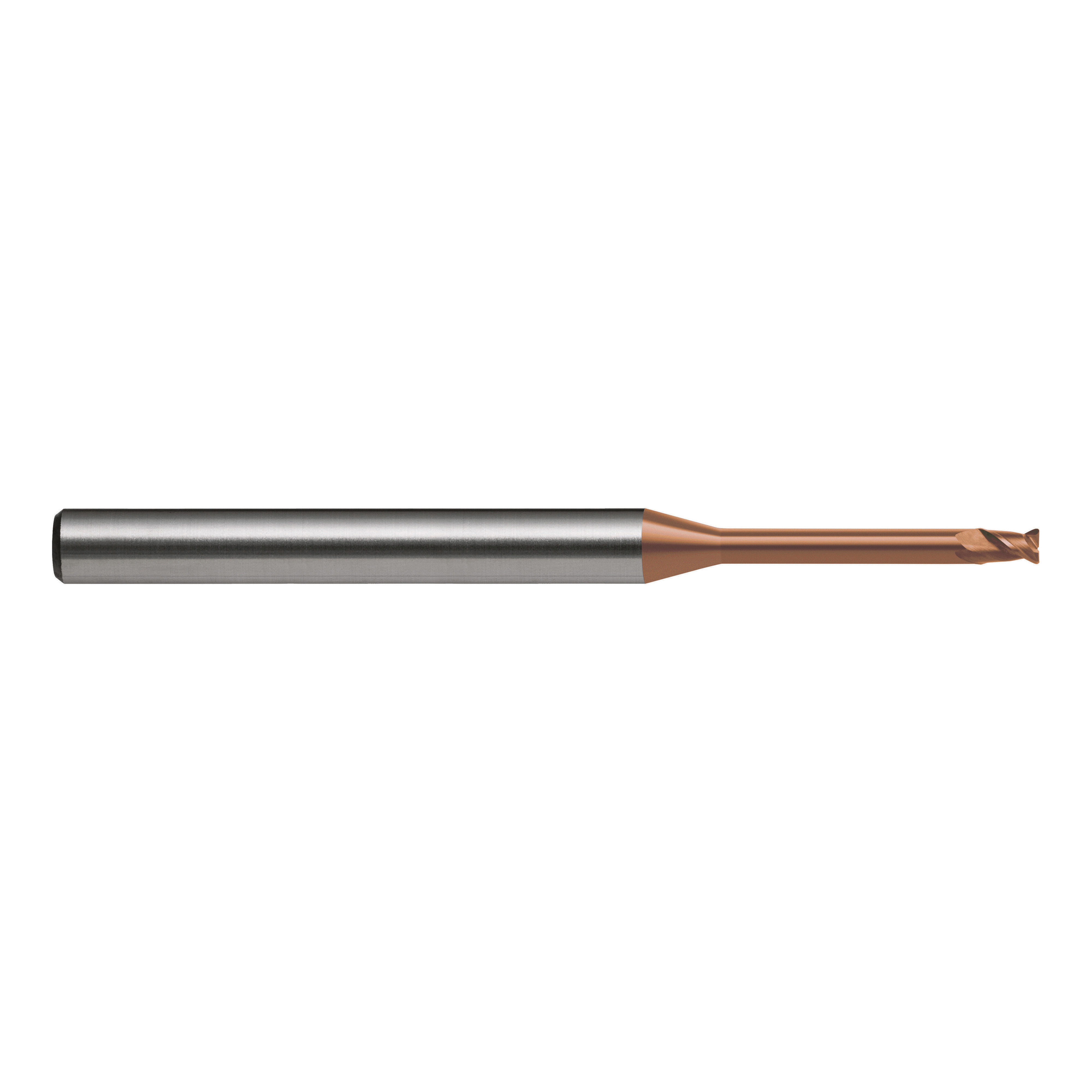

1x1.5x10x4mm 2 Flute Endmill E581 Corner Radius 0.1 40° HA VHM TiSiN

SKU#:

E5810103

Item is in backorder

NZ$67.09

QTY

Enter a value between 1 and 99999 in increments of 1.

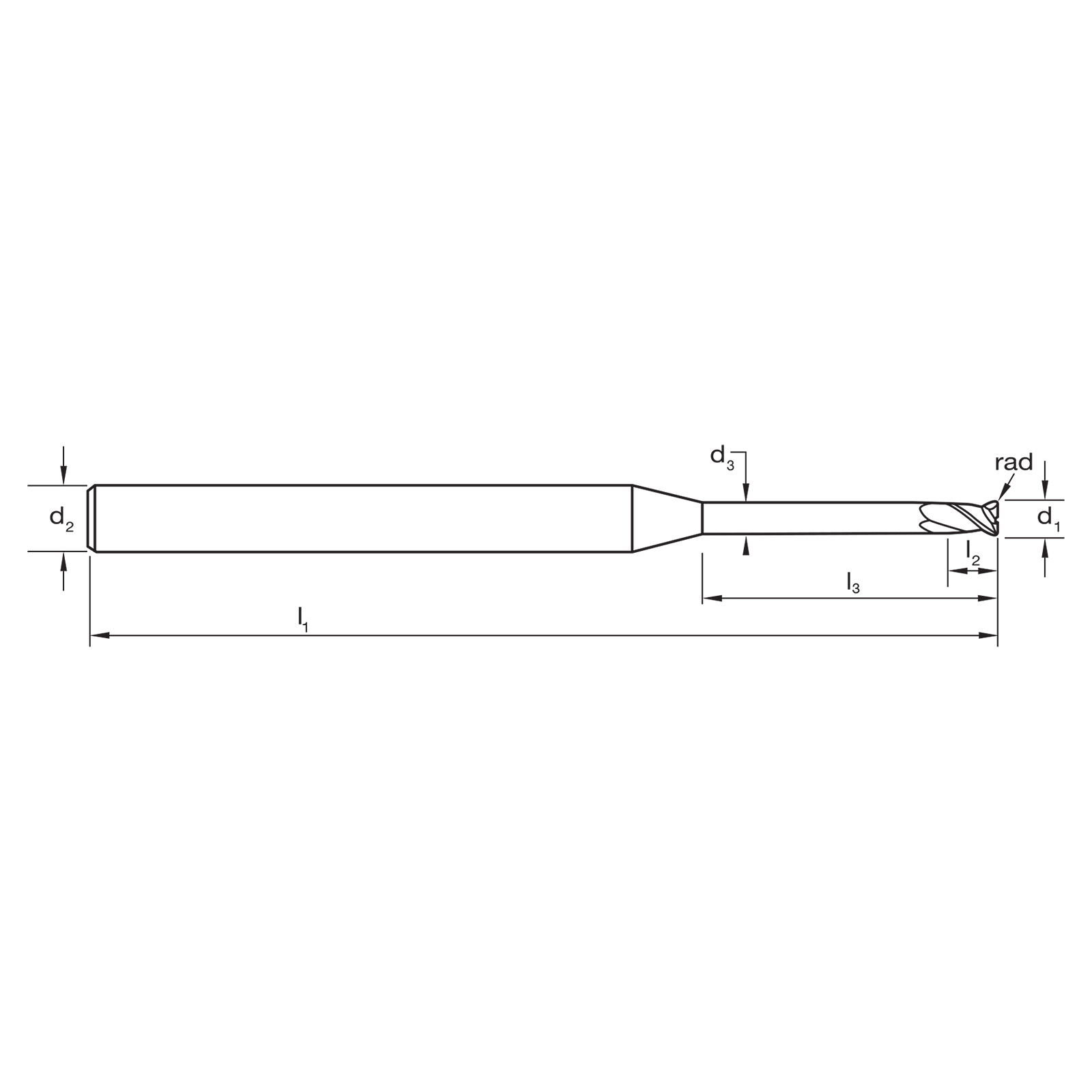

Item #	Diameter d1 (mm)	Length l1 (mm)	Length l2 (mm)	Length l3 (mm)	Diameter d2 (mm)	Diameter d3 (mm)	z	Rad	Stock	Price	Action
E5810101	1.00	50	1.5	6	4	0.95	2	0.1	Item is in backorderItem is in backorder	NZ$65.62	Wishlist
E5810103	1.00	50	1.5	10	4	0.95	2	0.1	Item is in backorderItem is in backorder	NZ$67.09	Wishlist
E5810104	1.00	50	1.5	12	4	0.95	2	0.1	Item is in backorderItem is in backorder	NZ$65.15	Wishlist
E5810155	1.50	60	2.3	20	4	1.45	2	0.15	Item is in stock1 in stock	NZ$71.62	Wishlist
E5810201	2.00	50	3	6	4	1.95	2	0.2	Item is in backorderItem is in backorder	NZ$63.32	Wishlist
E5810205	2.00	50	3	16	4	1.95	2	0.2	Item is in backorderItem is in backorder	NZ$66.38	Wishlist
E5810207	2.00	75	3	25	4	1.95	2	0.2	Item is in backorderItem is in backorder	NZ$74.08	Wishlist
E5810301	3.00	60	4.5	16	6	2.95	2	0.3	Item is in stock4 in stock	NZ$89.15	Wishlist
E5810303	3.00	75	4.5	25	6	2.95	2	0.3	Item is in backorderItem is in backorder	NZ$114.90	Wishlist

ISO	VDI	Description	Condition	Hardness	Strength
P	9	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	350HB	1180MPa
P	11	Steel - High alloy, cast & tool	Hardened & Tempered	325HB	1100MPa
P	13	Steel - Corrosion resistant & cast - Martensitic	Quenched & Tempered	240HB	810MPa
M	14.2	Stainless Steel - Duplex		250HB	840MPa
M	14.3	Stainless Steel - Precipitation Hardening		250HB	840MPa
S	34	High temperature alloys - Ni / Co based	Age Hardened	350HB	1180MPa
S	35	High temperature alloys - Ni / Co based	Cast	320HB	1080MPa
S	37.3	Titanium & Titanium alloys - Alpha / Beta alloys	Age Hardened		1170MPa
S	37.5	Titanium & Titanium alloys - Beta alloys	Age Hardened		1400MPa
H	38.1	Hardened steel	Hardened & Tempered	45HRC

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials

Designation: NH

Material: VHM

Finish: TiSiN

Shank Form: HA

Helix Angle: R40

Point Tolerance: 0 / -0.020

Shank Tolerance: h6

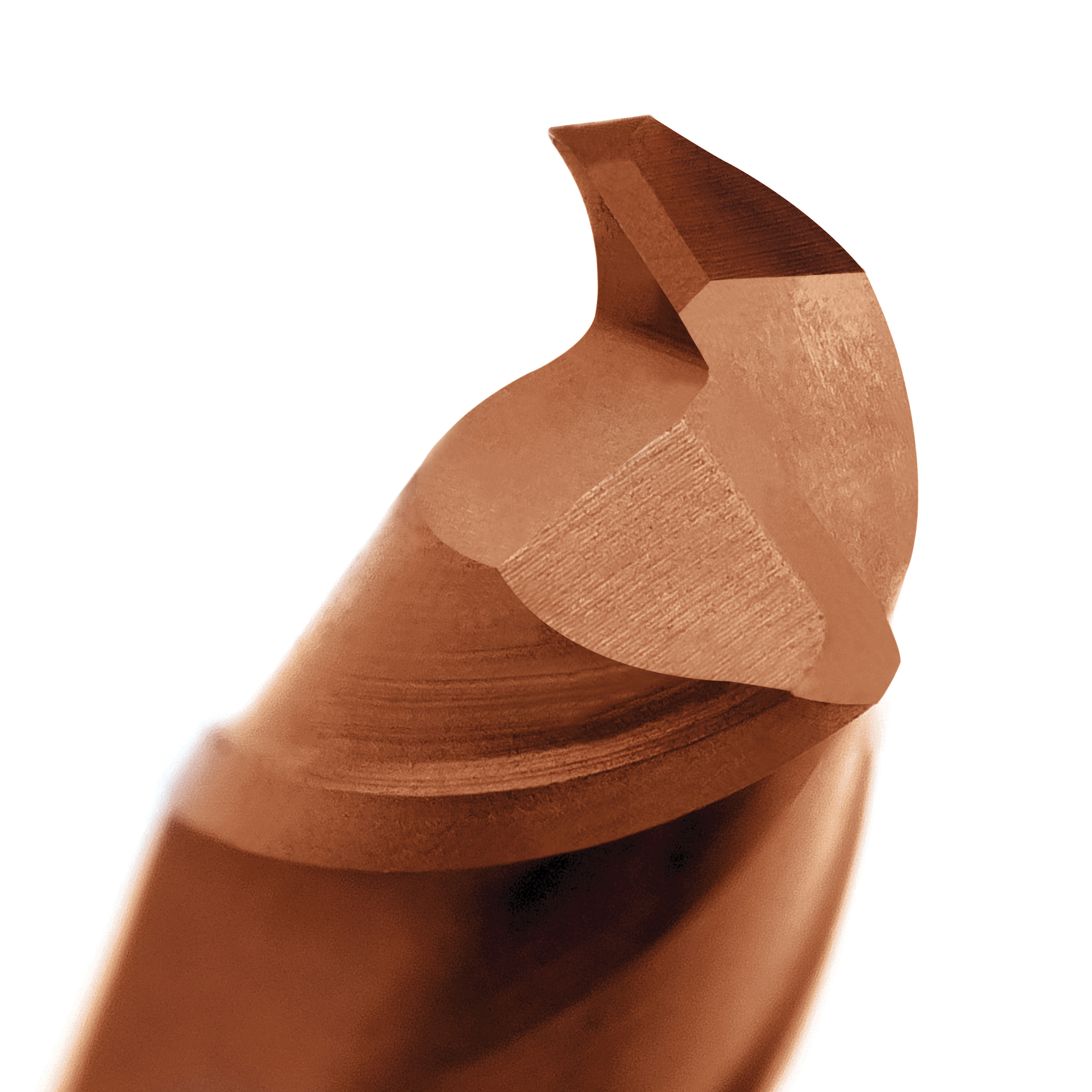

Point Form: Corner Radius

Standard: Sutton

Rake Angle: 10°-12°
