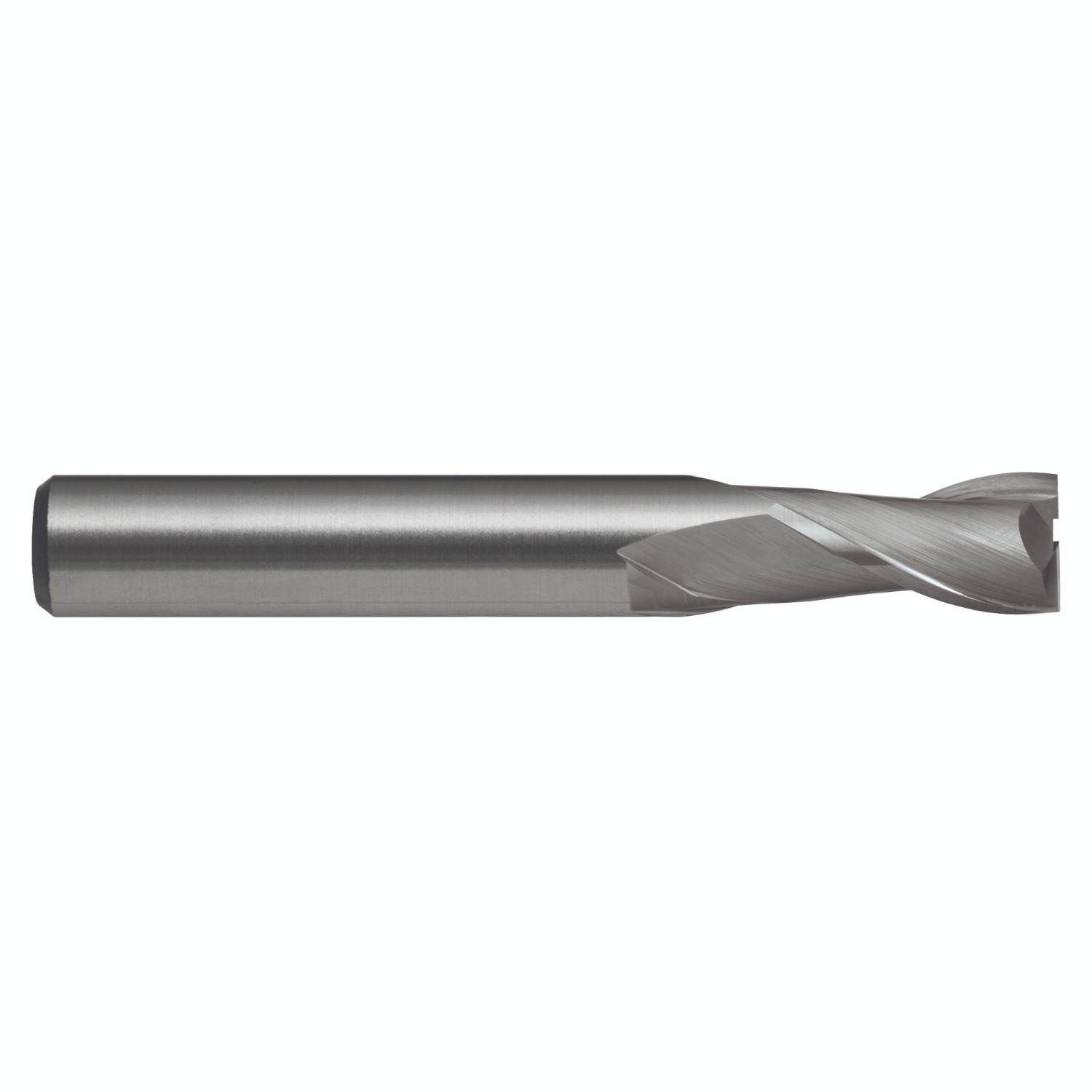

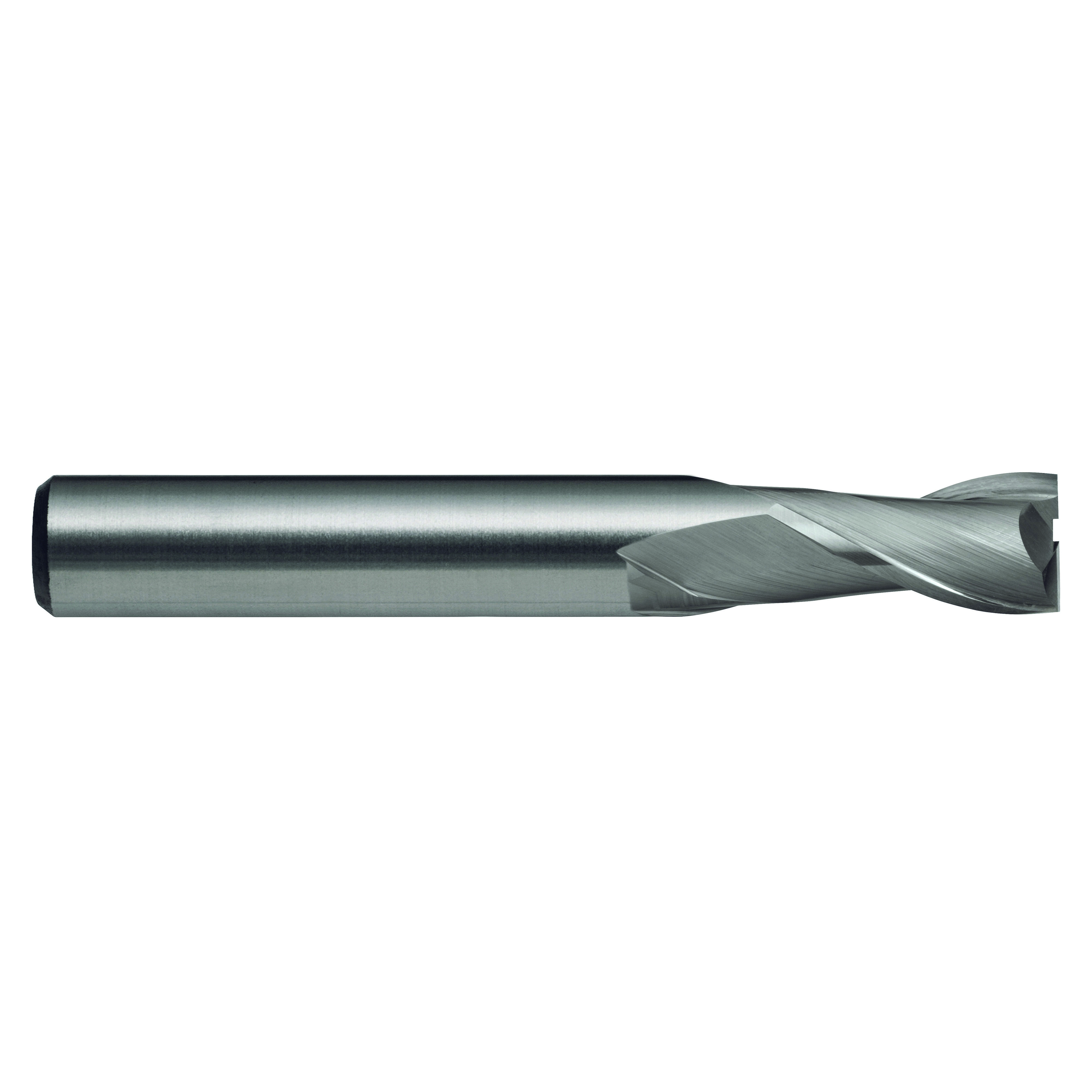

1.0mm 2 Flute Endmill Regular E600 R30 VHM

SKU#:

E6000100
Item is in stock2 in stock
NZ$15.26

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

2 Flute Slot Drill R30 N Suitable for materials up to 1600 N/mm2 TiAlN for longer tool life

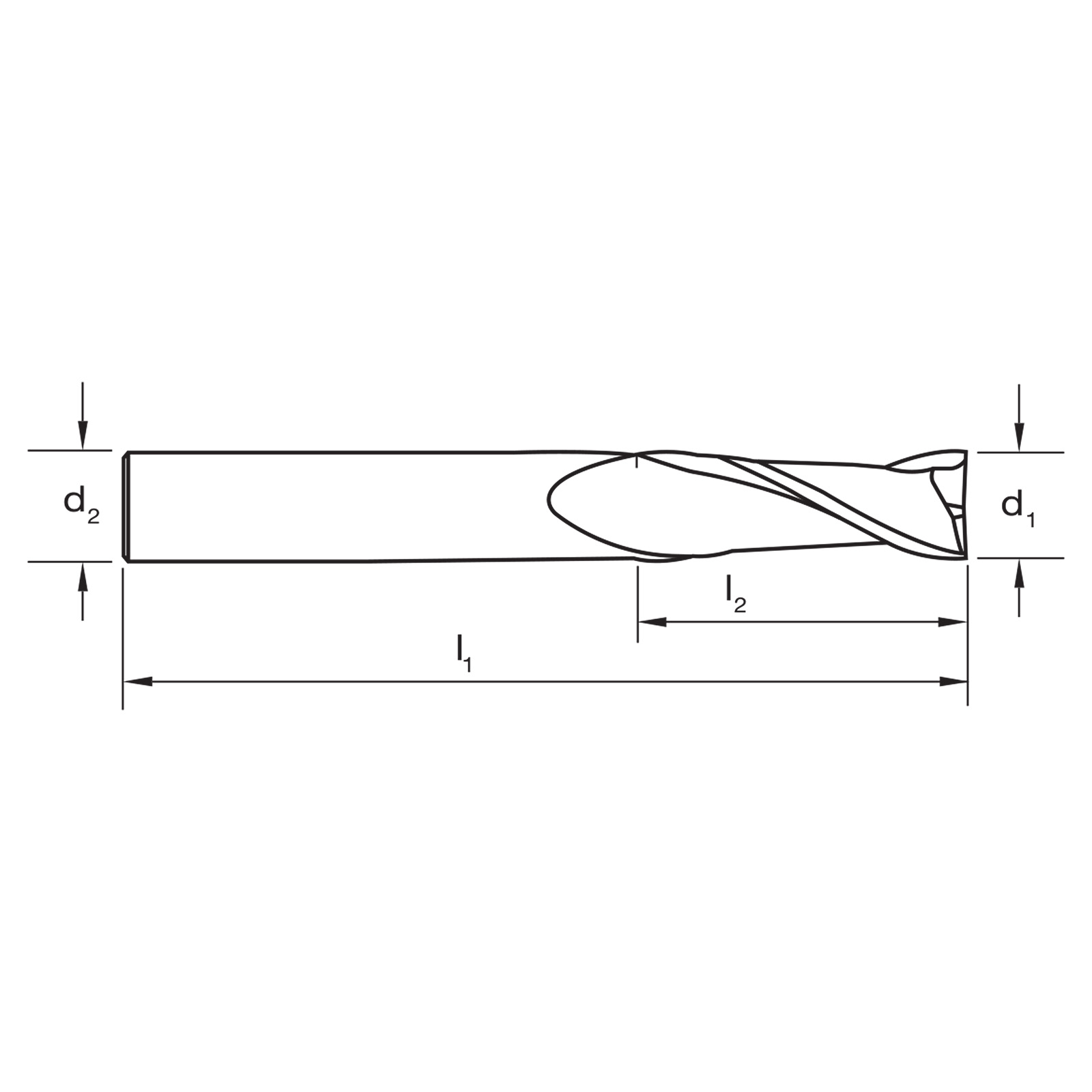

Item #Diameter d1 (mm)Length l1 (mm)Length l2 (mm)Diameter d2 (mm)zQtyStockPriceAction
E60001001.0038432
Item is in stock2 in stock
NZ$15.26
E60001501.50384.532
Item is in backorderItem is in backorder
NZ$15.26
E60002002.0038632
Item is in backorderItem is in backorder
NZ$16.14
E60002502.50389.532
Item is in backorderItem is in backorder
NZ$16.14
E60003003.00381232
Item is in stock5 in stock
NZ$14.77
E60003503.50501242
Item is in backorderItem is in backorder
NZ$18.19
E60004004.00501444
Item is in backorderItem is in backorder
NZ$18.19
E60004504.50501662
Item is in stock2 in stock
NZ$24.26
E60005005.00501662
Item is in backorderItem is in backorder
NZ$24.26
E60006006.00501962
Item is in stock5 in stock
NZ$21.86
E60007007.00631982
Item is in backorderItem is in backorder
NZ$32.32
E60008008.00632082
Item is in stock2 in stock
NZ$37.46
E60009009.007522102
Item is in backorderItem is in backorder
NZ$57.95
E600100010.007522102
Item is in stock4 in stock
NZ$51.15
E600110011.007525122
Item is in backorderItem is in backorder
NZ$73.20
E600120012.007525122
Item is in stock2 in stock
NZ$72.37
E600140014.008932142
Item is in backorderItem is in backorder
NZ$115.41
E600160016.008932162
Item is in stock1 in stock
NZ$141.96
E600180018.0010038182
Item is in backorderItem is in backorder
NZ$187.00
E600200020.0010038202
Item is in backorderItem is in backorder
NZ$206.95
E600250025.0010038252
Item is in backorderItem is in backorder
NZ$358.64

  • 2 Flute Slot Drill R30 N
  • Suitable for materials up to 1600 N/mm2
  • TiAlN for longer tool life
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: VHM
Finish: Brt
Shank Form: HA
Helix Angle: Designation: N
Point Tolerance: h10
Shank Tolerance: h6
Point Form: Square End
Standard: Sutton
Type: N (finishing)
Rank Angle: 12
High Resolution Image
Low Resolution Image
Product: E/MILL E600 1.0mm REG.2 Flutes R30 VHM
