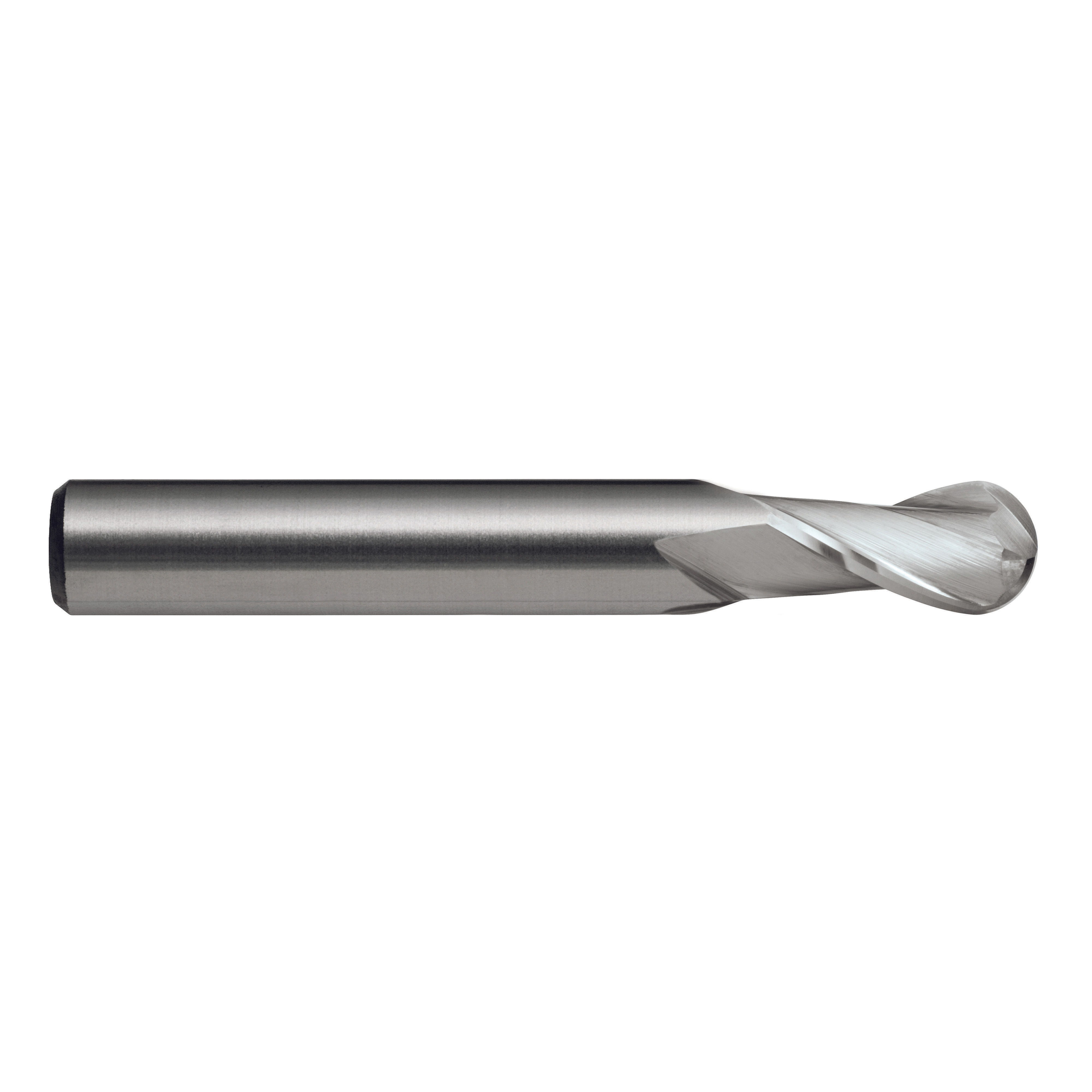

2.0mm 2 Flute Endmill Regular E602 Ball Nose R30 VHM

SKU#:

E6020200
Item is in backorderItem is in backorder
NZ$17.73

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Ballnose Slot Drill 2 Flute Suitable for materials up to 1600 N/mm2 TiAlN for longer tool life

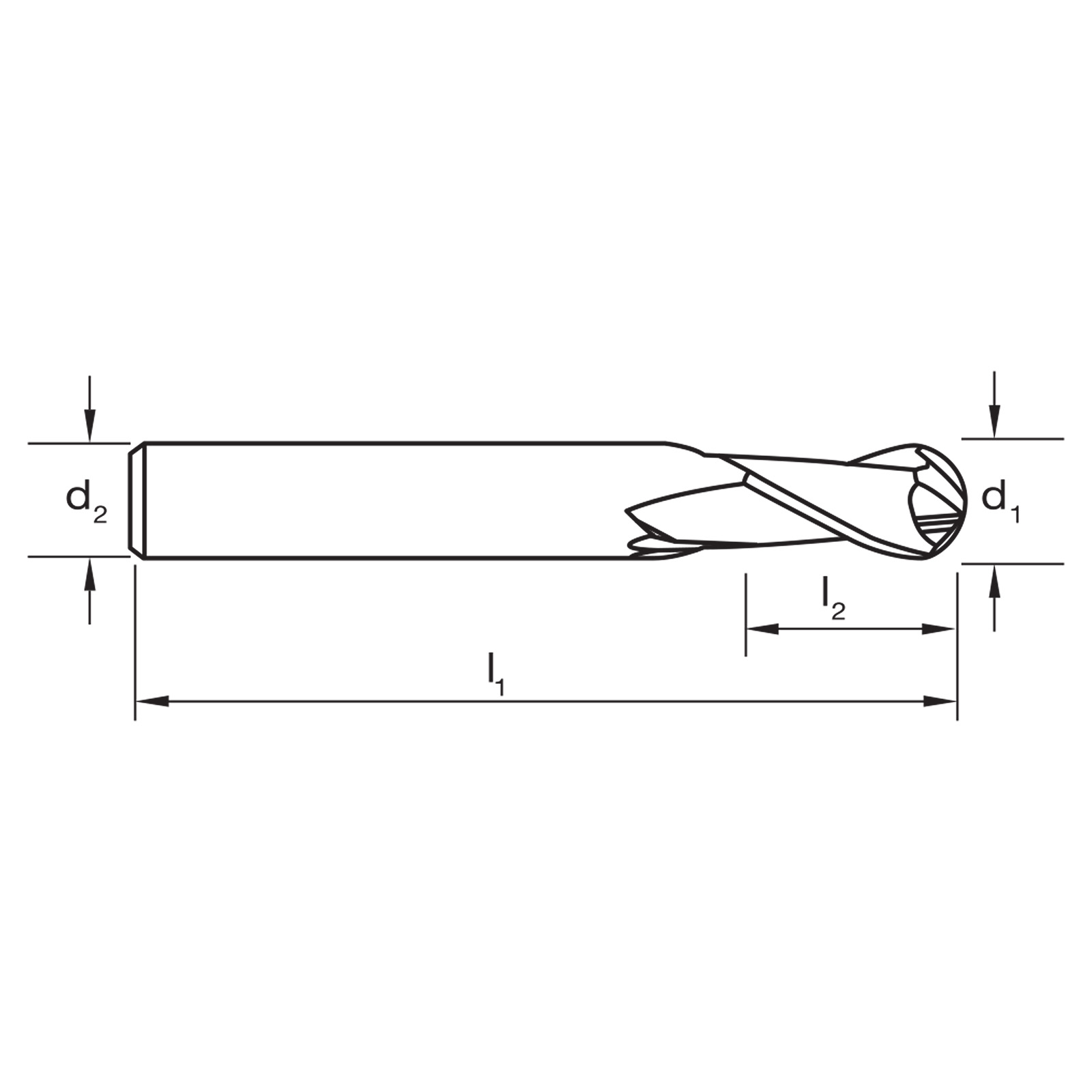

Item #Diameter d1 (mm)Length l1 (mm)Length l2 (mm)Diameter d2 (mm)zQtyStockPriceAction
E60201001.0038432
Item is in stock5 in stock
NZ$16.61
E60201501.50384.532
Item is in stock2 in stock
NZ$17.73
E60202002.0038632
Item is in backorderItem is in backorder
NZ$17.73
E60202502.50389.532
Item is in backorderItem is in backorder
NZ$18.48
E60203003.00381232
Item is in backorderItem is in backorder
NZ$17.31
E60204004.00501442
Item is in backorderItem is in backorder
NZ$23.33
E60205005.00501662
Item is in backorderItem is in backorder
NZ$26.99
E60206006.00501962
Item is in backorderItem is in backorder
NZ$26.80
E60207007.00631982
Item is in backorderItem is in backorder
NZ$45.28
E60208008.00632082
Item is in backorderItem is in backorder
NZ$40.88
E60209009.007520102
Item is in backorderItem is in backorder
NZ$69.29
E602100010.007522102
Item is in backorderItem is in backorder
NZ$66.41
E602110011.007525122
Item is in backorderItem is in backorder
NZ$58.18
E602120012.00752522
Item is in backorderItem is in backorder
NZ$88.02
E602140014.008932142
Item is in backorderItem is in backorder
NZ$154.82
E602160016.008932162
Item is in backorderItem is in backorder
NZ$171.40
E602200020.0010038202
Item is in backorderItem is in backorder
NZ$259.81
E602250025.0010038252
Item is in backorderItem is in backorder
NZ$459.62

  • Ballnose Slot Drill 2 Flute
  • Suitable for materials up to 1600 N/mm2
  • TiAlN for longer tool life
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: VHM
Finish: Brt
Shank Form: HA
Helix Angle: Designation: N
Point Tolerance: h10
Shank Tolerance: h6

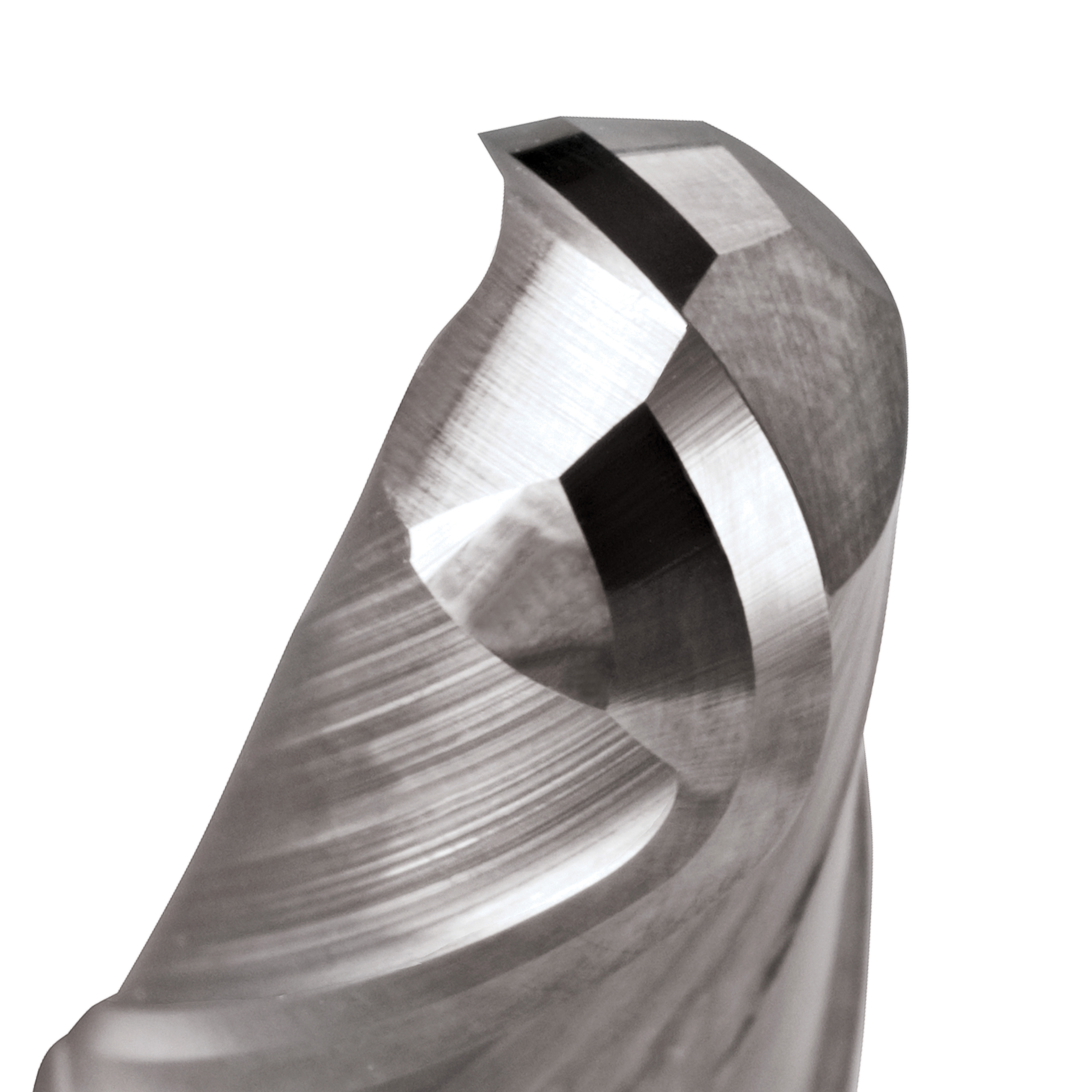

Point Form: Ballnose
Standard: Sutton
Type: N (finishing)
Rank Angle: 12
High Resolution Image
Low Resolution Image
Product: E/MILL E602 2.0mm REG. BALL 2 Flutes R30 VHM
