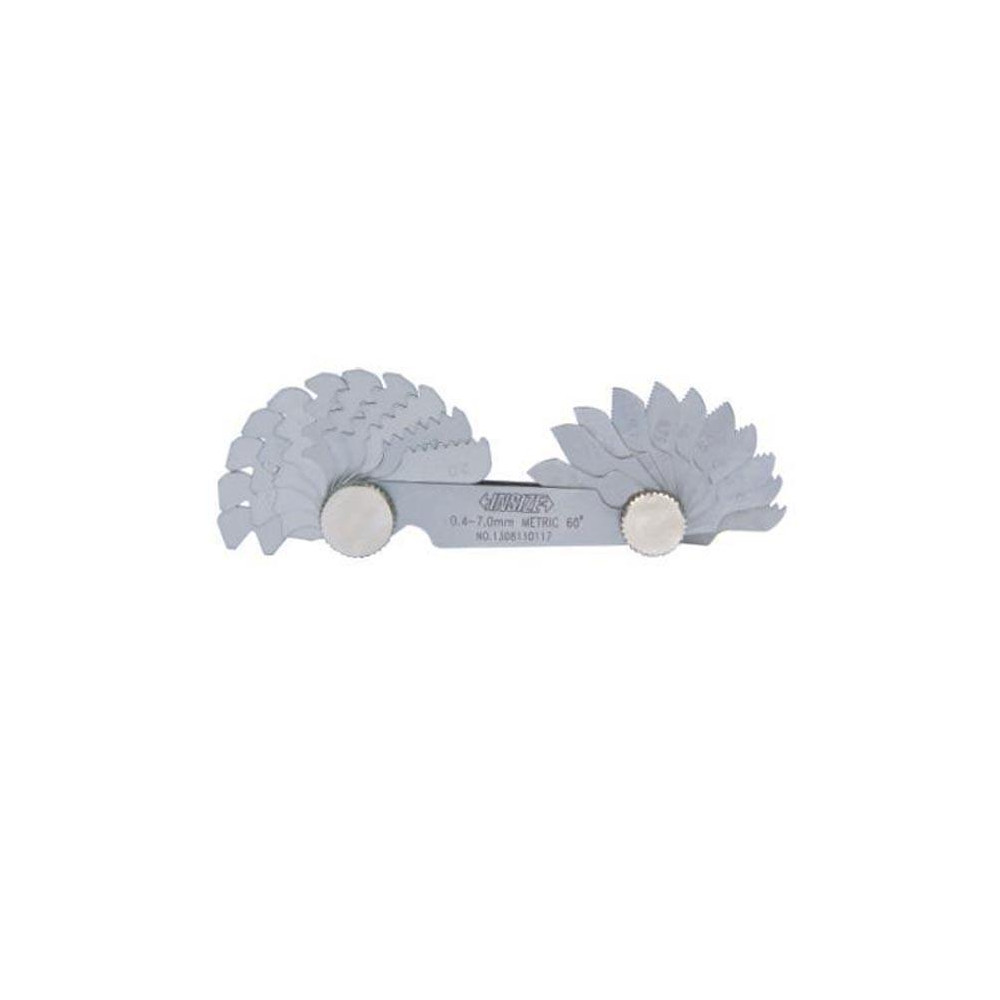

Metric Screw Pitch Gauge 0.4-7mm x 22 Pitches Insize 4820-122
SKU#:
Minimum Quantity is 1 • Sold in increments of 1
Enter a value between 1 and 99999 in increments of 1.
The Insize Screw Pitch Gauges are precision tools designed for identifying and verifying thread pitches across metric, Unified, and Whitworth standards. Each gauge set contains multiple leaves representing a wide range of thread sizes and pitches, allowing quick and accurate determination of screw thread specifications. These gauges are ideal for machinists, engineers, and quality control personnel who require reliable thread identification for manufacturing, maintenance, or inspection applications. Their durable construction and clear markings ensure accurate, repeatable results every time.
| Item # | Description | Qty | Stock | Price | Action |
|---|---|---|---|---|---|
| 4832180 | |||||
| 4832260 | |||||
| 4832360 | |||||
| 4832420 |
- Comprehensive thread coverage:
- Unified Gauge: 4–42 TPI, 30 pitches
- Whitworth Gauge: 4–62 TPI, 28 pitches
- Metric Gauge: 0.4–7 mm, 22 pitches
- Metric/Unified Combination: 4–42 TPI, 0.4–7 mm
- Quick and accurate identification: Allows fast verification of thread type and pitch to prevent assembly errors and ensure compliance with design specifications.
- Durable construction: Made from hardened steel for long-lasting use in workshop, production, or inspection environments.
- Easy to use: Clearly marked leaves and well-organized sets enable simple matching to existing threads.
- Versatile applications: Suitable for engineering, quality control, maintenance, and machining environments.
- Portable and organized: Each set is compact and easy to store, keeping all leaves accessible and protected.
- Reliable repeatability: Ensures consistent measurement and thread verification over repeated use.
