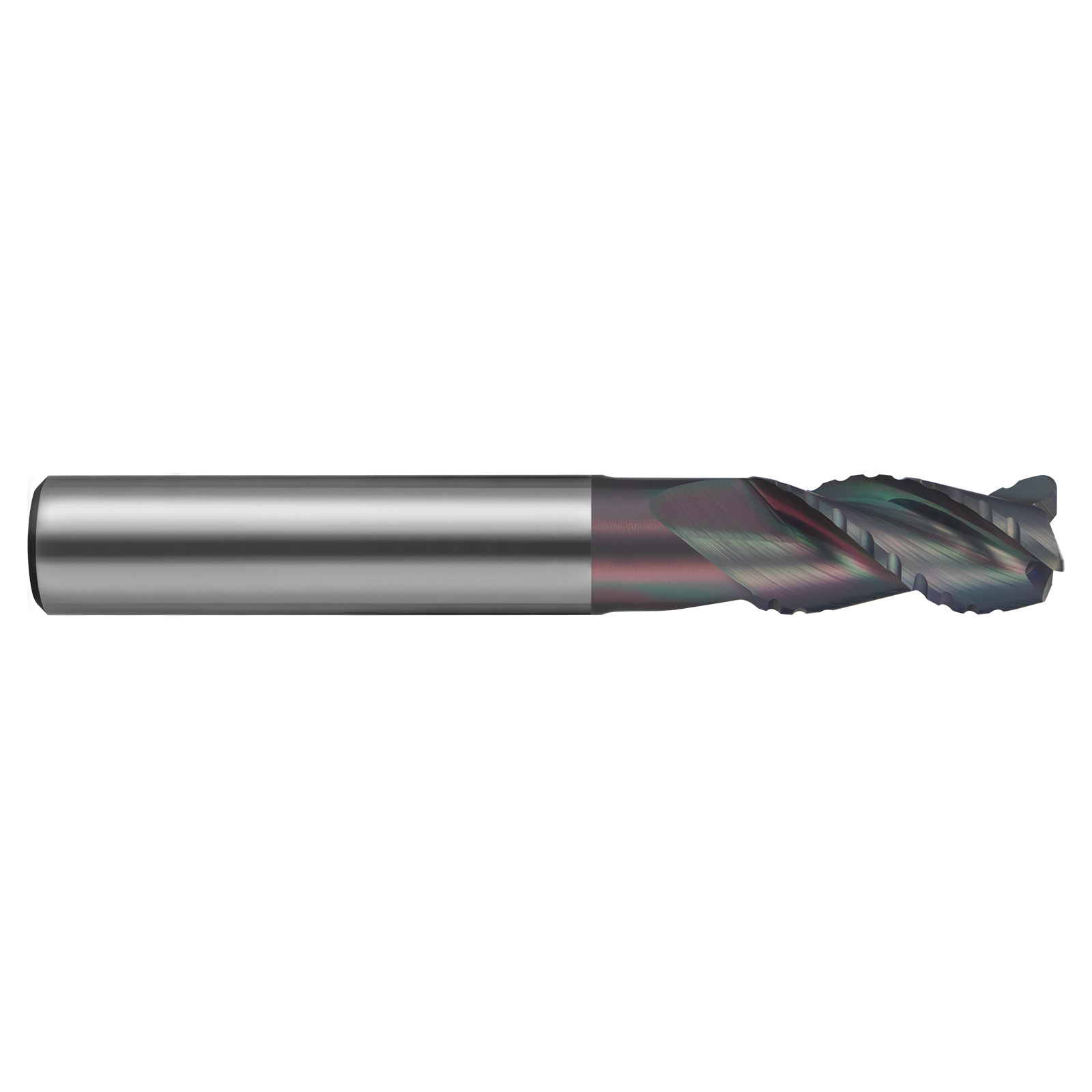

12mm 3 Flute Endmill E674 Rougher R40-NR-Al VHM HA HCR Coated

Name: ROUGHER E674 12mm xCR1 3FL R40-NR-Al VHM HA HCR Coated
Brand: Sutton Tools
SKU: E6741210
Price: 198.72 NZD

SKU#:

E6741210

Item is in backorder

NZ$198.72

Previous Price was

NZ$261.07

Minimum Quantity is 1 • Sold in increments of 1

QTY

Enter a value between 1 and 99999 in increments of 1.

Ideal for Roughing Aluminium-Aero applications, where large volume metal removal is required.

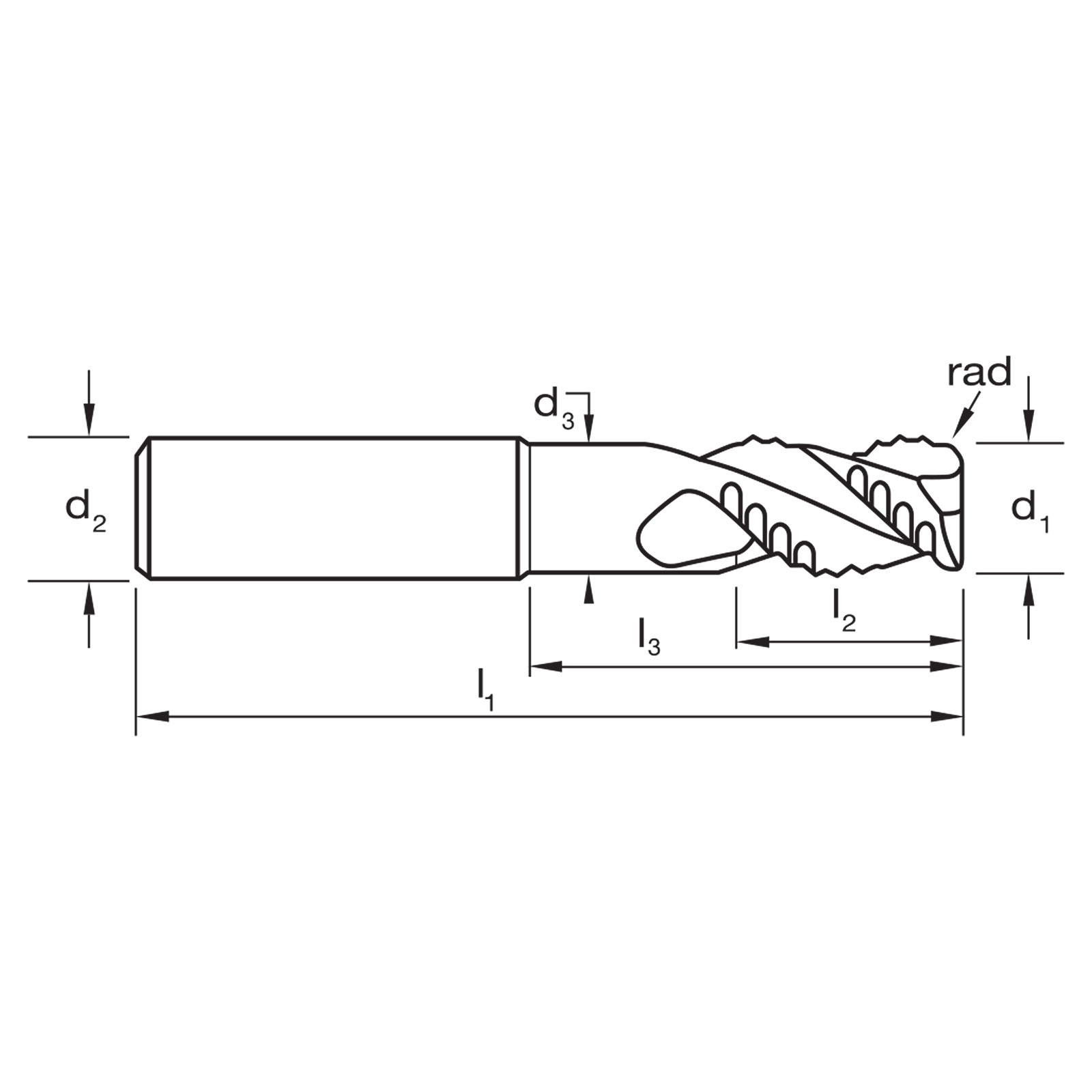

Item #	Diameter d1 (mm)	Length l1 (mm)	Length l2 (mm)	Length l3 (mm)	Diameter d2 (mm)	Diameter d3 (mm)	z	Rad	Stock	Price	Action
E6740610	6.00	60	13	23	6	5.7	3	1	Item is in stock7 in stock	NZ$122.04	Wishlist
E6740810	8.00	64	18	28	8	7.7	3	1	Item is in stock5 in stock	NZ$142.88	Wishlist
E6741010	10.00	73	21	31	10	9.5	3	1	Item is in stock4 in stock	NZ$171.65	Wishlist
E6741210	12.00	84	25	35	12	11.5	3	1	Item is in backorderItem is in backorder	NZ$198.72	Wishlist
E6741610	16.00	93	32	50	16	15.3	3	1	Item is in stock4 in stock	NZ$343.08	Wishlist
E6742010	20.00	104	40	60	20	19.3	3	1	Item is in backorderItem is in backorder	NZ$464.46	Wishlist

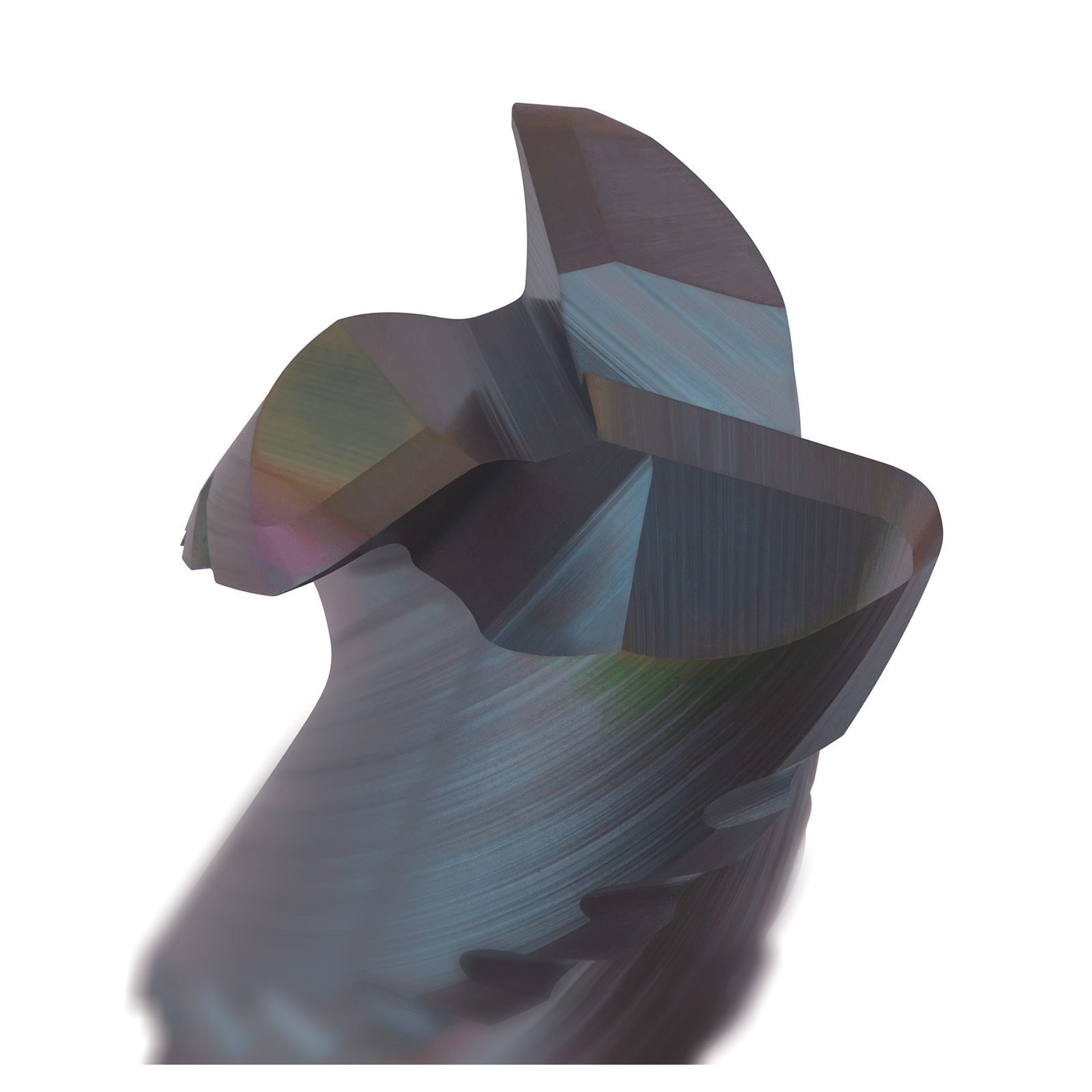

Excellent tool life & chip evacuation due to a combination geometry & coating specific to this application.

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	5	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Quenched & Tempered	300HB	1010MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275HB	930MPa
P	8	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	300HB	1010MPa
P	9	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	350HB	1180MPa
P	10	Steel - High alloy, cast & tool	Annealed	200HB	680MPa
P	11	Steel - High alloy, cast & tool	Hardened & Tempered	325HB	1100MPa
P	12	Steel - Corrosion resistant & cast - Ferritic / Martensitic	Annealed	200HB	680MPa
P	13	Steel - Corrosion resistant & cast - Martensitic	Quenched & Tempered	240HB	810MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180HB	610MPa
M	14.2	Stainless Steel - Duplex		250HB	840MPa
M	14.3	Stainless Steel - Precipitation Hardening		250HB	840MPa
K	15	Cast Iron, Grey (GG) - Ferritic / Pearlitic		180HB	610MPa
K	16	Cast Iron, Grey (GG) - Pearlitic		260HB	880MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
K	19	Cast Iron, Malleable - Ferritic		130HB	460MPa
K	20	Cast Iron, Malleable - Pearlitic		230HB	780MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable	Cast	75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	25	Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable	Cast	130HB	460MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%		110HB	390MPa
N	27	Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)		90HB	320MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa
N	29	Non-metallic - Thermosetting & fiber-reinforced plastics
N	30	Non-metallic - Hard rubber, wood etc.
S	31	High temperature alloys - Fe based	Annealed	200HB	680MPa
S	32	High temperature alloys - Fe based	Age Hardened	280HB	950MPa
S	33	High temperature alloys - Ni / Co based	Annealed	250HB	840MPa
S	34	High temperature alloys - Ni / Co based	Age Hardened	350HB	1180MPa
S	35	High temperature alloys - Ni / Co based	Cast	320HB	1080MPa
S	36	Titanium & Titanium alloys - CP Titanium			400MPa
S	37.1	Titanium & Titanium alloys - Alpha alloys			860MPa
S	37.2	Titanium & Titanium alloys - Alpha / Beta alloys	Annealed		960MPa
S	37.3	Titanium & Titanium alloys - Alpha / Beta alloys	Age Hardened		1170MPa
S	37.4	Titanium & Titanium alloys - Beta alloys	Annealed		830MPa
S	37.5	Titanium & Titanium alloys - Beta alloys	Age Hardened		1400MPa
H	38.1	Hardened steel	Hardened & Tempered	45HRC
H	38.2	Hardened steel	Hardened & Tempered	55HRC
H	39.1	Hardened steel	Hardened & Tempered	58HRC
H	39.2	Hardened steel	Hardened & Tempered	62HRC
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa
H	41	Cast Iron	Hardened & Tempered	55HRC
