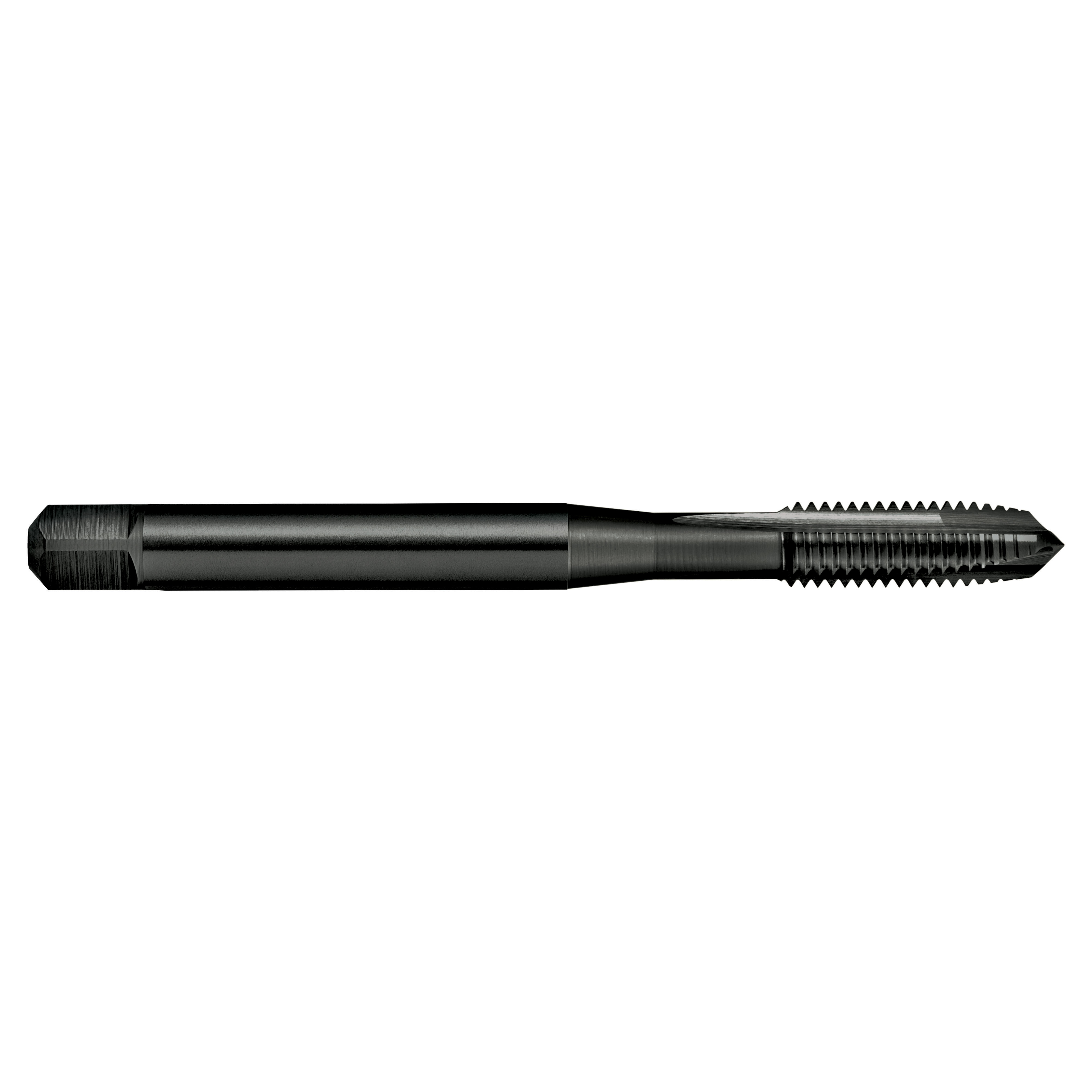

M3x0.5 Gun Tap T102 6H N DIN371 B HSSE Blue

SKU#:

T1020300
Item is in backorderItem is in backorder
NZ$29.96

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

General purpose use Suitable for materials up to 1000N/mm2 Through holes Depths up to 3 x d1

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1020200M2x0.4458-2.802.1521.6
Item is in stock4 in stock
NZ$43.50
T1020250M2.5x0.45509-2.802.1522.05
Item is in backorderItem is in backorder
NZ$40.79
T1020300M3x0.55611183.502.7632.5
Item is in backorderItem is in backorder
NZ$29.96
T1020400M4x0.76313214.503.4633.3
Item is in stock24 in stock
NZ$29.96
T1020500M5x0.870162564.9834.2
Item is in stock21 in stock
NZ$30.91
T1020600M6x180193064.9835
Item is in stock50 in stock
NZ$31.88
T1020700M7x180193075.5836
Item is in backorderItem is in backorder
NZ$43.93
T1020800M8x1.2590223586.2936.8
Item is in stock21 in stock
NZ$36.59
T1021000M10x1.510024391081138.5
Item is in stock11 in stock
NZ$45.67

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSSE
Finish: Blu
Max Cut Depth: 3xD
Shank Form: A
Standard: DIN371
Thread Form: Metric
Nut Tolerance: 6H
Lead: Form B
High Resolution Image
Low Resolution Image
Product: TAP T102 M 3x0.5 6H GUN N DIN371 B HSSE BLU
