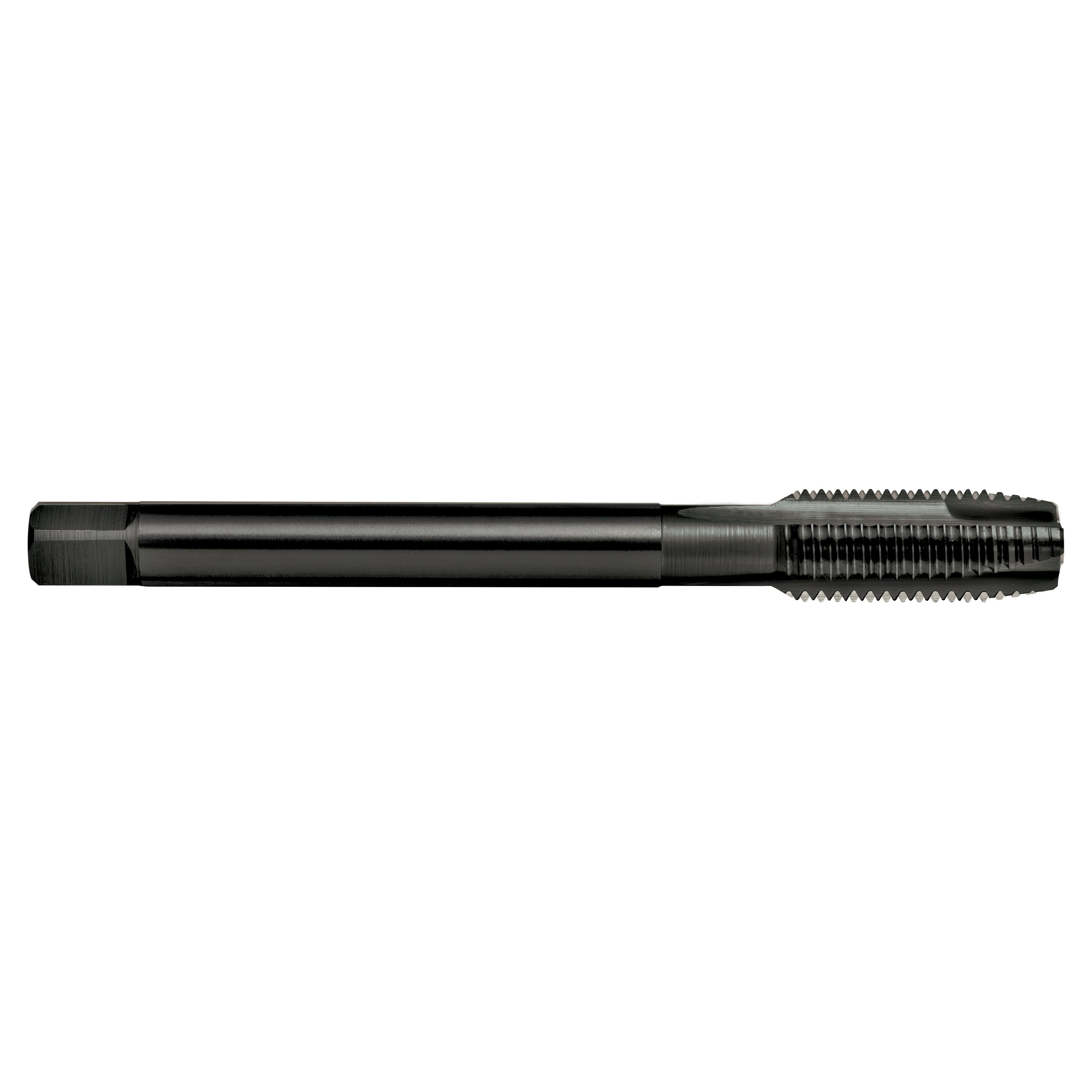

M12x1.75 Gun Tap T103 6H N DIN376 B HSSE Blue

SKU#:

T1031200
Item is in stock28 in stock
NZ$62.26

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

General purpose use Suitable for materials up to 1000N/mm2 Through holes Depths up to 3 x d1

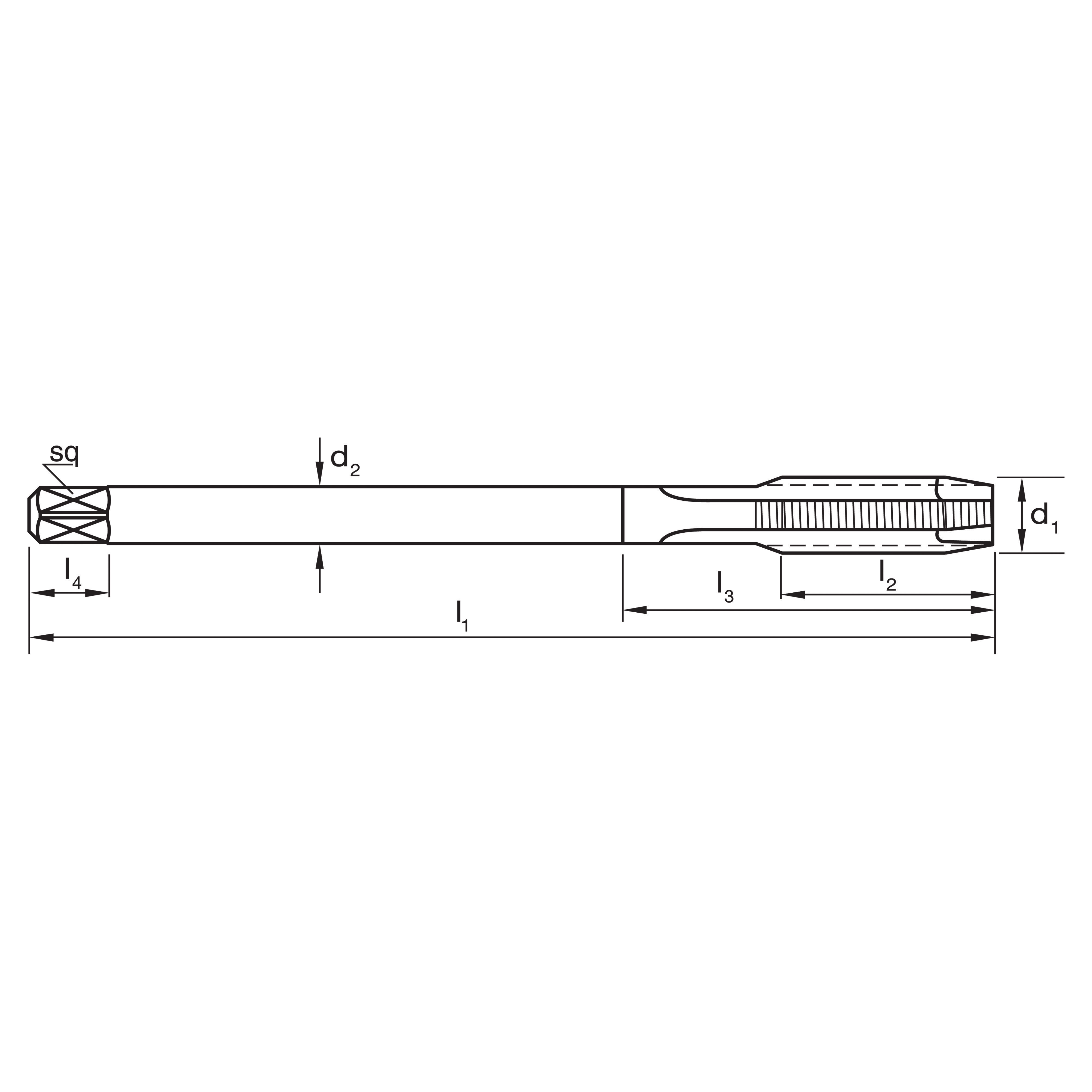

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1031200M12x1.7511028-9710310.2
Item is in stock28 in stock
NZ$62.26
T1031400M14x211030-11912312
Item is in stock3 in stock
NZ$80.74
T1031600M16x211032-12912314
Item is in stock7 in stock
NZ$100.07
T1031800M18x2.512534-141114415.5
Item is in backorderItem is in backorder
NZ$122.98
T1032000M20x2.514034-161215417.5
Item is in stock5 in stock
NZ$142.43
T1032200M22x2.514034-1814.517419.5
Item is in backorderItem is in backorder
NZ$154.45
T1032400M24x316038-1814.517421
Item is in stock1 in stock
NZ$170.29
T1033000M30x3.518045-221821426.5
Item is in stock1 in stock
NZ$268.86

  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSSE
Finish: Blu
Max Cut Depth: 3xD
Shank Form: A
Standard: DIN376
Thread Form: Metric
Nut Tolerance: 6H
Lead: Form B
High Resolution Image
Low Resolution Image
Product: TAP T103 M 12x1.75 6H GUN N DIN376 B HSSE BLU
