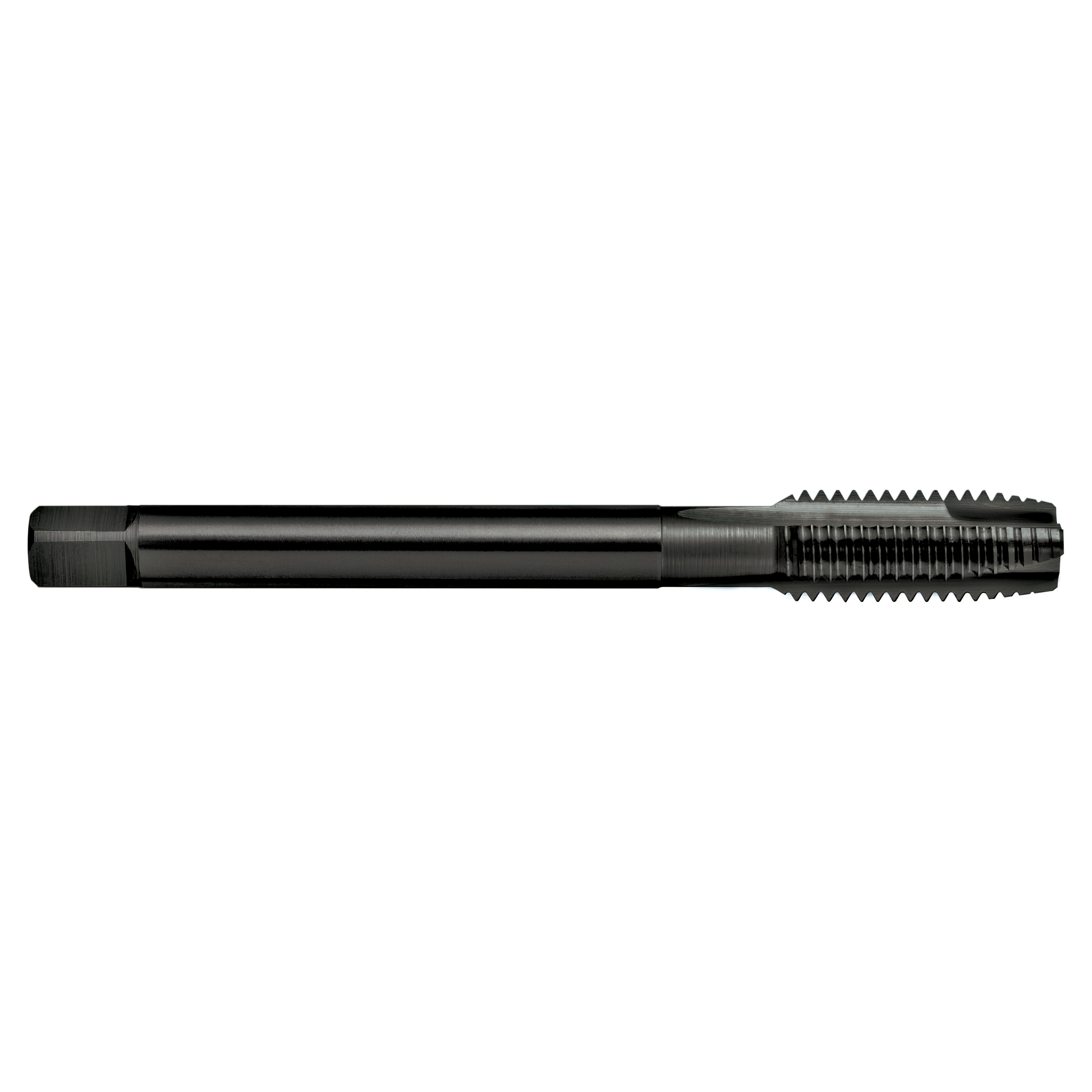

M30x3.5 Gun Tap T111 6H VA DIN376 B HSSE Blue

SKU#:

T1113000
Item is in stock3 in stock
NZ$321.58

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Use in stainless steels and high strength steels Suitable for materials up to 850N/mm2 Through holes Depths up to 3 x d1

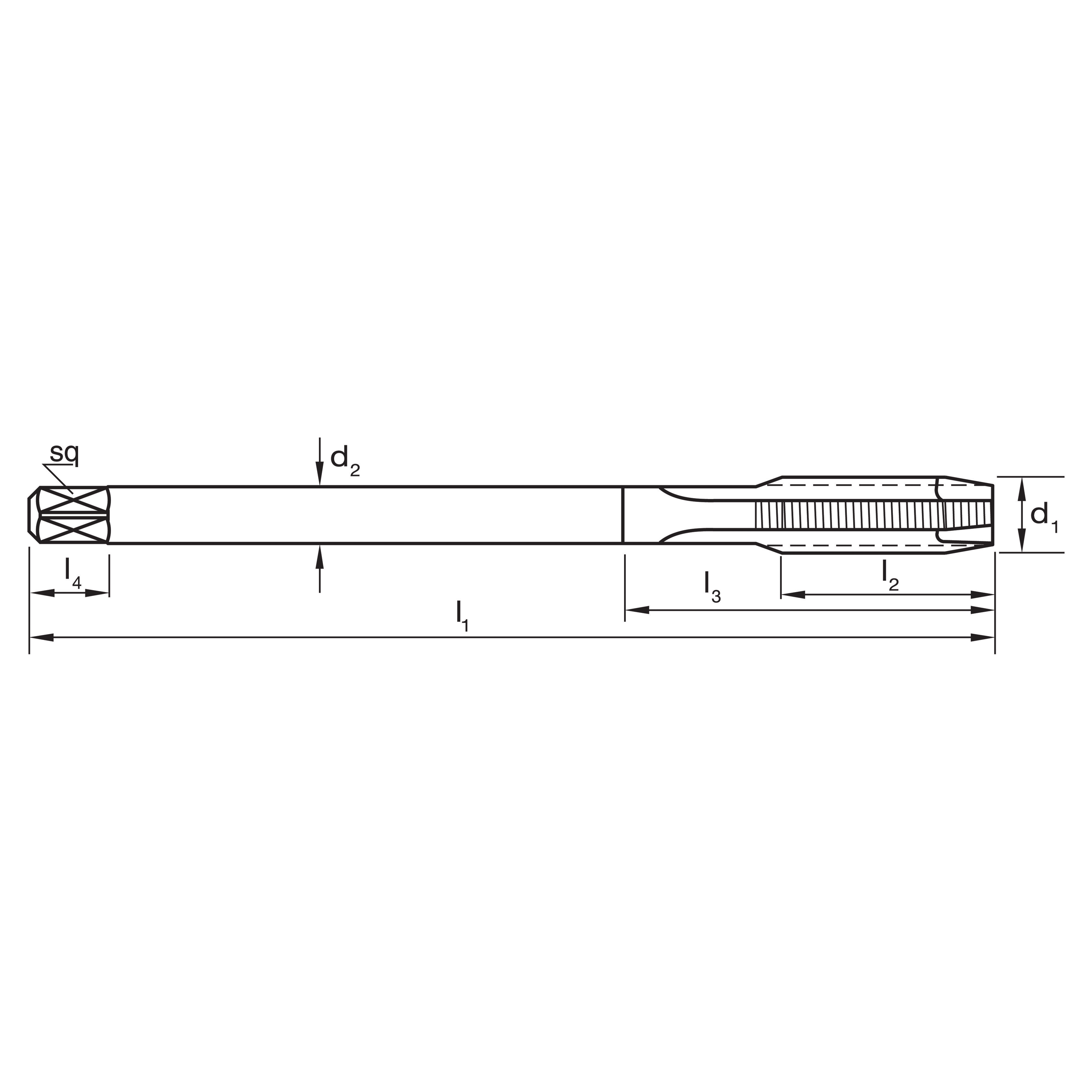

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1110600M6x18019-4.503.4635
Item is in backorderItem is in backorder
NZ$77.41
T1110800M8x1.259022-64.9836.8
Item is in backorderItem is in backorder
NZ$84.17
T1111000M10x1.510024-75.5838.5
Item is in backorderItem is in backorder
NZ$52.76
T1111200M12x1.7511028-9710310.2
Item is in stock4 in stock
NZ$68.48
T1111400M14x211030-11912312
Item is in stock1 in stock
NZ$71.02
T1111600M16x211032-12912414
Item is in stock4 in stock
NZ$89.70
T1111800M18x2.512534-141114415.5
Item is in stock1 in stock
NZ$142.18
T1112000M20x2.514034-161215417.5
Item is in stock1 in stock
NZ$153.80
T1112200M22x2.514034-1814.517419.5
Item is in backorderItem is in backorder
NZ$178.80
T1112400M24x316038-1814.517421
Item is in stock2 in stock
NZ$203.64
T1112700M27x316038-201619424
Item is in backorderItem is in backorder
NZ$181.86
T1113000M30x3.518045-221821426.5
Item is in stock3 in stock
NZ$321.58

  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: VA
Material: HSSE
Finish: Blu
Max Cut Depth: 3xD
Shank Form: A
Standard: DIN376
Thread Form: Metric
Nut Tolerance: 6H
Lead: Form B
High Resolution Image
Low Resolution Image
Product: TAP T111 M 30x3.5 6H GUN VA DIN376 B HSSE BLU
