Taraud T113 M 20x2.5 6H Gun VA DIN376 B HSSE TiCN

SKU#:

T1132000
Item is in stock3 in stock
NZ$172.10

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Use in stainless steels and high strength steels Suitable for materials up to 850N/mm2 Through holes Depths up to 3 x d1

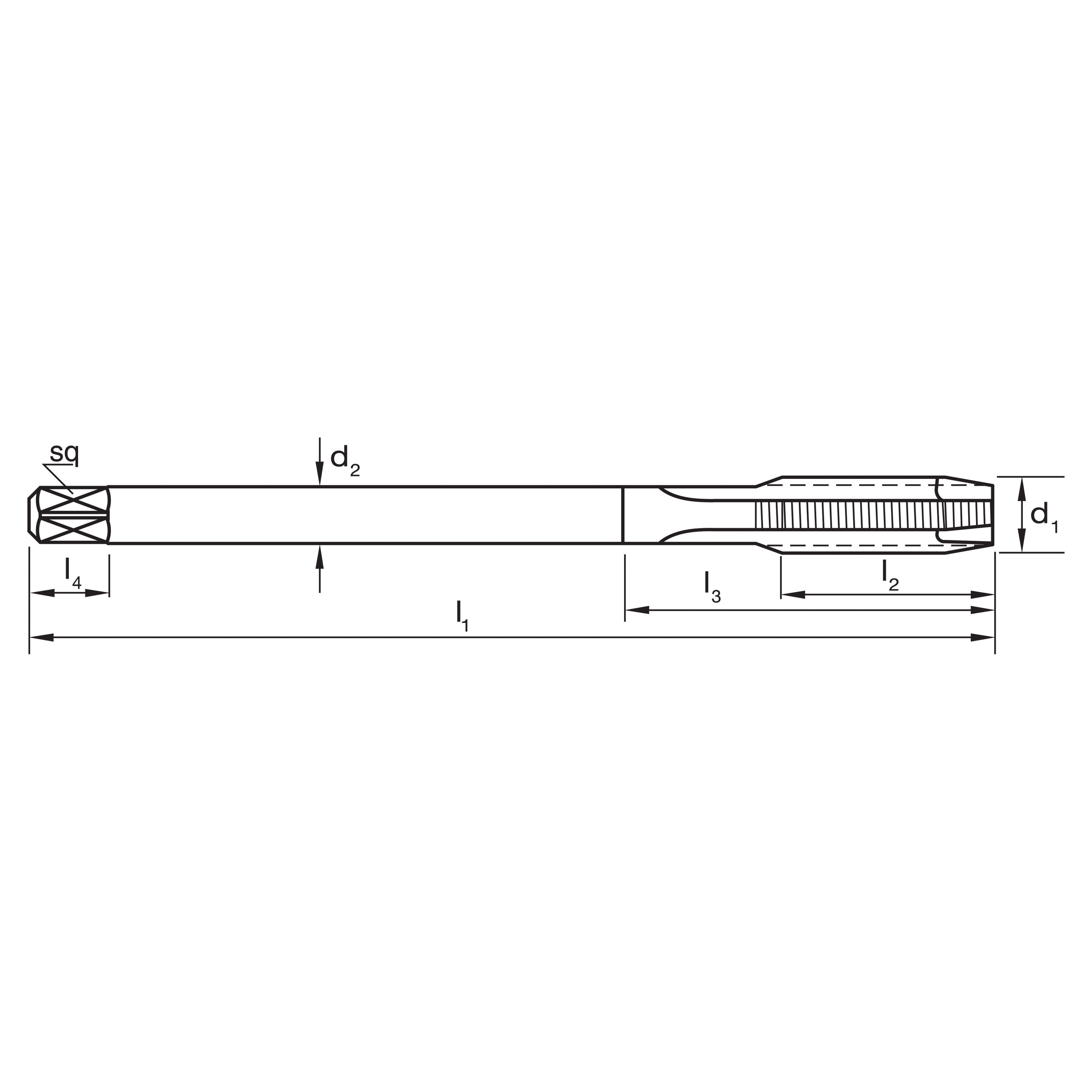

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1130800M8x1.259022-64.9836.8
Item is in backorderItem is in backorder
NZ$78.03
T1131200M12x1.7511028-9710310.2
Item is in stock6 in stock
NZ$86.99
T1131400M14x211030-11912312
Item is in backorderItem is in backorder
NZ$111.70
T1131600M16x211032-12912414
Item is in backorderItem is in backorder
NZ$111.22
T1132000M20x2.514034-161215417.5
Item is in stock3 in stock
NZ$172.10
T1132200M22x2.514034-1814.517419.5
Item is in backorderItem is in backorder
NZ$221.76
T1132400M24x316038-1814.517421
Item is in backorderItem is in backorder
NZ$209.92

  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
P13Steel - Corrosion resistant & cast - MartensiticQuenched & Tempered240HB810MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N25Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable130HB460MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa
S31High temperature alloys - Fe basedAnnealed200HB680MPa
S32High temperature alloys - Fe basedAge Hardened280HB950MPa
S33High temperature alloys - Ni / Co basedAnnealed250HB840MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: VA
Material: HSSE
Finish: TiCN
Max Cut Depth: 3xD
Shank Form: A
Standard: DIN376
Thread Form: Metric
Nut Tolerance: 6H
Lead: Form B
High Resolution Image
Low Resolution Image

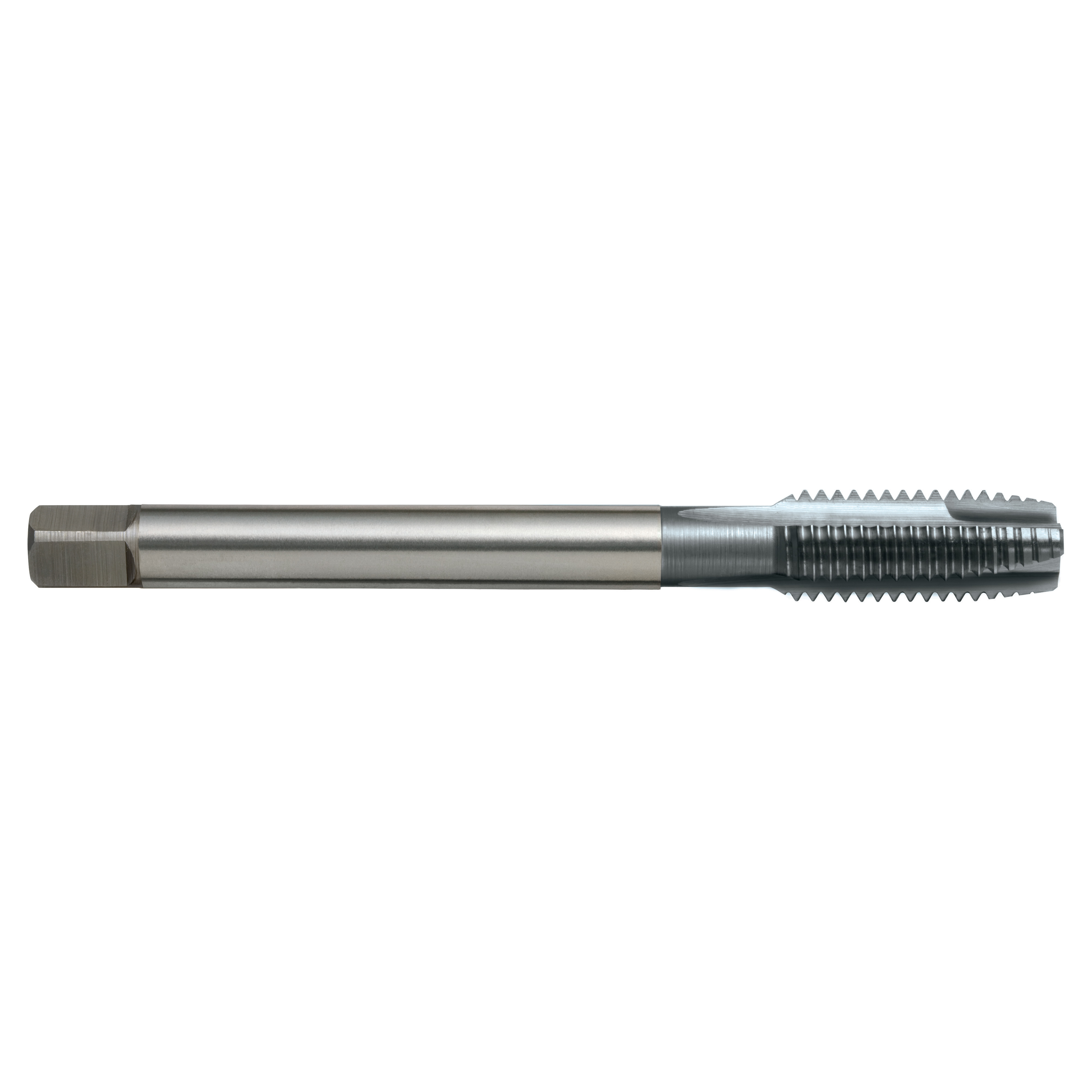

Product: TAP T113 M 20x2.5 6H GUN VA DIN376 B HSSE TiCN
