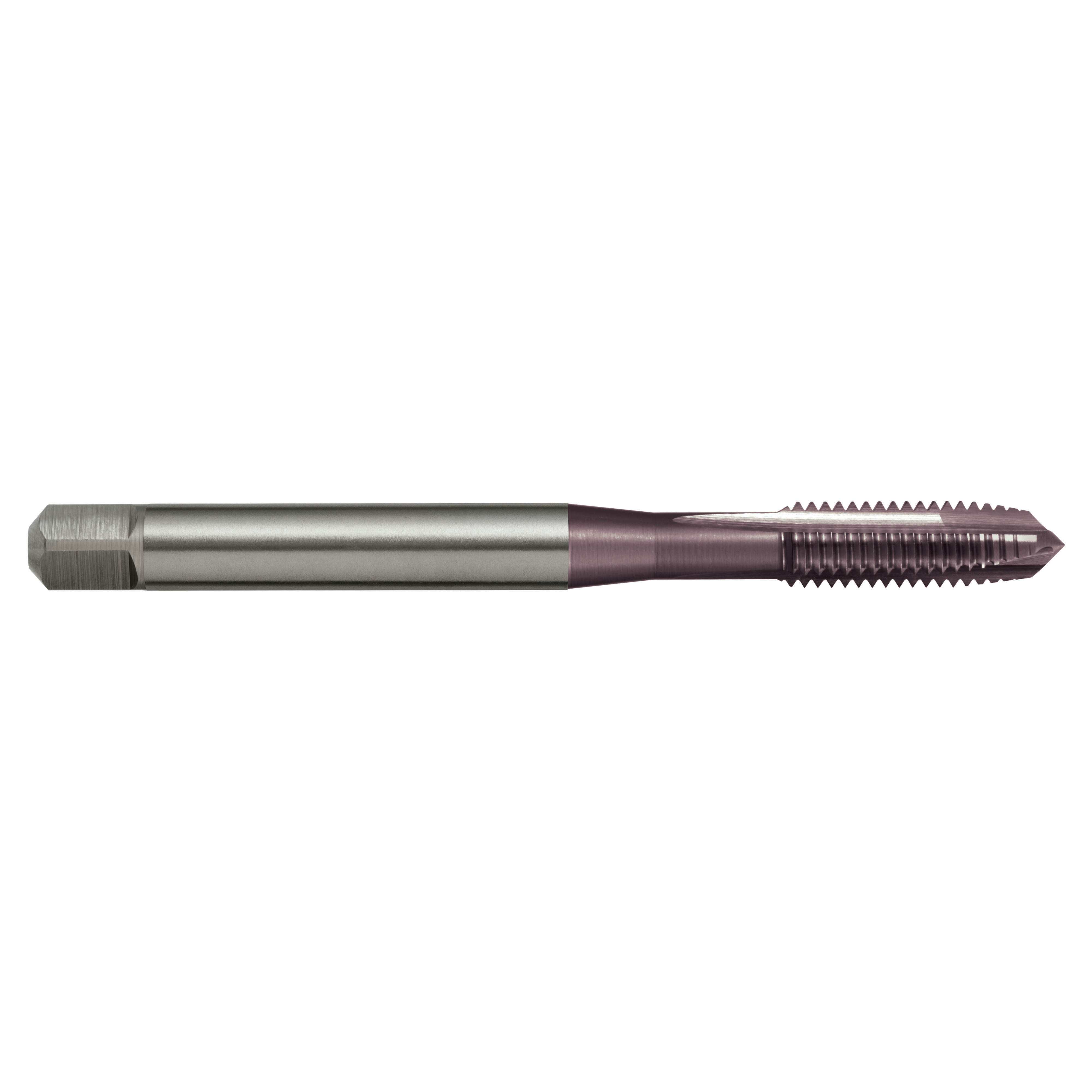

M6x1 Spiral Gun Tap T140 6HX B NH+ DIN371 PM-CO TiCN

SKU#:

T1400600
Item is in stock2 in stock
NZ$64.48

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Suitable for harder short chipping materials up to 42 HRc Through holes Depths up to 3 x d1

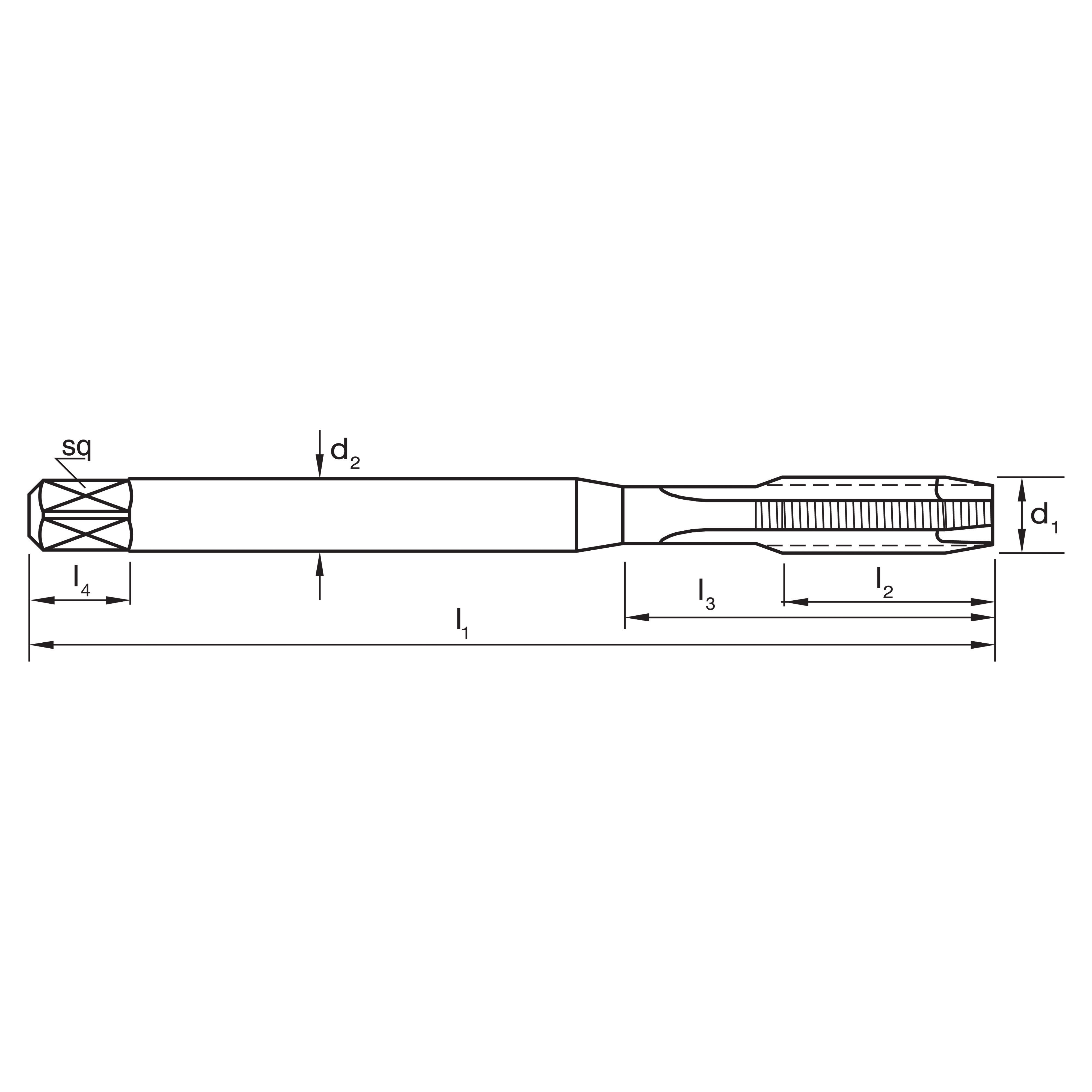

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1400500M5x0.870162564.9834.2
Item is in stock3 in stock
NZ$51.59
T1400600M6x180193064.9835
Item is in stock2 in stock
NZ$64.48
T1401000M10x1.510024391081138.5
Item is in stock4 in stock
NZ$85.13

  • Suitable for harder short chipping materials up to 42 HRc
  • Through holes
  • Depths up to 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P5Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Quenched & Tempered300HB1010MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P9Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered350HB1180MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P11Steel - High alloy, cast & toolHardened & Tempered325HB1100MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
P13Steel - Corrosion resistant & cast - MartensiticQuenched & Tempered240HB810MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K16Cast Iron, Grey (GG) - Pearlitic260HB880MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K18Cast Iron, Nodular (GGG) - Pearlitic250HB840MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N25Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable130HB460MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N27Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)90HB320MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa
H38.1Hardened steelHardened & Tempered45HRC
H40Cast Iron - ChilledCast400HB1350MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: NH
Material: PM-HSS Co
Finish: TiAlN
Max Cut Depth: 3xD
Shank Form: A
Standard: DIN371
Thread Form: Metric
Thread Tolerance Class: 6H
Lead: Form B
High Resolution Image
Low Resolution Image
Product: TAP T140 M6x1 6HX B GUN NH+ DIN371 PM-Co TiCN
