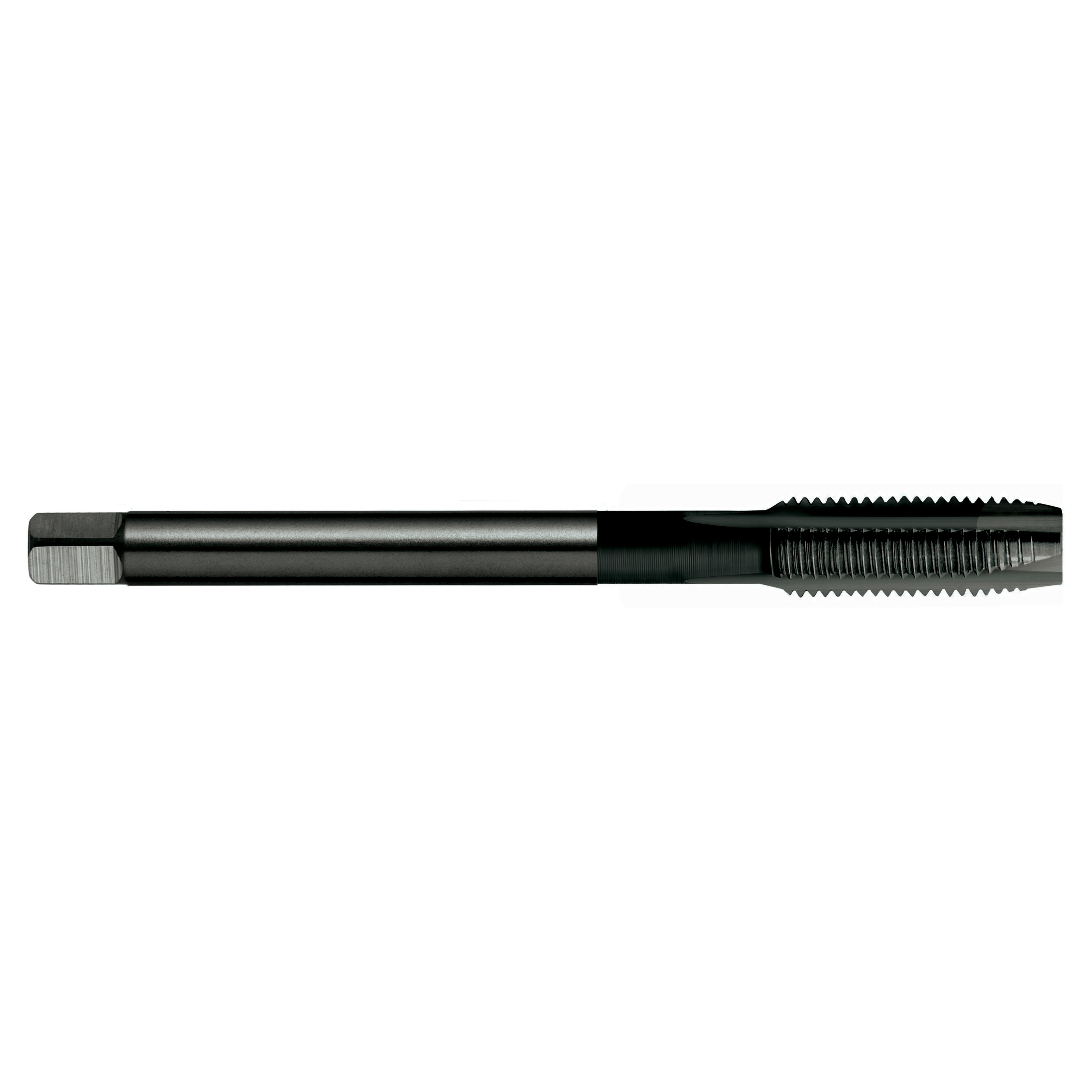

M8x1 Gun Tap T156 6H N DIN374 B HSSE Blue

SKU#:

T1560805
Item is in stock2 in stock
NZ$57.98

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

General purpose use, materials up to approx. 1000 N/mm2 Through holes Suitable for machine operations Depths up to approx. 3 x d1

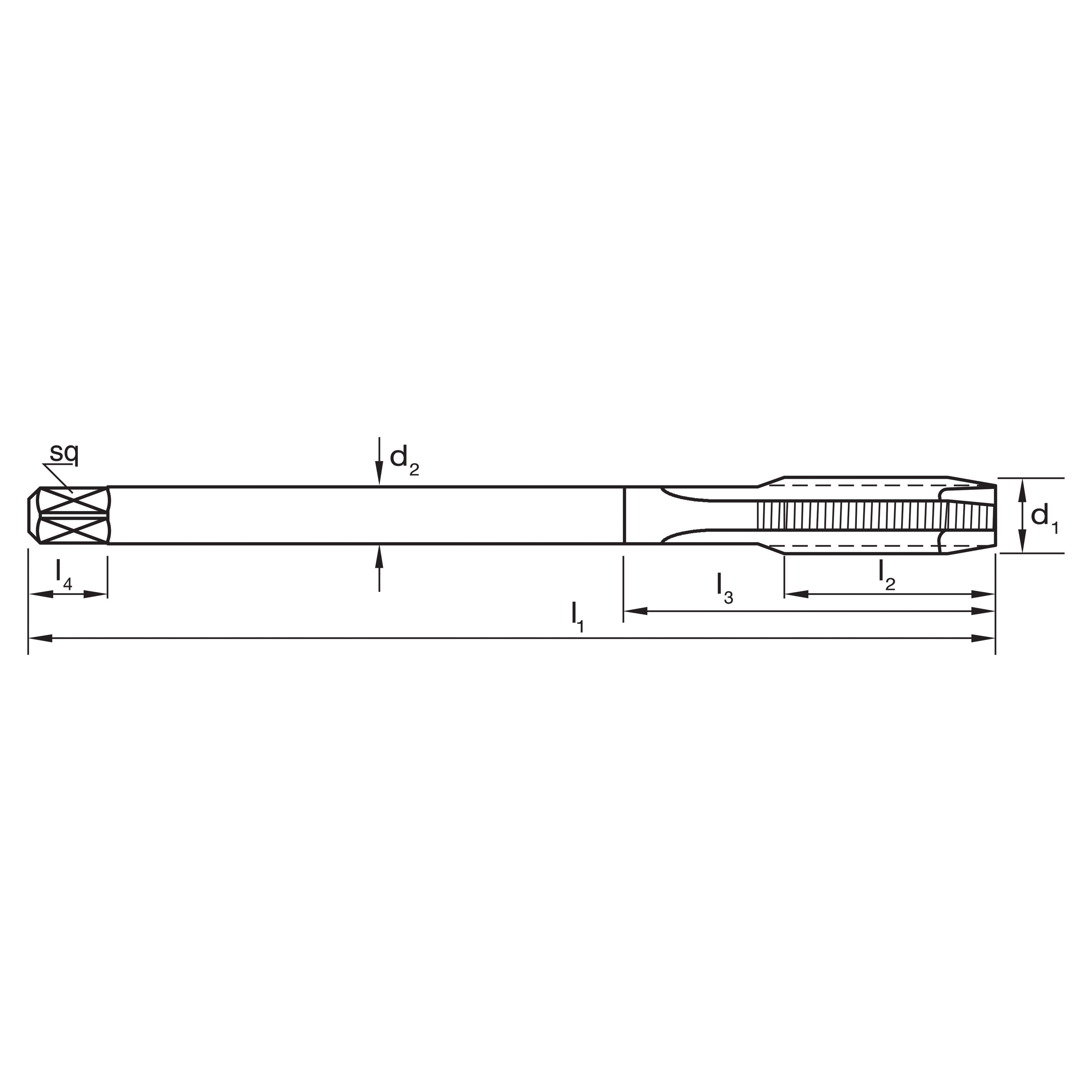

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1560604MF6x0.758014-4.503.4635.3
Item is in backorderItem is in backorder
NZ$50.75
T1560805MF8x19022-64.9837
Item is in stock2 in stock
NZ$57.98
T1561005MF10x19020-75.5839
Item is in stock1 in stock
NZ$65.25
T1561006MF10x1.2510024-75.5838.8
Item is in stock1 in stock
NZ$65.25
T1562007MF20x1.512525-161215418.5
Item is in stock2 in stock
NZ$187.72

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSSE
Finish: Blu
Max Cut Depth: 3xD
Shank Form: A
Standard: DIN374
Thread Form: Metric
Nut Tolerance: 6H
Lead: Form B
High Resolution Image
Low Resolution Image
Product: TAP T156 MF 8x1 6H GUN N DIN374 B HSSE BLU
