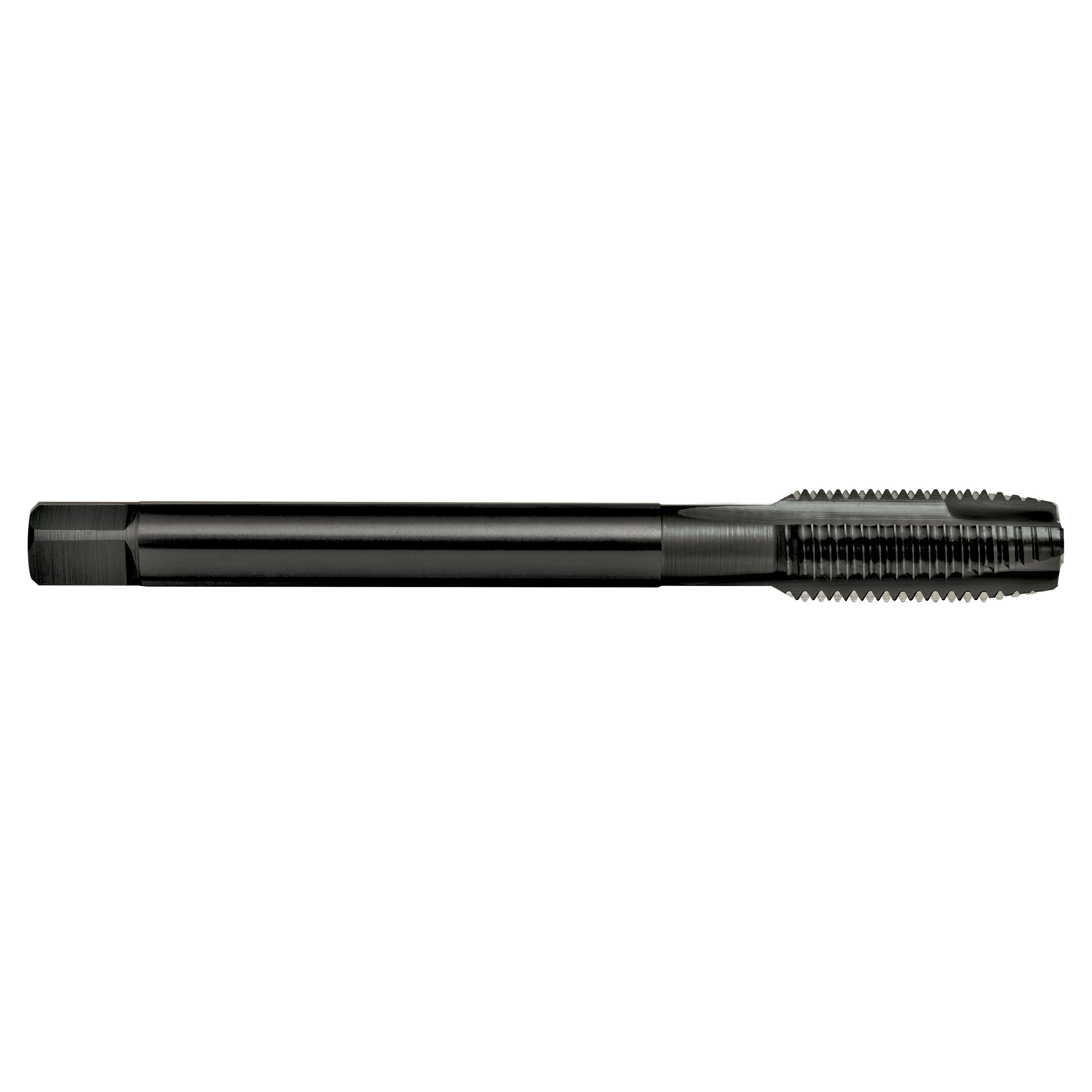

9/16-12 UNC Gun Tap T166 2B N DIN2184-1 B HSSE Blue

SKU#:

T1661429
Item is in backorderItem is in backorder
Price Unavailable

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

General purpose use, materials up to approx. 1000 N/mm2 Through holes Suitable for machine operations Depths up to approx. 3 x d1

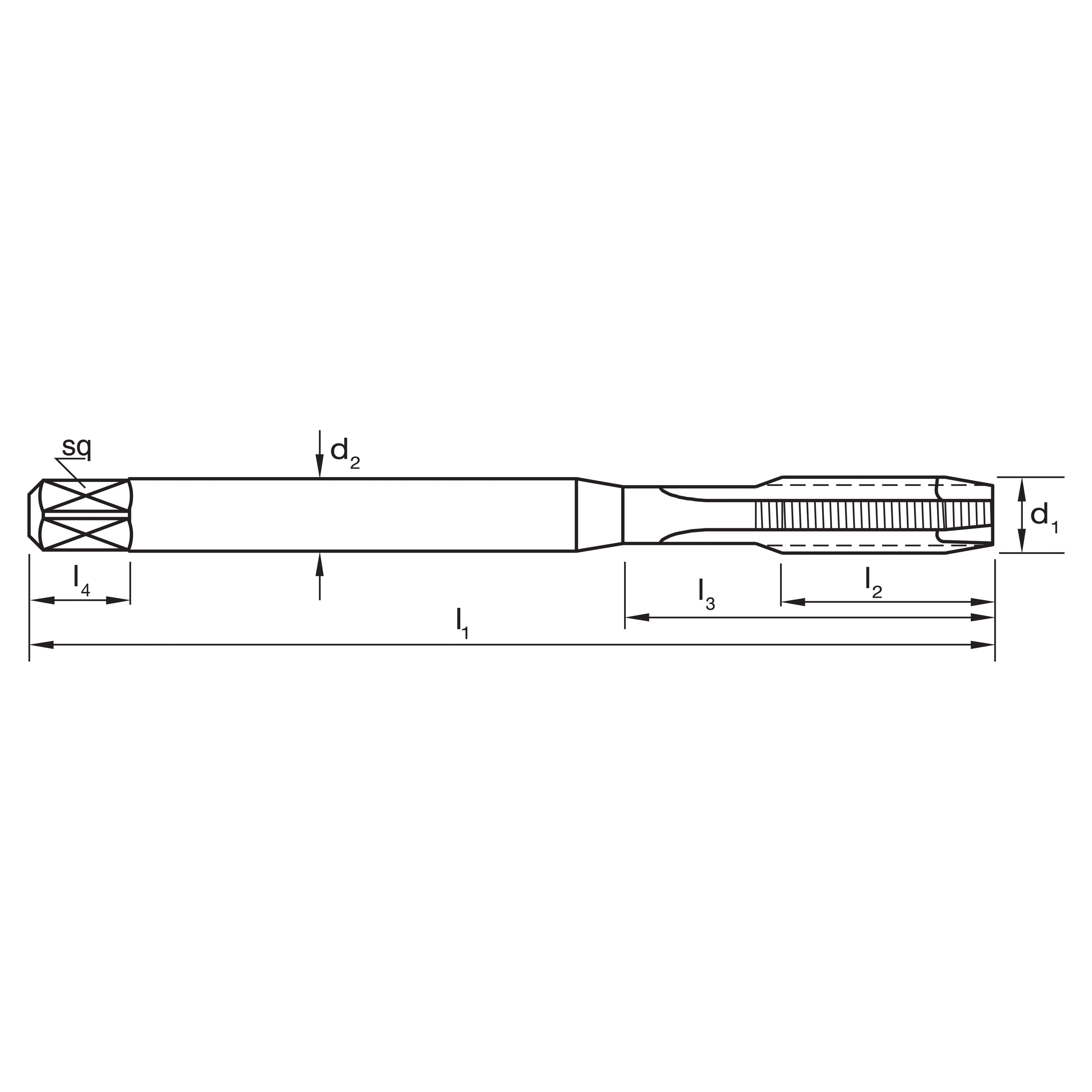

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSSE
Finish: Blu
Max Cut Depth: 3xD
Shank Form: A
Standard: DIN2184-1
Thread Form: Unified
Thread Tolerance Class: 2B
Lead: Form B
High Resolution Image
Low Resolution Image
Product: TAP T166 UNC 9/16-12 2B GUN N DIN2184-1 B HSSE BLU
