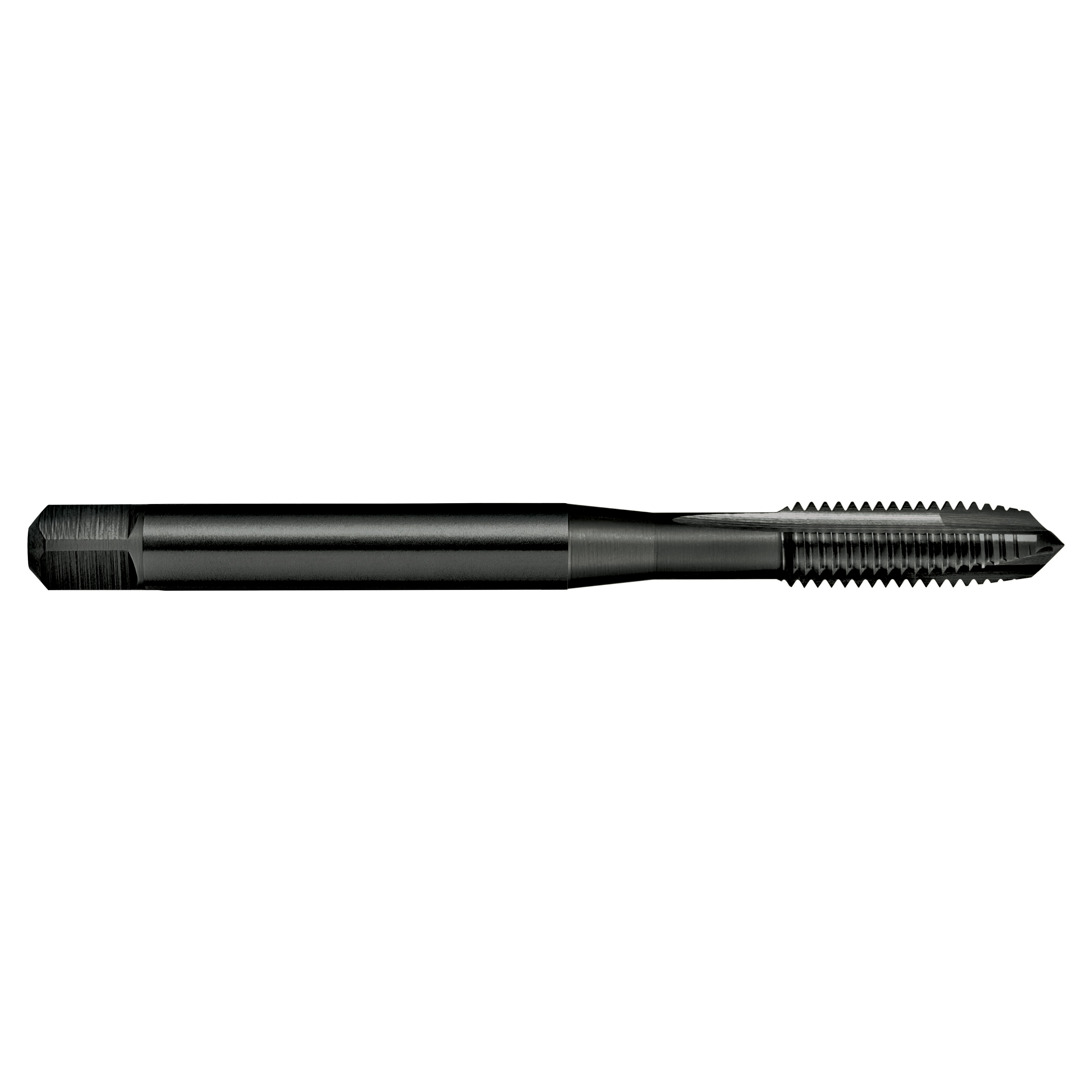

9/16-18 UNF Gun Tap T179 2B VA DIN2184-1 B HSSE Blue

SKU#:

T1761429
Item is in stock3 in stock
NZ$136.13

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Use in stainless steels and high strength steels up to 1000N/mm2 Through holes Suitable for machine operations Depths up to approx. 3 x d1

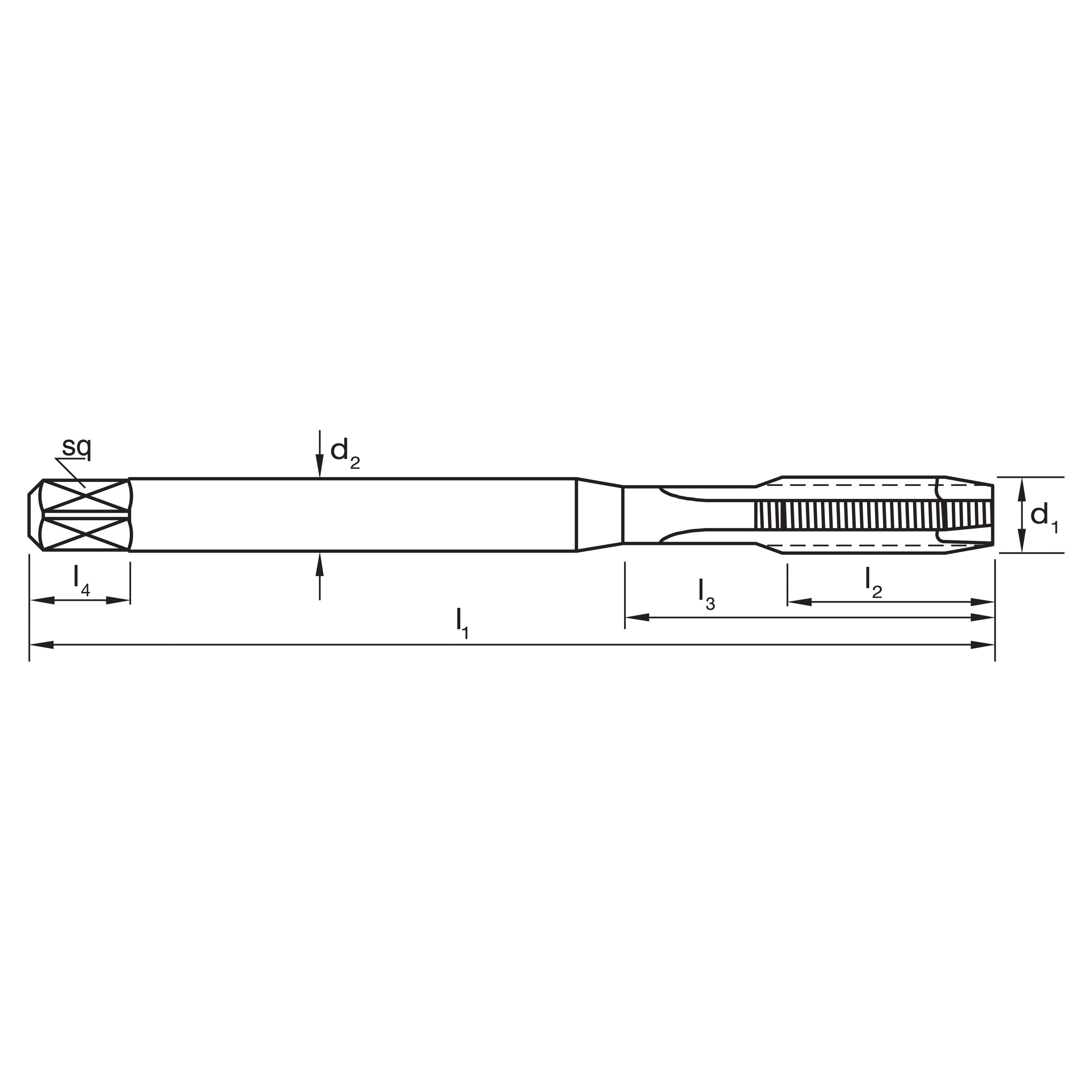

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1760417UNF #8-366313214.53.4633.5
Item is in backorderItem is in backorder
NZ$46.55
T1761429UNF 9/16-1811032-11912312.8
Item is in stock3 in stock
NZ$136.13

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: VA
Material: HSSE
Finish: Blu
Max Cut Depth: 3xD
Shank Form: A
Standard: DIN2184-1
Thread Form: Unified
Thread Tolerance Class: 2B
Lead: Form B
High Resolution Image
Low Resolution Image
Product: TAP T176 UNF 9/16-18 2B GUN VA DIN2184-1 B HSSE BLU
