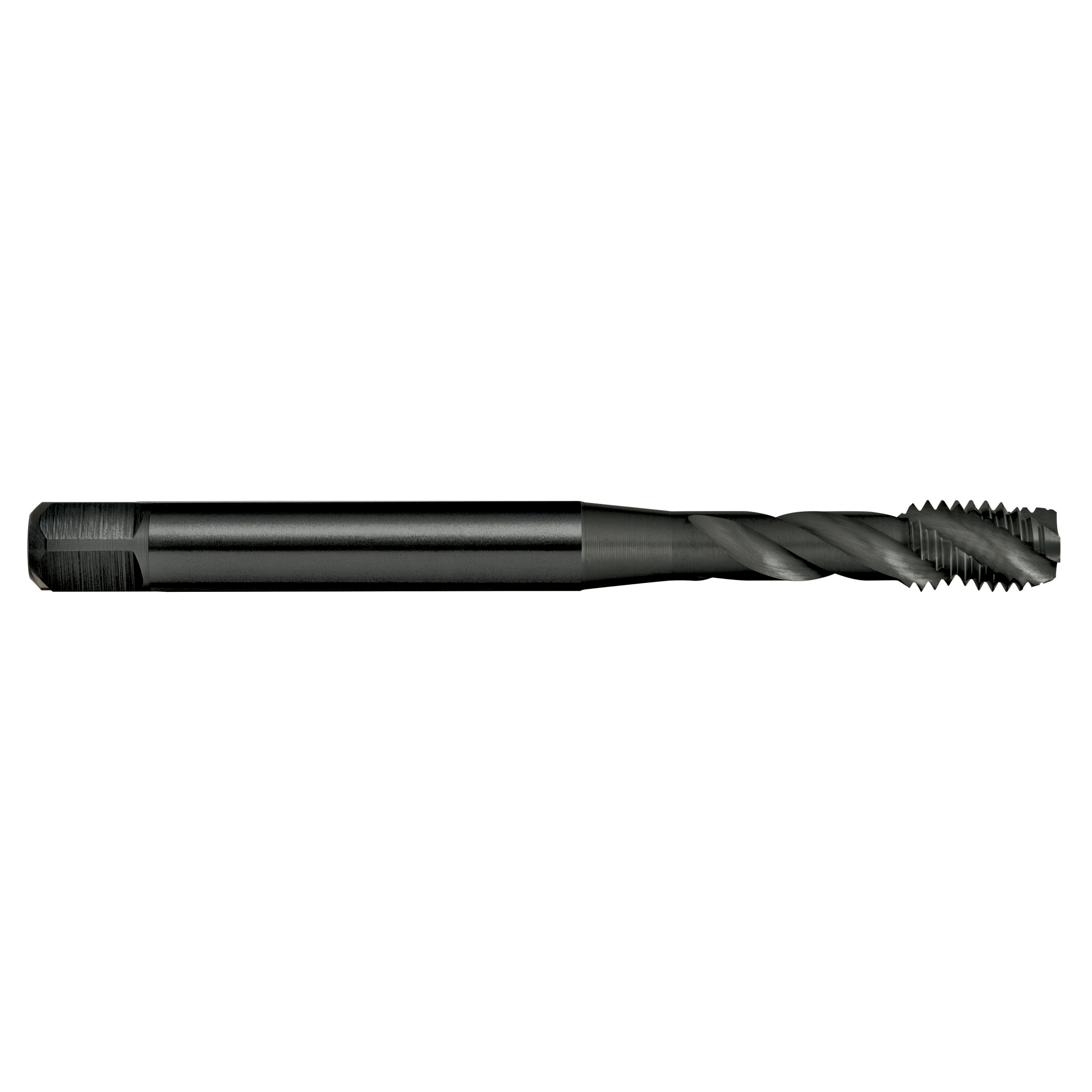

M4x0.7 Spiral Tap T189 6H R40 N DIN371 C HSSE Blue

SKU#:

T1890400
Item is in stock5 in stock
NZ$28.31

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

General purpose use Suitable for materials up to 1000N/mm2 Blind holes Depths up to 2.5 x d1

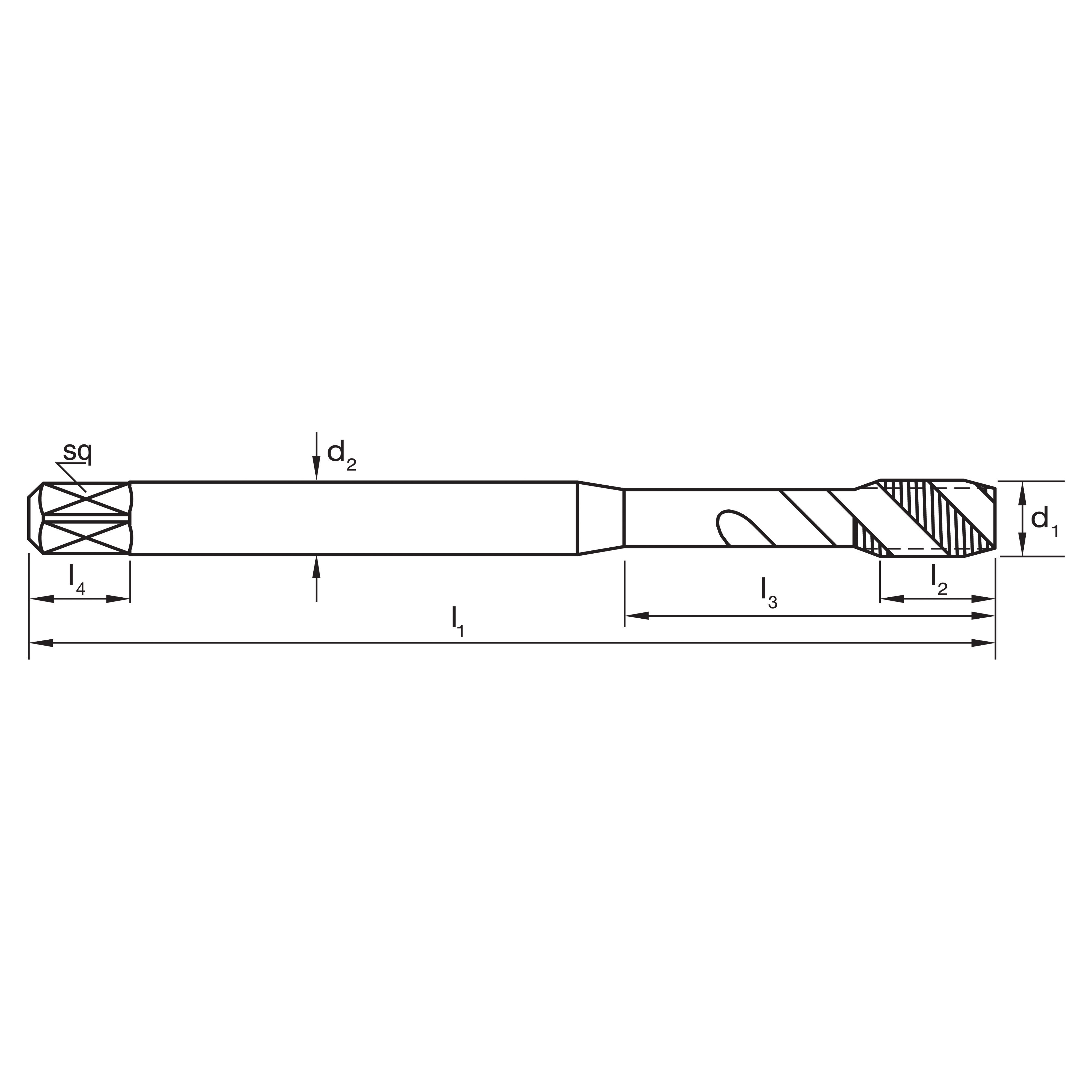

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1890300M3x0.5565183.52.7632.5
Item is in stock2 in stock
NZ$33.10
T1890400M4x0.7637214.503.4633.3
Item is in stock5 in stock
NZ$28.31
T1890500M5x0.87082564.9834.2
Item is in stock7 in stock
NZ$31.62
T1890600M6x180103064.9835
Item is in stock9 in stock
NZ$32.74
T1890800M8x1.259012.53586.2936.8
Item is in stock5 in stock
NZ$35.50
T1891000M10x1.510015391081138.5
Item is in stock5 in stock
NZ$50.42

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSSE
Finish: Blu
Max Cut Depth: 2.5xD
Shank Form: A
Helix Angle: R40
Standard: DIN371
Thread Form: Metric
Nut Tolerance: 6H
Lead: Form C
High Resolution Image
Low Resolution Image
Product: TAP T189 M 4x0.7 6H SPIRAL R40 N DIN371 C HSSE BLU
