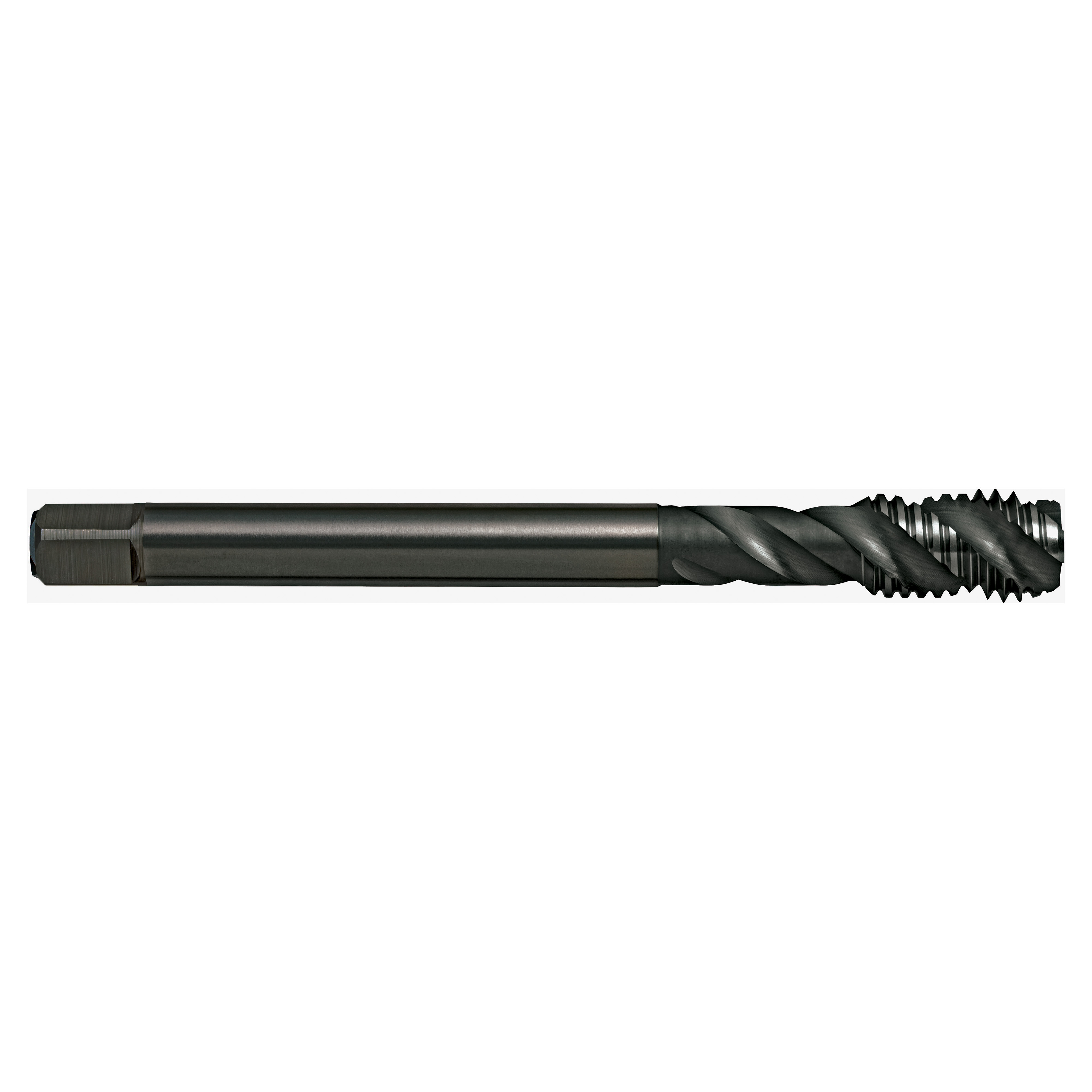

M12x1.75 Spiral Tap T199 6H R45 VA-DH DIN376 C HSSE Blue

SKU#:

T1991200
Item is in stock4 in stock
NZ$70.01

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Suitable for controlled tapping in deep holes Use in stainless steels and high strength steels up to 850N/mm2 Blind holes Depths up to 3 x d1

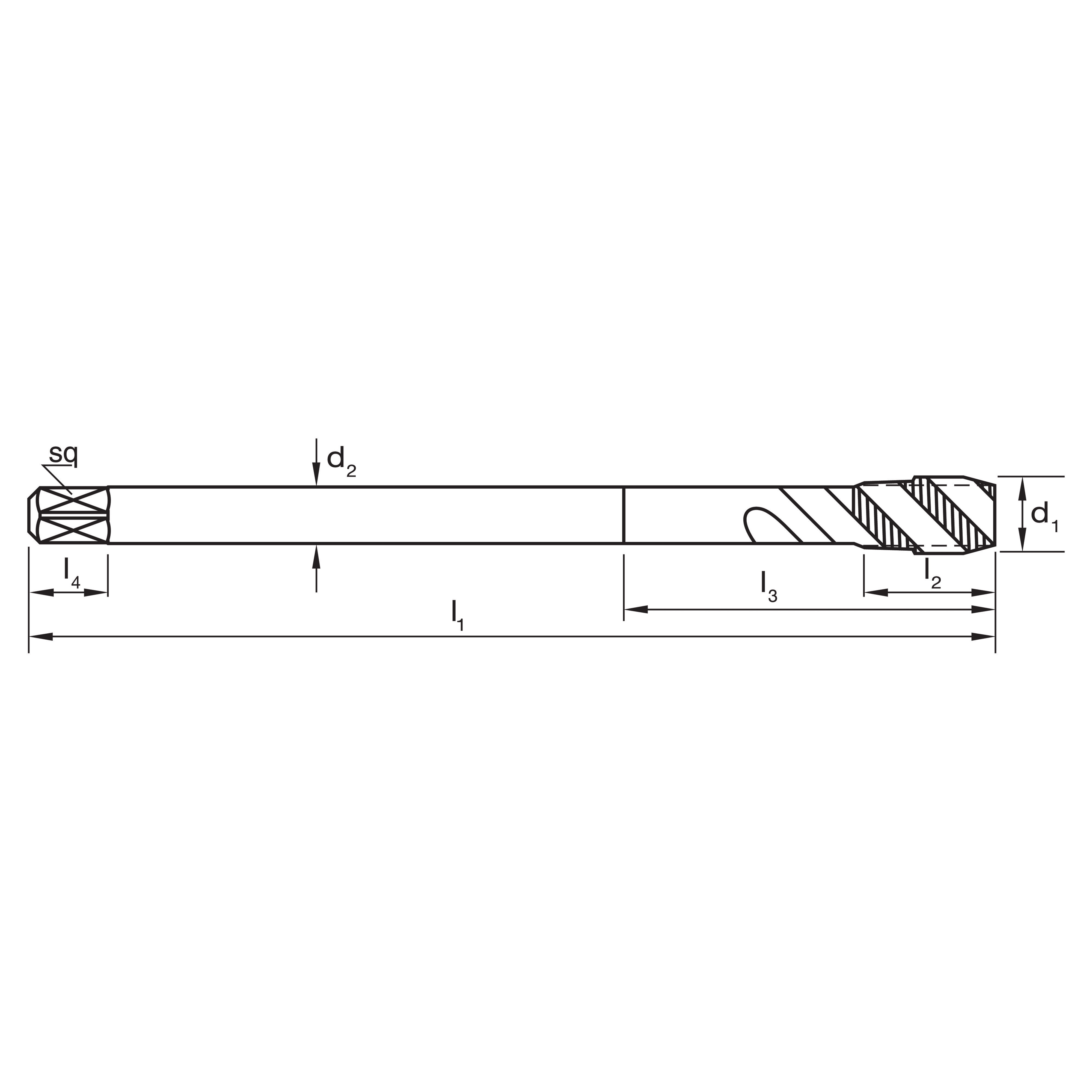

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T1991200M12x1.7511017.5-9710310.2
Item is in stock4 in stock
NZ$70.01
T1991400M14x211020-11912312
Item is in stock5 in stock
NZ$97.20
T1991600M16x211020-12912414
Item is in stock3 in stock
NZ$100.82
T1991800M18x2.512525-141114415.5
Item is in backorderItem is in backorder
NZ$126.44
T1992000M20x2.514025-161215417.5
Item is in stock2 in stock
NZ$127.10
T1992200M22x2.514025-1814.517419.5
Item is in backorderItem is in backorder
NZ$158.20
T1992400M24x316030-1814.517421
Item is in stock1 in stock
NZ$159.84
T1992700M27x316030-201619424
Item is in backorderItem is in backorder
NZ$180.13
T1993000M30x3.518035-221821426.5
Item is in backorderItem is in backorder
NZ$237.84

  • Suitable for controlled tapping in deep holes
  • Use in stainless steels and high strength steels up to 850N/mm2
  • Blind holes
  • Depths up to 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: VA
Material: HSSE
Finish: Blu
Max Cut Depth: 3xD
Shank Form: A
Helix Angle: R45
Standard: DIN376
Thread Form: Metric
Nut Tolerance: 6H
Lead: Form C
High Resolution Image
Low Resolution Image
Product: TAP T199 M 12x1.75 6H SPIRAL R45 VA-DH DIN376 C HSSE BLU
