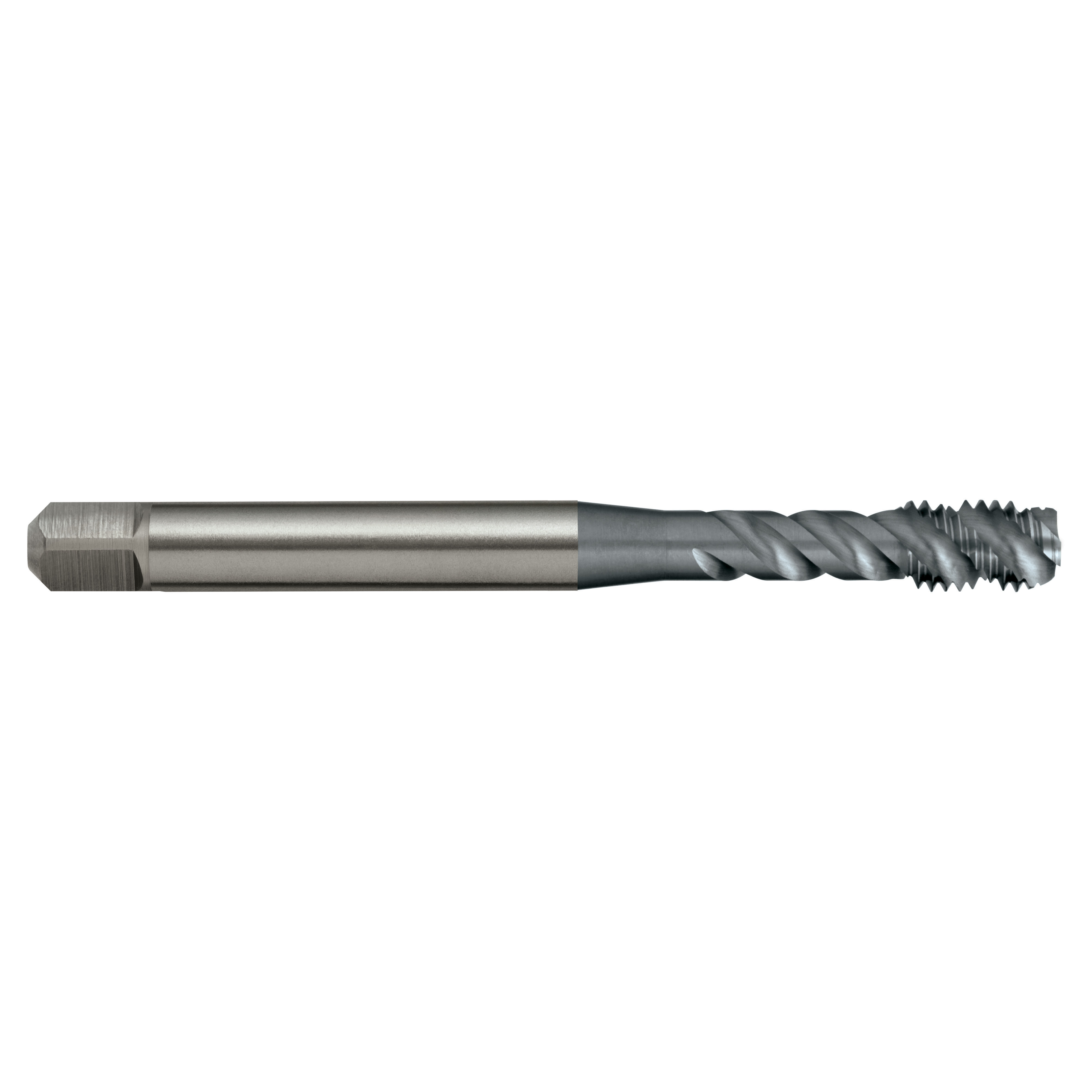

M8x1.25 Spiral Tap T205 6Hx R50 VA DIN371 C PM-V3 TiCN

SKU#:

T2050800
Item is in stock3 in stock
NZ$61.50

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Use in stainless steels and high strength steels up to 1000N/mm2 PM-HSSE V3 offers higher edge hardness than standard VA series Through holes Suitable for synchronous tapping in machine operations Depths up to approx. 3 x d1

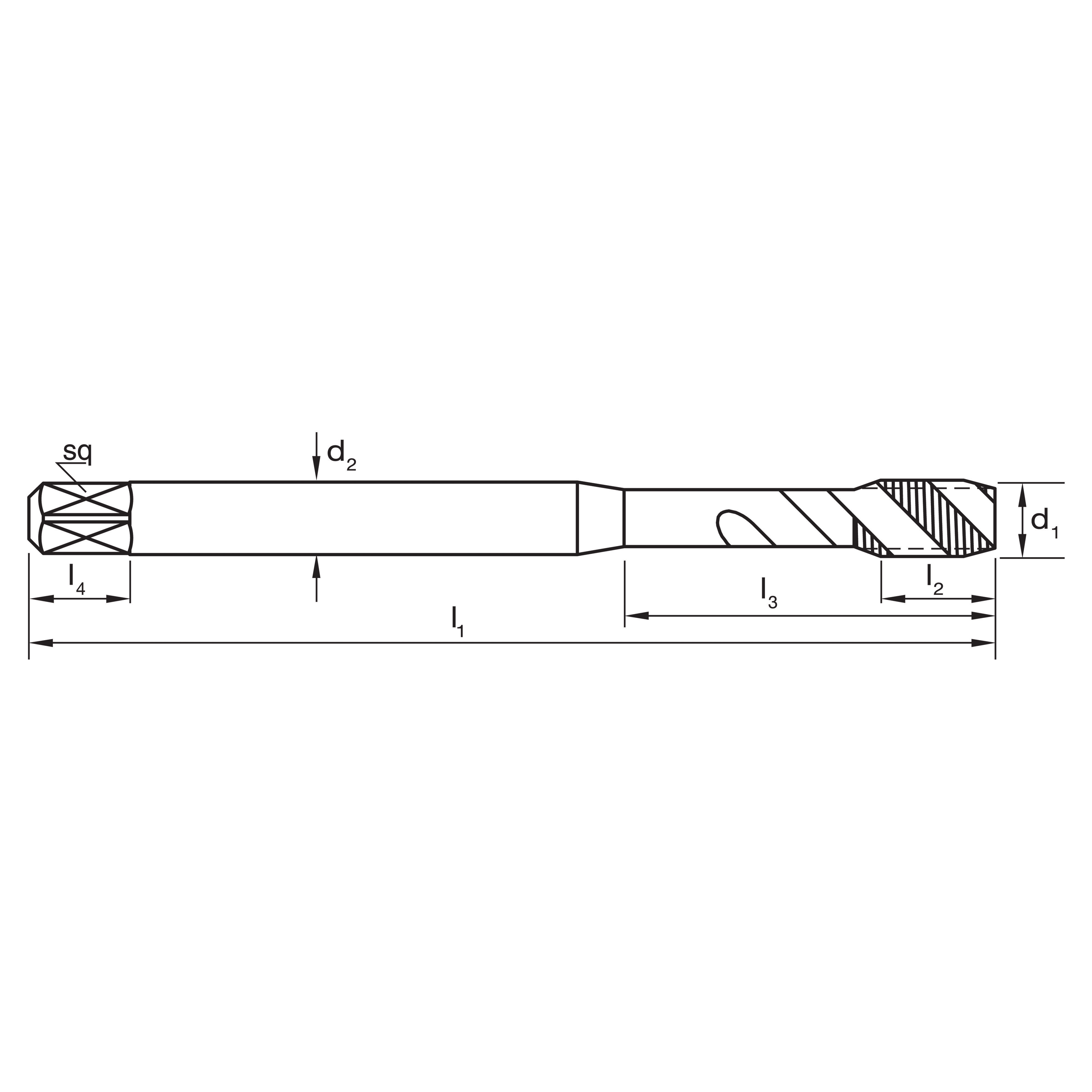

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T2050300M3x0.5565183.52.7632.5
Item is in stock2 in stock
NZ$50.06
T2050400M4x0.7637214.503.4633.3
Item is in stock4 in stock
NZ$49.86
T2050500M5x0.87082564.9834.2
Item is in stock5 in stock
NZ$45.06
T2050600M6x180103064.9835
Item is in stock6 in stock
NZ$49.15
T2050800M8x1.259012.53586.2936.8
Item is in stock3 in stock
NZ$61.50
T2051000M10x1.510015391081138.5
Item is in stock2 in stock
NZ$67.51

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • PM-HSSE V3 offers higher edge hardness than standard VA series
  • Through holes
  • Suitable for synchronous tapping in machine operations
  • Depths up to approx. 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N25Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable130HB460MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa
S31High temperature alloys - Fe basedAnnealed200HB680MPa
S33High temperature alloys - Ni / Co basedAnnealed250HB840MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: VA
Material: PM-HSSE V3
Finish: TiCN
Max Cut Depth: 3xD
Shank Form: A
Helix Angle: R50
Standard: DIN371
Thread Form: Metric
Thread Tolerance Class: 6HX
Lead: Form C
High Resolution Image
Low Resolution Image
Product: TAP T205 M 8x1.25 6HX SPIRAL R50 VA DIN371 C PM-V3 TiCN
