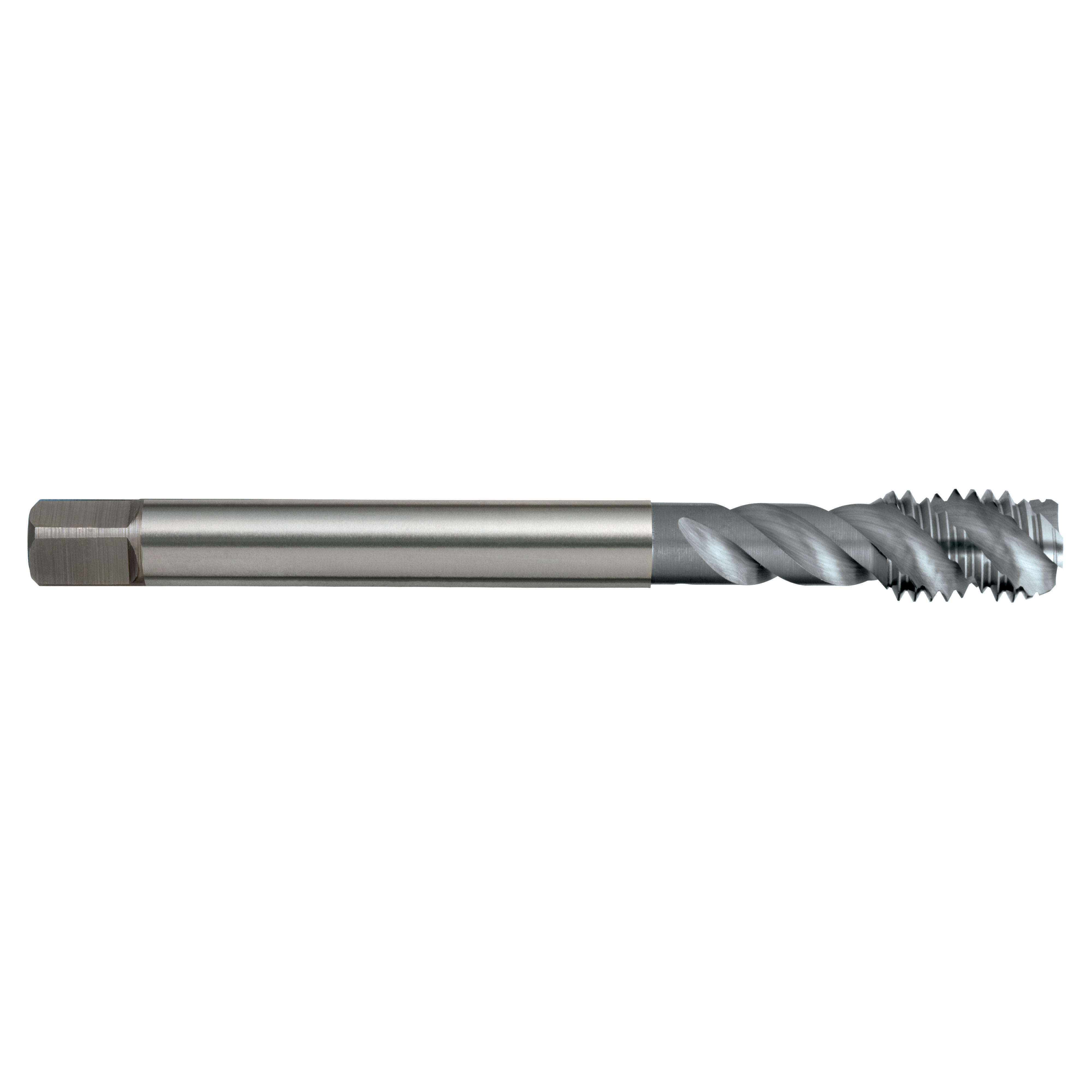

M20x2.5 Spiral Tap T206 6Hx R50 VA DIN376 C PM-V3 TiCN

SKU#:

T2062000
Item is in stock3 in stock
NZ$166.82

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Universal high performance tapping PM-HSSE V3 offers superior tool life Use in stainless steels and high strength steels up to 850N/mm2 Deep blind holes Depths up to 3 x d1

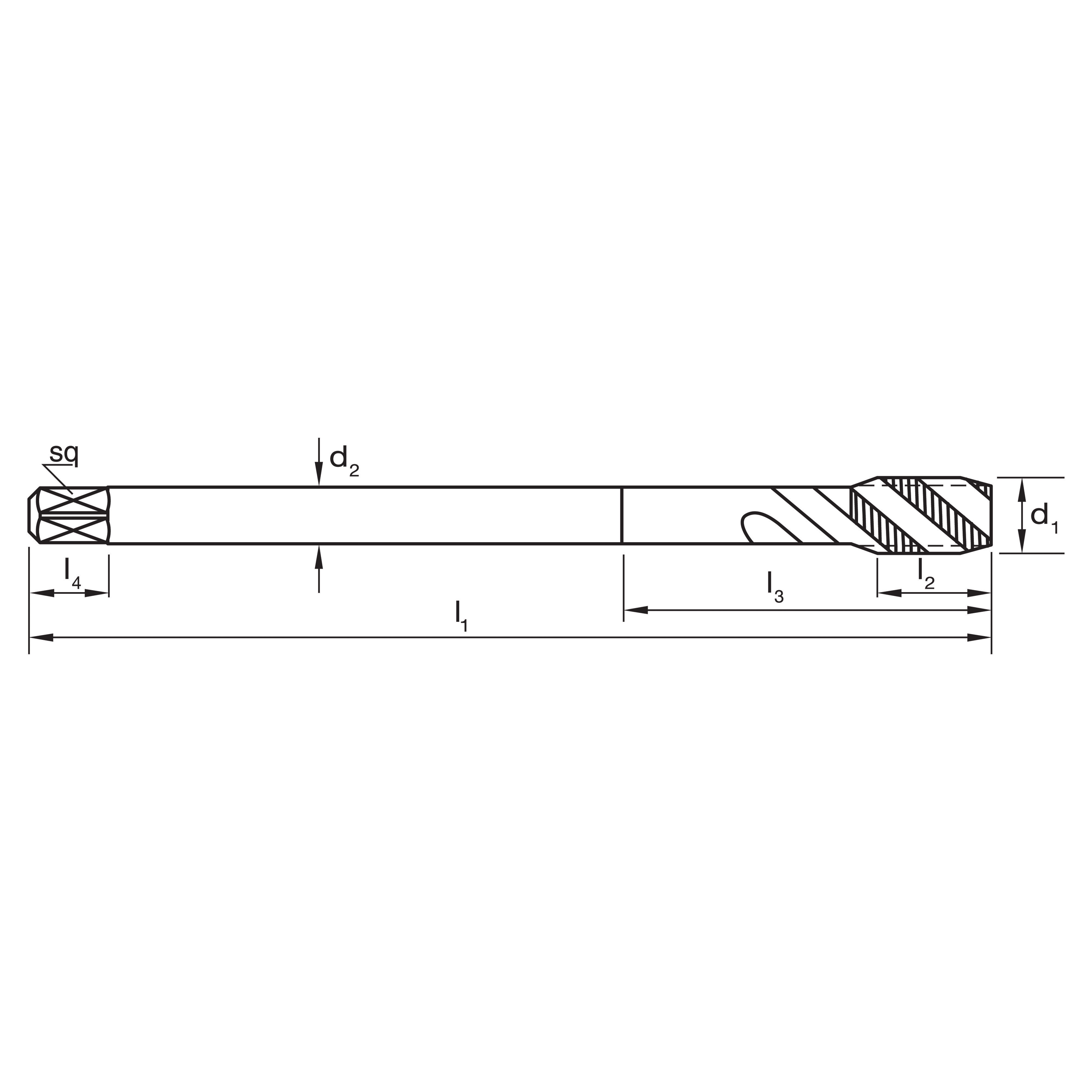

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T2061200M12x1.7511017.5-9710310.2
Item is in stock4 in stock
NZ$79.56
T2061400M14x211020-11912312
Item is in stock2 in stock
NZ$117.72
T2061600M16x211020-12912414
Item is in backorderItem is in backorder
NZ$109.46
T2062000M20x2.514025-161215417.5
Item is in stock3 in stock
NZ$166.82

  • Universal high performance tapping
  • PM-HSSE V3 offers superior tool life
  • Use in stainless steels and high strength steels up to 850N/mm2
  • Deep blind holes
  • Depths up to 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P8Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered300HB1010MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N25Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable130HB460MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa
S31High temperature alloys - Fe basedAnnealed200HB680MPa
S33High temperature alloys - Ni / Co basedAnnealed250HB840MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: VA
Material: PM-HSSE V3
Finish: TiCN
Max Cut Depth: 3xD
Shank Form: A
Helix Angle: R50
Standard: DIN376
Thread Form: Metric
Thread Tolerance Class: 6HX
Lead: Form C
High Resolution Image
Low Resolution Image
Product: TAP T206 M 20x2.5 6HX SPIRAL R50 VA DIN376 C PM-V3 TiCN
