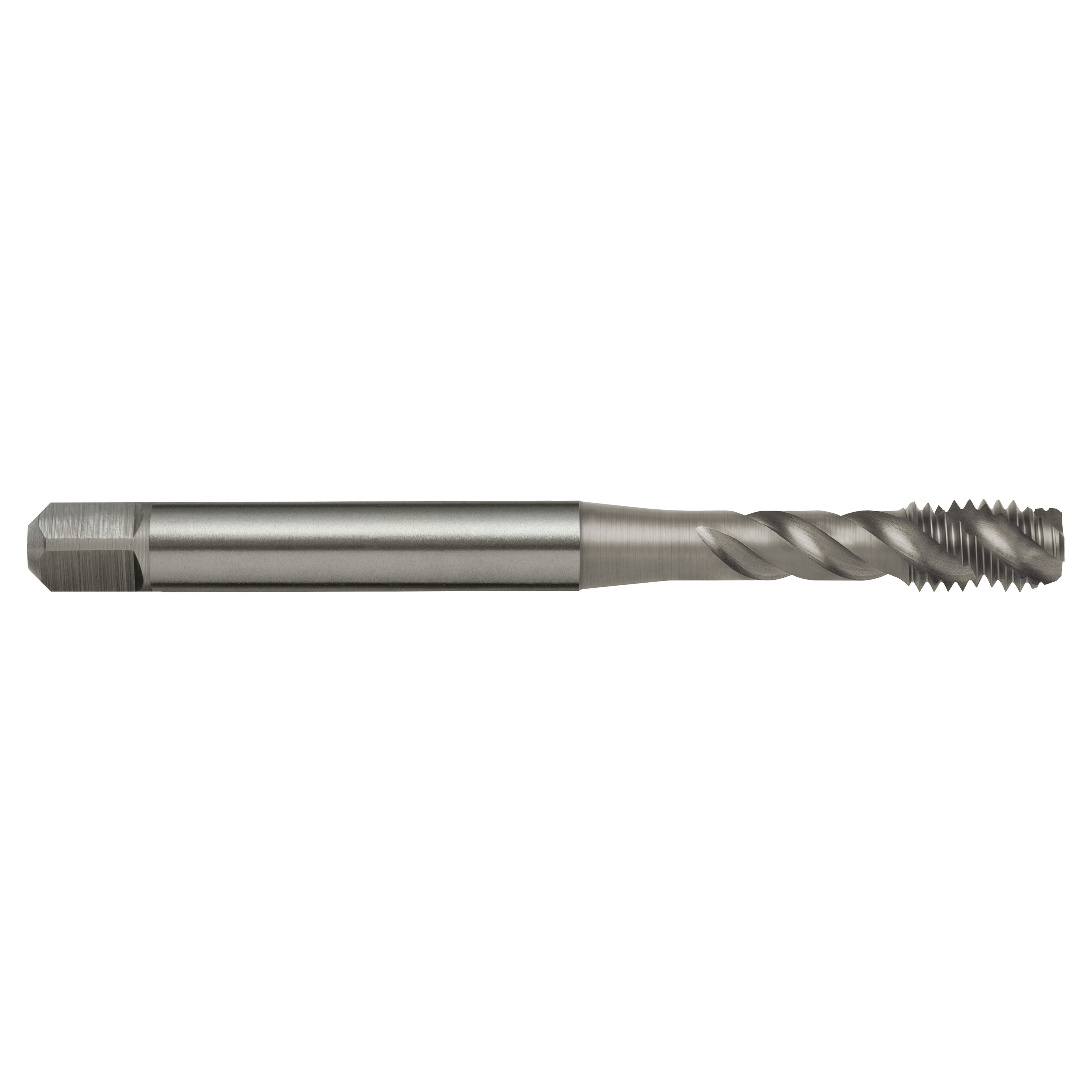

M4x0.7 Spiral Tap T235 6H R45 W DIN371 C HSSE Ni
SKU#:
Minimum Quantity is 1 • Sold in increments of 1
Enter a value between 1 and 99999 in increments of 1.
Suitable for use in soft materials Blind holes Depths up to 3 x d1

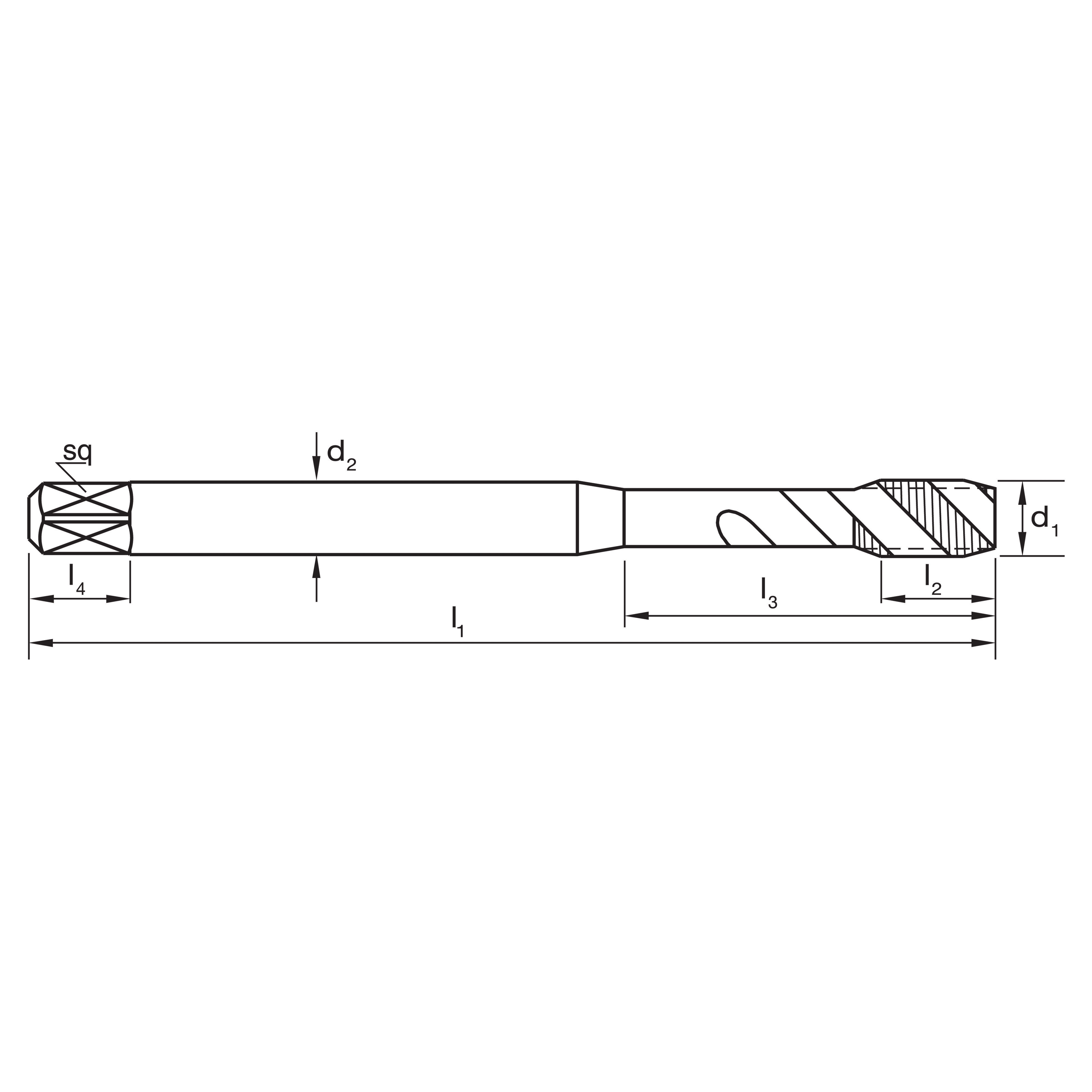

| Item # | Size | Length l1 (mm) | Length l2 (mm) | Length l3 (mm) | Diameter d2 (mm) | sq | Length l4 (mm) | z | Drill Ø | Qty | Stock | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T2350300 | |||||||||||||
| T2350400 | |||||||||||||
| T2350500 | |||||||||||||
| T2350600 | |||||||||||||
| T2350800 | |||||||||||||
| T2351000 |
- Suitable for use in soft materials
- Blind holes
- Depths up to 3 x d1
| ISO | VDI | Description | Condition | Hardness | Strength | Optimal |
|---|---|---|---|---|---|---|
| P | 1 | Steel - Non-alloy, cast & free cutting (~ 0.15 %C) | Annealed | 125HB | 440MPa | |
| P | 2 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Annealed | 190HB | 640MPa | |
| P | 3 | Steel - Non-alloy, cast & free cutting (~ 0.45 %C) | Quenched & Tempered | 250HB | 840MPa | |
| P | 4 | Steel - Non-alloy, cast & free cutting (~ 0.75 %C) | Annealed | 270HB | 910MPa | |
| P | 6 | Steel - Low alloy & cast < 5% of alloying elements | Annealed | 180HB | 610MPa | |
| P | 7 | Steel - Low alloy & cast < 5% of alloying elements | Quenched & Tempered | 275HB | 930MPa | |
| N | 21 | Aluminum & Magnesium, wrought alloy - Non Heat Treatable | 60HB | 210MPa | ||
| N | 22 | Aluminum & Magnesium, wrought alloy - Heat Treatable | Age Hardened | 100HB | 360MPa | |
| N | 26 | Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1% | 110HB | 390MPa | ||
| N | 28 | Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) | 100HB | 360MPa |
KEY
OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: W
Material: HSSE
Finish: Ni
Max Cut Depth: 3xD
Shank Form: A
Helix Angle: R45
Type: Spiral Flute
Standard: DIN371
Nut Tolerance: 6H
Lead: Form C
