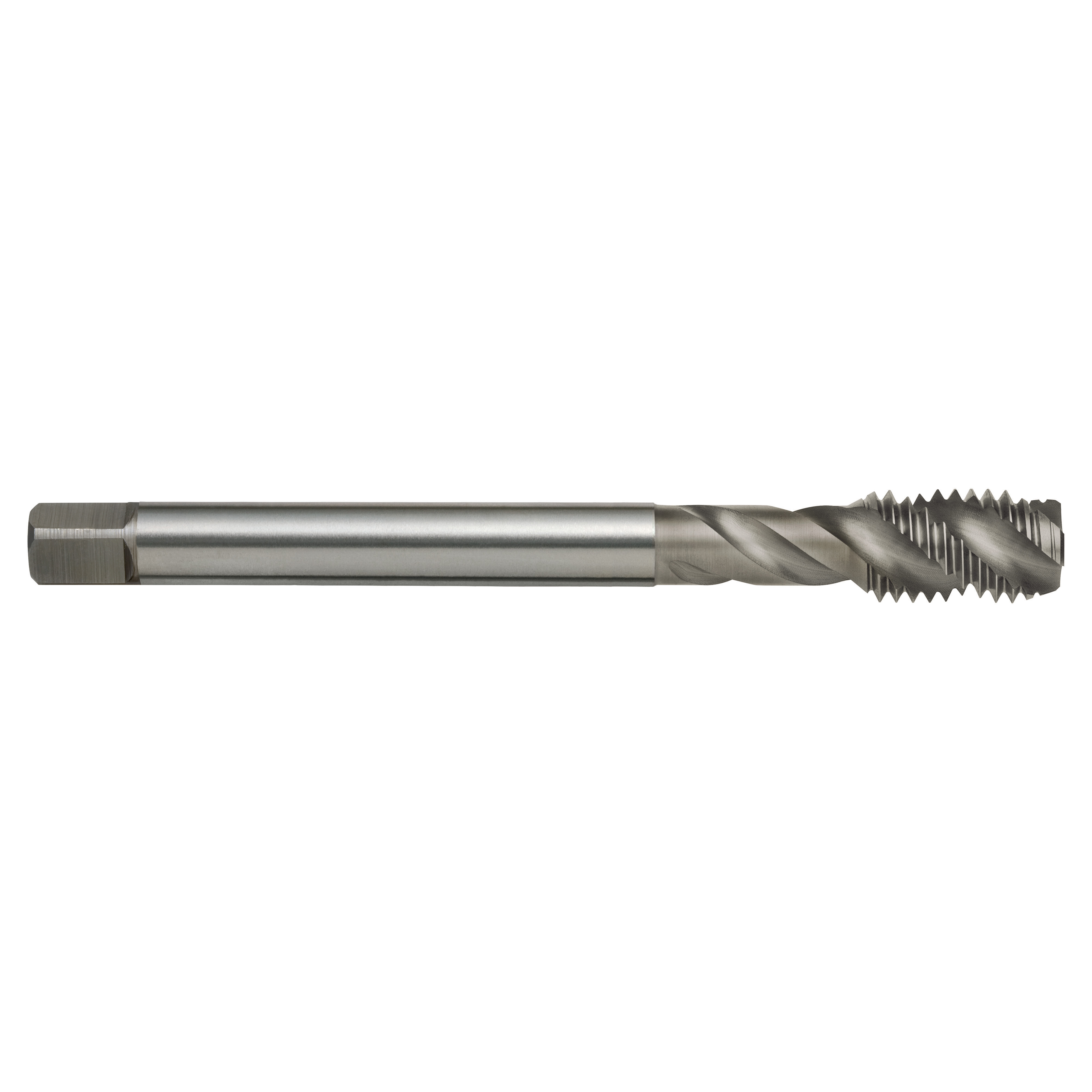

M16x2 Spiral Tap T236 6H R45 W DIN376 C HSSE Ni

SKU#:

T2361600
Item is in backorderItem is in backorder
NZ$101.83

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

Suitable for use in soft materials Blind holes Depths up to 3 x d1

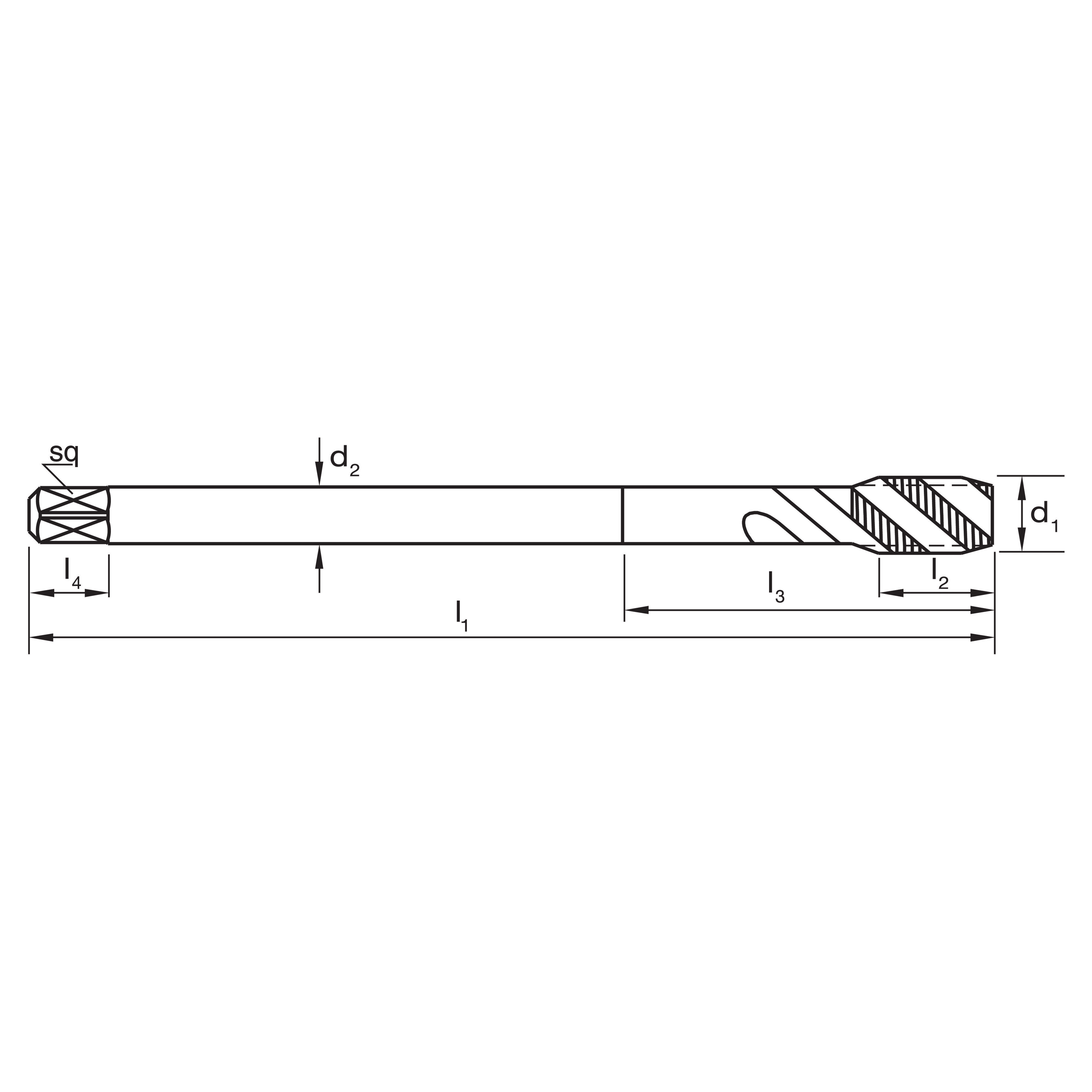

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T2361200M12x1.7511017.5-9710310.2
Item is in backorderItem is in backorder
NZ$70.71
T2361600M16x211020-12912414
Item is in backorderItem is in backorder
NZ$101.83

  • Suitable for use in soft materials
  • Blind holes
  • Depths up to 3 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: W
Material: HSSE
Finish: Ni
Max Cut Depth: 3xD
Shank Form: A
Helix Angle: R45
Standard: DIN376
Thread Form: Metric
Nut Tolerance: 6H
Lead: Form C
High Resolution Image
Low Resolution Image
Product: TAP T236 M 16x2 6H SPIRAL R45 W DIN376 C HSSE Ni
