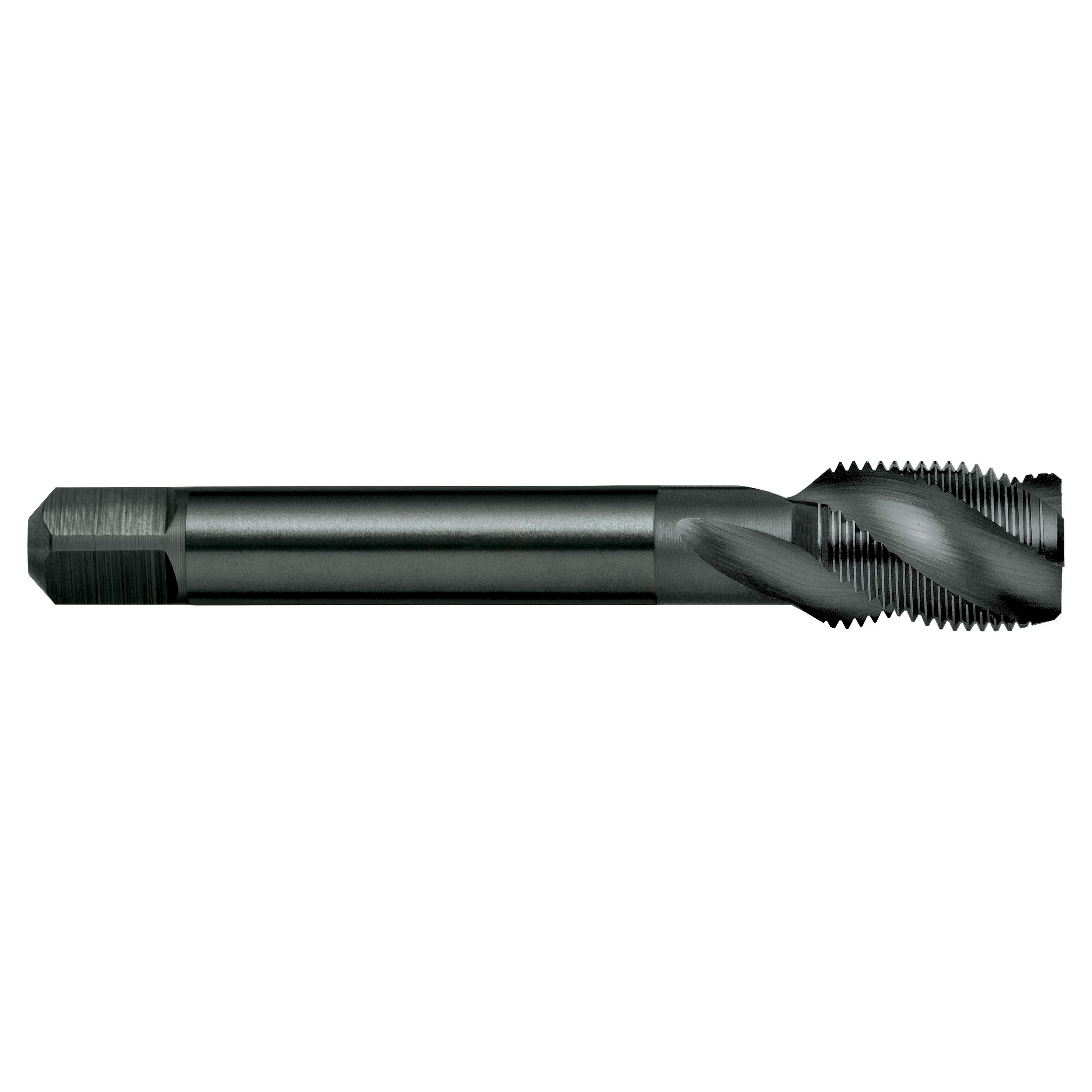

3/8-19 G Spiral Tap T282 (BSPF) R40 N DIN5156 C HSSE Blue

SKU#:

T2821666
Item is in stock1 in stock
NZ$106.14

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

General purpose use, materials up to approx. 1000 N/mm2 Blind holes Suitable for machine operations Depths up to approx. 2.5 x d1

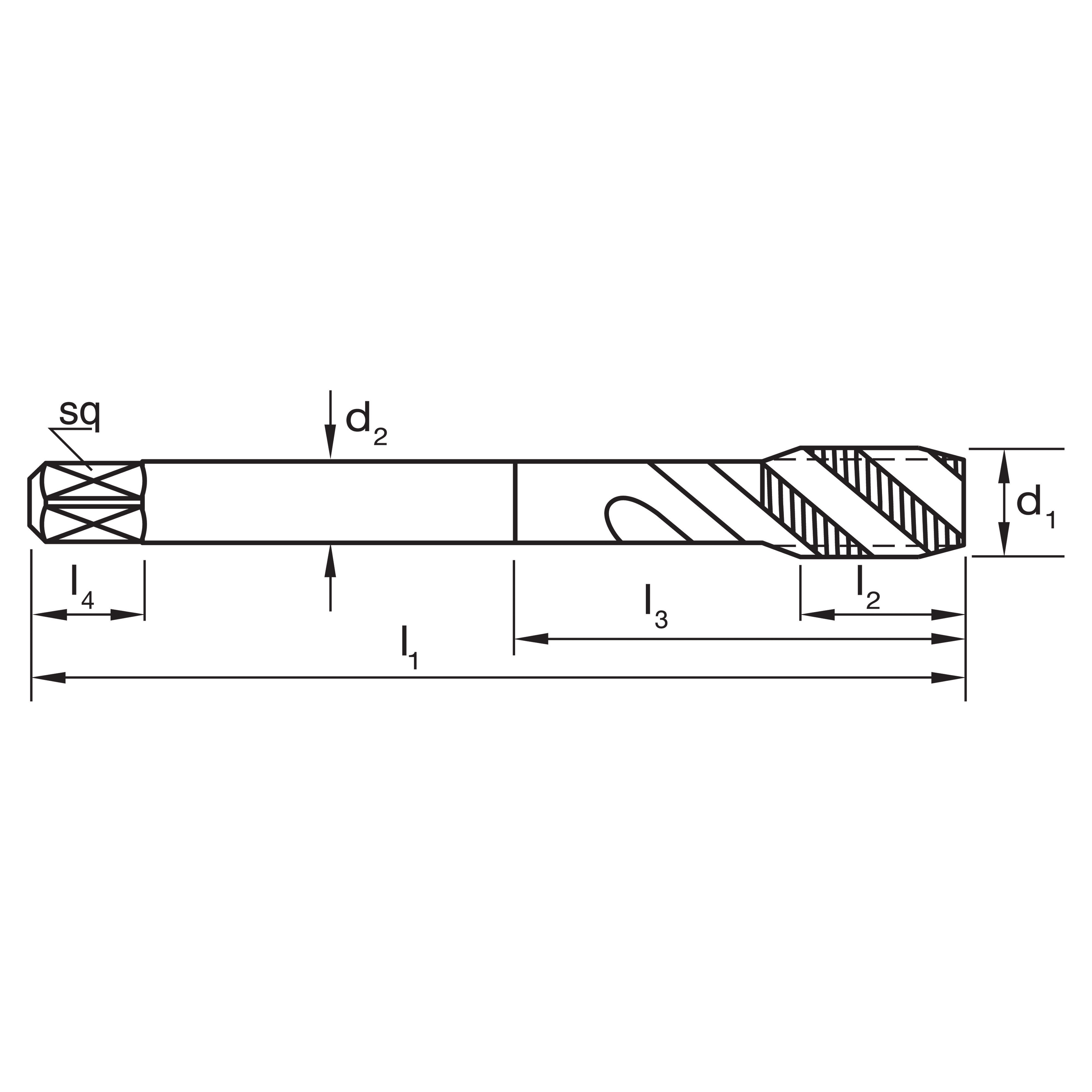

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T2820973G (BSPF) 1/8-289020-75.5838.8
Item is in backorderItem is in backorder
NZ$64.72
T2821316G (BSPF) 1/4-1910022-11912311.8
Item is in backorderItem is in backorder
NZ$84.15
T2821666G (BSPF) 3/8-1910022-12912315.3
Item is in stock1 in stock
NZ$106.14
T2822096G (BSPF) 1/2-1412525-161215419
Item is in stock1 in stock
NZ$139.82

  • General purpose use, materials up to approx. 1000 N/mm2
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
P10Steel - High alloy, cast & toolAnnealed200HB680MPa
P12Steel - Corrosion resistant & cast - Ferritic / MartensiticAnnealed200HB680MPa
M14.1Stainless Steel - AusteniticAge Hardened180HB610MPa
M14.2Stainless Steel - Duplex250HB840MPa
M14.3Stainless Steel - Precipitation Hardening250HB840MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
K20Cast Iron, Malleable - Pearlitic230HB780MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSSE
Finish: Blu
Max Cut Depth: 2.5xD
Shank Form: A
Helix Angle: R40
Standard: DIN5156
Thread Form: Whitworth
Thread Tolerance Class: null
Lead: Form C
High Resolution Image
Low Resolution Image
Product: TAP T282 G 3/8-19 (BSPF) SPIRAL R40 N DIN5156 C HSSE BLU
