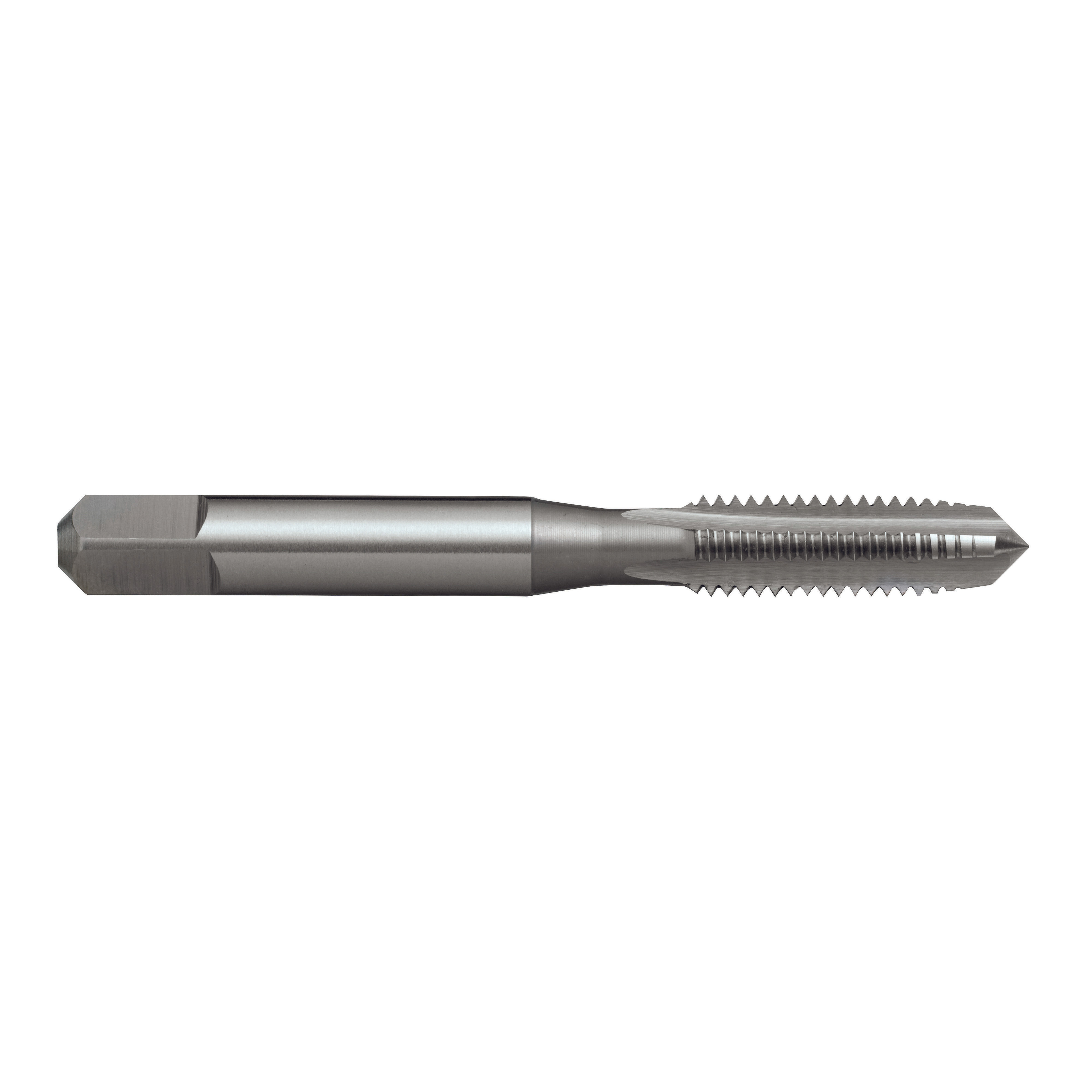

M20x2.5 Left Hand Intermediate Tap Straight Flute T390 6H N ISO529 HSS

SKU#:

T3902000
Item is in stock1 in stock
NZ$158.69

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

-

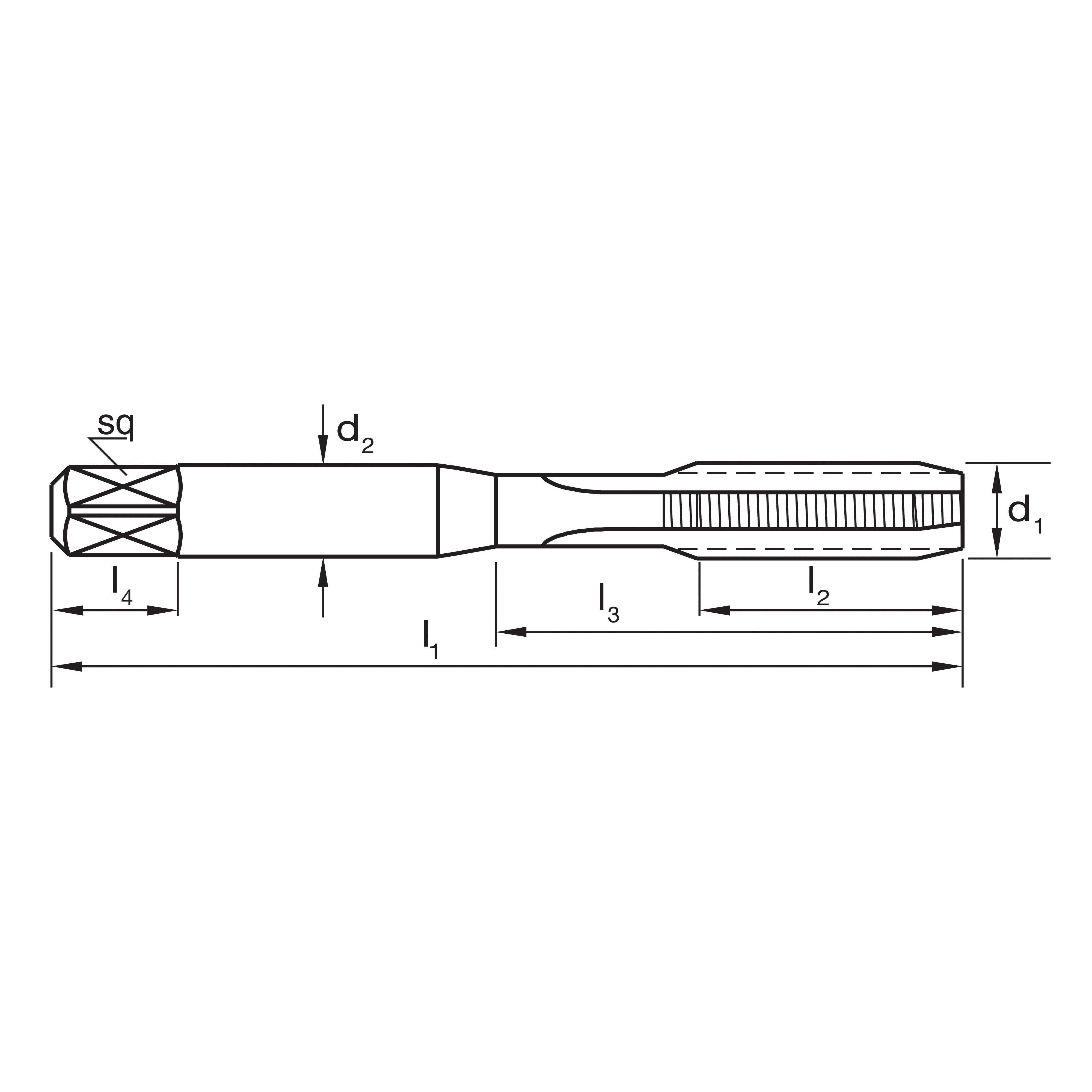

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T3900400M4x0.753131843.15633.3
Item is in stock5 in stock
NZ$49.05
T3900500M5x0.858162254734.2
Item is in backorderItem is in backorder
NZ$51.01
T3900600M6x16619266.305835
Item is in stock1 in stock
NZ$54.01
T3900800M8x1.2572223086.3946.8
Item is in stock2 in stock
NZ$56.61
T3901000M10x1.58024341081148.5
Item is in stock4 in stock
NZ$69.20
T3901200M12x1.758929-97.110410.2
Item is in stock9 in stock
NZ$116.74
T3901400M14x29530-11.2912412
Item is in backorderItem is in backorder
NZ$105.53
T3901600M16x210232-12.501013414
Item is in backorderItem is in backorder
NZ$104.48
T3901800M18x2.511237-1411.214415.5
Item is in backorderItem is in backorder
NZ$124.50
T3902000M20x2.511237-1411.214417.5
Item is in stock1 in stock
NZ$158.69

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: Metric
Nut Tolerance: 6H
Lead: Intermediate
High Resolution Image
Low Resolution Image
Product: TAP T390 M 20x2.5 6H STRAIGHT LH N ISO529 Inter HSS
