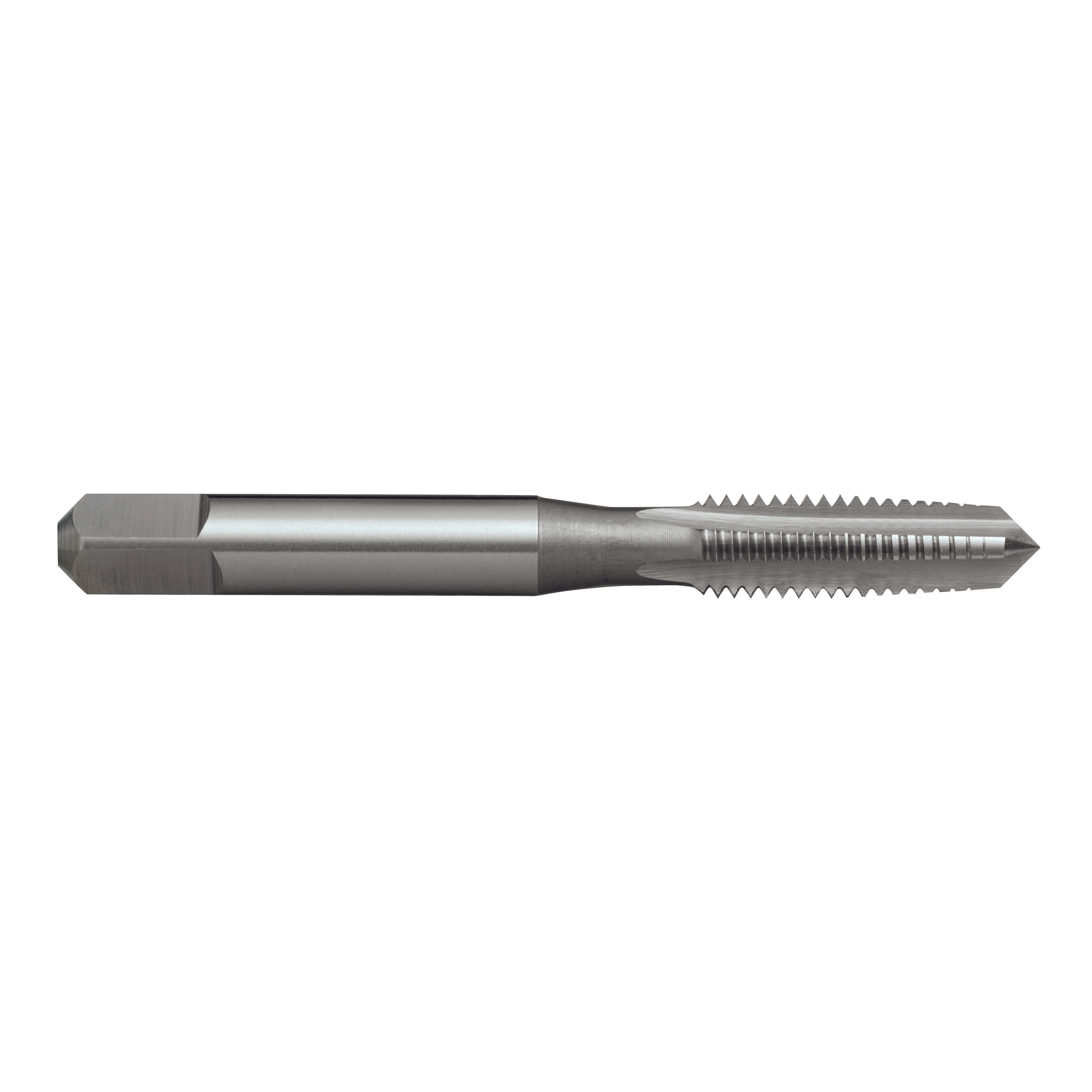

M14x1.25 Taper Tap Straight Flute T401 4H N ISO529 HSS

SKU#:

T4011406

Item is in stock

8 in stock

NZ$103.13

QTY

Enter a value between 1 and 99999 in increments of 1.

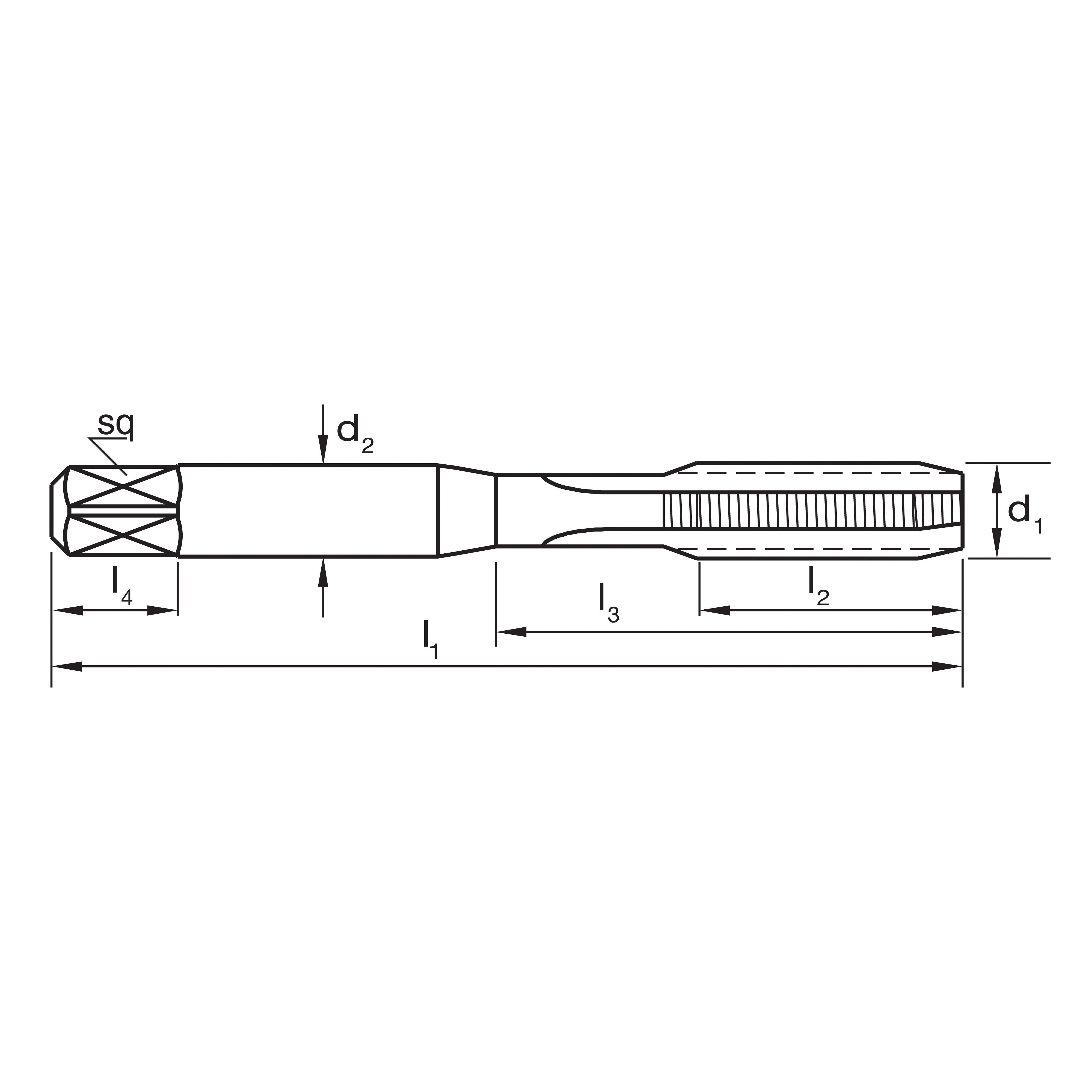

Item #	Size	Length l1 (mm)	Length l2 (mm)	Length l3 (mm)	Diameter d2 (mm)	sq	Length l4 (mm)	z	Drill Ø	Stock	Price	Action
T4010805	MF8x1	72	22	30	8	6.3	9	4	7	Item is in stock19 in stock	NZ$43.79	Wishlist
T4011006	MF10x1.25	80	24	34	10	8	11	4	8.8	Item is in stock20 in stock	NZ$59.69	Wishlist
T4011207	MF12x1.5	89	29	-	9	7.1	10	4	10.5	Item is in stock17 in stock	NZ$65.97	Wishlist
T4011406	MF14x1.25	95	30	-	11.2	9	12	4	12.8	Item is in stock8 in stock	NZ$103.13	Wishlist
T4011607	MF16x1.5	102	32	-	12.5	10	13	4	14.5	Item is in stock20 in stock	NZ$67.59	Wishlist
T4013007	MF30x1.5	138	48	-	20	16	20	4	28.5	Item is in backorderItem is in backorder	NZ$272.83	Wishlist

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275HB	930MPa
K	15	Cast Iron, Grey (GG) - Ferritic / Pearlitic		180HB	610MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	19	Cast Iron, Malleable - Ferritic		130HB	460MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%		110HB	390MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials

Designation: N

Material: HSS

Finish: Brt

Max Cut Depth: 1xD

Shank Form: A

Standard: ISO529

Thread Form: Metric

Nut Tolerance: 6H

Lead: Taper

Product: TAP T401 MF 14x1.25 4H STRAIGHT N ISO529 Taper HSS
