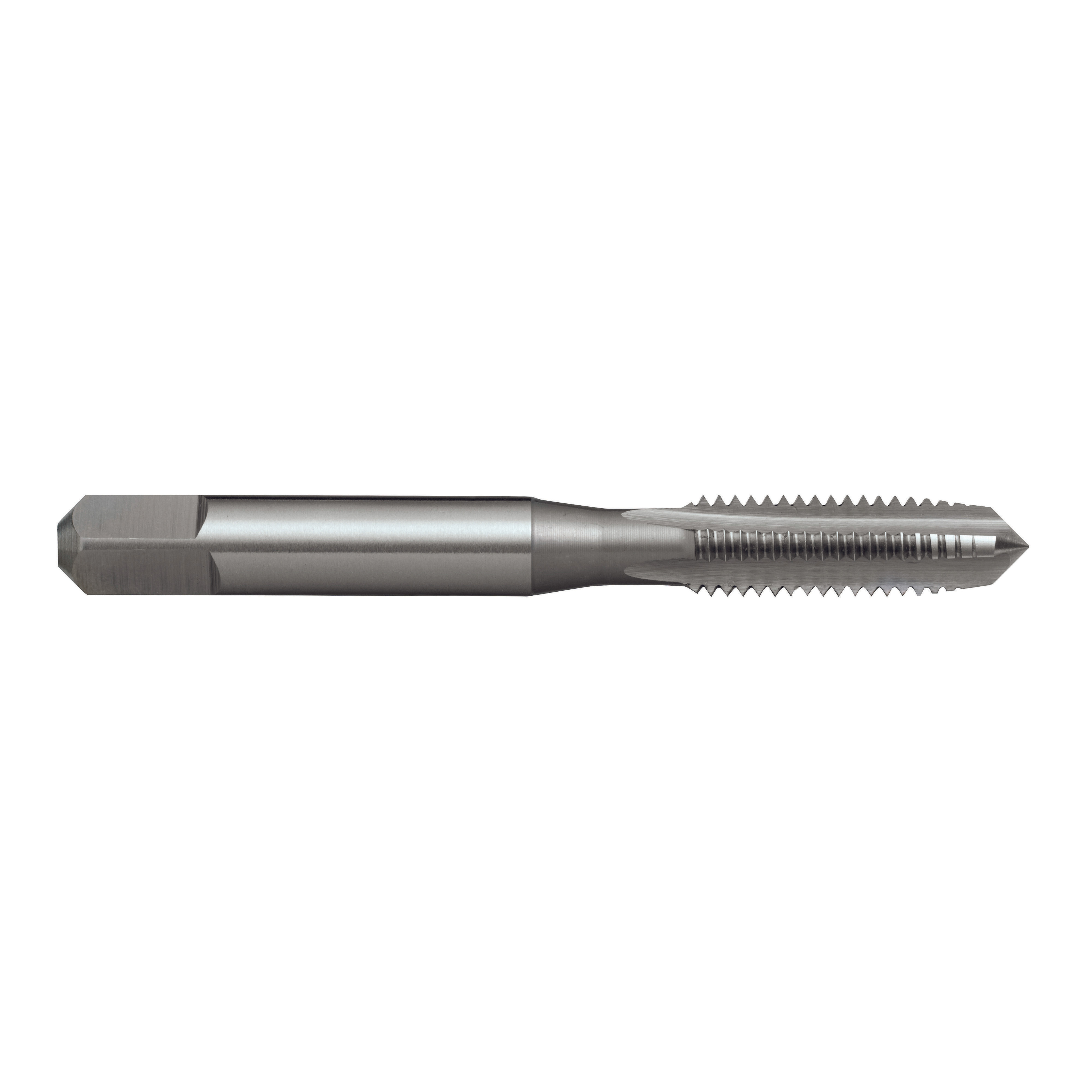

M30x2 Intermediate Tap Straight Flute T402 6H N ISO529 HSS

SKU#:

T4023008
Item is in backorderItem is in backorder
NZ$275.65

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

-

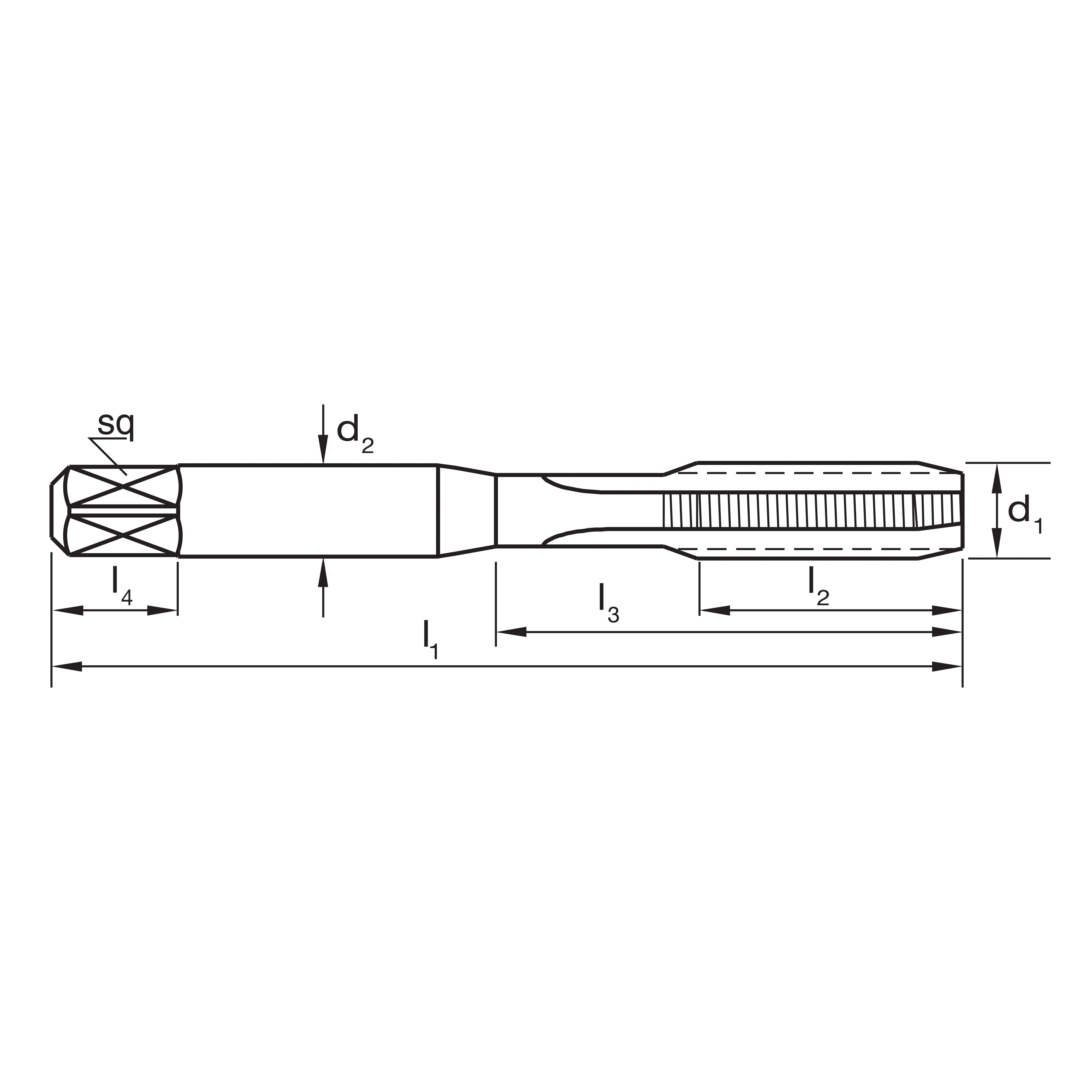

Item #SizeLength l1 (mm)Length l2 (mm)Diameter d2 (mm)sqLength l4 (mm)zQtyStockPriceAction
T4020805MF8x1722286.394
Item is in stock25 in stock
NZ$43.79
T4021005MF10x18024108114
Item is in stock19 in stock
NZ$49.73
T4021206MF12x1.25892997.1104
Item is in stock33 in stock
NZ$68.61
T4021406MF14x1.25953011.29124
Item is in stock10 in stock
NZ$102.11
T4021607MF16x1.51023212.510134
Item is in stock27 in stock
NZ$84.28
T4021807MF18x1.5112371411.2144
Item is in stock21 in stock
NZ$78.56
T4022408MF24x2130451814184
Item is in stock4 in stock
NZ$155.32
T4023008MF30x2138482016204
Item is in backorderItem is in backorder
NZ$275.65

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: Metric
Nut Tolerance: 6H
Lead: Intermediate
High Resolution Image
Low Resolution Image
Product: TAP T402 MF 30x2 6H STRAIGHT N ISO529 Inter HSS
