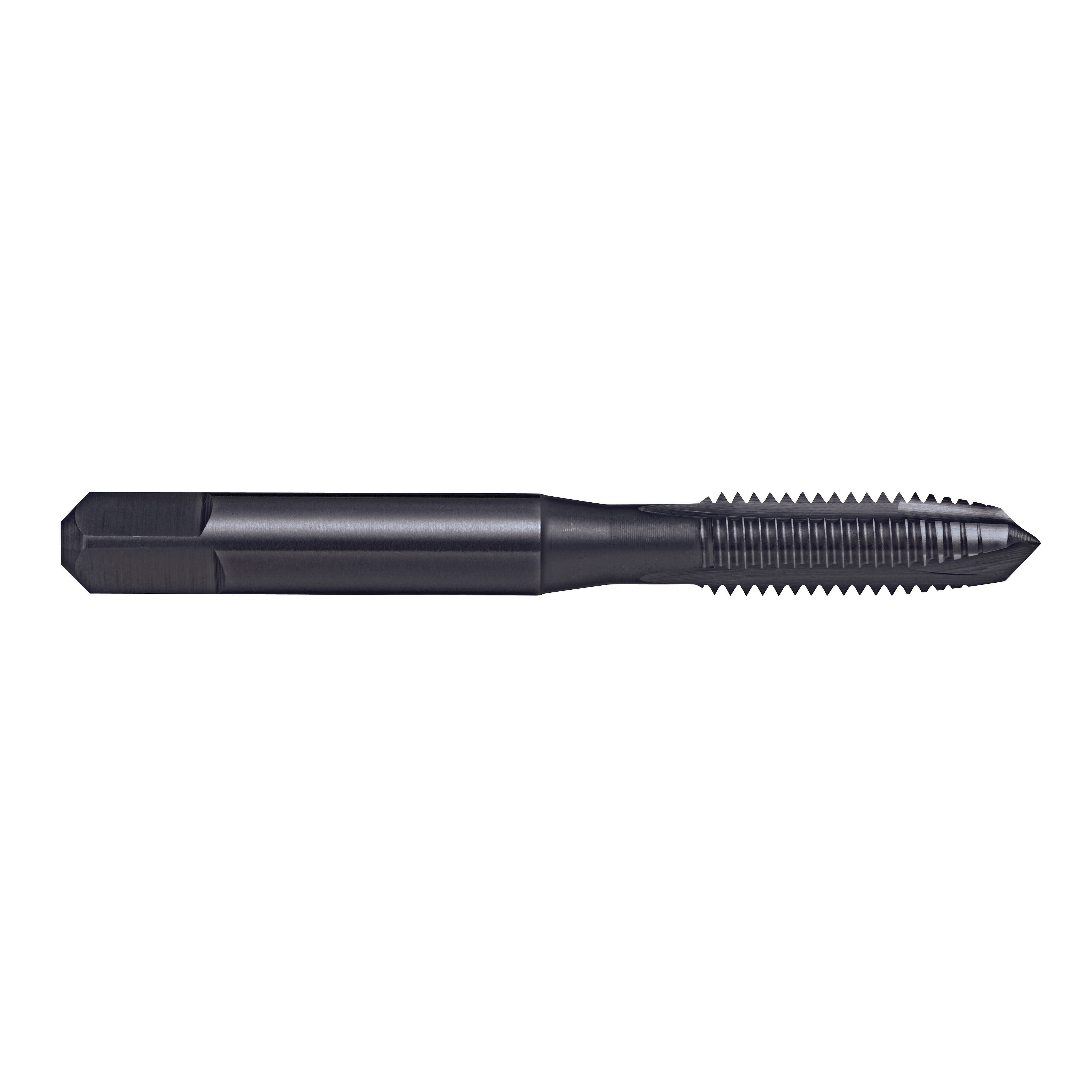

5/16-18 UNC Intermediate Gun Tap T423 2B N ISO529 HSSE Blue

Name: TAP T423 UNC 5/16-18 2B GUN N ISO529 Inter HSSE BLU
Brand: Sutton Tools
SKU: T4230794
Price: 30.3 NZD

SKU#:

T4230794

Item is in stock

15 in stock

NZ$30.30

QTY

Enter a value between 1 and 99999 in increments of 1.

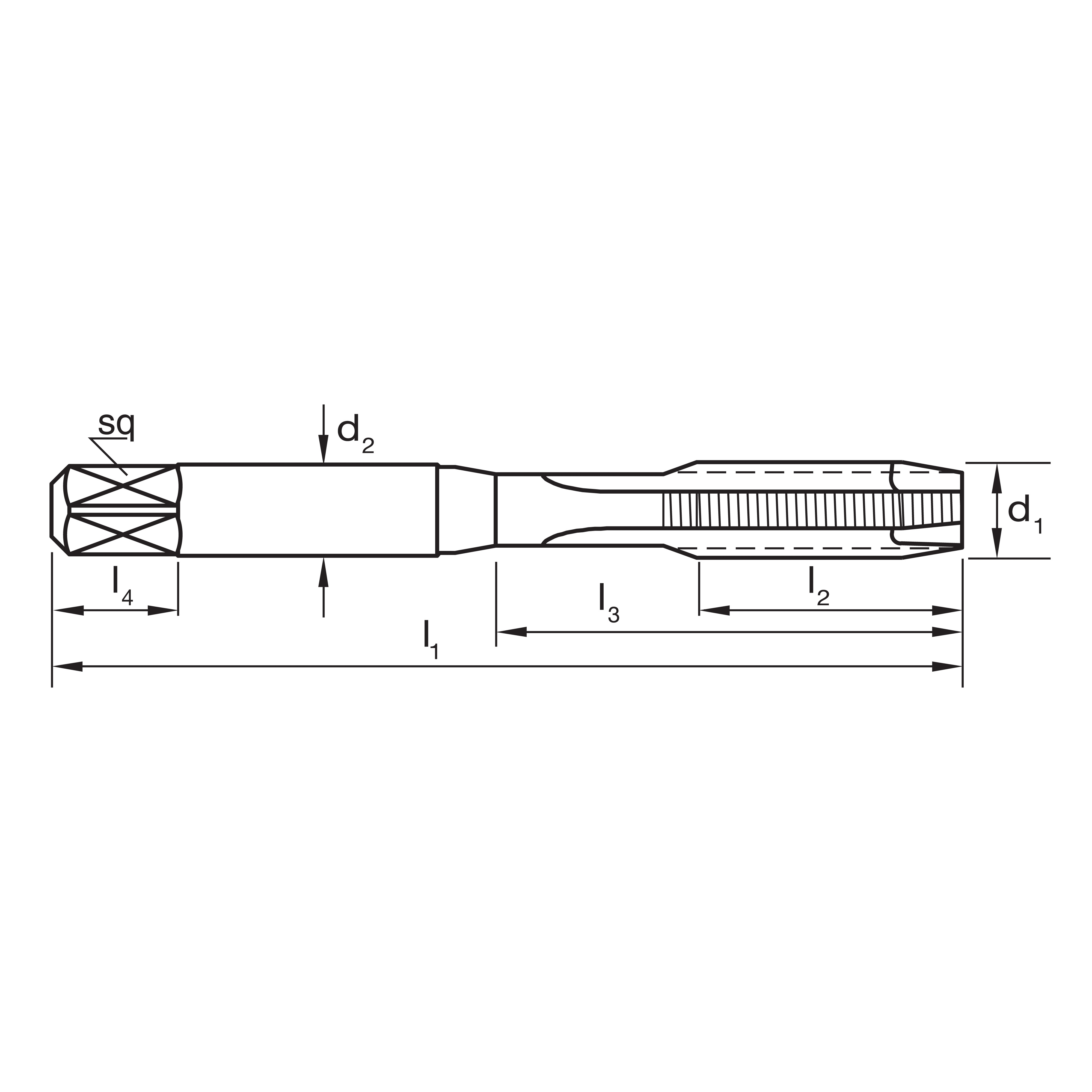

Item #	Size	Length l1 (mm)	Length l2 (mm)	Length l3 (mm)	Diameter d2 (mm)	sq	Length l4 (mm)	z	Drill Ø	Stock	Price	Action
T4230284	UNC #4-40	48	15	14.5	3.15	2.5	5	2	2.3	Item is in stock1 in stock	NZ$44.93	Wishlist
T4230351	UNC #6-32	50	17	17.5	3.55	2.8	5	3	2.8	Item is in backorderItem is in backorder	NZ$29.26	Wishlist
T4230417	UNC #8-32	53	13	18	4.5	3.55	6	3	3.4	Item is in stock2 in stock	NZ$32.18	Wishlist
T4230483	UNC #10-24	58	16	22	5	4	7	3	3.8	Item is in stock15 in stock	NZ$29.17	Wishlist
T4230635	UNC 1/4-20	66	19	25	6.3	5	8	3	5.1	Item is in stock8 in stock	NZ$28.13	Wishlist
T4230794	UNC 5/16-18	72	22	30	8	6.3	9	3	6.6	Item is in stock15 in stock	NZ$30.30	Wishlist
T4230953	UNC 3/8-16	80	24	33	10	8	11	3	8	Item is in stock9 in stock	NZ$36.94	Wishlist
T4231111	UNC 7/16-14	85	25	-	8	6.3	9	3	9.4	Item is in stock2 in stock	NZ$60.17	Wishlist
T4231270	UNC 1/2-13	89	29	-	9	7.1	10	3	10.8	Item is in stock5 in stock	NZ$66.64	Wishlist
T4231588	UNC 5/8-11	102	32	-	12.5	10	13	3	13.5	Item is in stock1 in stock	NZ$105.79	Wishlist
T4231905	UNC 3/4-10	112	37	-	14	11.2	14	4	16.5	Item is in stock4 in stock	NZ$149.40	Wishlist

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275HB	930MPa
P	12	Steel - Corrosion resistant & cast - Ferritic / Martensitic	Annealed	200HB	680MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180HB	610MPa
M	14.2	Stainless Steel - Duplex		250HB	840MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
K	19	Cast Iron, Malleable - Ferritic		130HB	460MPa
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials

Designation: N

Material: HSSE

Finish: Blu

Max Cut Depth: 3xD

Shank Form: A

Standard: ISO529

Thread Form: Unified

Thread Tolerance Class: 2B

Lead: Form B

Product: TAP T423 UNC 5/16-18 2B GUN N ISO529 Inter HSSE BLU
