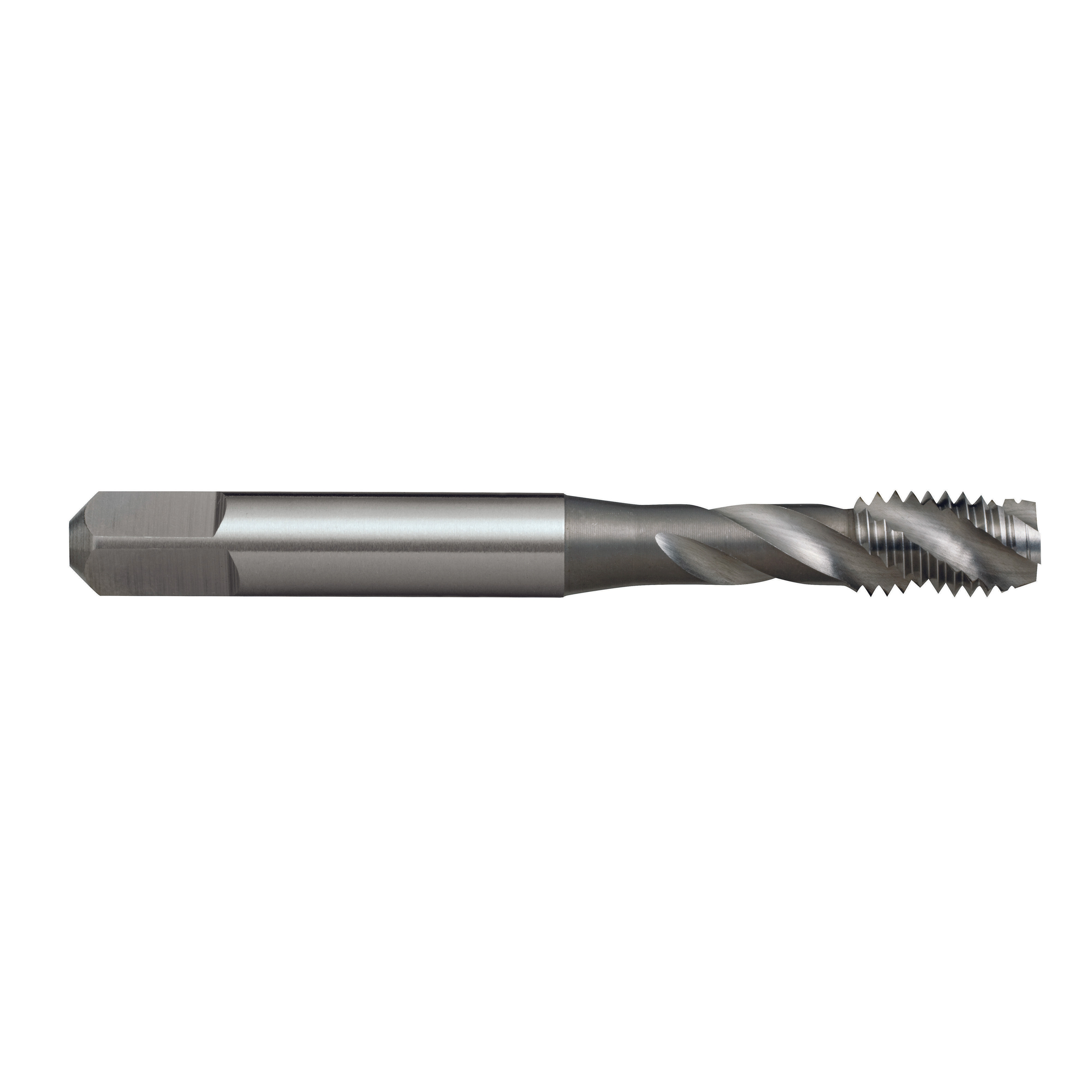

3/8-24 UNF Bottoming Spiral Tap T442 2B ISO529 HSSE

SKU#:

T4420953

Item is in backorder

NZ$53.11

QTY

Enter a value between 1 and 99999 in increments of 1.

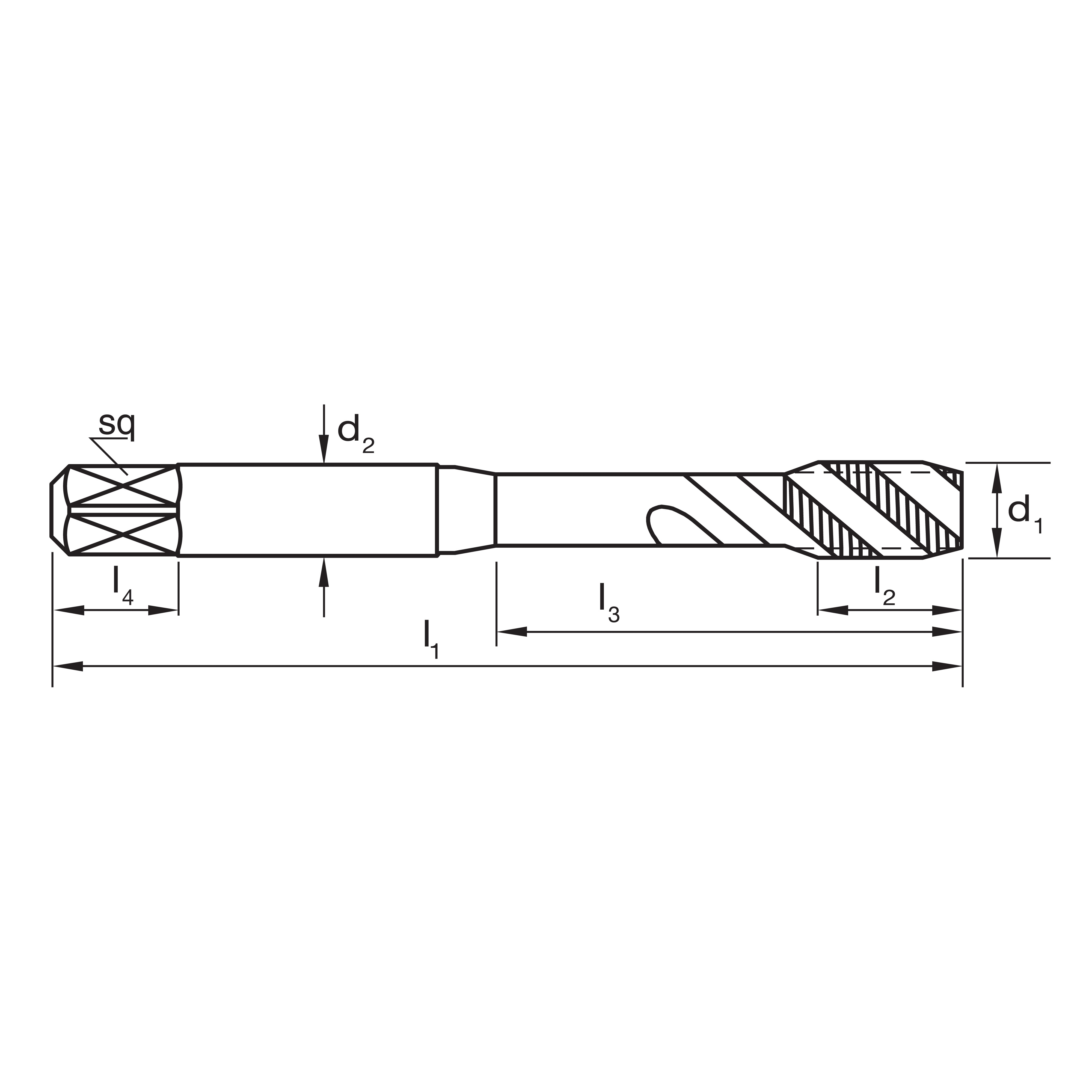

Item #	Size	Length l1 (mm)	Length l2 (mm)	Length l3 (mm)	Diameter d2 (mm)	sq	Length l4 (mm)	z	Drill Ø	Stock	Price	Action
T4420635	UNF 1/4-28	66	10	25	6.3	5	8	3	5.5	Item is in backorderItem is in backorder	NZ$35.40	Wishlist
T4420794	UNF 5/16-24	72	13	30	8	6.3	9	3	6.9	Item is in backorderItem is in backorder	NZ$38.72	Wishlist
T4420953	UNF 3/8-24	80	16	33	10	8	11	3	8.5	Item is in backorderItem is in backorder	NZ$53.11	Wishlist
T4421111	UNF 7/16-20	85	18	-	8	6.3	9	3	9.8	Item is in backorderItem is in backorder	NZ$74.42	Wishlist
T4421270	UNF 1/2-20	89	20	-	9	7.1	10	3	11.5	Item is in backorderItem is in backorder	NZ$86.17	Wishlist
T4421588	UNF 5/8-18	102	20	-	12.5	10	13	3	12.8	Item is in stock1 in stock	NZ$135.03	Wishlist

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180HB	610MPa
M	14.2	Stainless Steel - Duplex		250HB	840MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%		110HB	390MPa
N	27	Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)		90HB	320MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials

Designation: N

Material: HSSE

Finish: Brt

Max Cut Depth: 2.5xD

Shank Form: A

Helix Angle: R40

Standard: ISO529

Thread Form: Unified

Thread Tolerance Class: 2B

Lead: Form C

Product: TAP T442 UNF 3/8-24 2B SPIRAL ISO529 Bott HSSE
