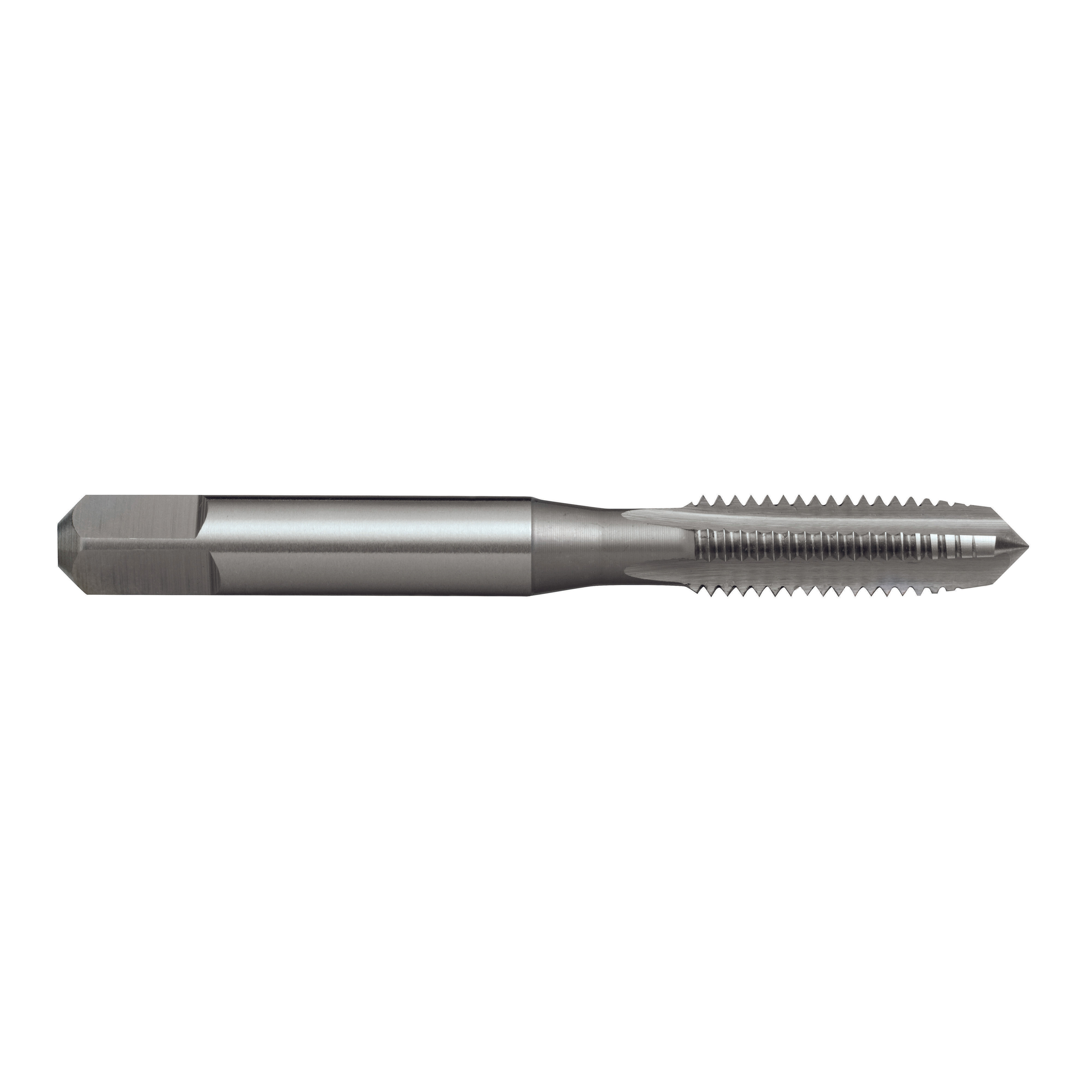

3/8-16 BSW Intermediate Tap Straight Flute T452 Z3 ISO529 HSS

SKU#:

T4520953
Item is in stock11 in stock
NZ$33.53

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

-

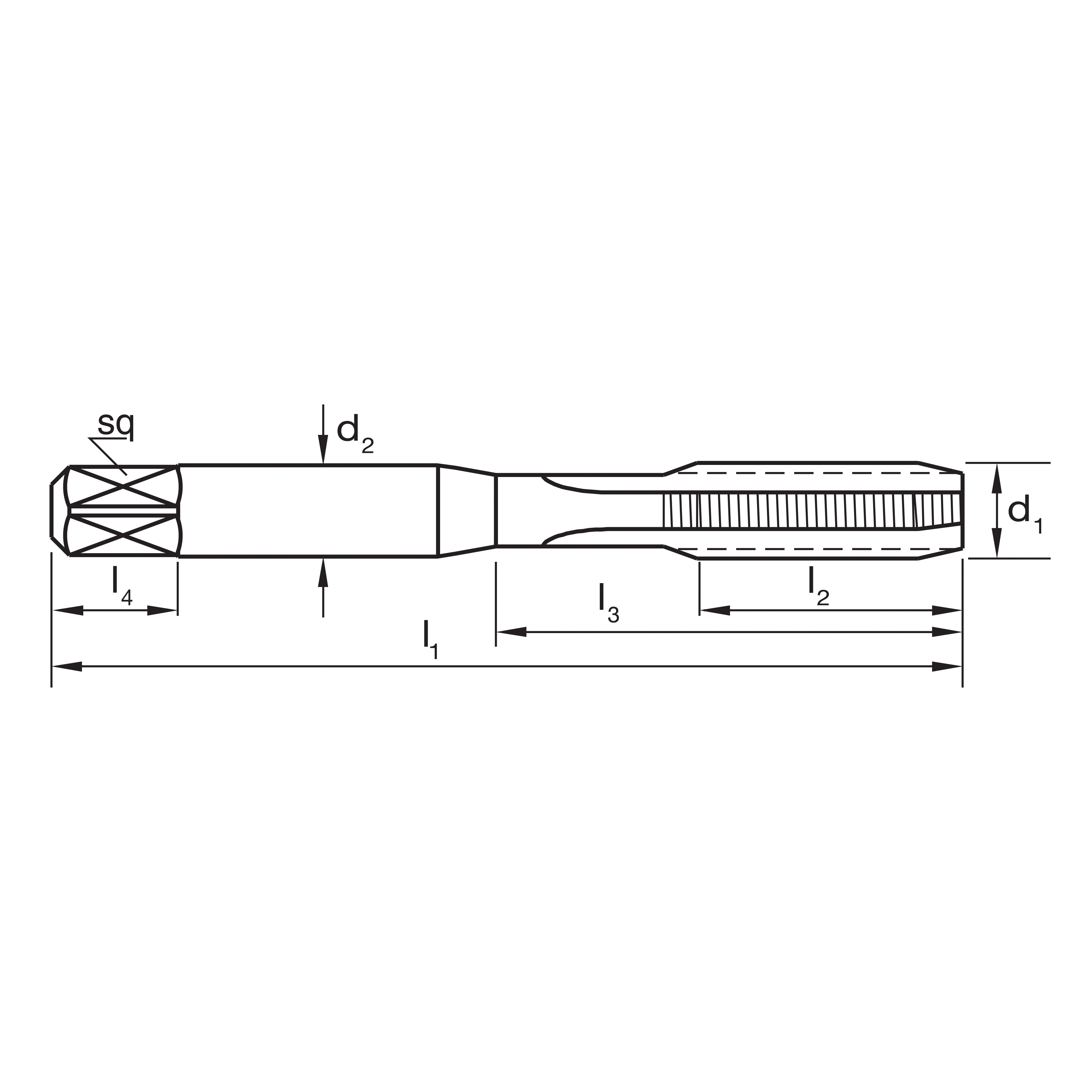

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T4520318BSW 1/8-404815153.152.5532.55
Item is in stock7 in stock
NZ$36.93
T4520397BSW 5/32-3253171743.15633.2
Item is in stock3 in stock
NZ$36.93
T4520476BSW 3/16-2458162254733.7
Item is in stock54 in stock
NZ$23.09
T4520556BSW 7/32-246217235.64.5734.5
Item is in stock6 in stock
NZ$35.07
T4520635BSW 1/4-206619256.35835.1
Item is in stock10 in stock
NZ$23.63
T4520794BSW 5/16-1872223086.3946.5
Item is in stock5 in stock
NZ$24.75
T4520953BSW 3/8-168024331081147.9
Item is in stock11 in stock
NZ$33.53
T4521111BSW 7/16-148525-86.3949.3
Item is in stock1 in stock
NZ$45.03
T4521270BSW 1/2-128929-97.110410.5
Item is in stock3 in stock
NZ$50.44
T4521429BSW 9/16-129530-11.2912412.1
Item is in stock1 in stock
NZ$73.18
T4521588BSW 5/8-1110232-12.51013413.5
Item is in stock3 in stock
NZ$76.99
T4521905BSW 3/4-1011237-1411.214416.25
Item is in stock2 in stock
NZ$100.10
T4522223BSW 7/8-911838-1612.516419.25
Item is in stock1 in stock
NZ$150.21
T4522540BSW 1-813045-181418422
Item is in stock5 in stock
NZ$184.41
T4523175BSW 1-1/4-715151-22.41822428
Item is in stock1 in stock
NZ$334.85

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: Whitworth
Thread Tolerance Class: null
Lead: Intermediate
High Resolution Image
Low Resolution Image
Product: TAP T452 BSW 3/8-16 Z3 STRAIGHT ISO529 Inter HSS
