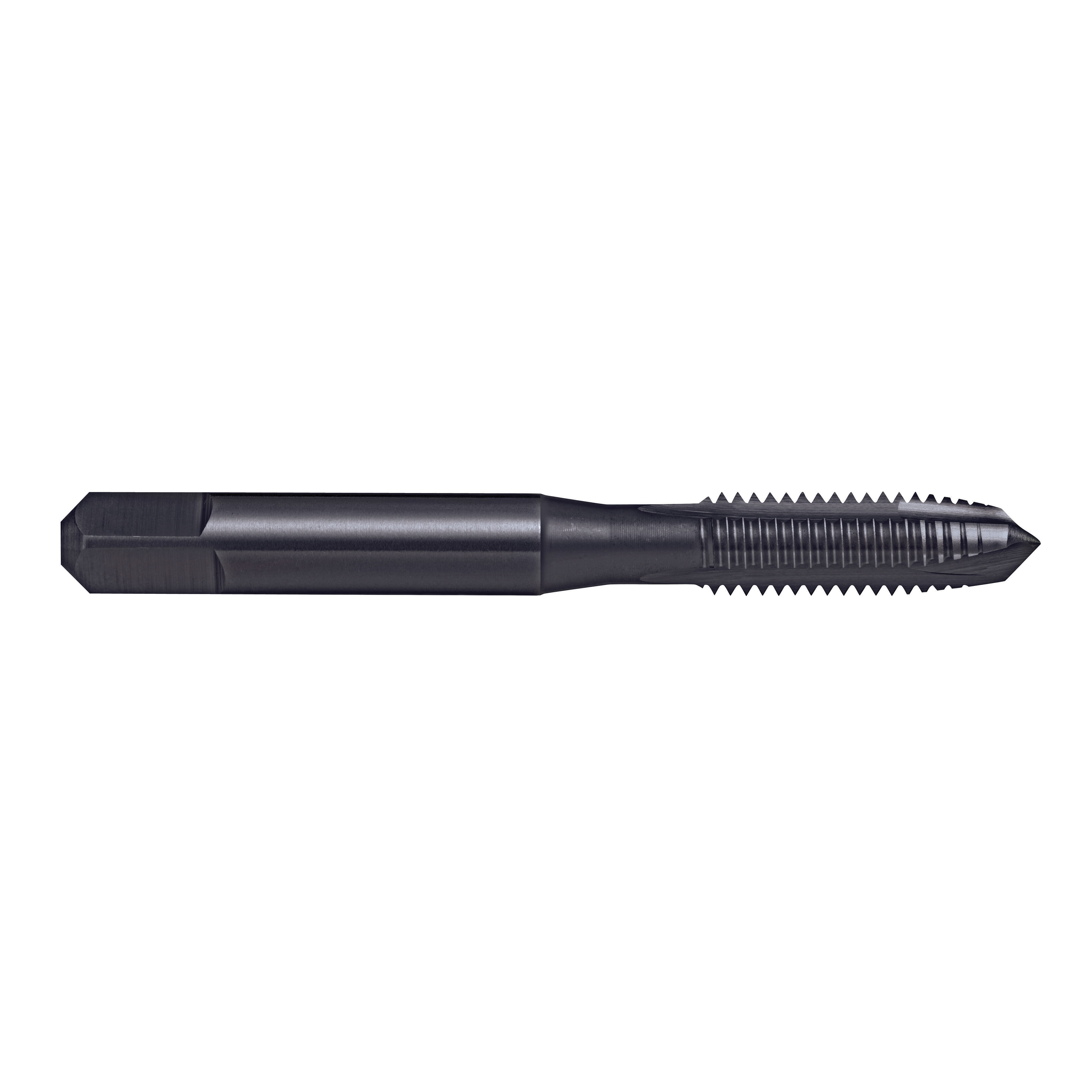

5/32-32 BSW Intermediate Gun Tap T458 Z3 ISO529 HSSE Blue

Name: TAP T458 BSW 5/32-32 Z3 GUN ISO529 Inter HSSE BLU
Brand: Sutton Tools
SKU: T4580397
Price: 43.16 NZD

SKU#:

T4580397

Item is in stock

3 in stock

NZ$43.16

QTY

Enter a value between 1 and 99999 in increments of 1.

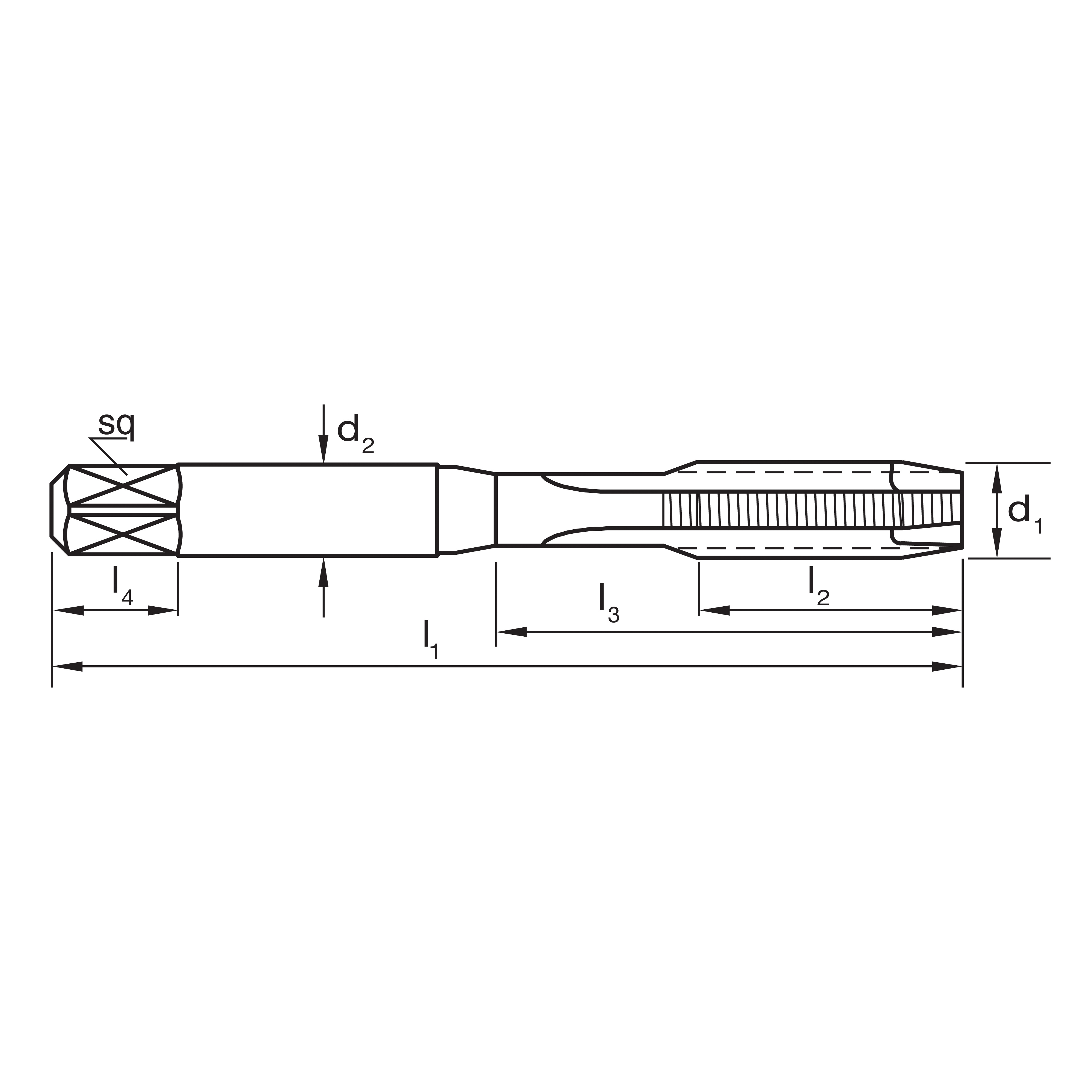

Item #	Size	Length l1 (mm)	Length l2 (mm)	Length l3 (mm)	Diameter d2 (mm)	sq	Length l4 (mm)	z	Drill Ø	Stock	Price	Action
T4580318	BSW 1/8-40	48	15	15	3.15	2.5	5	3	2.55	Item is in stock2 in stock	NZ$44.70	Wishlist
T4580397	BSW 5/32-32	53	17	17	4	3.15	6	3	3.2	Item is in stock3 in stock	NZ$43.16	Wishlist
T4580476	BSW 3/16-24	58	16	22	5	4	7	3	3.7	Item is in stock25 in stock	NZ$35.05	Wishlist
T4580635	BSW 1/4-20	66	19	25	6.3	5	8	3	5.1	Item is in stock7 in stock	NZ$29.86	Wishlist
T4580794	BSW 5/16-18	72	22	30	8	6.3	9	3	6.5	Item is in stock6 in stock	NZ$32.29	Wishlist
T4580953	BSW 3/8-16	80	24	33	10	8	11	3	7.9	Item is in stock1 in stock	NZ$43.97	Wishlist
T4581111	BSW 7/16-14	85	25	-	8	6.3	9	3	9.3	Item is in backorderItem is in backorder	NZ$59.91	Wishlist
T4581270	BSW 1/2-12	89	29	-	9	7.1	10	3	10.5	Item is in backorderItem is in backorder	NZ$69.83	Wishlist
T4581588	BSW 5/8-11	102	32	-	12.5	10	13	3	13.5	Item is in stock1 in stock	NZ$112.51	Wishlist
T4582223	BSW 7/8-9	118	38	-	16	12.5	16	4	19.25	Item is in stock1 in stock	NZ$190.06	Wishlist

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
P	7	Steel - Low alloy & cast < 5% of alloying elements	Quenched & Tempered	275HB	930MPa
P	12	Steel - Corrosion resistant & cast - Ferritic / Martensitic	Annealed	200HB	680MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180HB	610MPa
M	14.2	Stainless Steel - Duplex		250HB	840MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
K	19	Cast Iron, Malleable - Ferritic		130HB	460MPa
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials

Designation: N

Material: HSSE

Finish: Blu

Max Cut Depth: 3xD

Shank Form: A

Standard: ISO529

Thread Form: Whitworth

Thread Tolerance Class: null

Lead: Form B

Product: TAP T458 BSW 5/32-32 Z3 GUN ISO529 Inter HSSE BLU
