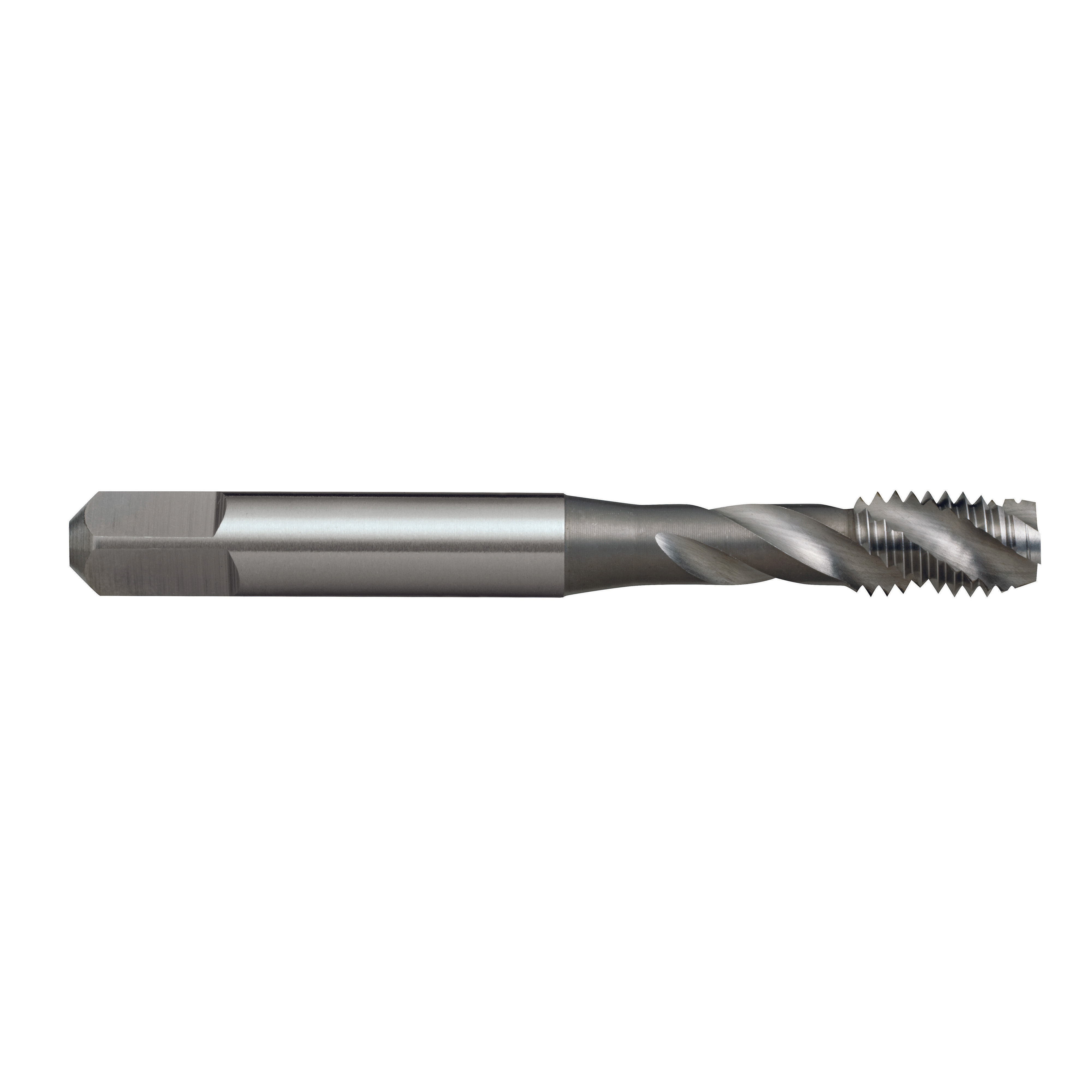

3/16-24 BSW Bottoming Spiral Tap T460 Z3 ISO529 HSSE

SKU#:

T4600476

Item is in stock

8 in stock

NZ$44.58

QTY

Enter a value between 1 and 99999 in increments of 1.

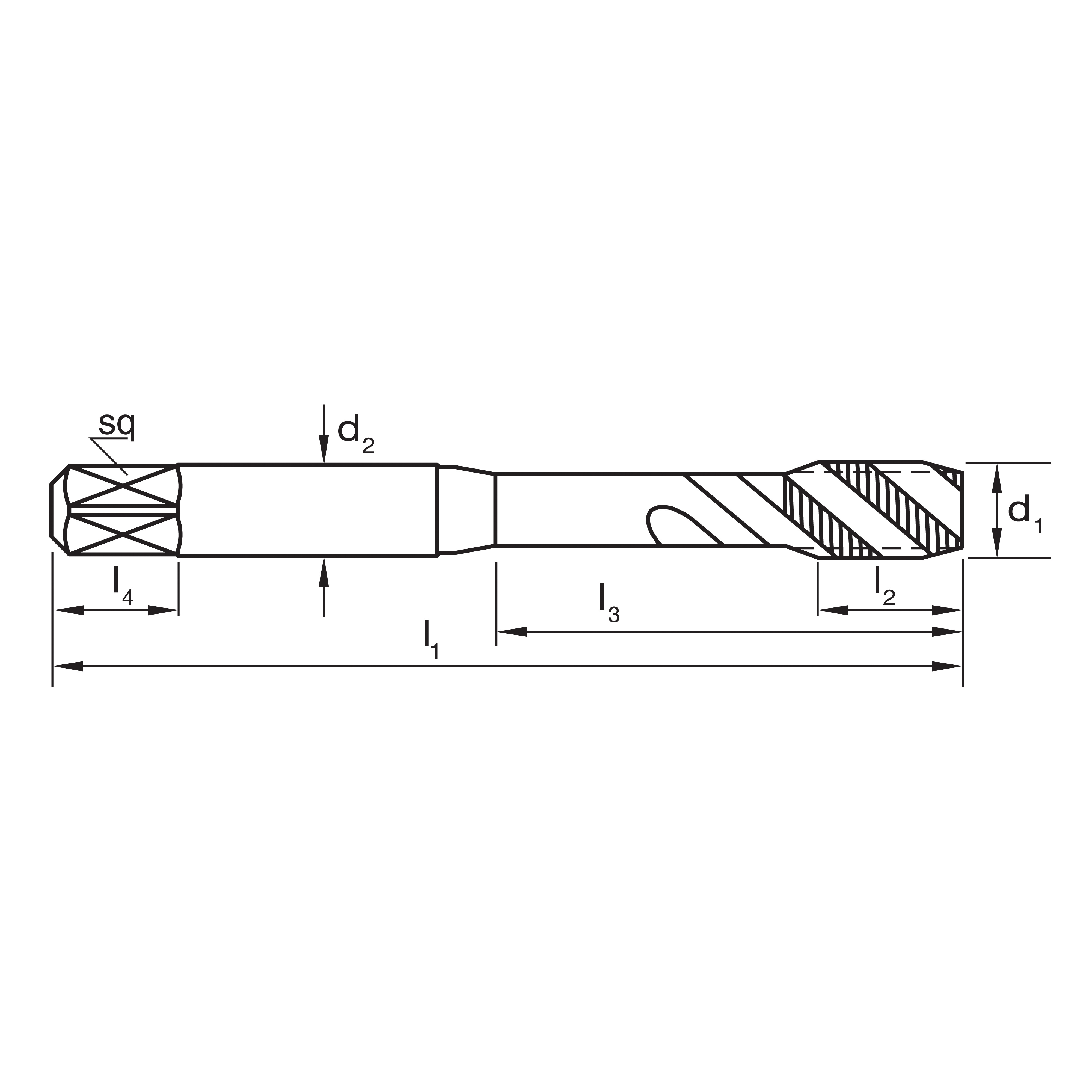

Item #	Size	Length l1 (mm)	Length l2 (mm)	Length l3 (mm)	Diameter d2 (mm)	sq	Length l4 (mm)	z	Drill Ø	Stock	Price	Action
T4600318	BSW 1/8-40	48	6	15	3.15	2.5	5	3	2.55	Item is in backorderItem is in backorder	NZ$43.48	Wishlist
T4600397	BSW 5/32-32	53	7	17	4	3.15	6	3	3.2	Item is in stock3 in stock	NZ$45.03	Wishlist
T4600476	BSW 3/16-24	58	11	22	5	4	7	3	3.7	Item is in stock8 in stock	NZ$44.58	Wishlist
T4600635	BSW 1/4-20	66	10	25	6.3	5	8	3	5.1	Item is in backorderItem is in backorder	NZ$36.93	Wishlist
T4600794	BSW 5/16-18	72	13	30	8	6.3	9	3	6.5	Item is in stock6 in stock	NZ$40.00	Wishlist
T4600953	BSW 3/8-16	80	16	33	10	8	11	3	7.9	Item is in backorderItem is in backorder	NZ$55.43	Wishlist
T4601270	BSW 1/2-12	89	20	-	9	7.1	10	3	10.5	Item is in backorderItem is in backorder	NZ$90.12	Wishlist
T4601588	BSW 5/8-11	102	20	-	12.5	10	13	3	13.5	Item is in backorderItem is in backorder	NZ$141.12	Wishlist
T4601905	BSW 3/4-10	112	25	-	14	11.2	14	4	16.25	Item is in backorderItem is in backorder	NZ$137.74	Wishlist
T4602540	BSW 1-8	130	35	-	18	14	18	4	22	Item is in stock1 in stock	NZ$169.54	Wishlist

ISO	VDI	Description	Condition	Hardness	Strength
P	1	Steel - Non-alloy, cast & free cutting (~ 0.15 %C)	Annealed	125HB	440MPa
P	2	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Annealed	190HB	640MPa
P	3	Steel - Non-alloy, cast & free cutting (~ 0.45 %C)	Quenched & Tempered	250HB	840MPa
P	4	Steel - Non-alloy, cast & free cutting (~ 0.75 %C)	Annealed	270HB	910MPa
P	6	Steel - Low alloy & cast < 5% of alloying elements	Annealed	180HB	610MPa
M	14.1	Stainless Steel - Austenitic	Age Hardened	180HB	610MPa
M	14.2	Stainless Steel - Duplex		250HB	840MPa
K	17	Cast Iron, Nodular (GGG) - Ferritic		160HB	570MPa
K	18	Cast Iron, Nodular (GGG) - Pearlitic		250HB	840MPa
N	21	Aluminum & Magnesium, wrought alloy - Non Heat Treatable		60HB	210MPa
N	22	Aluminum & Magnesium, wrought alloy - Heat Treatable	Age Hardened	100HB	360MPa
N	23	Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable		75HB	270MPa
N	24	Aluminum & Magnesium, cast alloy ?12% Si - Heat Treatable	Age Hardened	90HB	320MPa
N	26	Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%		110HB	390MPa
N	27	Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)		90HB	320MPa
N	28	Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)		100HB	360MPa
H	40	Cast Iron - Chilled	Cast	400HB	1350MPa

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials

Designation: N

Material: HSSE

Finish: Brt

Max Cut Depth: 2.5xD

Shank Form: A

Helix Angle: R40

Standard: ISO529

Thread Form: Whitworth

Thread Tolerance Class: null

Lead: Form C
