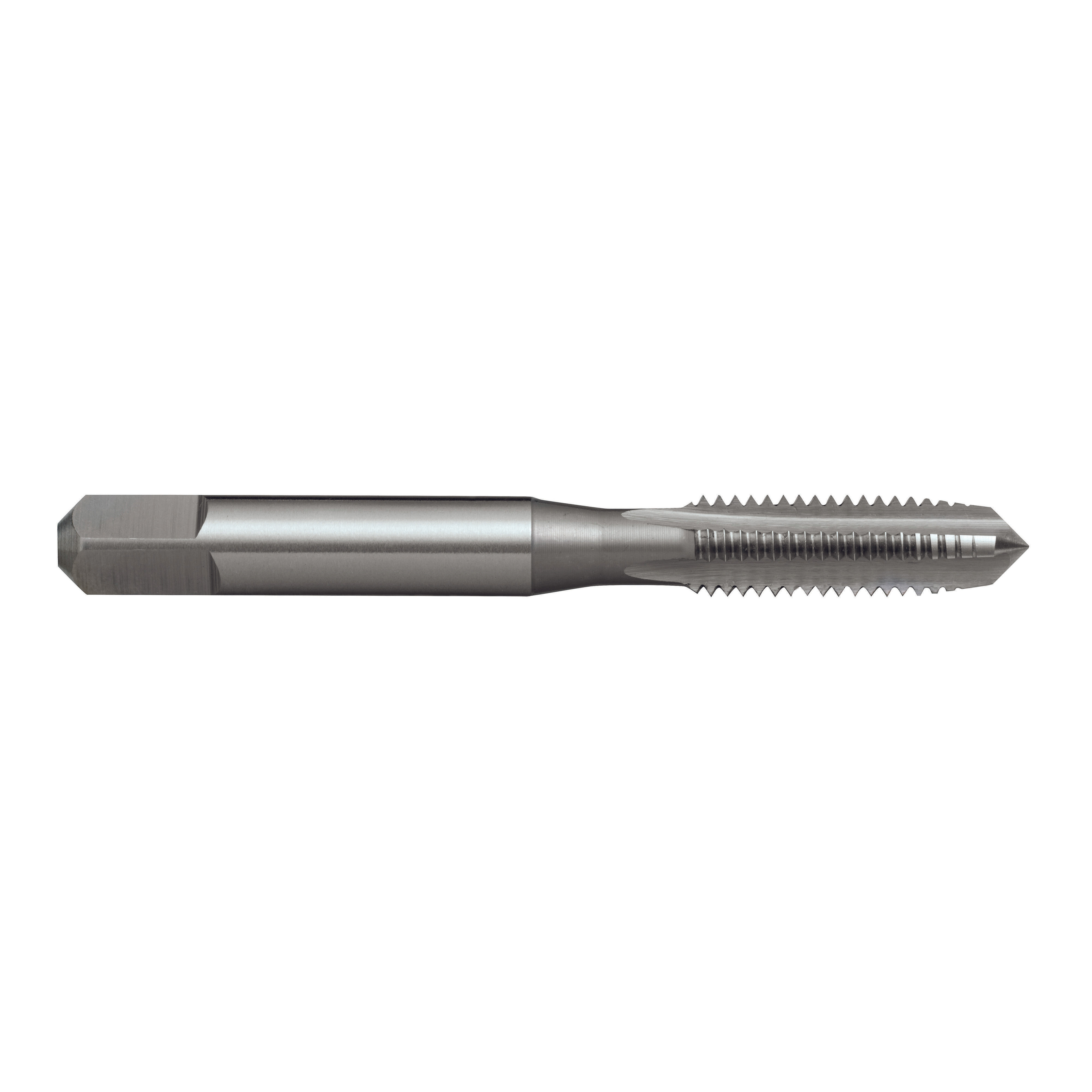

8 BA Intermediate Tap Straight Flute T470 Z3 ISO529 HSS

SKU#:

T4700220
Item is in backorderItem is in backorder
NZ$42.71

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

-

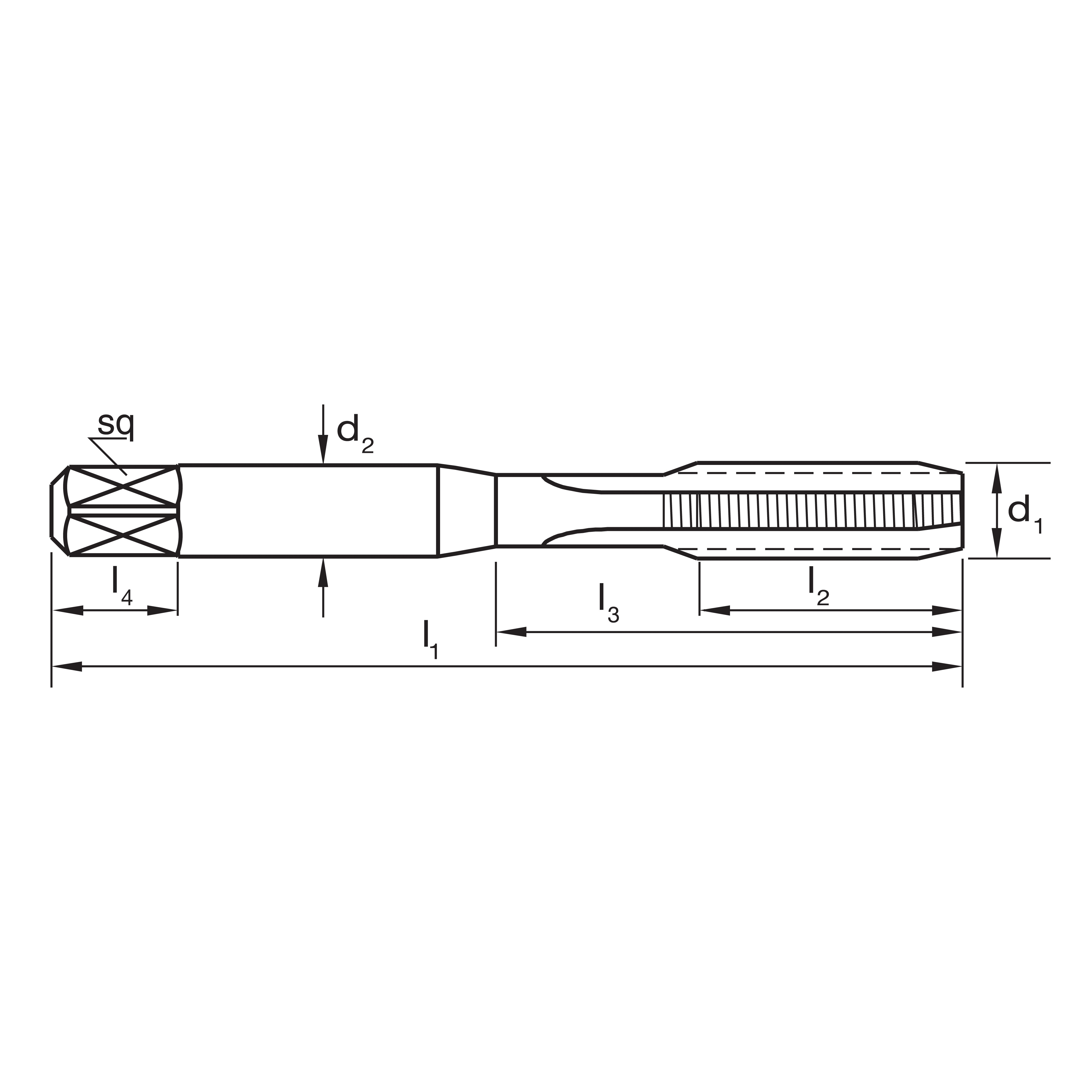

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T4700170BA 10x0.35418-2.502431.4
Item is in stock1 in stock
NZ$82.21
T4700190BA 9-0.39418-2.52431.55
Item is in backorderItem is in backorder
NZ$78.09
T4700220BA 8x0.434510-2.802.24531.8
Item is in backorderItem is in backorder
NZ$42.71
T4700250BA 7-0.484510-2.82.24532.05
Item is in backorderItem is in backorder
NZ$44.44
T4700280BA 6-0.534815-3.152.5532.3
Item is in stock5 in stock
NZ$29.15
T4700320BA 5-0.594815-3.152.5532.65
Item is in stock1 in stock
NZ$26.92
T4700360BA 4x0.665017-3.552.8533
Item is in stock3 in stock
NZ$25.89
T4700410BA 3-0.735313184.53.55633.4
Item is in backorderItem is in backorder
NZ$28.83
T4700470BA 2-0.8158162254734
Item is in stock3 in stock
NZ$25.89
T4700530BA 1x0.96217235.604.5734.5
Item is in stock1 in stock
NZ$29.15
T4700600BA 0x16619266.305835.1
Item is in backorderItem is in backorder
NZ$27.82

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Lead: Intermediate
Thread Tolerance Class: null
High Resolution Image
Low Resolution Image
Product: TAP T470 BA 8 Z3 STRAIGHT ISO529 Inter HSS
