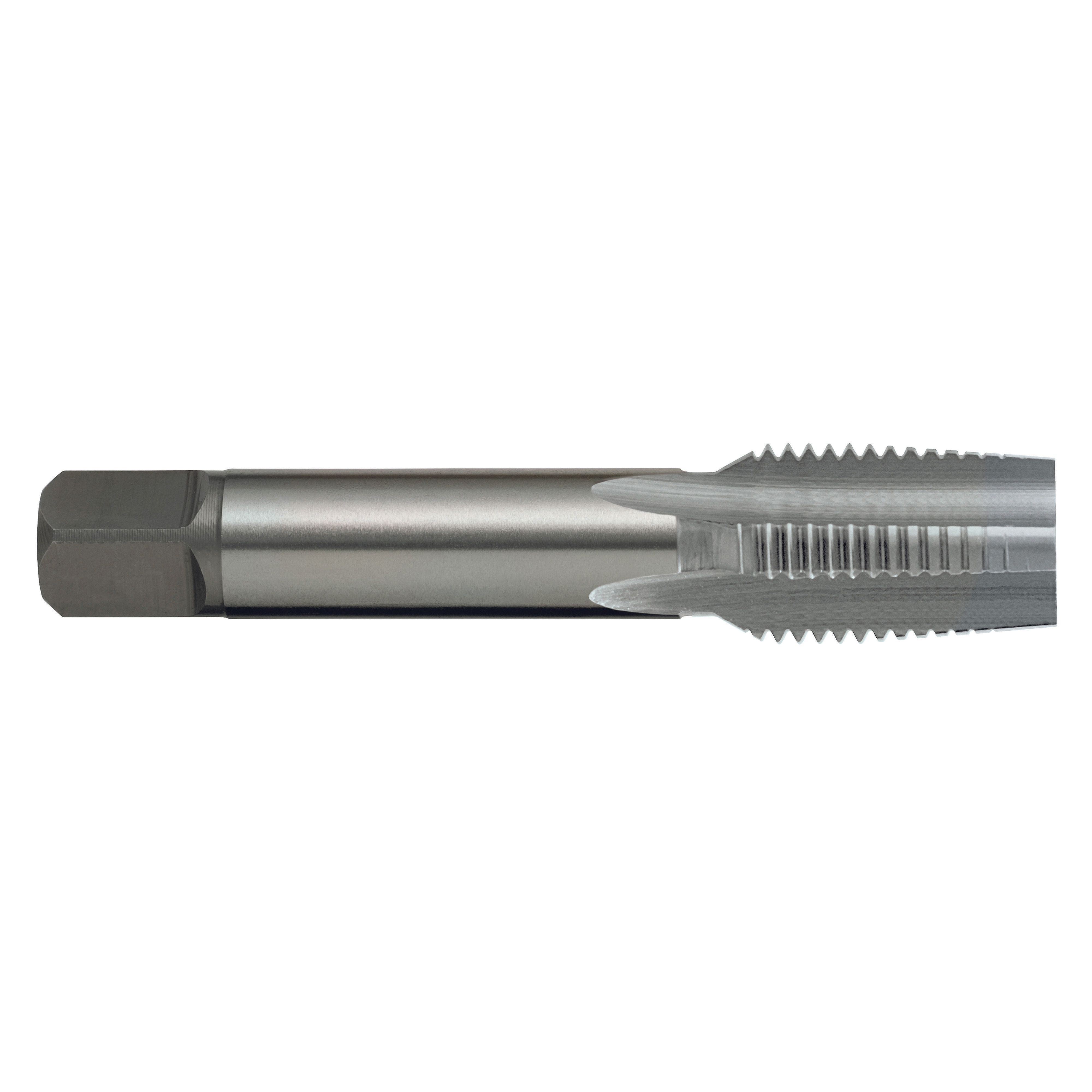

1/8-28 G Taper Tap Straight Flute T479 Z3 (BSPF) ISO2284 HSS

SKU#:

T4790973
Item is in stock20 in stock
NZ$40.99

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

-

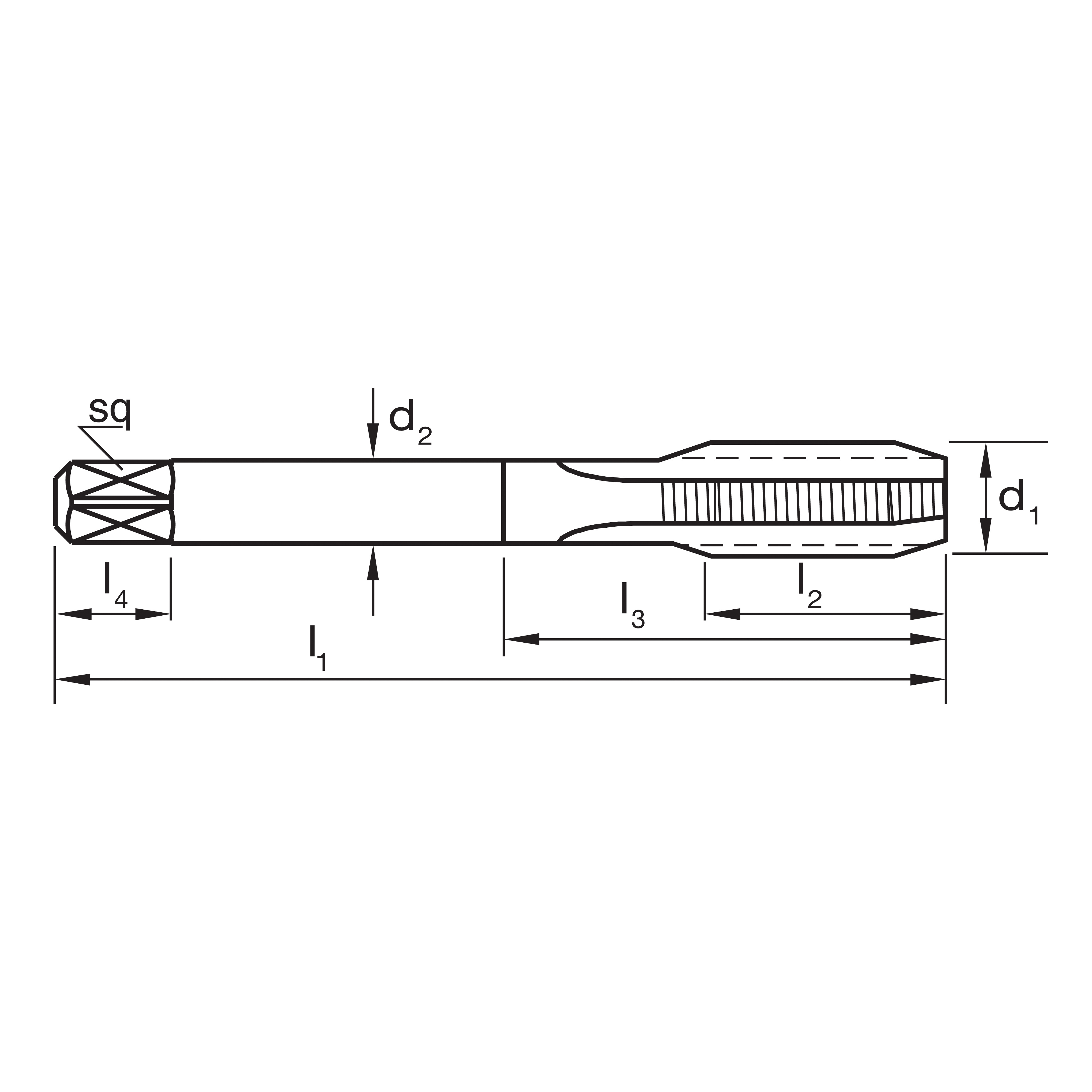

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T4790973G (BSPF) 1/8-285915-86.3948.8
Item is in stock20 in stock
NZ$40.99
T4791316G (BSPF) 1/4-196719-10811411.8
Item is in stock29 in stock
NZ$58.03
T4791666G (BSPF) 3/8-197521-12.51013415.3
Item is in stock7 in stock
NZ$80.46
T4792096G (BSPF) 1/2-148726-1612.516419
Item is in stock14 in stock
NZ$110.82
T4792291G (BSPF) 5/8-149126-181418421
Item is in backorderItem is in backorder
NZ$145.09
T4792644G (BSPF) 3/4-149628-201620424.5
Item is in stock9 in stock
NZ$145.34
T4793325G (BSPF) 1-1110933-252024431
Item is in stock2 in stock
NZ$211.85
T4794780G (BSPF) 1-1/2-1112537-35.52831445.5
Item is in backorderItem is in backorder
NZ$471.96

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO2284
Thread Form: Whitworth
Thread Tolerance Class: null
Lead: Taper
High Resolution Image
Low Resolution Image
Product: TAP T479 G 1/8-28 Z3 (BSPF) STRAIGHT ISO2284 Taper HSS
