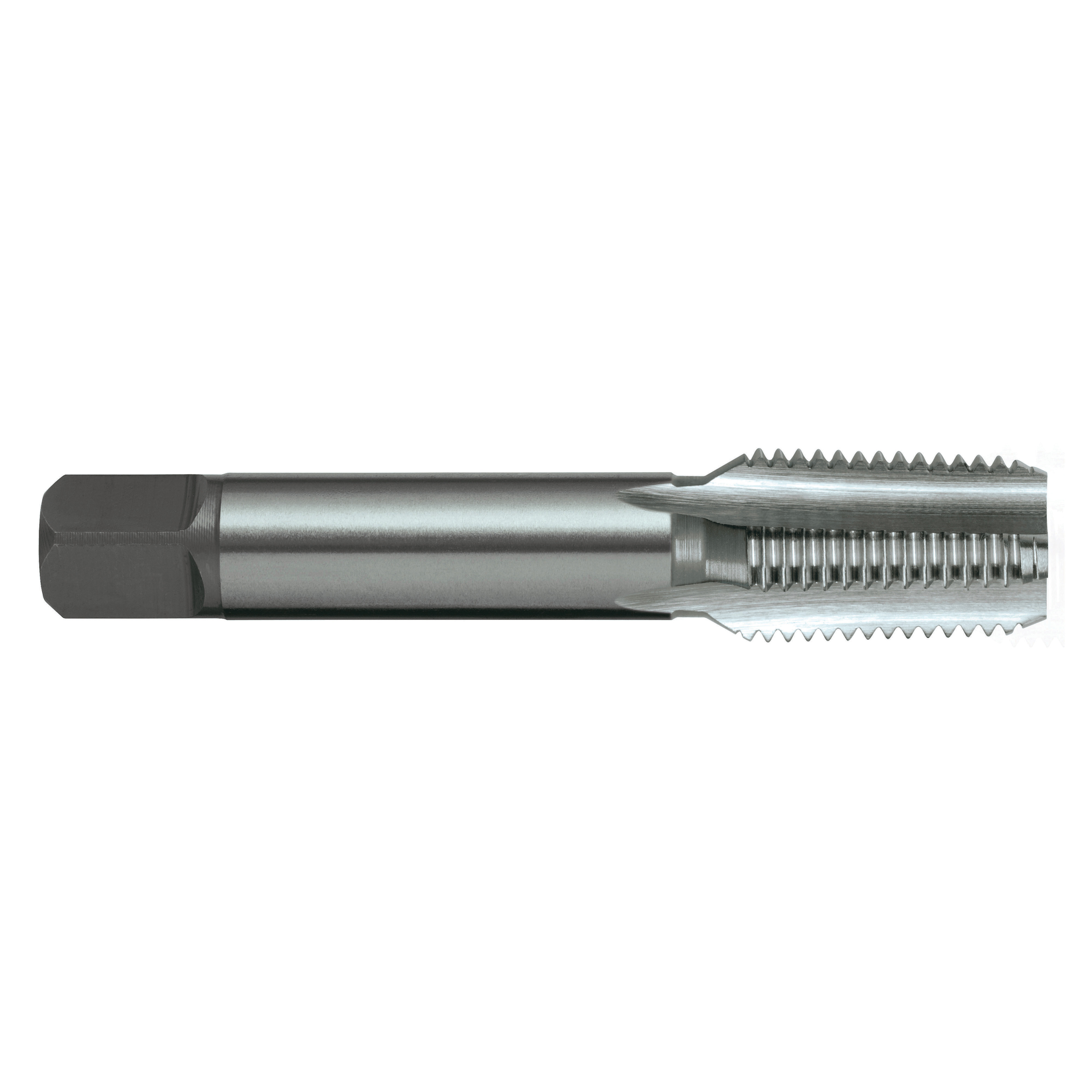

1-11 G Bottoming Tap Straight Flute T481 Z3 (BSPF) ISO2284 HSS

SKU#:

T4813325
Item is in stock2 in stock
NZ$222.44

Minimum Quantity is 1 • Sold in increments of 1

Enter a value between 1 and 99999 in increments of 1.

-

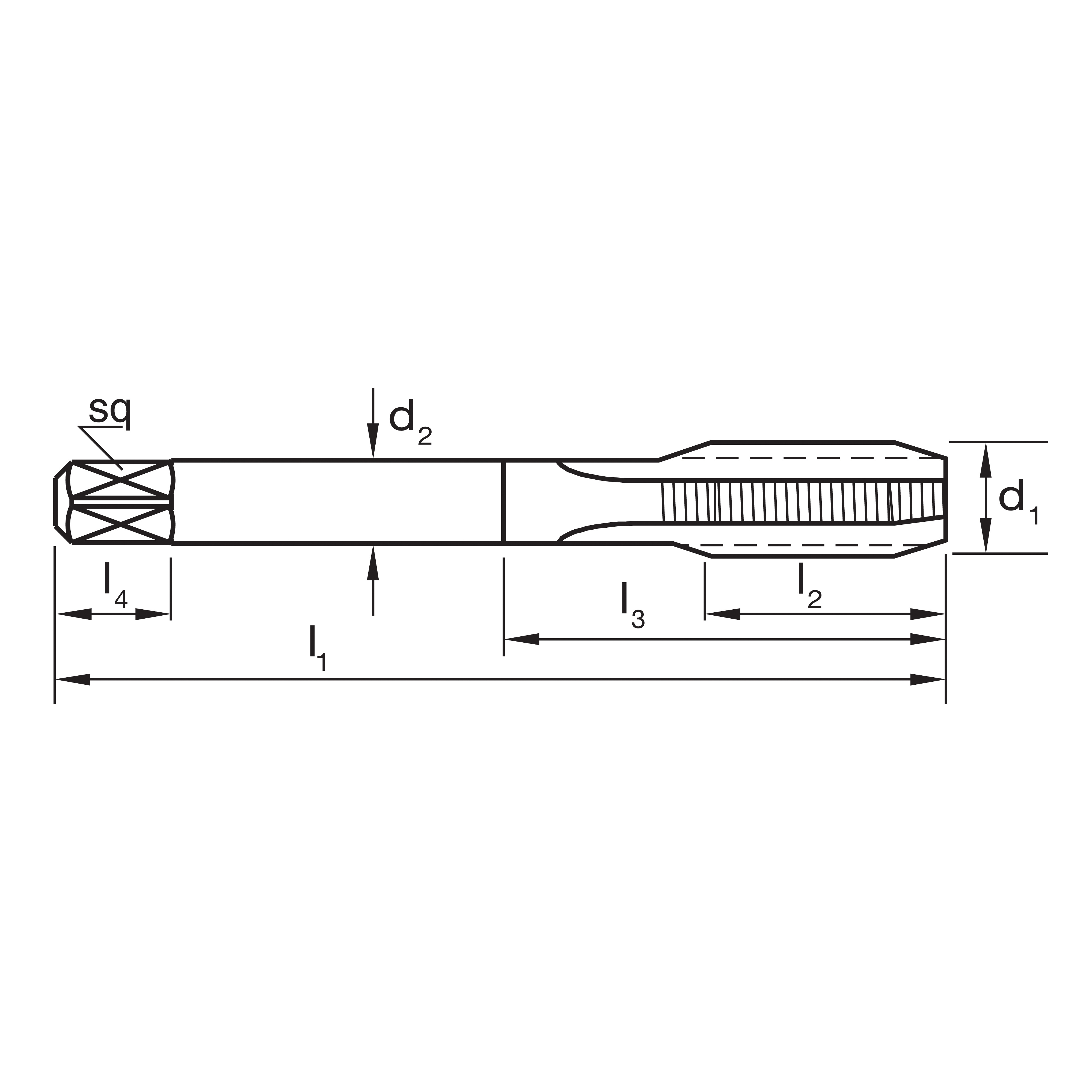

Item #SizeLength l1 (mm)Length l2 (mm)Length l3 (mm)Diameter d2 (mm)sqLength l4 (mm)zDrill ØQtyStockPriceAction
T4810973G (BSPF) 1/8-285915-86.3948.8
Item is in stock10 in stock
NZ$40.99
T4811316G (BSPF) 1/4-196719-10811411.8
Item is in stock6 in stock
NZ$58.03
T4811666G (BSPF) 3/8-197521-12.51013415.3
Item is in stock16 in stock
NZ$84.48
T4812096G (BSPF) 1/2-148726-1612.516419
Item is in stock3 in stock
NZ$114.21
T4812291G (BSPF) 5/8-149126-181418421
Item is in stock1 in stock
NZ$143.65
T4812644G (BSPF) 3/4-149628-201620424.5
Item is in backorderItem is in backorder
NZ$155.80
T4813020G (BSPF) 7/8-1410229-22.41822428.5
Item is in backorderItem is in backorder
NZ$236.44
T4813325G (BSPF) 1-1110933-252024431
Item is in stock2 in stock
NZ$222.44
T4814191G (BSPF) 1-1/4-1111936-31.52528439.5
Item is in backorderItem is in backorder
NZ$356.54

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
ISOVDIDescriptionConditionHardnessStrengthOptimal
P1Steel - Non-alloy, cast & free cutting (~ 0.15 %C)Annealed125HB440MPa
P2Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Annealed190HB640MPa
P3Steel - Non-alloy, cast & free cutting (~ 0.45 %C)Quenched & Tempered250HB840MPa
P4Steel - Non-alloy, cast & free cutting (~ 0.75 %C)Annealed270HB910MPa
P6Steel - Low alloy & cast < 5% of alloying elementsAnnealed180HB610MPa
P7Steel - Low alloy & cast < 5% of alloying elementsQuenched & Tempered275HB930MPa
K15Cast Iron, Grey (GG) - Ferritic / Pearlitic180HB610MPa
K17Cast Iron, Nodular (GGG) - Ferritic160HB570MPa
K19Cast Iron, Malleable - Ferritic130HB460MPa
N21Aluminum & Magnesium, wrought alloy - Non Heat Treatable60HB210MPa
N22Aluminum & Magnesium, wrought alloy - Heat TreatableAge Hardened100HB360MPa
N23Aluminum & Magnesium, cast alloy ?12% Si - Non Heat Treatable75HB270MPa
N24Aluminum & Magnesium, cast alloy ?12% Si - Heat TreatableAge Hardened90HB320MPa
N26Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%110HB390MPa
N28Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)100HB360MPa

KEY

OptimalEffectivePSteelMStainlessKCast IronNNon-Ferous MetalsSTitanium & Super AlloysHHard Materials
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO2284
Thread Form: Whitworth
Thread Tolerance Class: null
Lead: Bottoming
High Resolution Image
Low Resolution Image
Product: TAP T481 G 1-11 Z3 (BSPF) STRAIGHT ISO2284 Bott HSS
